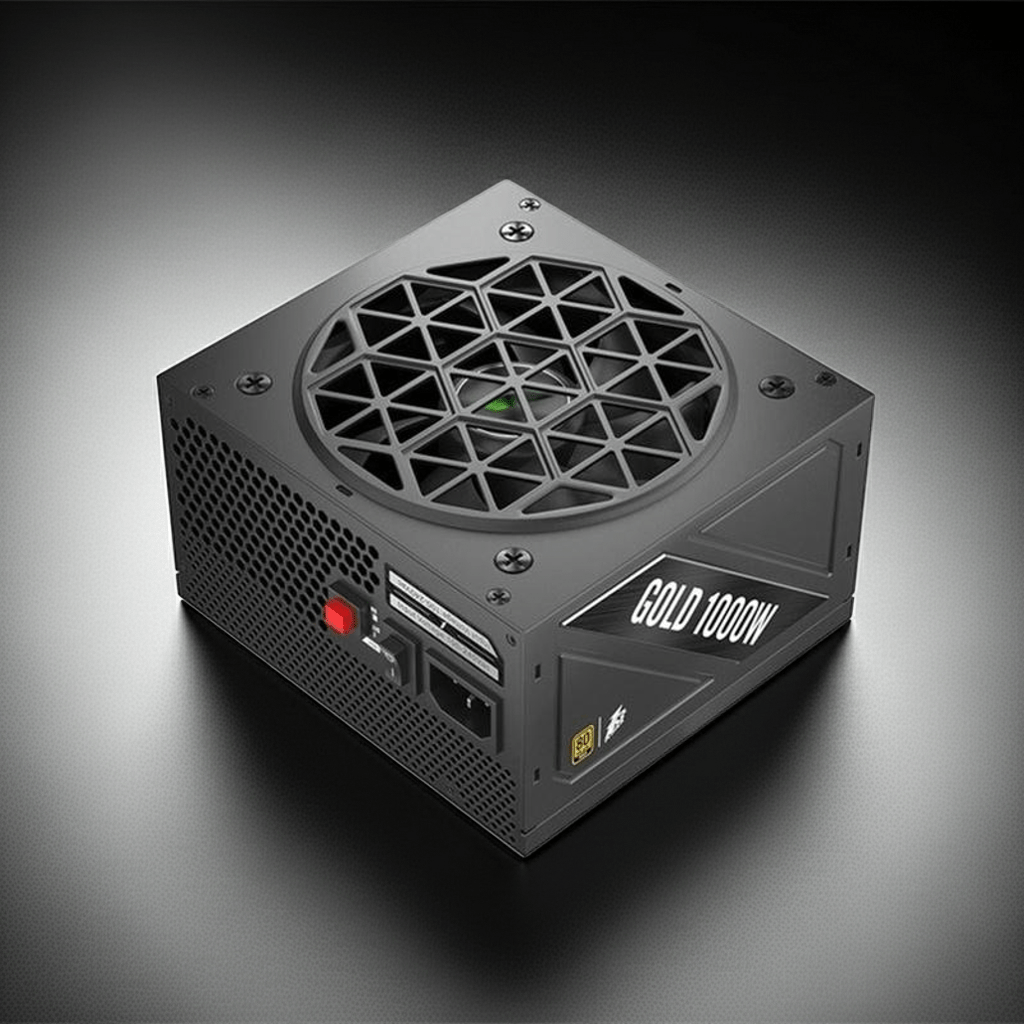

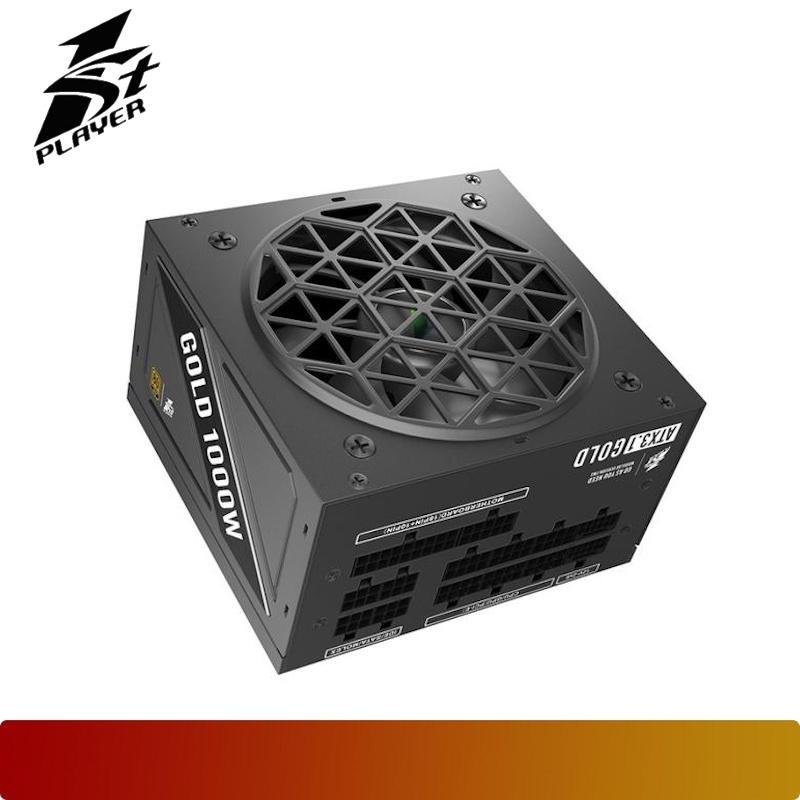

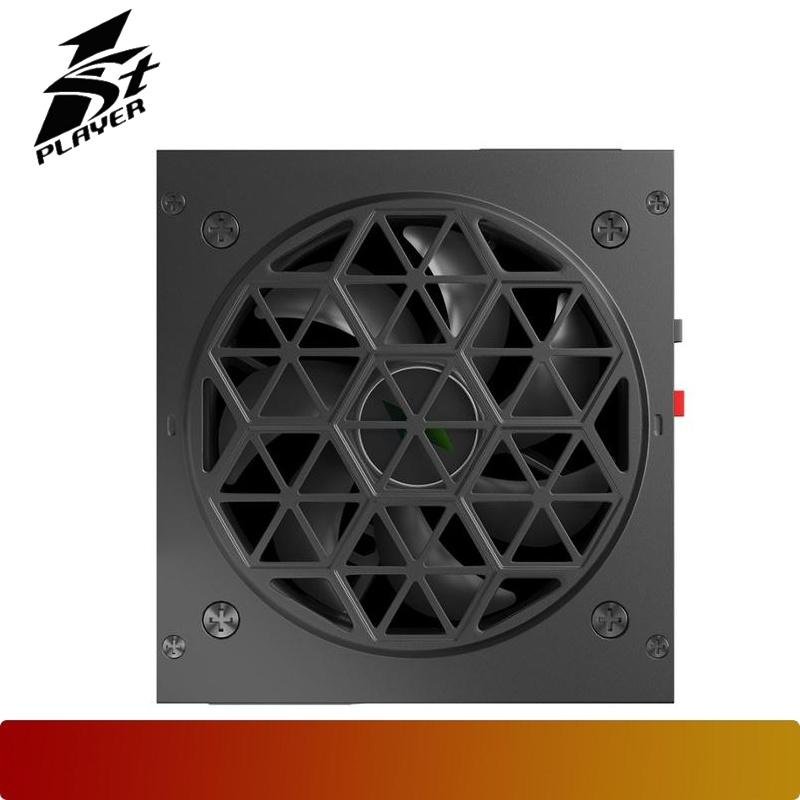

1STPLAYER NGDP 1000W ATX 3.1 GOLD
Rp 2.199.000
Also available at:
Product description
| MODEL | HA-1000BA4 |
| POWER OUTPUT | 1000 W |
| INPUT VOLTAGE | 100 - 240 V~ |
| INPUT CURRENT | 12 - 6 A |
| INPUT FREQUENCY | 50 / 60 Hz |
| EFFICIENCY | 91.14% at typical load |
| DIMENSIONS (L x W x H) | 140 x 150 x 86 mm |
| MODULAR | Full-modular |
| CERTIFICATIONS | 80 PLUS Gold |
| PFC | Active PFC |
| FAN SIZE | 120 mm FDB |
| PROTECTIONS | UVP, OVP, OPP, SCP, OCP, OTP |
| REGULATORY | CE / FCC / C-Tik / RoHS / CCC / cTUVus / IEC / EAC |
| MTBF | 100,000 hours |
| CIRCUIT STRUCTURE | LLC + DC - DC |
| WARRANTY | 10 years |
DC Output Load Specification
| DC OUTPUT (V) | MAX LOAD (A) | MAX OUTPUT (W) |
|---|---|---|
| +3.3V | 20A | 120W |
| +5V | 20A | 120W |
| +12V | 83A | 996W |
| +5Vsb | 3A | 15W |
| -12V | 0.3A | 3.6W |
