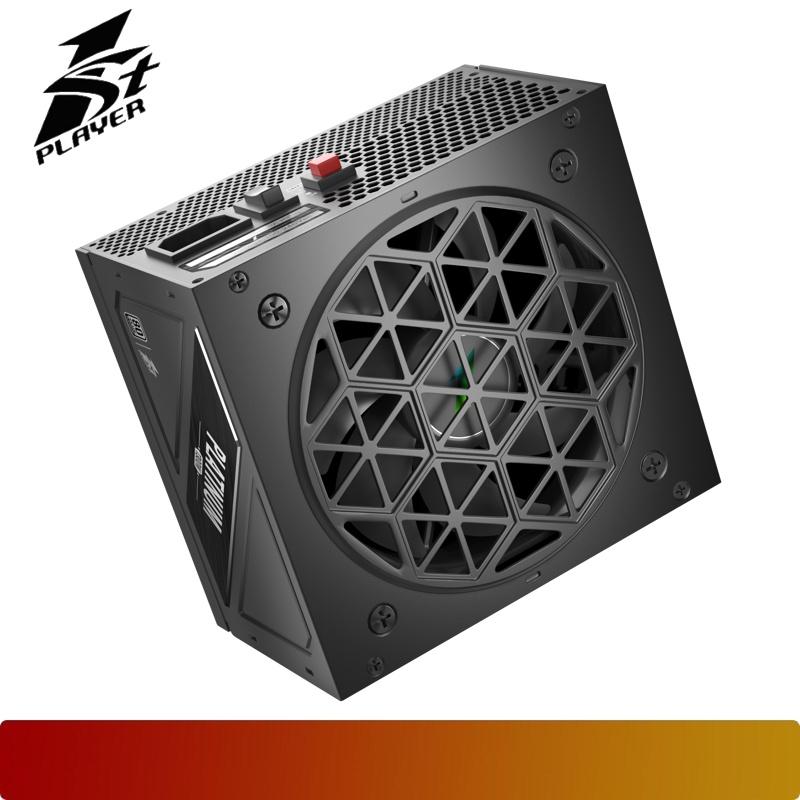

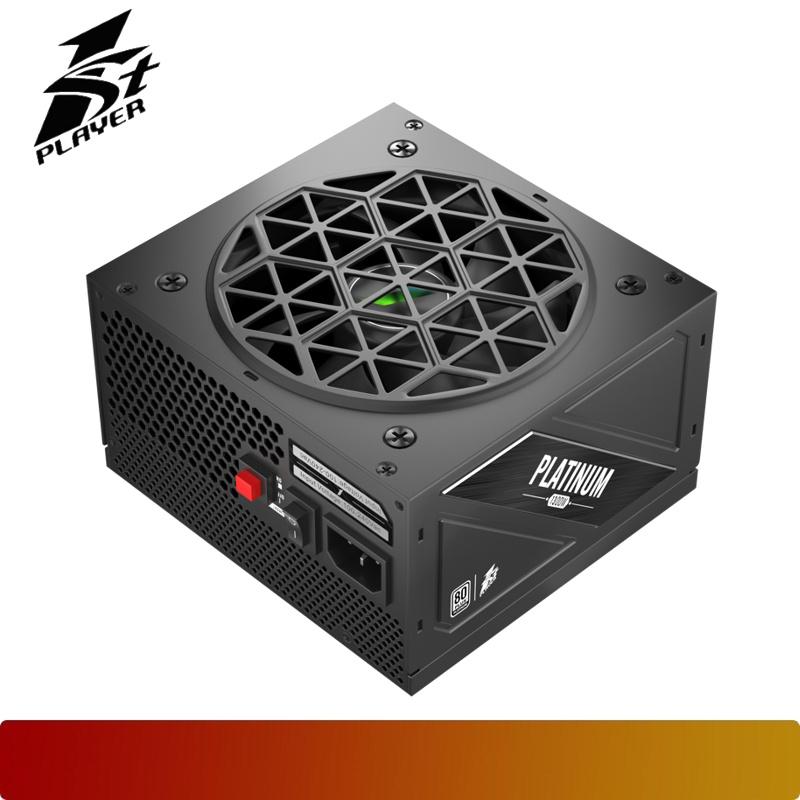

1STPLAYER NGDP 1300W ATX 3.1 Platinum
Rp 3.189.000
Also available at:
Product description
| MODEL | HA-1300BA3 |
| POWER OUTPUT | 1300 W |
| INPUT VOLTAGE | 100 - 240V |
| INPUT CURRENT | 15 - 7.5 A |
| INPUT FREQUENCY | 50/60 Hz |
| EFFICIENCY | 93.15% at typical load |
| DIMENSIONS (L x W x H) | 140 x 150 x 86 mm |
| MODULAR | Full-modular |
| CERTIFICATIONS | 80 PLUS Platinum |
| PFC | Active PFC |
| FAN SIZE | 120 mm FDB |
| PROTECTIONS | UVP, OVP, OPP, SCP, OCP, OTP |
| REGULATORY | CE/FCC/C-Tik/RoHS/CCC/cTUVus/IEC/EAC |
| MTBF | 100,000 hours |
| CIRCUIT STRUCTURE | LLC + DC - DC |
| WARRANTY | 10 years |
| DC OUTPUT | MAX LOAD (A) | MAX OUTPUT (W) |
|---|---|---|
| +3.3V | 20 | 120 |
| +5V | 20 | 120 |
| +12V | 108 | 1296 |
| +5Vsb | 3 | 15 |
| -12V | 0.3 | 3.6 |
| CONNECTORS | TOTAL LENGTH | QUANTITY |
|---|---|---|
| ATX Cable 24-pin (MB) | 610 mm | 1 |
| ATX12V Cable 8-pin (CPU 4+4) | 650 mm | 2 |
| PCI-E Cable 12V-2x6 (GPU 12+4) | 720 mm | 1 |
| PCI-E Cable 8-pin (GPU 6+2) | 600 mm | 4 |
| SATA Cable (SSD/HDD) | 465 mm | 3 |
| MOLEX Cable (4 PATA) | 465 mm | 1 |
