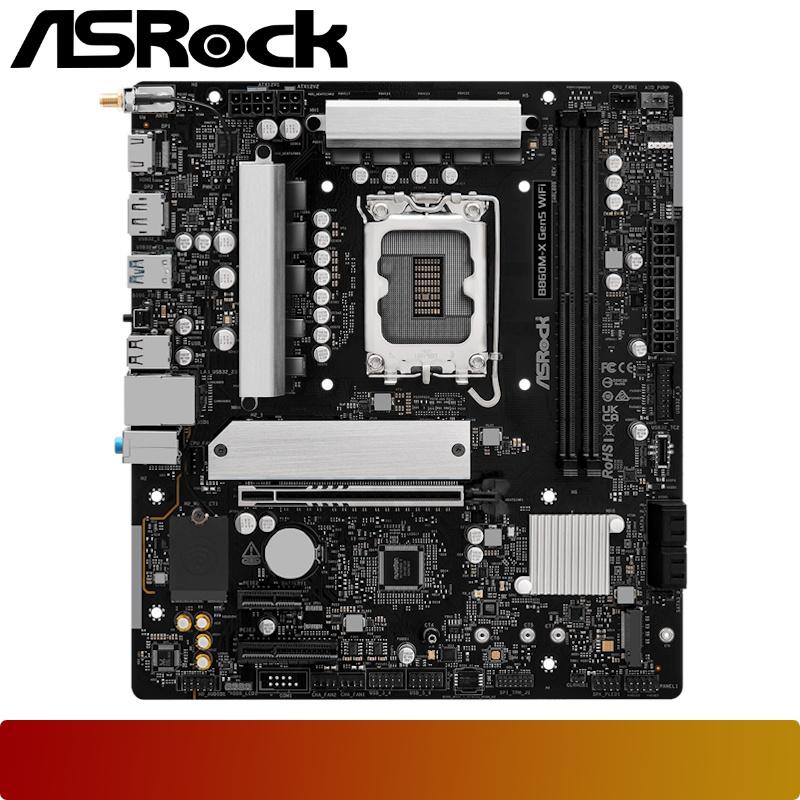

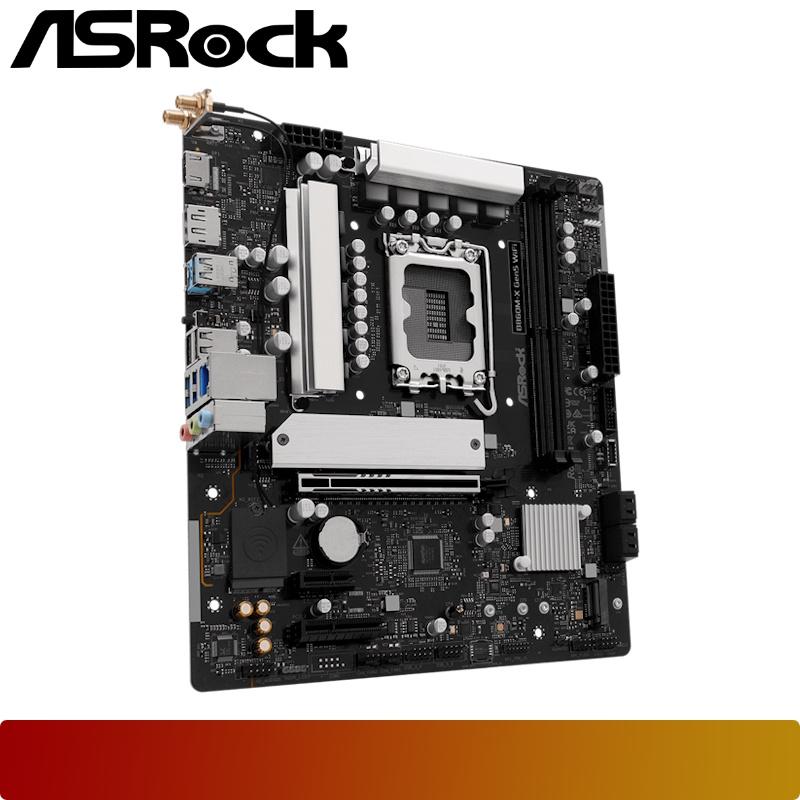

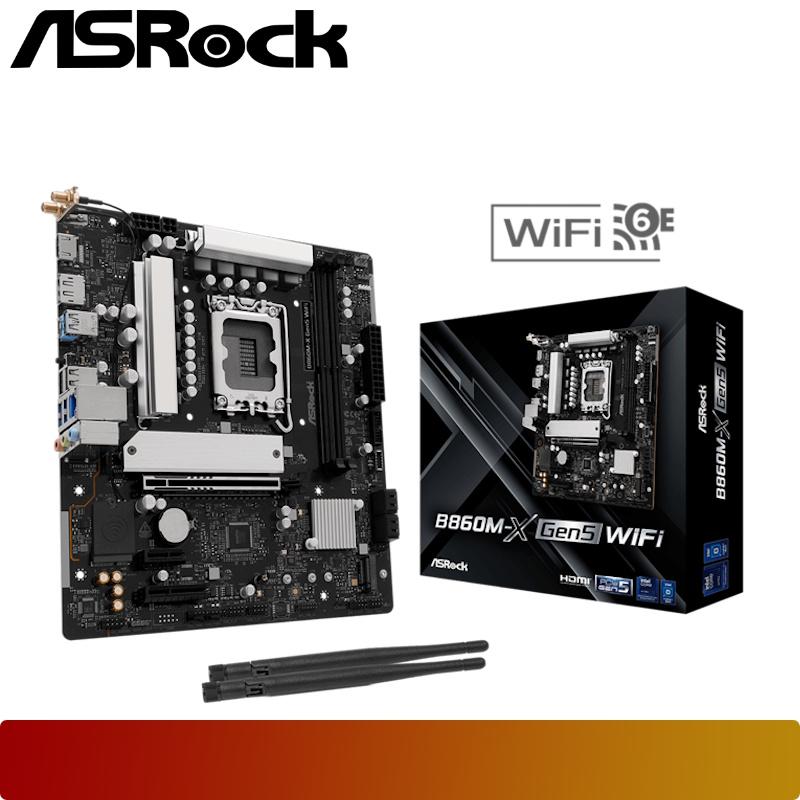

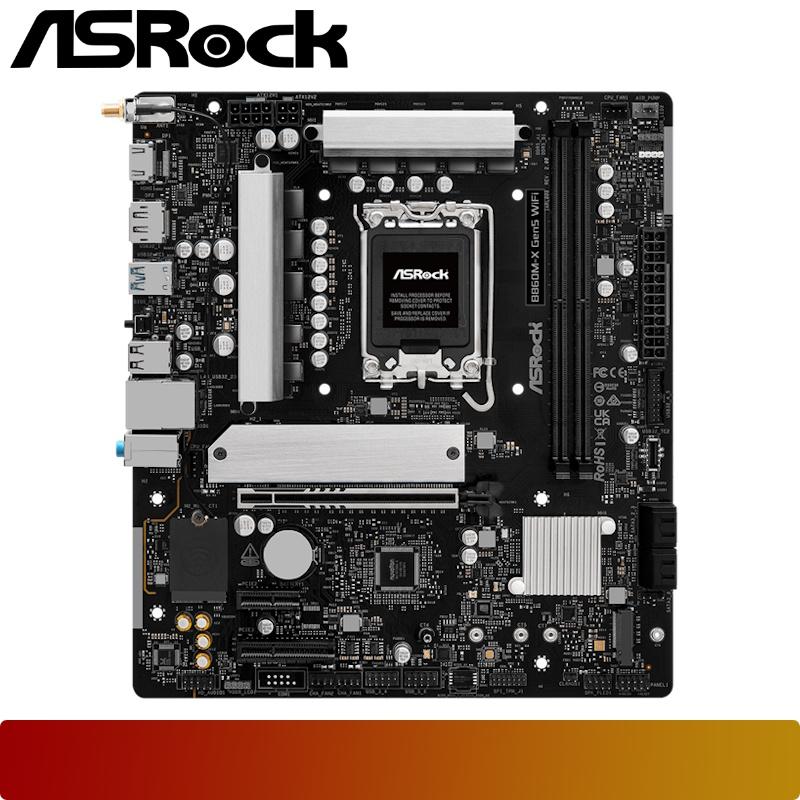

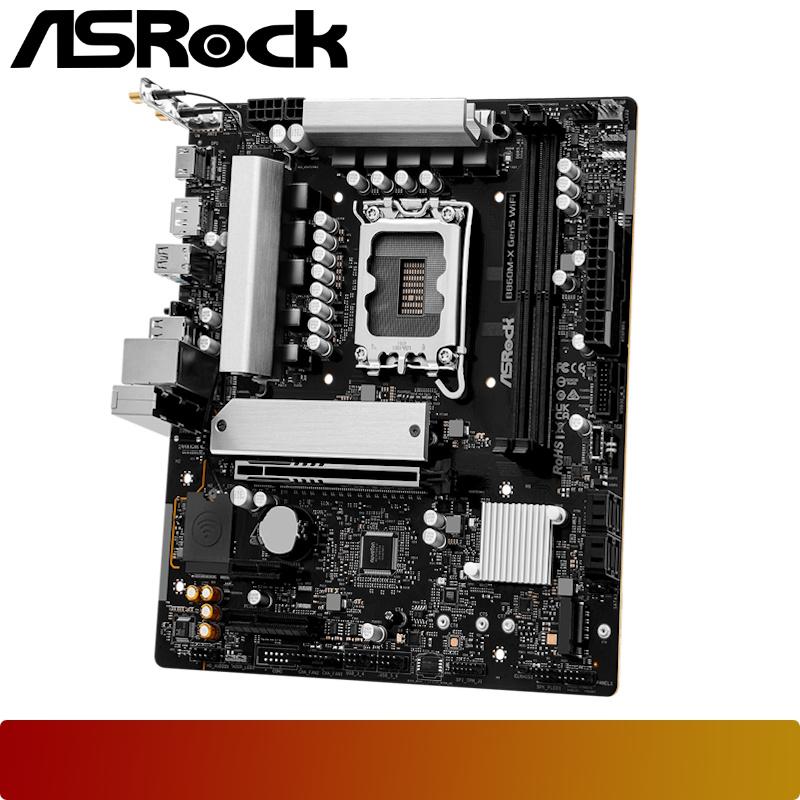

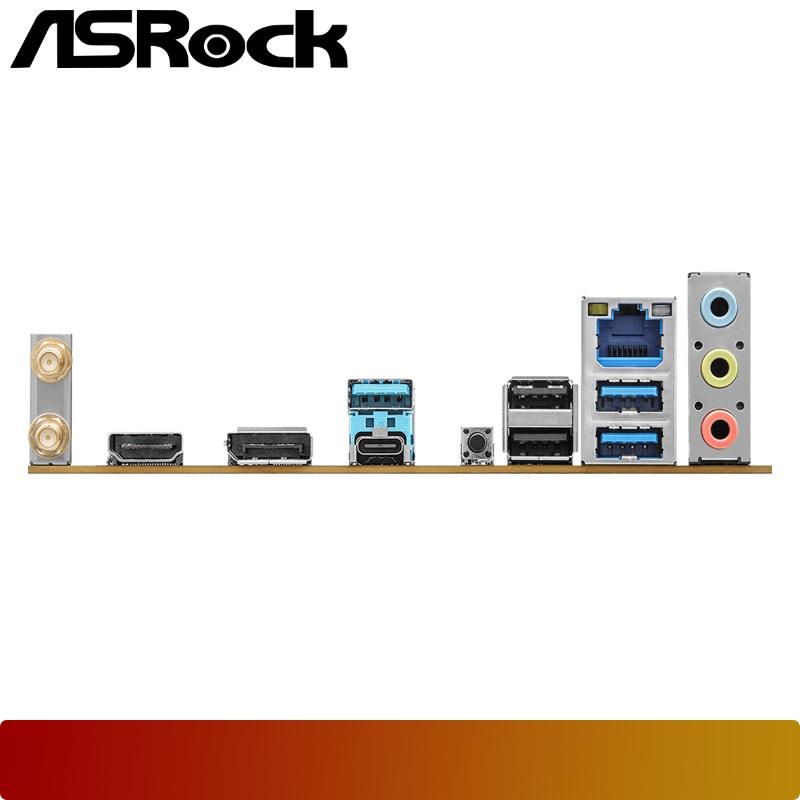

ASROCK B860M-X Gen5 WiFi
Rp 2.449.000
Also available at:
Product description
| Model | - ASROCK B860M-X Gen5 WiFi |
| Form Factor | - Micro ATX Form Factor : 9.6-in x 8.8-in, 24.4 cm x 22.4 cm |
| CPU | - Supports Intel Core Ultra Processors (Series 2) LGA1851 - Supports Intel Turbo Boost Max Technology 3.0 - 6+1+1 Power Phase, Dr.MOS |
| Chipset | - Intel B860 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports Max. Capacity up to 128GB - Supports Intel Extreme Memory Profile (XMP) |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel Xe Graphics Architecture (Gen 13) - 1 x HDMI 2.1 TMDS Compatible, max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC, max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
| Wireless LAN | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support - Bluetooth 5.3 |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 4.0 x1 Slot (PCIE2) - 1 x M.2 Slot (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | - 1 x Hyper M.2 Slot (M2_1, Key M), supports type 2280 PCIe Gen4x4 mode - 1 x Hyper M.2 Slot (M2_2, Key M), supports type 2280 PCIe Gen4x4 mode - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Connector | - 1 x SPI TPM Header - 1 |
