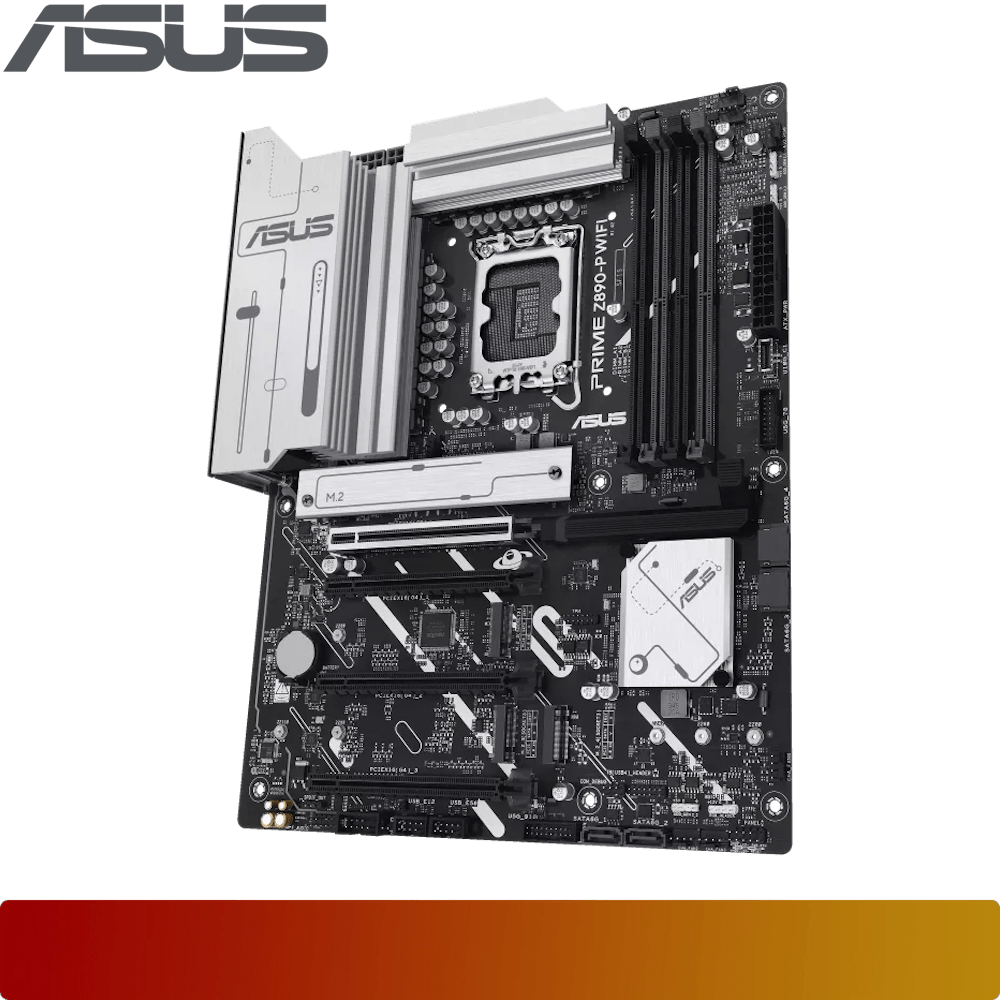

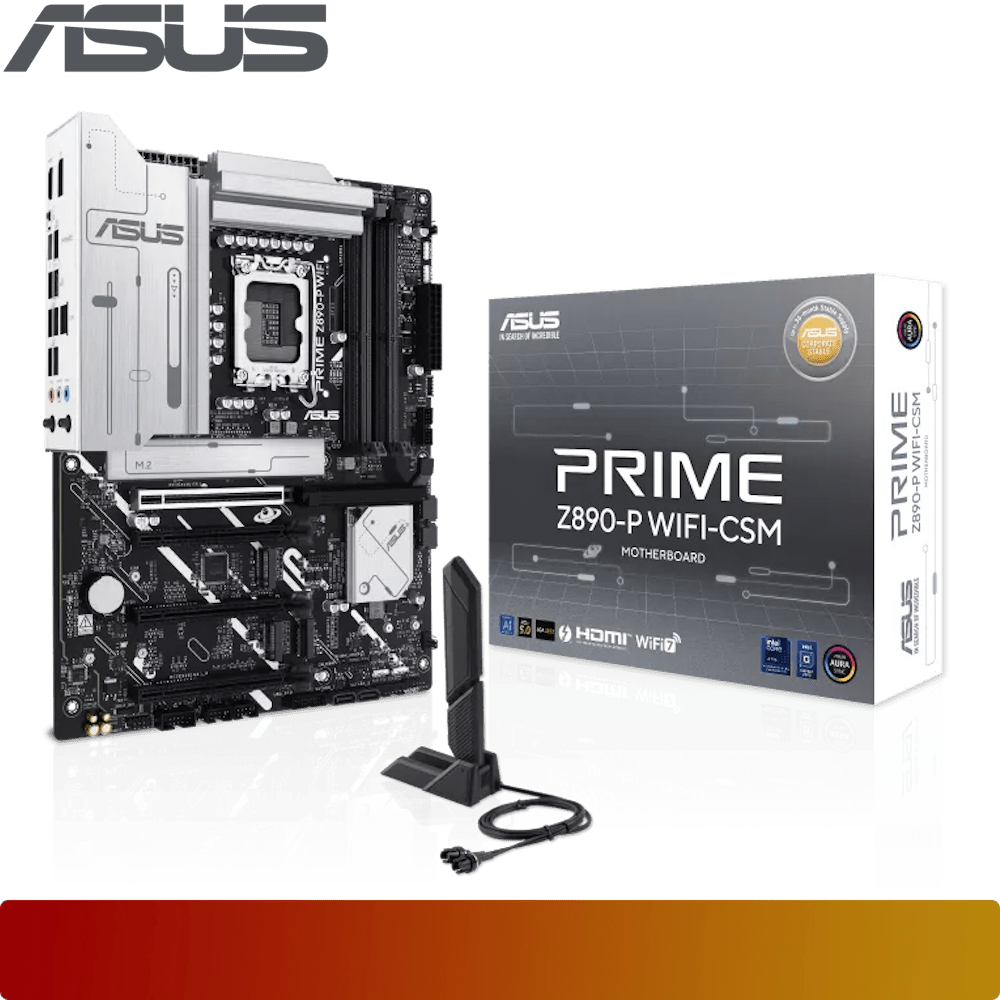

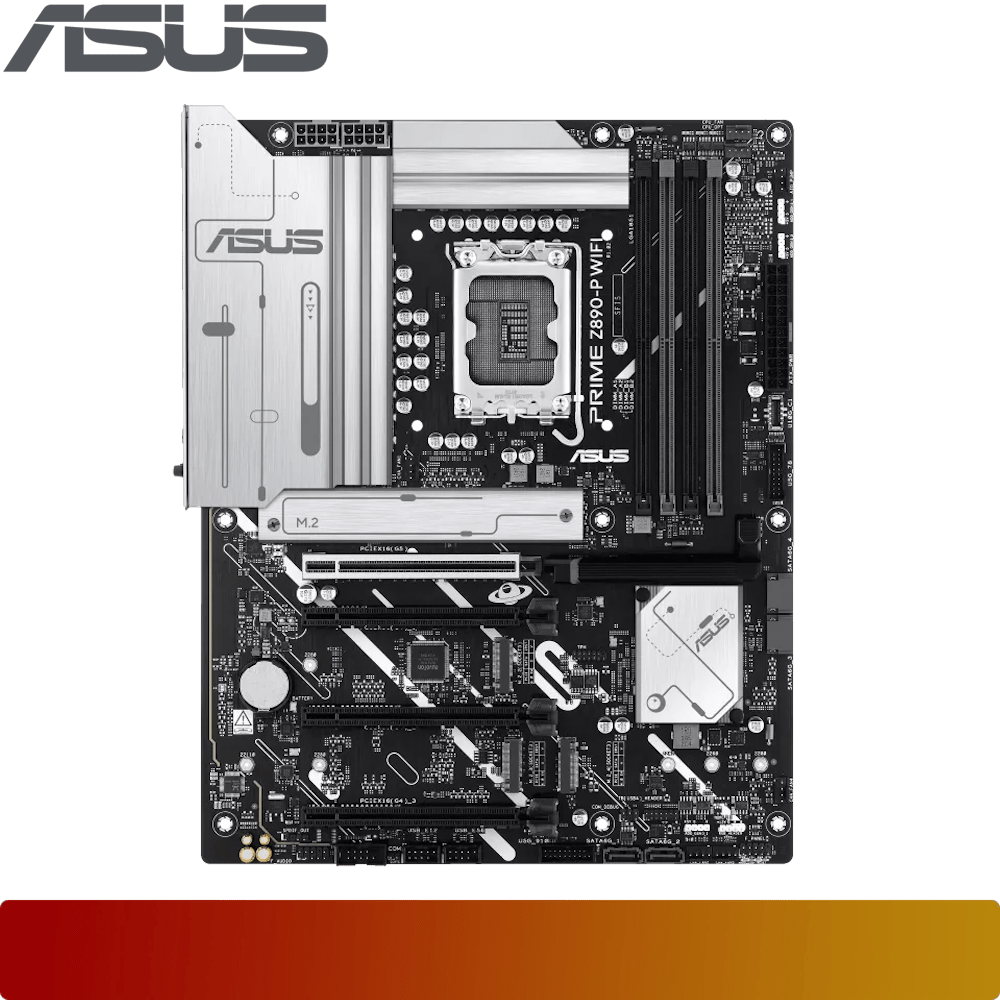

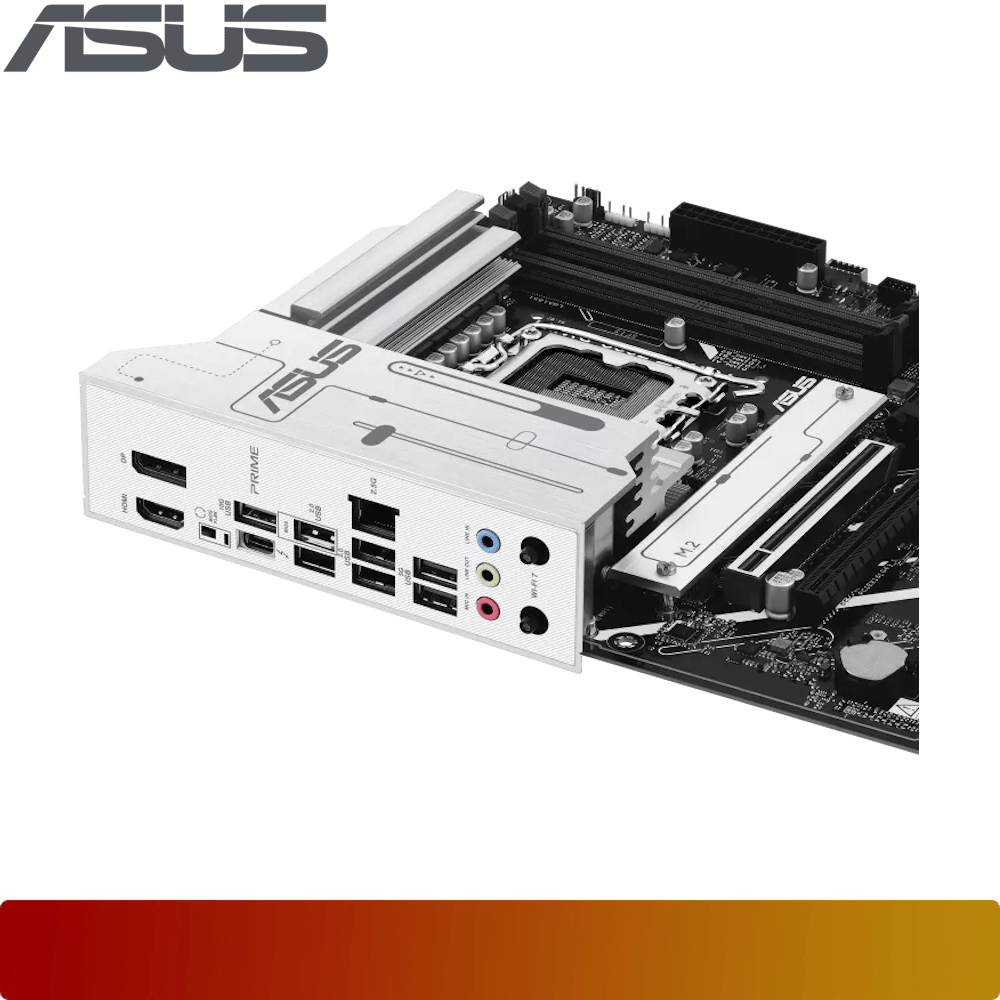

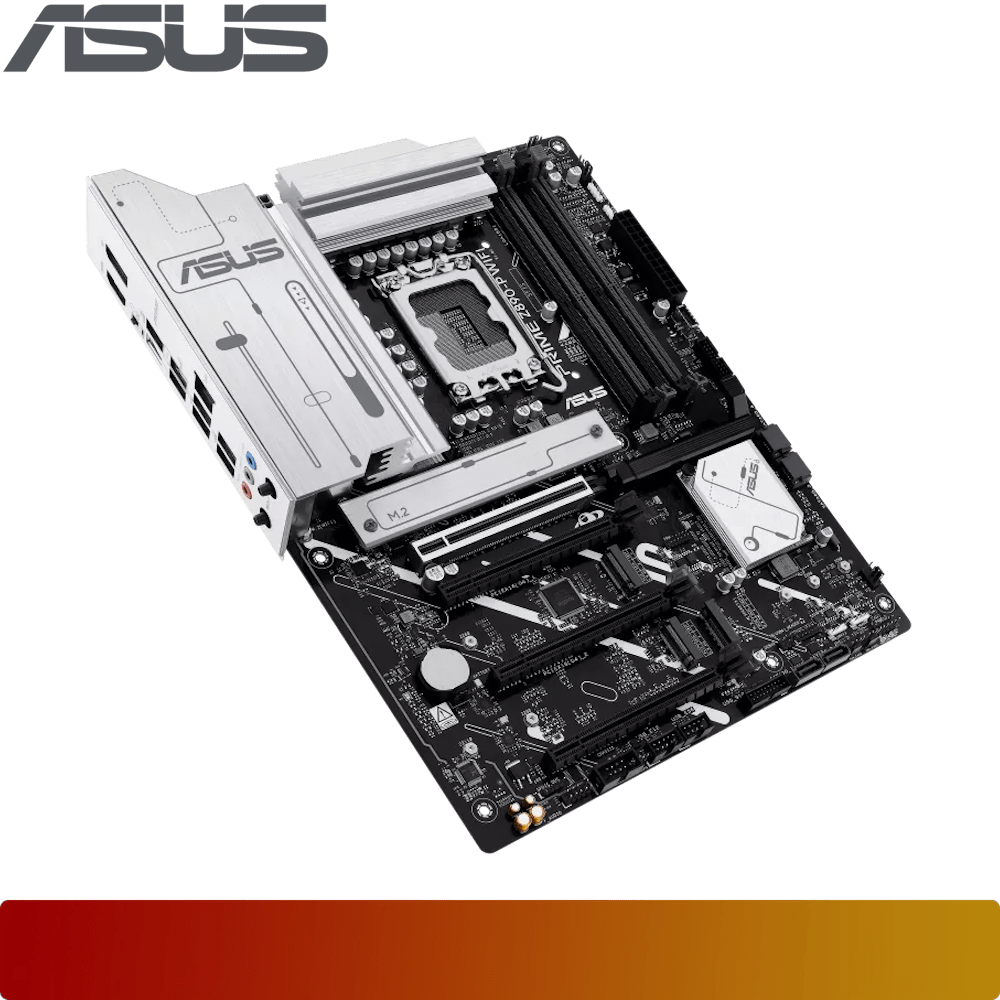

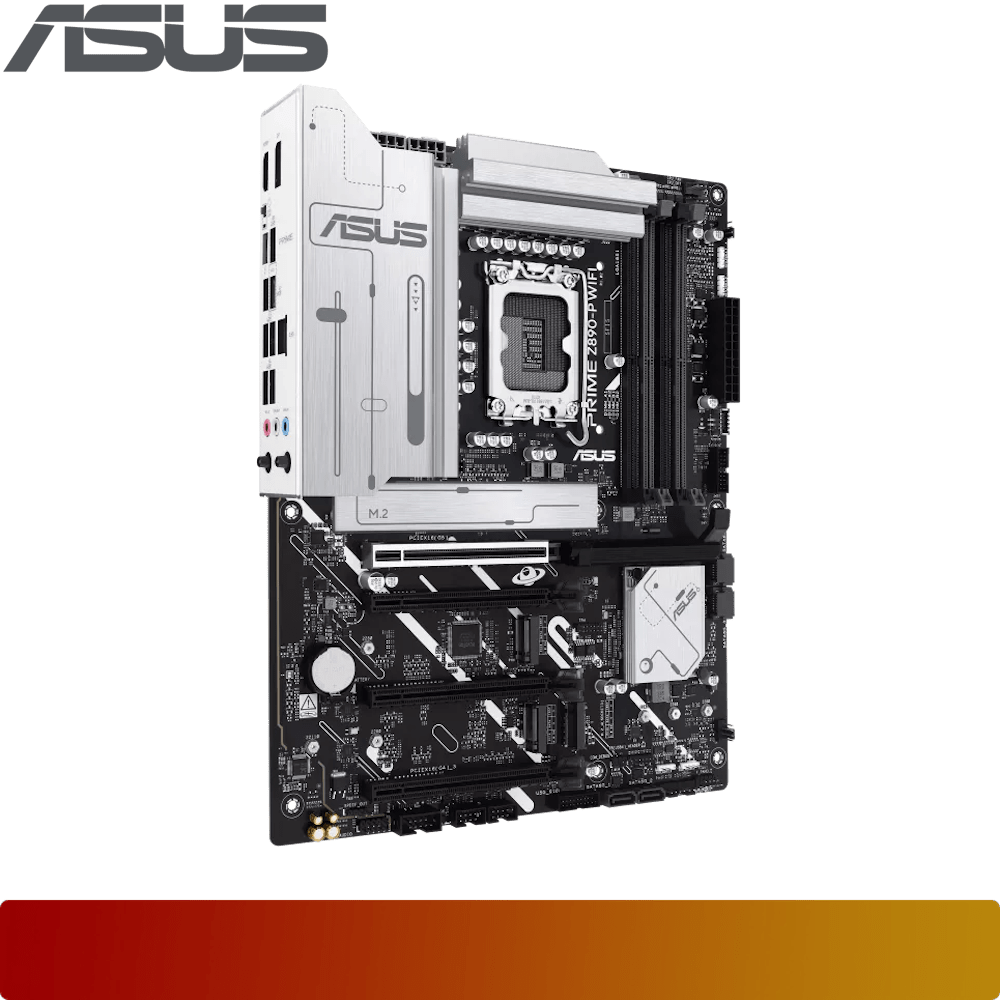

ASUS PRIME Z890-P WIFI-CSM

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- PRIME Z890-P WIFI-CSM

CPU
- Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset
- Intel® Z890 Chipset

Memory
- 4 x DIMM slots, max. 192GB, DDR5
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module

Graphics
- 1 x DisplayPort
- 1 x HDMITM port
- 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs

Expansion Slots
Intel® Core™ Ultra Processors (Series 2)*
- 1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
- 2 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4***

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Accessories
Cables
- 2 x SATA 6Gb/s cables
Miscellaneous

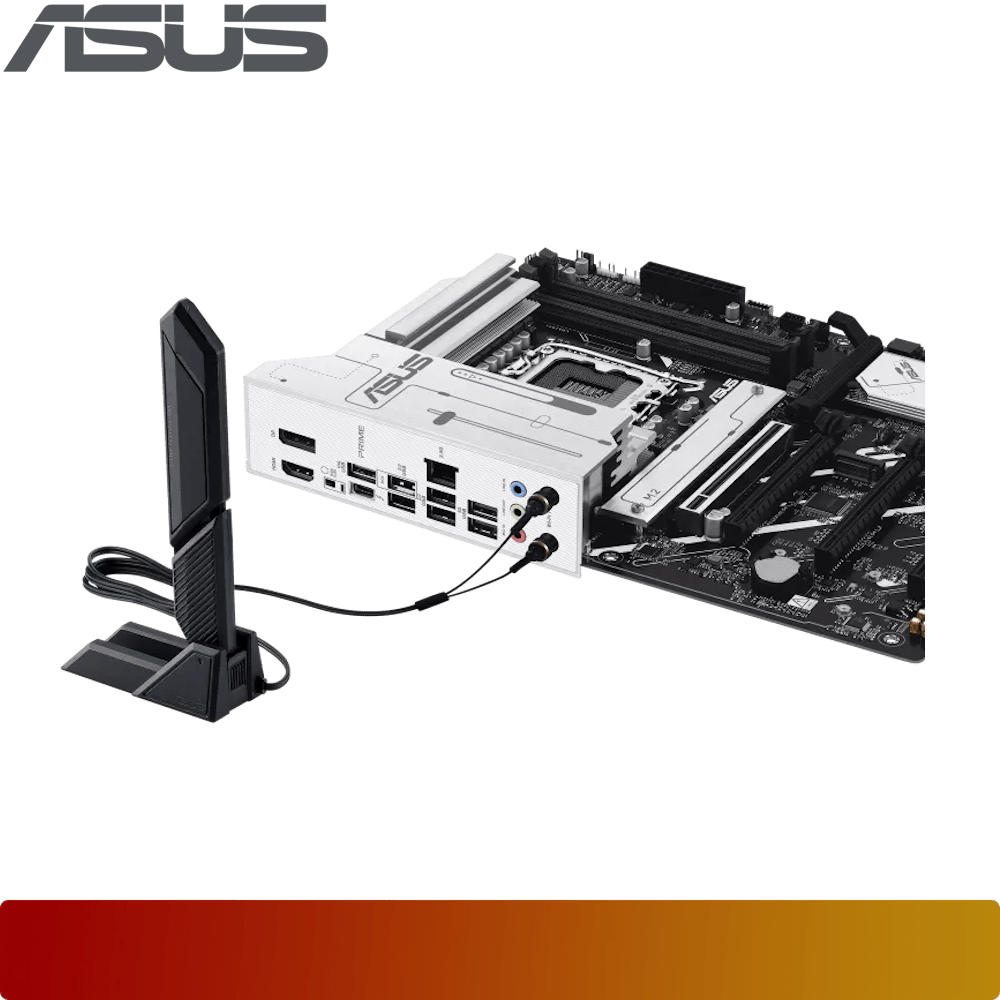

- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 rubber package
- 2 x Screw packages for M.2 SSD
Documentation
- 1 x Quick start guide

Operating System
- Windows 11 (22H2 & later)

Form Factor
- ATX Form Factor
- 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
