ASUS ProArt B850-CREATOR WIFI NEO

Name: ASUS ProArt B850-CREATOR WIFI NEO
Brand: ASUS
Price: 5449000.0 IDR
Availability: InStock

Rp 5.449.000

Compare

Brand: ASUS

SKU: 199291504448

Estimasi Berat: 5.0 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD B850 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 3 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket AMD AM5, ATX Form Factor

2 left

Also available at:

CPU	- Socket : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors - Support : Supports up to AMD 170W CPU
Chipset	- Chipset : AMD B850 Chipset
Memory	- Slots : 4 x DIMM slots, max. 256GB, DDR5 - Ryzen™ 9000 Series : Supports up to 8400+(OC)/8200+(OC) MT/s - Ryzen™ 8000 Series : Supports up to 9000+(OC)/8600+(OC) MT/s - Ryzen™ 7000 Series : Supports up to 8000+(OC)/8000+(OC) MT/s - EPYC™ 4005 Series : Supports up to 5600MT/s, ECC and Non-ECC Un-buffered DIMM - Architecture : Dual channel memory architecture - Features : Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)
Graphics	- DisplayPort : 1 x DisplayPort (Supports max. 8K@30Hz) - HDMI : 1 x HDMI™ port (Supports 4K@60Hz) - USB Type-C : 1 x USB 10Gbps port supports DisplayPort video output
Expansion Slots	- Ryzen™ 9000, 7000 & EPYC™ 4005 : 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) - Ryzen™ 8000 : 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) - AMD B850 Chipset : 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slots
Storage	- Total : Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports - Ryzen™ 7000, 9000 & EPYC™ 4005 : M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 5.0 x4) - Ryzen™ 8000 : M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2) - AMD B850 Chipset : M.2_3 (PCIe 4.0 x4), 4 x SATA 6Gb/s ports
Ethernet	- Ports : 2 x Realtek 5Gb Ethernet - Features : ASUS LANGuard
Wireless & Bluetooth	- Wi-Fi : Wi-Fi 7 (Realtek® RTL8922AE), 2x2 Wi-Fi 7 (802.11be) - Band : Supports 2.4/5/6GHz frequency band, 160MHz bandwidth - Bluetooth : Bluetooth® (supports LE Audio)
USB	- Rear USB : 2 x USB 10Gbps (1 x Type-C® + 1 x Type-C® Alt mode), 2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A) - Front USB : 1 x USB 20Gbps (Type-C® with 30W PD/QC4+), 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports)
Audio	- CODEC : Realtek ALC1220P 7.1 Surround Sound High Definition Audio - Playback/Recording : 120 dB SNR stereo playback, 113 dB SNR recording input - Support : Up to 32-Bit/192 kHz playback - Features : Impedance sense, Internal audio Amplifier, Premium audio capacitors, Dedicated PCB layers, Unique de-pop circuit

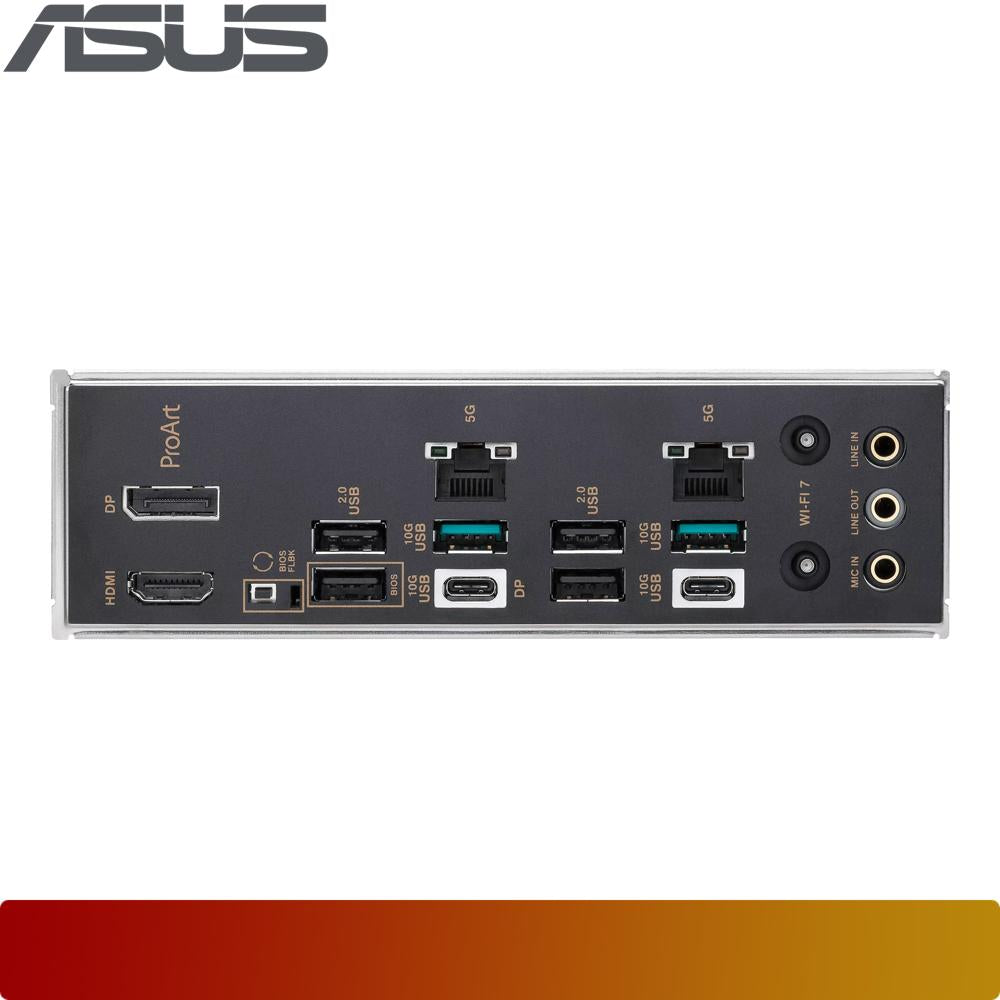

Back Panel I/O Ports	- USB : 2 x USB 10Gbps (Type-C), 2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A) - Video out : 1 x DisplayPort, 1 x HDMI™ port - Network : 1 x Wi-Fi module, 2 x Realtek 5Gb Ethernet ports - Audio : 3 x Audio jacks - Other : 1 x BIOS FlashBack™ button
Internal I/O Connectors	- Cooling : 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan headers - Power : 1 x 24-pin Main, 2 x 8-pin +12V CPU - Storage : 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports - USB : 1 x USB 20Gbps (Type-C), 1 x USB 5Gbps header, 2 x USB 2.0 headers - Miscellaneous : 3 x Addressable RGB Gen2, 1 x Clear CMOS, 1 x Thunderbolt™ (USB4®) header, 1 x Thermal Sensor header
Accessories	- Cables : 2 x SATA 6Gb/s cables - Miscellaneous : 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, M.2 Q-Slide/Rubber/Screw packages, 1 x ProArt accessory bag - Documentation : 1 x ACC Express activation key card, 1 x Quick start guide
Operating System	- AMD EPYC™ 4005 Series : Windows Server 2025/2022 - AMD Ryzen™ Series : Windows 11
Form Factor	- Type : ATX Form Factor - Dimensions : 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
