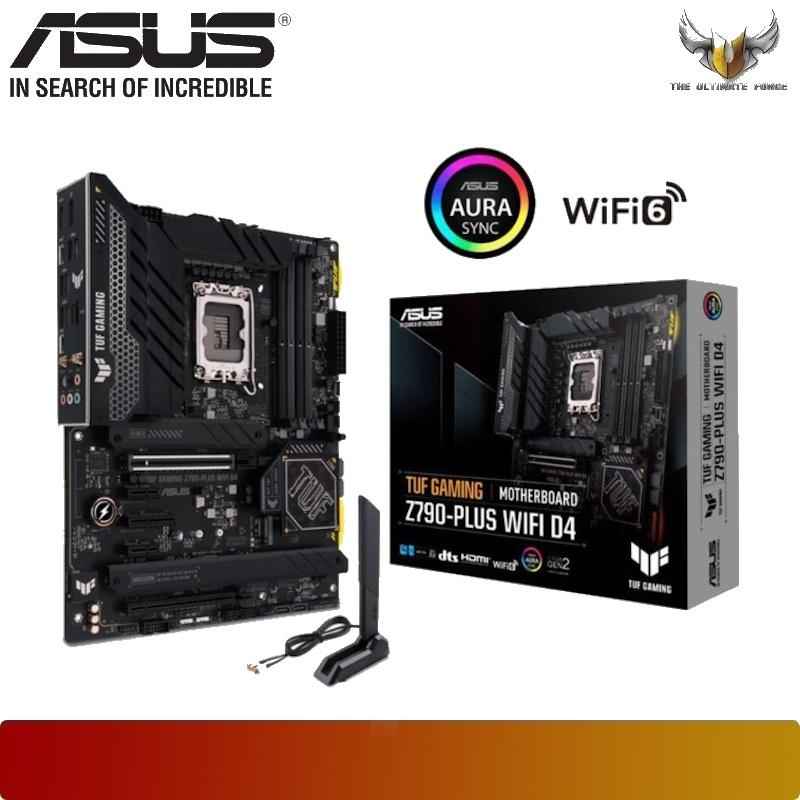

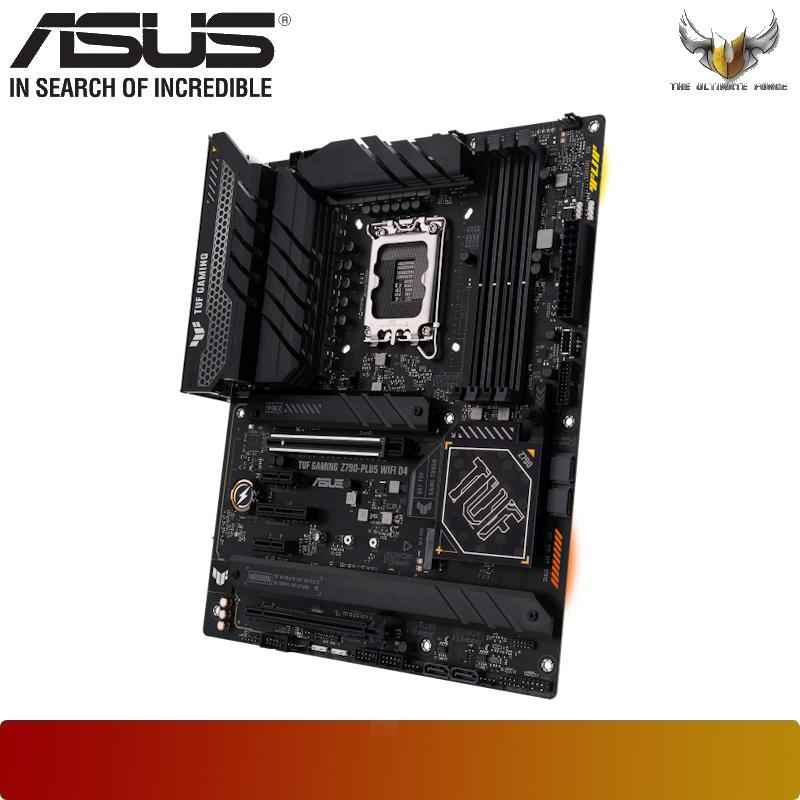

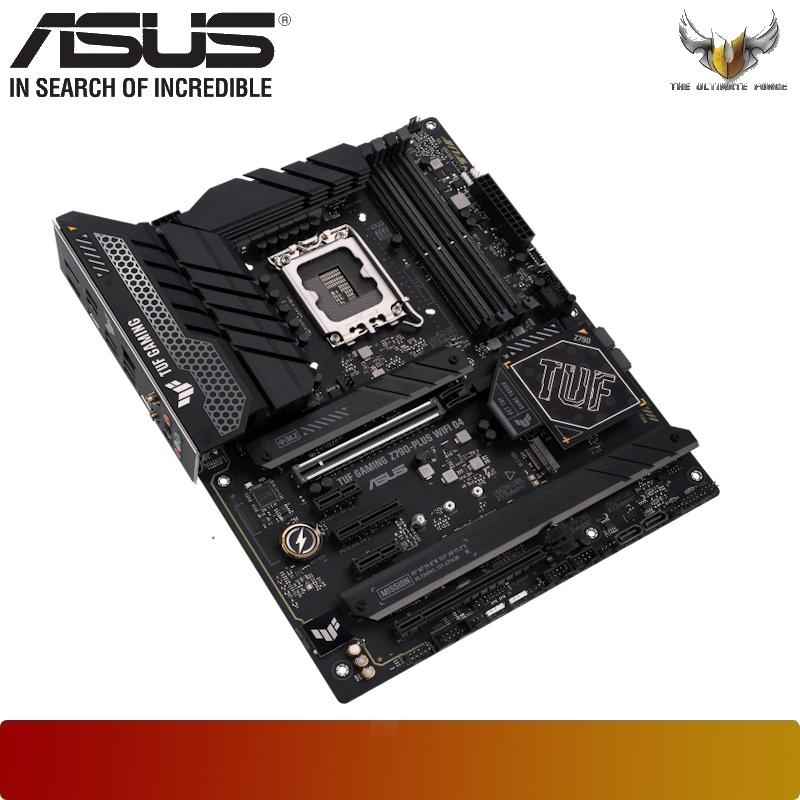

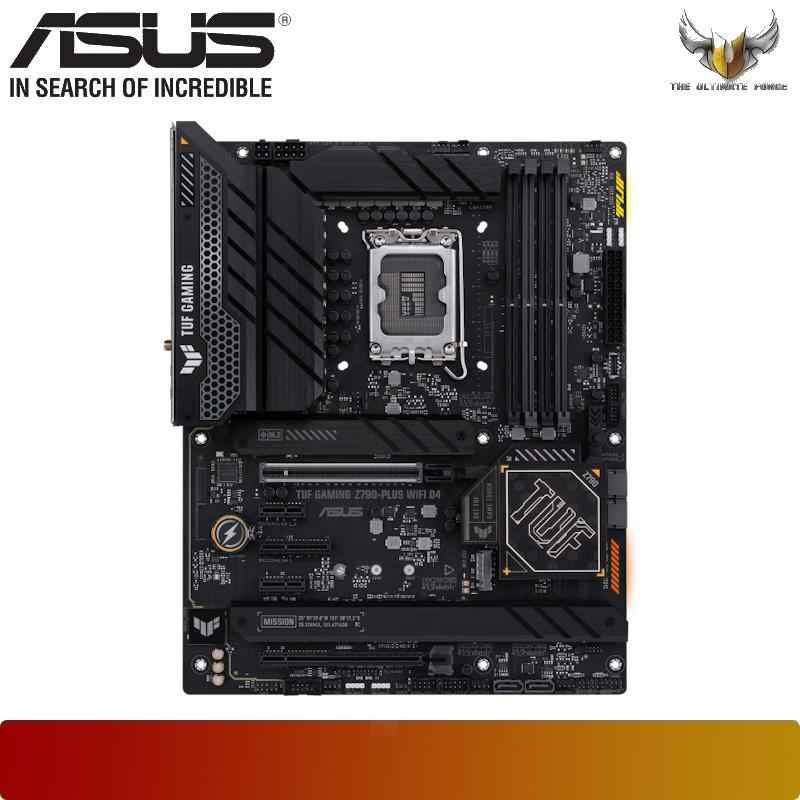

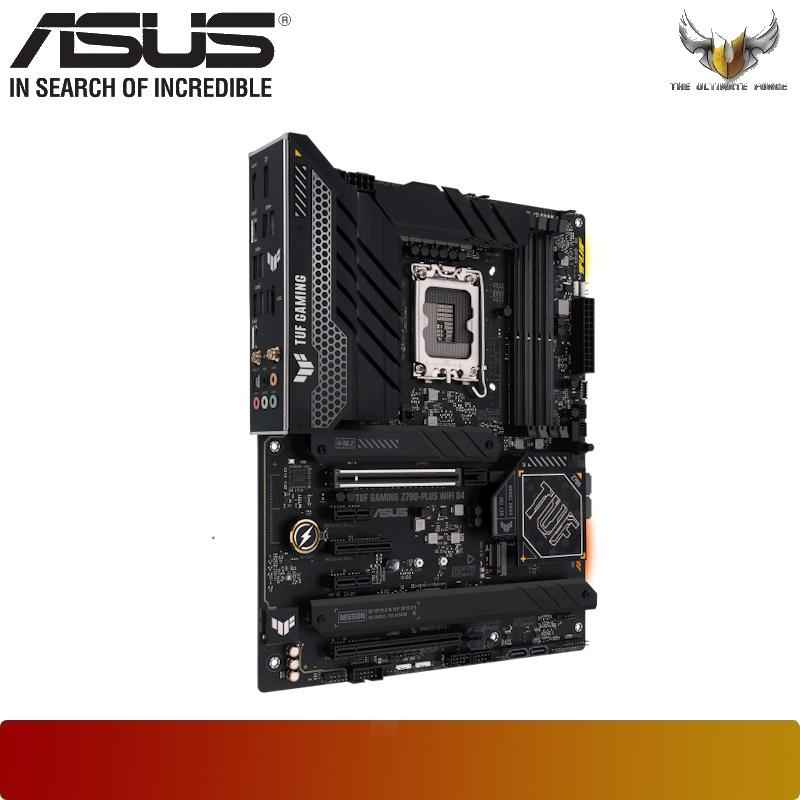

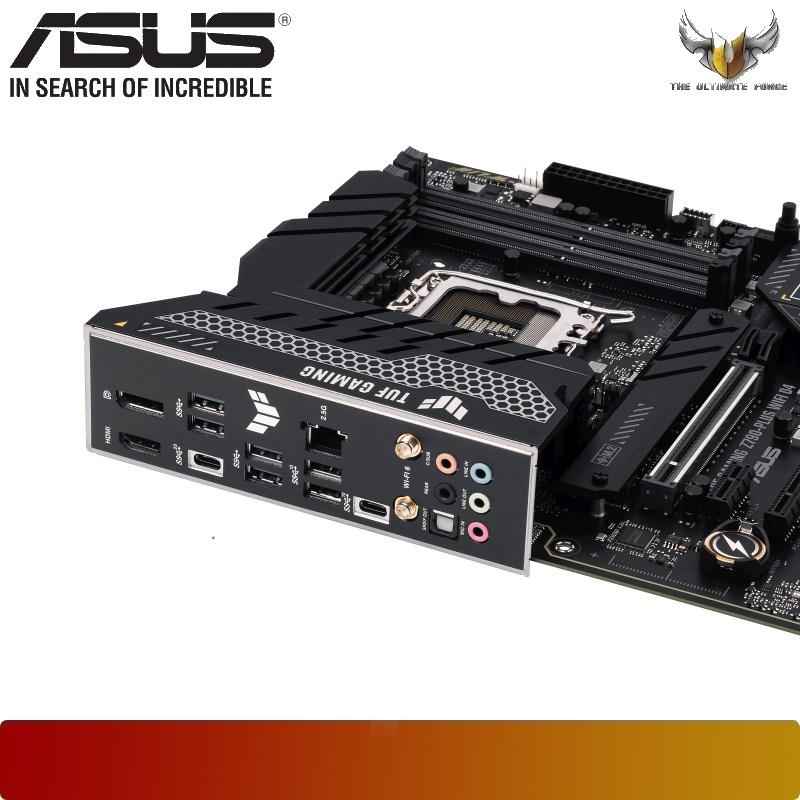

ASUS TUF GAMING Z790-PLUS WIFI D4 | Motherboard Intel Z790 LGA 1700 DDR4 ATX

Specifications :

Model
- TUF GAMING Z790-PLUS WIFI D4

CPU
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*

Chipset
- Intel Z790 Chipset

Memory
- 4 x DIMM, Max. 128GB, DDR4
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)

Graphics
- 1 x DisplayPort**
- 1 x HDMI port***

Expansion Slots

Intel Core Processors (14th & 13th & 12th Gen)*
- 1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 2 x PCIe 3.0 x1 slots

Storage
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Ethernet
- 1 x Intel 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2*

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

Accessories

Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS Wi-Fi moving antenna
- 1 x TUF GAMING sticker
- 2 x M.2 Rubber Packages
- 1 x Screw package for M.2 SSD
Documentation
- 1 x TUF Certification card
- 1 x User guide

Operating System
- Windows 11, Windows 10 64-bit

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
