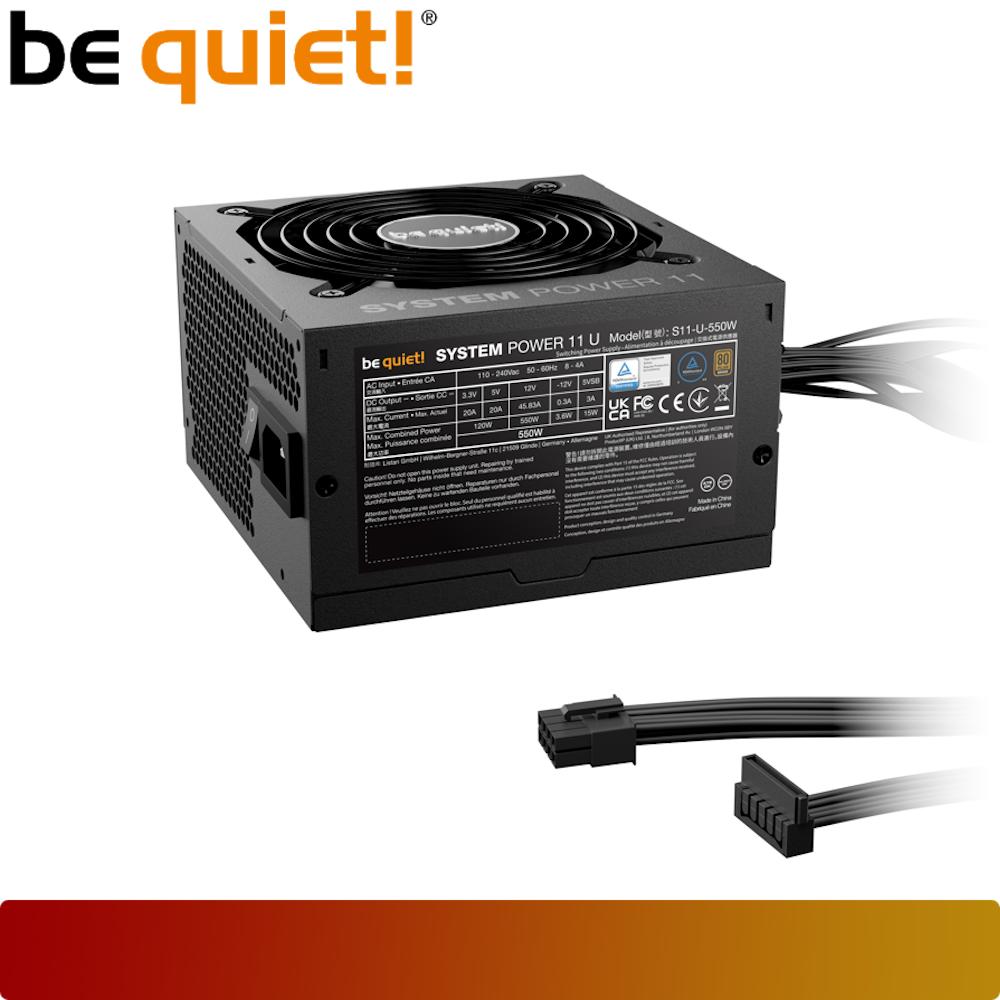

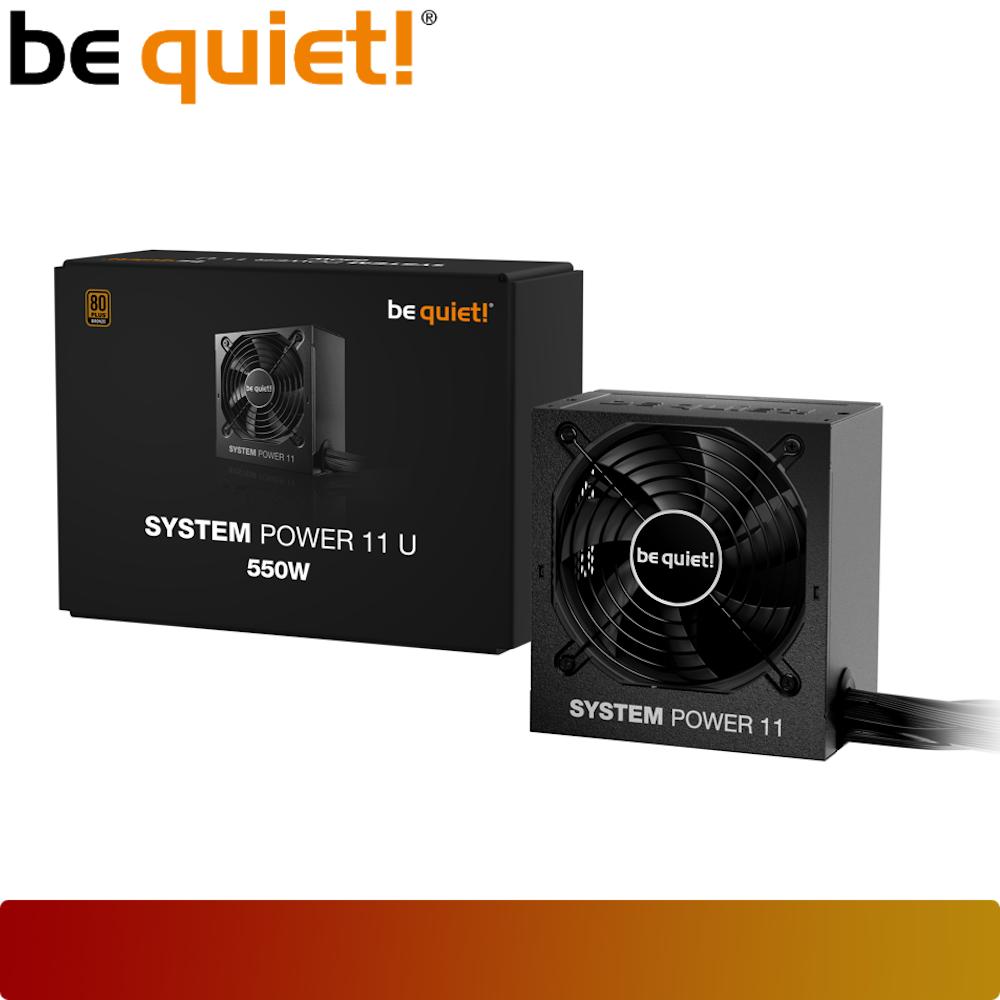

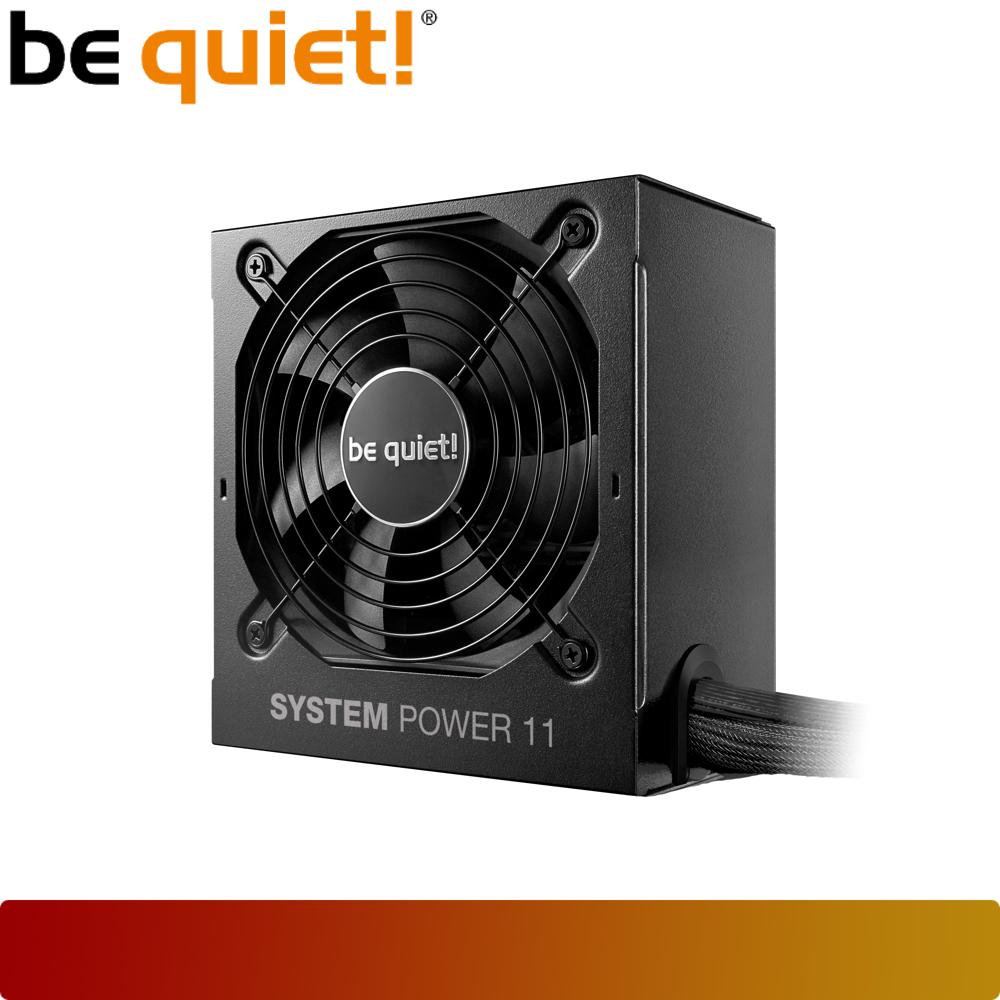

BE QUIET! SYSTEM POWER 11 U 550W
Rp 949.000
Also available at:
Product description
| General Data | |
| Model | SYSTEM POWER 11 U | 550W |
| Continuous power (W) | 550 |
| Peak power (W) | - |
| Form factor | ATX 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Double forward + DC-DC |
| Digitally controlled | - |
| Voltage (Vac) | 110 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 8 / 4 |
| Power factor at 100% load | >0.98 |
| Modern standby | - |
| Power consumption in standby (W) | - |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
| Efficiency | |
| 80 PLUS certification | Bronze |
| Cybenetics ETA | - |
| Efficiency (%) at 230V, 2% load | 63.4 |
| Efficiency (%) at 230V, 10% load | 84.1 |
| Efficiency (%) at 230V, 20% load | 88.6 |
| Efficiency (%) at 230V, 50% load | 90.0 |
| Efficiency (%) at 230V, 100% load | 87.3 |
| Fan and cooling technology | |
| Cybenetics LAMBDA | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 1800 |
| dB(A) at 10% load | 10.3 |
| dB(A) at 20% load | 10.6 |
| dB(A) at 50% load | 11.4 |
| dB(A) at 100% load | 24.4 |
| Output | |
| Multi-rail operation (12V - rails) | - |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 45.83 |
| +12V2 (A) | - |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 550 |
| Max. combined power 12V-2x6 (W) | 300 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 16.86 |
| Hold-up time at 80% load (ms) | 20.92 |
| Cable and Connector | |
| Modular cables | - |
| Sleeved cables | P24 |
| Flat cables | P4+4, P4, PCIe, drives |
| Maximum cable length (cm) | 55 |
| Cable length to motherboard (cm) | 79 |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | - |
| P4 (CPU) | 1 |
| 12V-2x6 cables | 1 |
| PCI-e 6+2-pin (GPU) | 2 |
| PCI-e 6-pin (GPU) | - |
| SATA | 5 |
| PATA | 1 |
| FDD (Floppy) | - |
