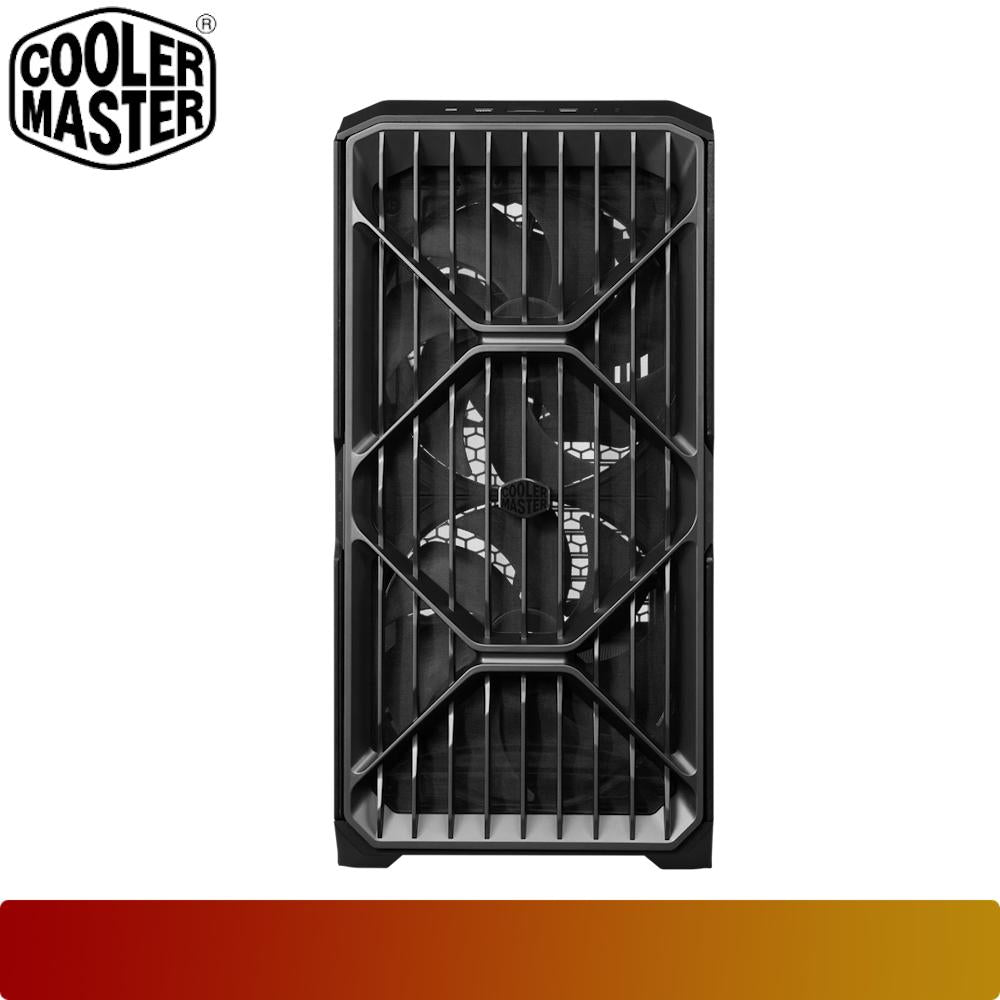

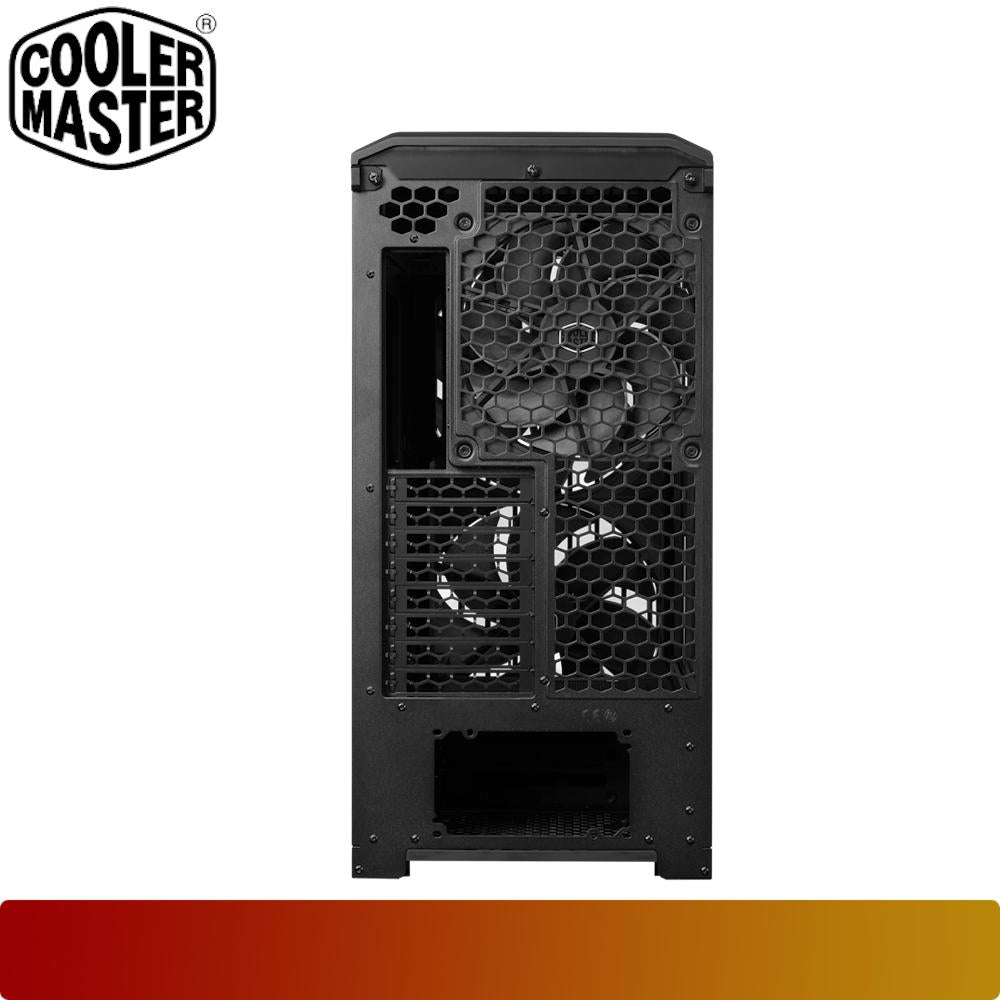

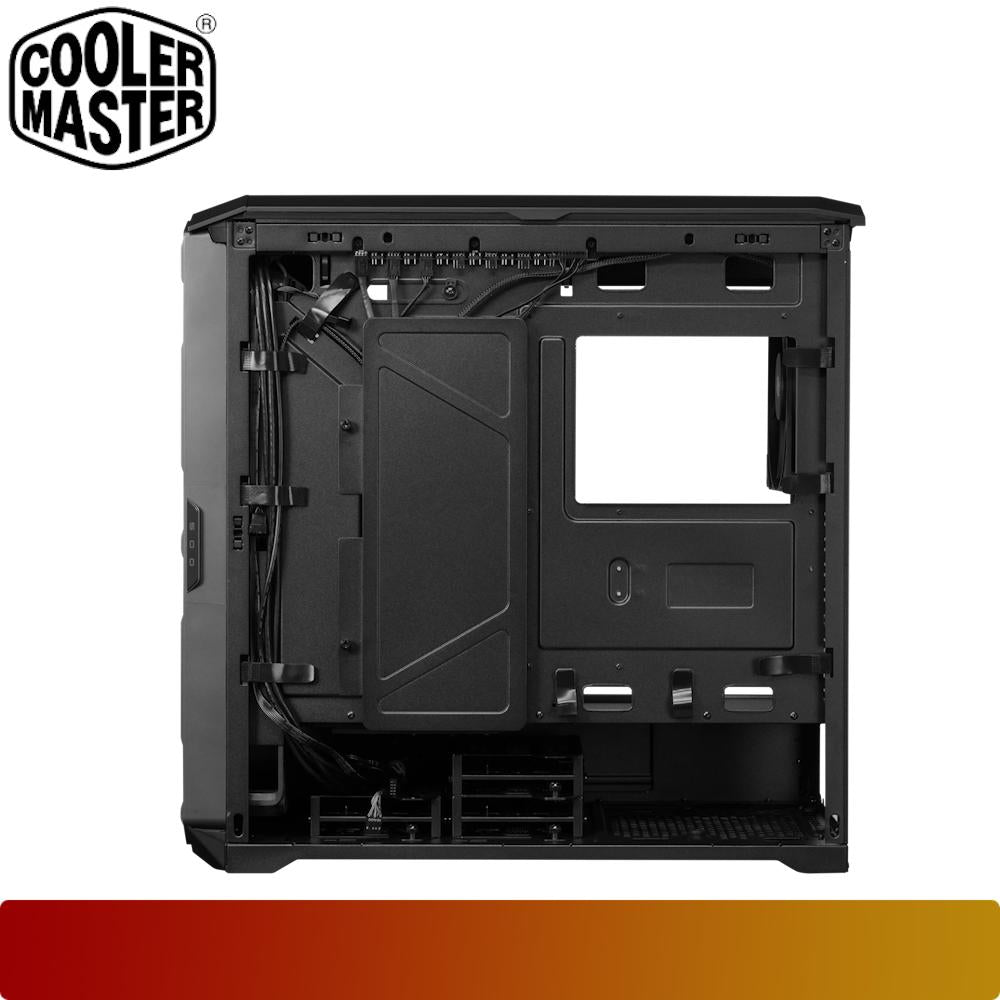

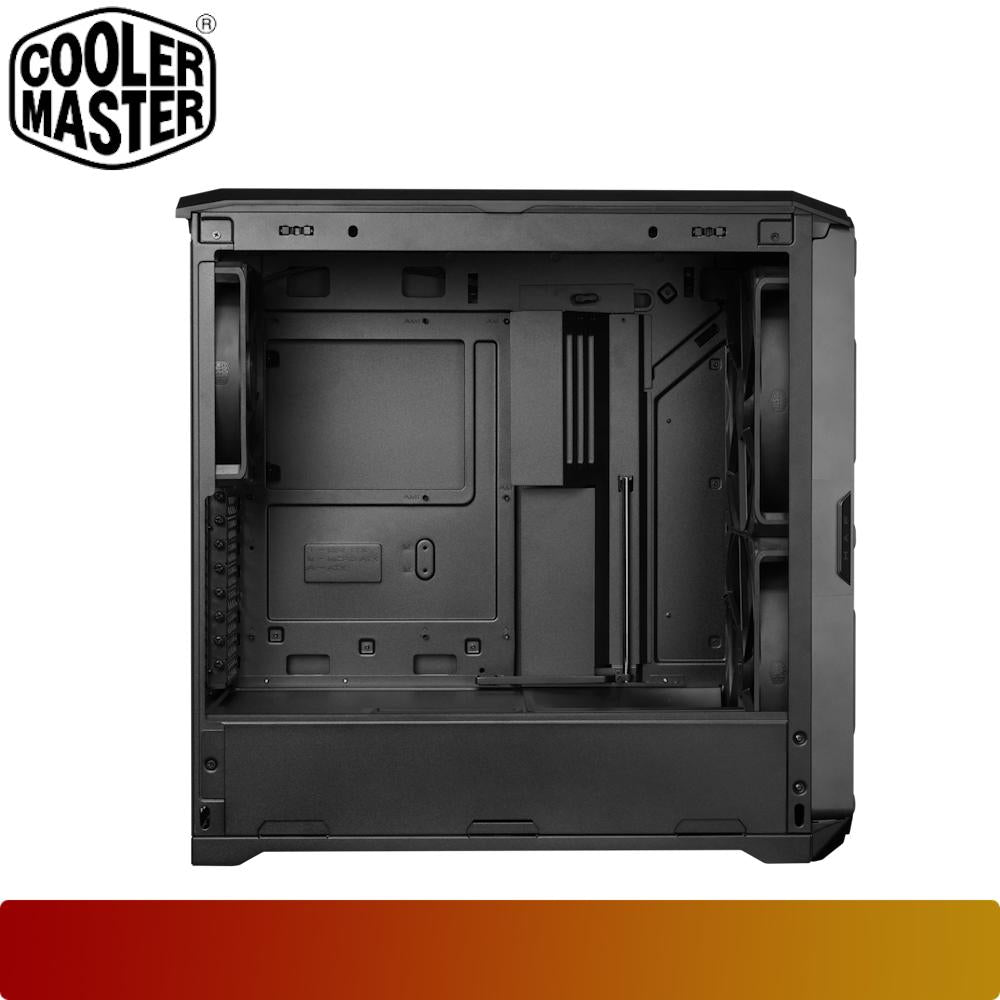

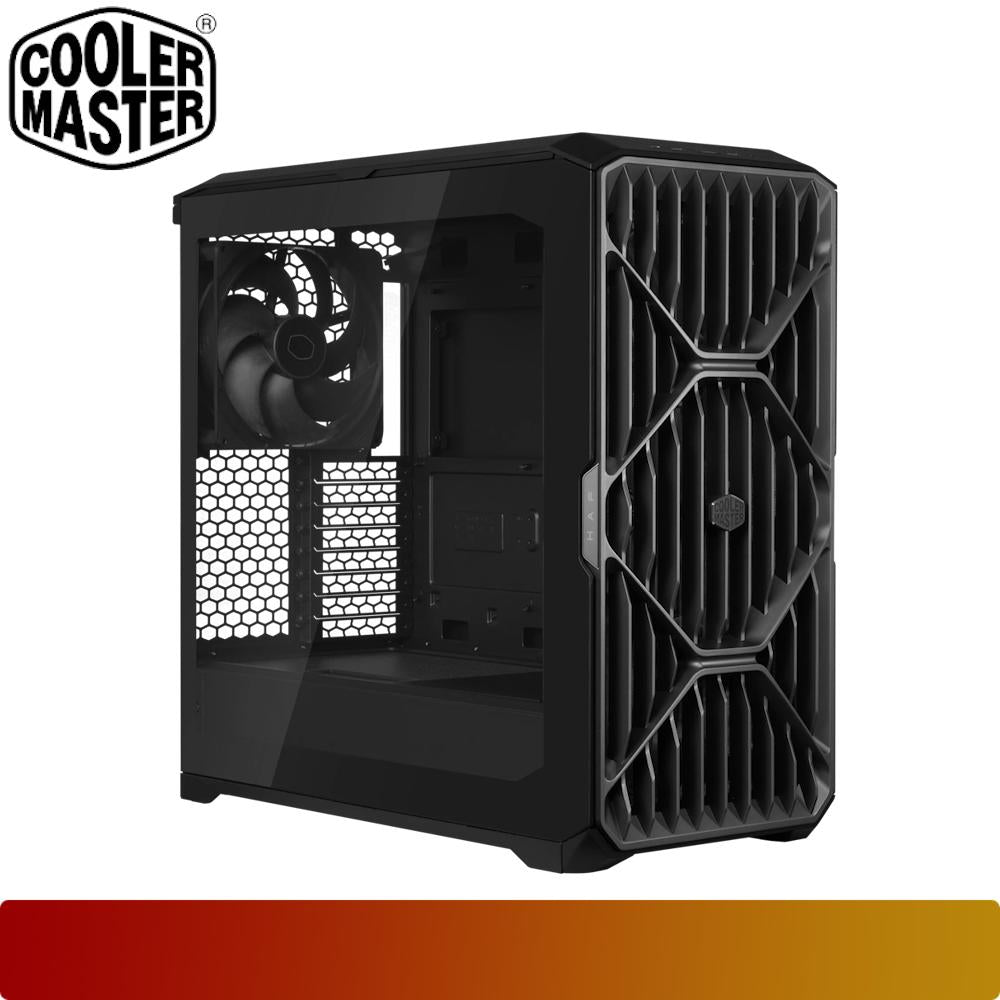

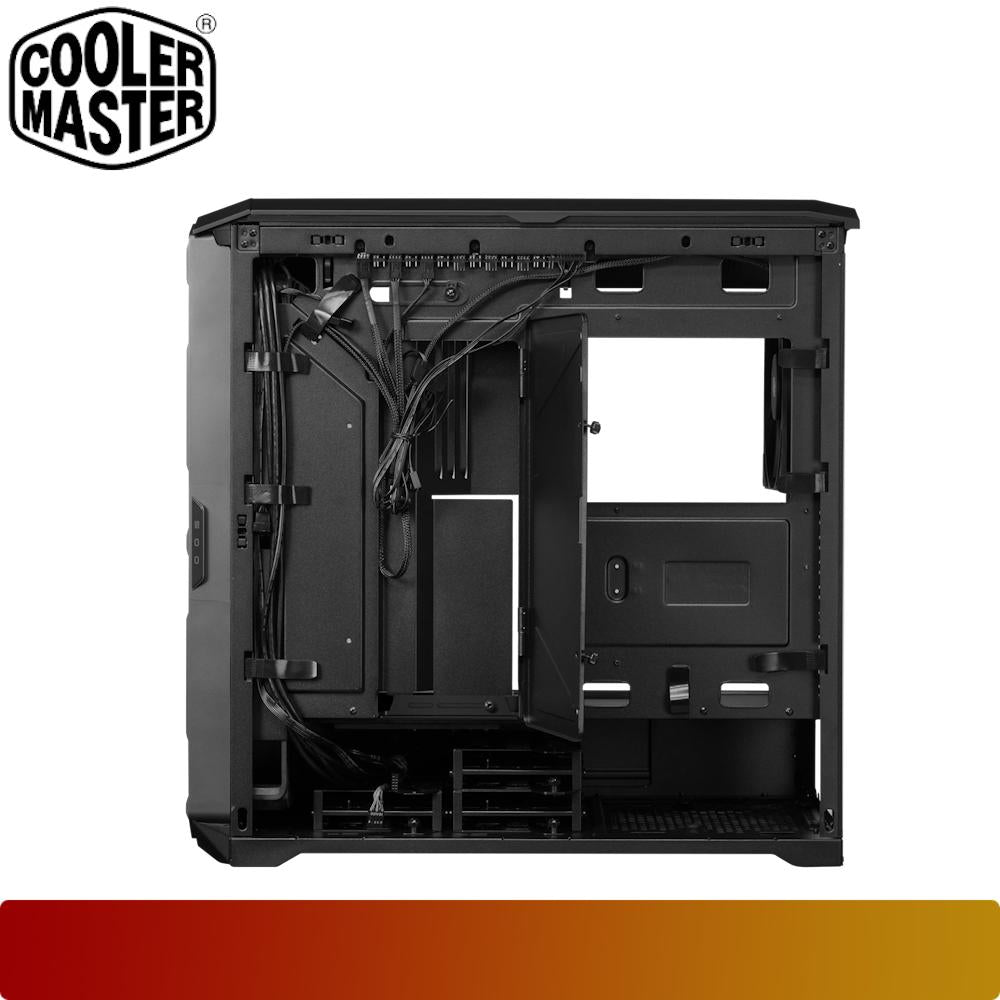

COOLER MASTER HAF II 500
Rp 2.599.000
Also available at:
Product description
| Product Name | HAF II 500 |
| Dimension (L x W x H) Incl. Protrusions | 557 x 262 x 548 mm |
| Dimension (L x W x H) Volume (Incl. Protrusions) | 79.98 L |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB (ATX-Compatible Standoff Pattern), E-ATX (ATX-Compatible Standoff Pattern; Up to 310 mm Wide) |
| Material - Chassis | SGCC (0.7 – 0.8 mm Thickness) |
| Material - Panel | ABS |
| Material - Side Panel | Tempered Glass (Left Panel); SGCC (Right Panel) |
| Clearance - Cable Routing | 15 – 40 mm |
| Clearance - CPU Cooler | 221 mm (Intel); 220 mm (AMD) |
| Clearance - Power Supply | 150 mm (North-South Drive Orientation); 210 mm (East-West Drive Orientation) |
| Clearance - Graphics Card Length | 430 mm (With Mighty40 F220 Fans Installed) |
| Clearance - Graphics Card Thickness | 72 mm / Card When Installing 2 Graphics Cards; 40 mm / Card When Installing 4 Graphics Cards |
| Dust Filters | Top / Front / Bottom (PSU) |
| Expansion Slots | 8 |
| Drive Bay Support - 3.5” / 2.5” | 3 / 6 (PSU Length ≤ 150 mm) ; 2 / 4 (150 mm < PSU Length ≤ 210 mm) |
| Preinstalled Drive Bay - 3.5” / 2.5” | 3 / 6 |
| Fans Support Top | 3 x 120 / 140 mm, or 2 x 160 / 180 mm |
| Fans Support Front | Default: 2 x 220 mm; With MasterRails: 3 x 120 / 140 mm, or 2 x 160 / 180 mm |
| Fans Support Rear | 1 x 180 mm |
| Pre -installed Fans Front | 2 x Mighty40 F220 |
| Pre -installed Fans Rear | 1 x Mighty40 V180 |
| Fan Hub Ports | 6 x PWM; 6 x ARGB |
| Fan Hub Total Power Capacity | 54W |
| Radiator Support Top | 240 / 280 / 360-120 / 360-180 mm (Conditional Support*) |
| Radiator Support Front | With MasterRails: 240 / 280 / 360-120 / 360-180 mm (Conditional Support**) |
| Radiator Support Rear | 180 mm |
| I/O Panel Power LED | 1 |

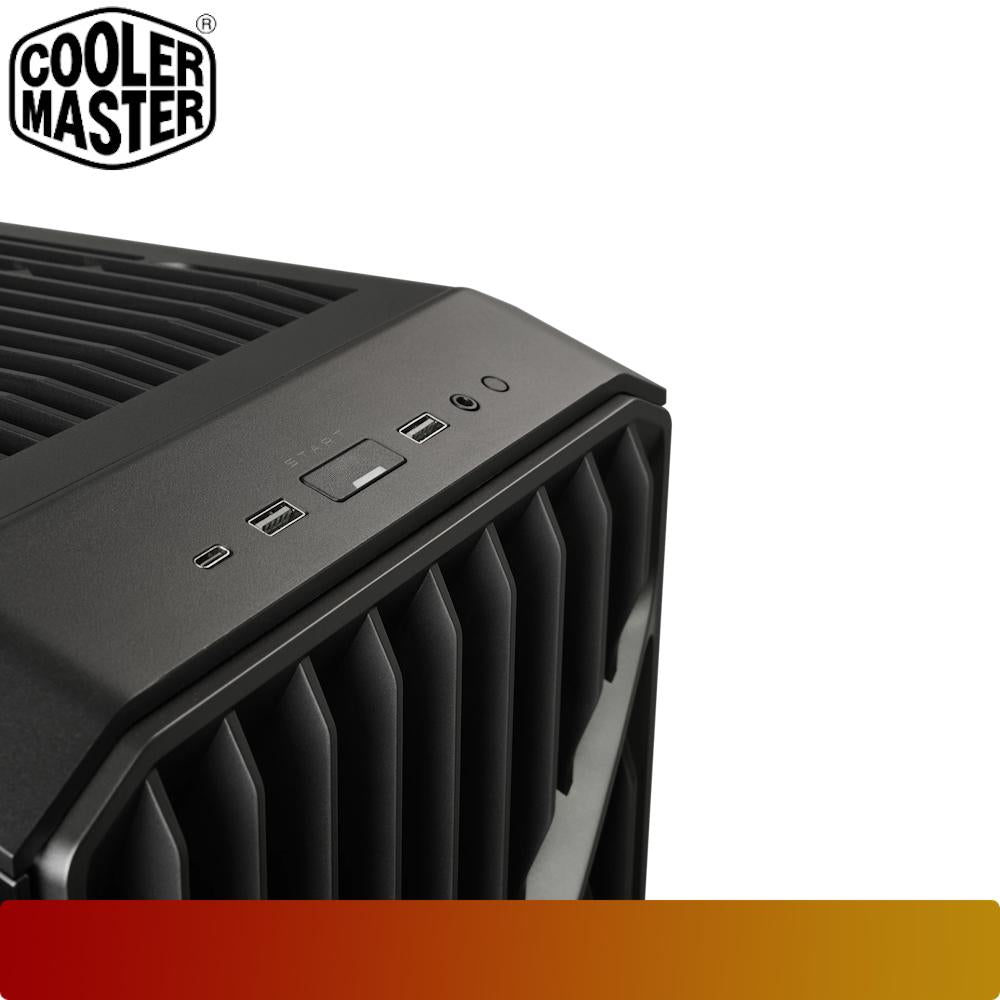

| I/O Panel USB Ports | 1 x USB 3.2 Gen 2x2 Type-C; 2 x USB 3.2 Gen 1 Type-A |
| I/O Panel Audio in / out | 1 x 3.5 mm Headset Jack (Audio + Mic) |
| I/O Panel Reset Switch | 1 |
| Warranty Case | 2 Years |
| Warranty Fan | 5 Years |
