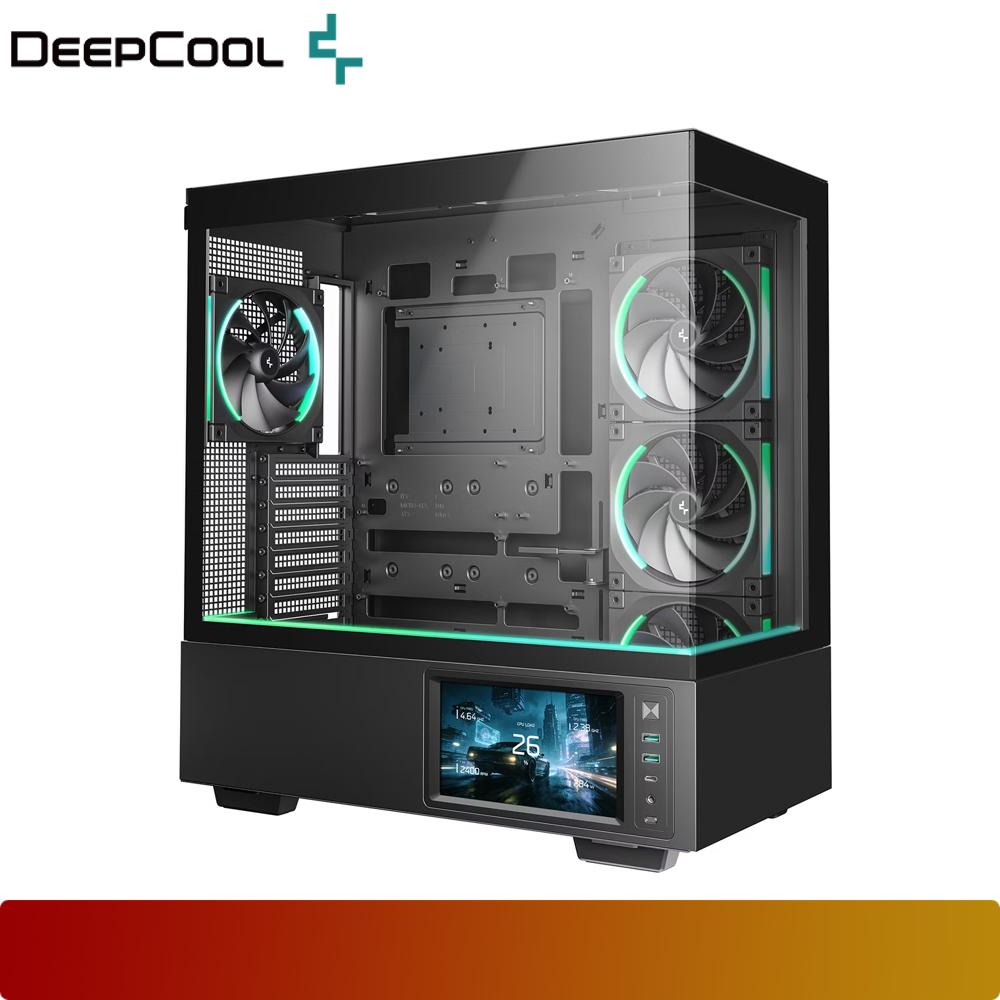

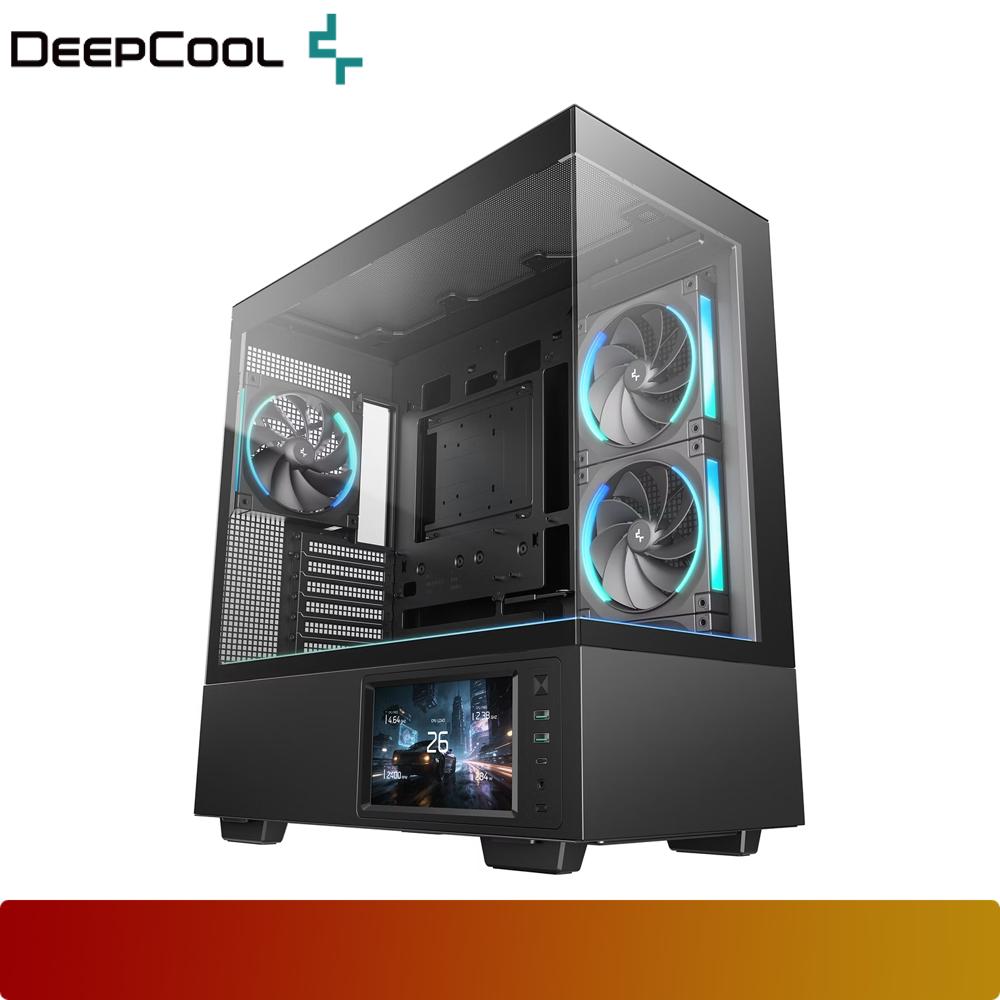

DEEPCOOL CH690 LCD

Specification :

Materials
- ABS+SPCC+Tempered Glass

Motherboard Support
- Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)

Front I/O Ports

- USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

3.5" Drive Bays
- 1

2.5" Drive Bays
- 2+1

Expansion Slots
- 8Slots

Pre-Installed Fans
- Side: 3×140mm, Rear: 1×140mm

Fan Support
- Front:NA, Top:3×120 / 3×140mm, Side:3×120 / 3×140mm, PSU Shroud :3×120 / 3×140mm, Rear: 1×120 / 1×140mm

Radiator Support
- Front: NA, Top: 120/140/240/280/360/420mm, Side: 120/140/240/280mm, Bottom: 120/240/360mm

CPU Cooler Height Limit
- 182mm

GPU Length Limit: 450mm

Power Supply Type: ATX PS2 (maximum length: 180mm)
