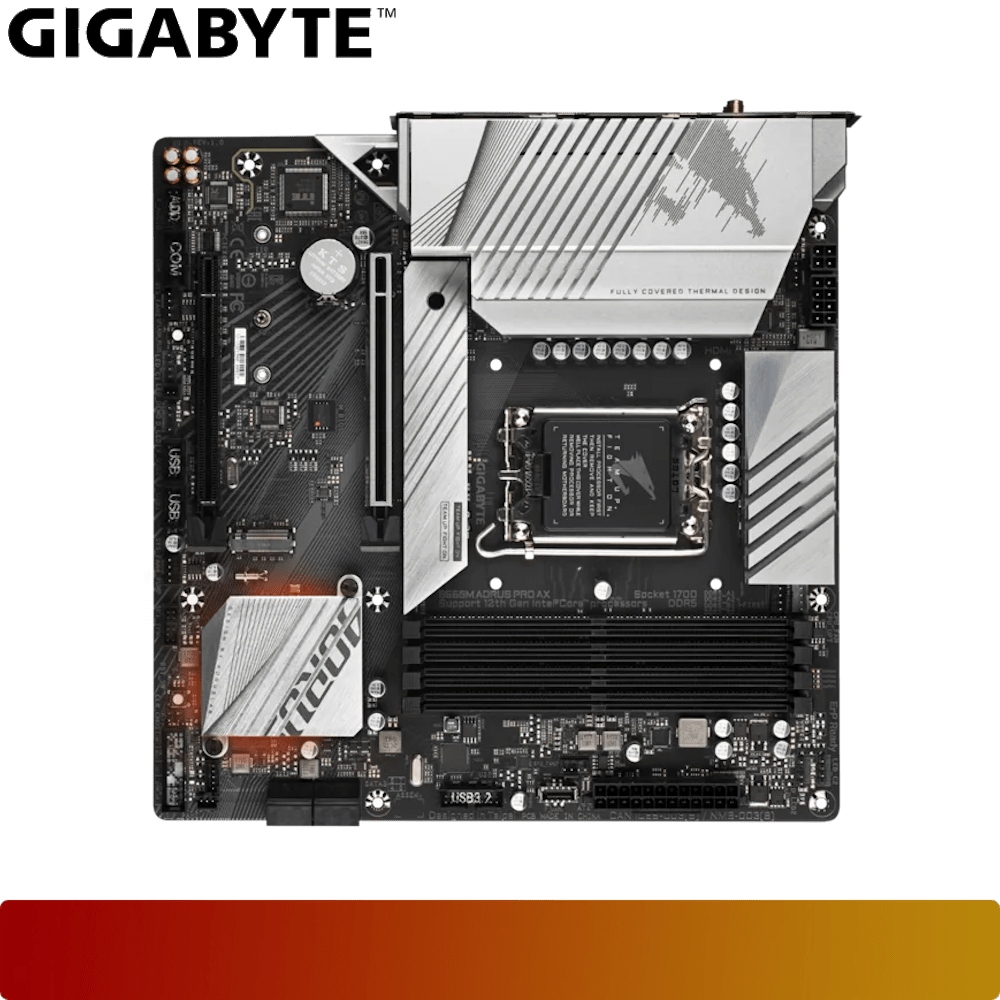

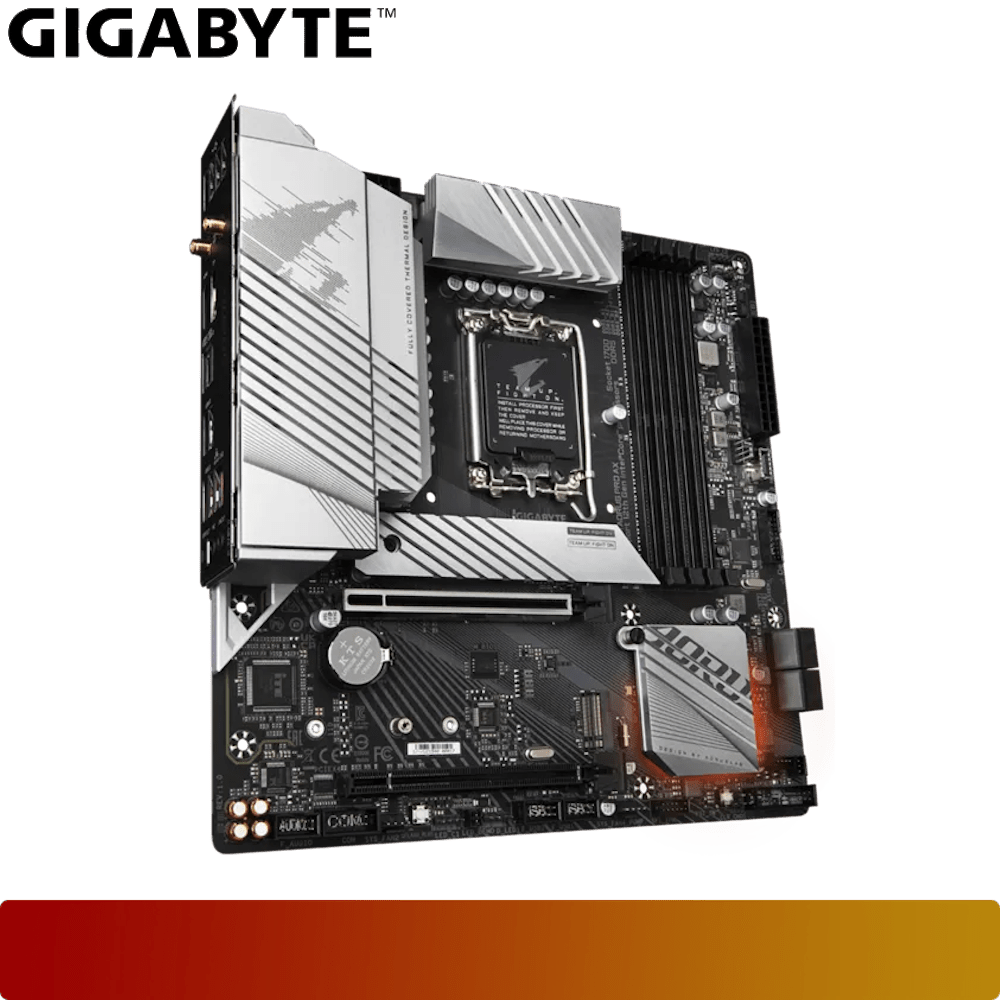

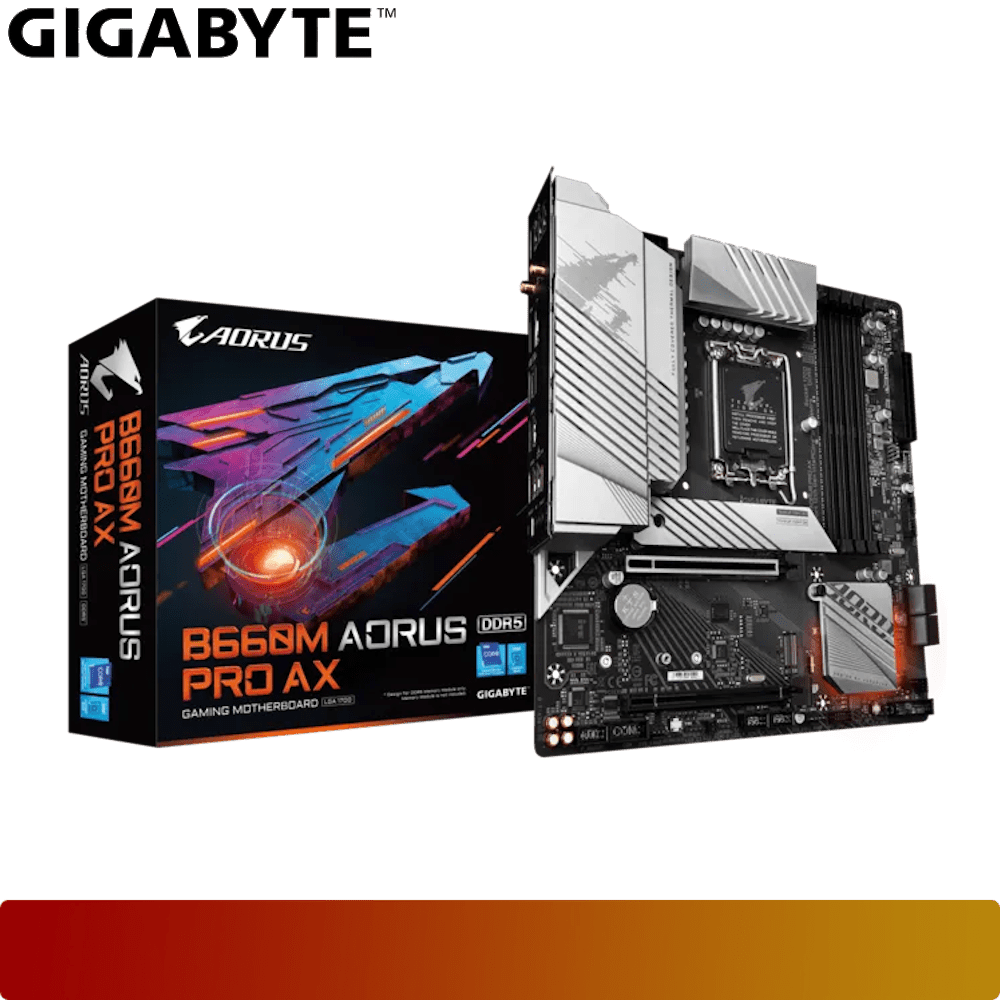

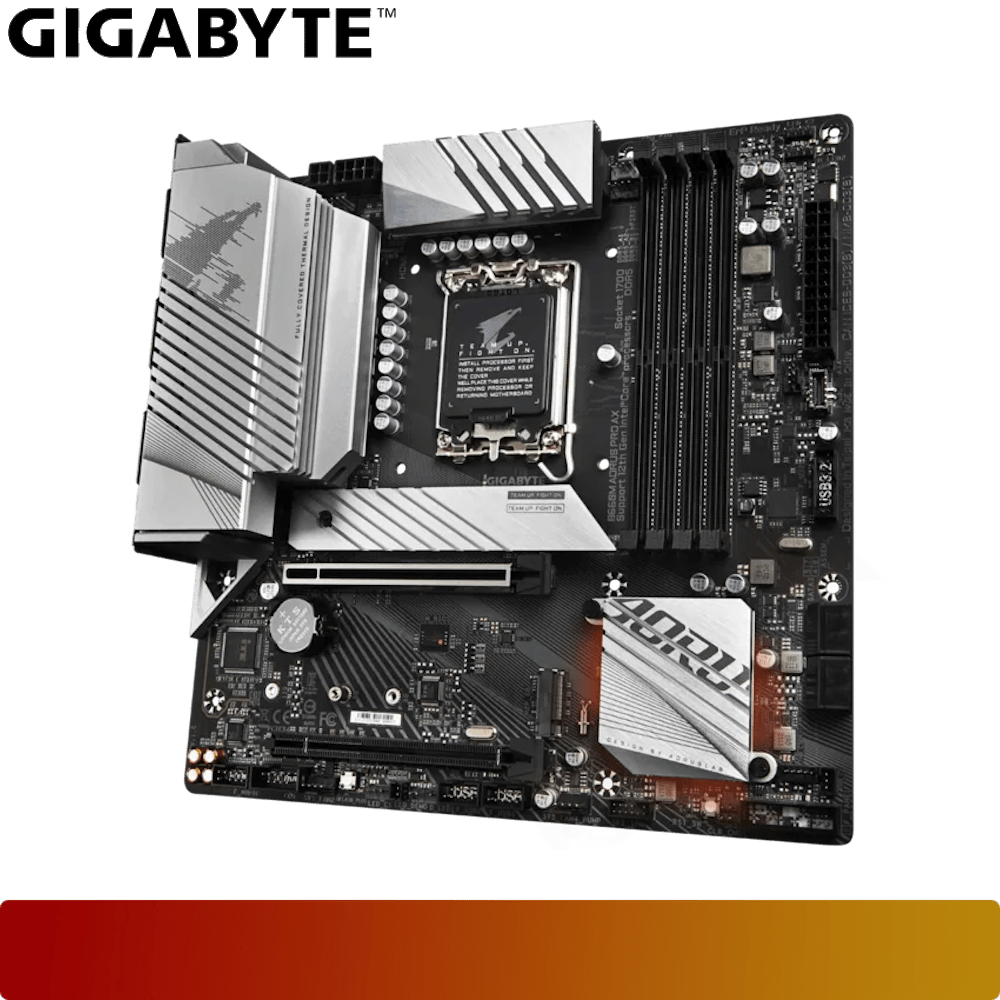

GIGABYTE B660M AORUS PRO AX

CPU
- LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU

Chipset
- Intel® B660 Express Chipset

Memory
- Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture

Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

LAN
- Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)

Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
