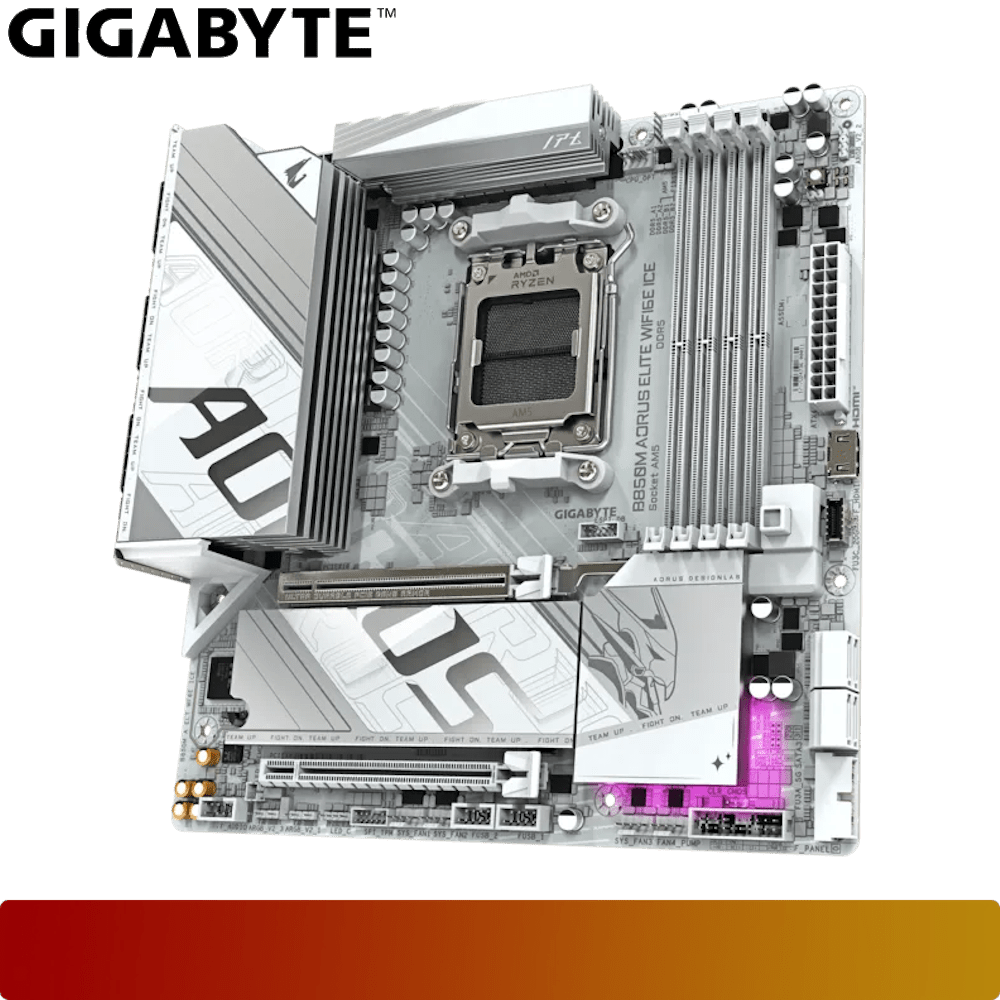

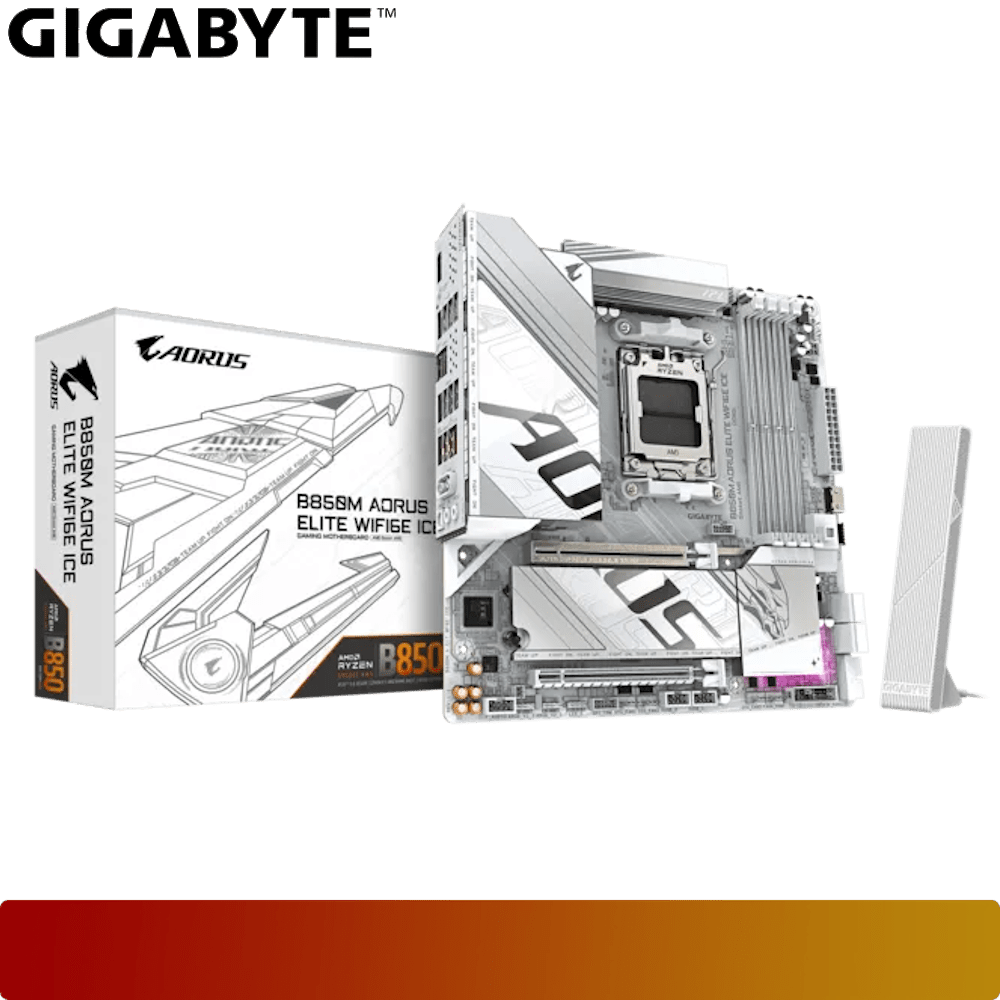

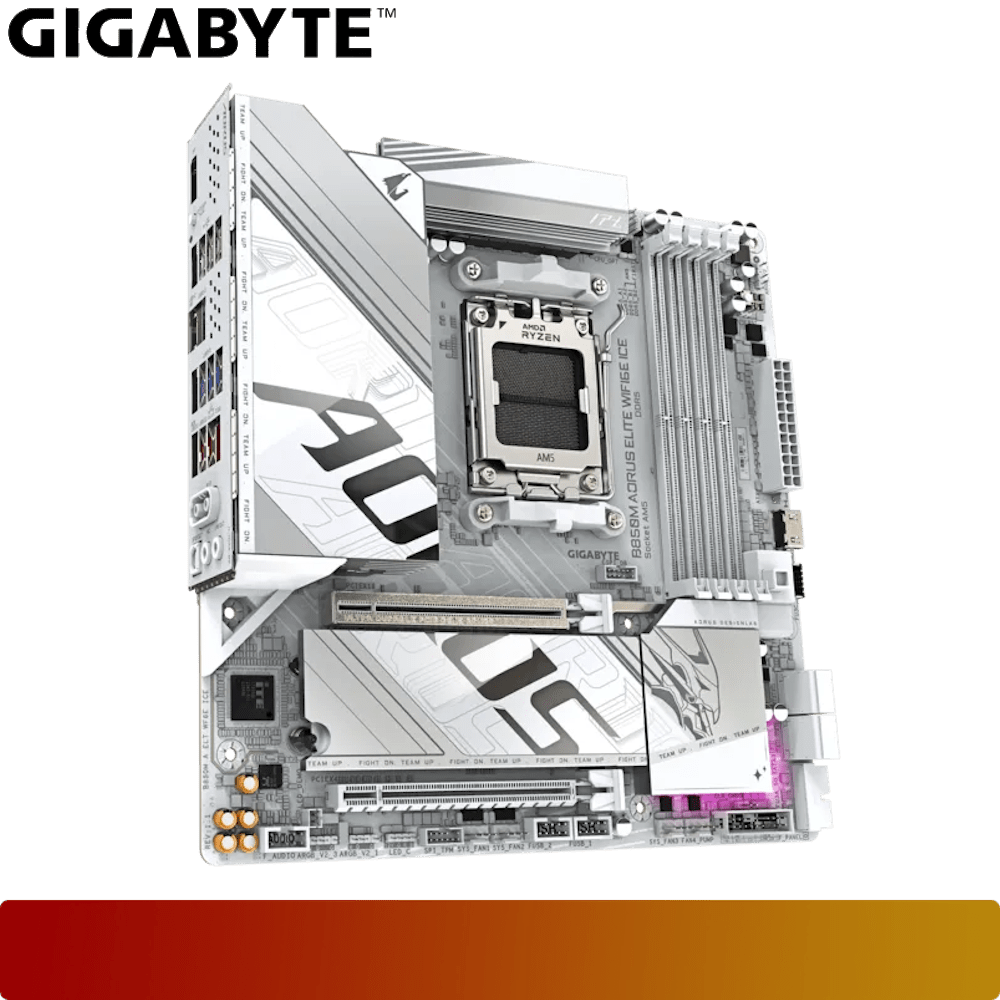

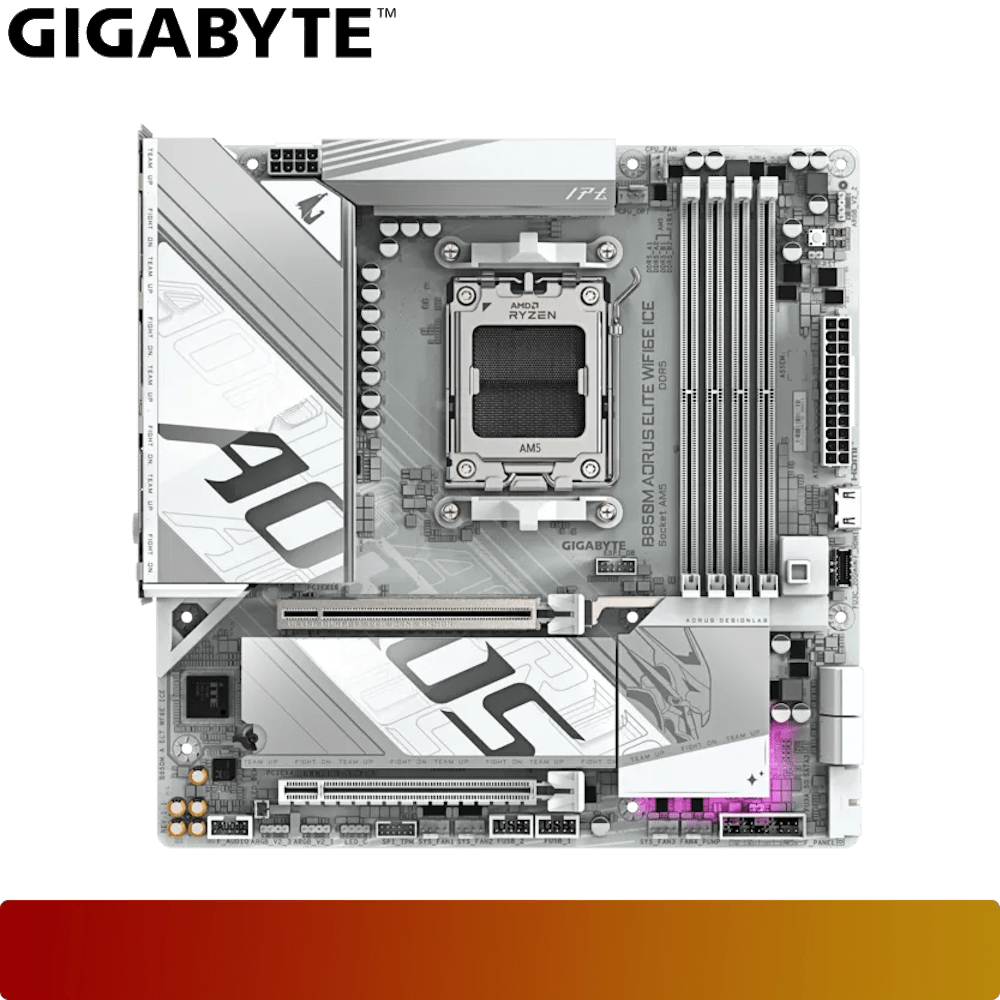

GIGABYTE B850M AORUS ELITE WIFI6E ICE

Name: GIGABYTE B850M AORUS ELITE WIFI6E ICE
Brand: Gigabyte
Price: 3549000.0 IDR
Availability: InStock

Rp 3.549.000

Compare

Brand: Gigabyte

SKU: 889523046081

Estimasi Berat: 2.4 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD B850 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 2 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, Micro ATX Form Factor

4 left

Also available at:

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series Processors
Chipset	AMD B850
Memory	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Support for DDR5 8200(O.C) / ... / 4400 MT/s memory modules Dual Channel memory architecture Support for AMD EXPO™ and Extreme Memory Profile (XMP)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support (Depends on CPU): 1 x DisplayPort, max resolution 3840x2160@144 Hz (DP 1.4, HDR) 1 x Front HDMI port, max resolution 1920x1080@30 Hz (HDMI 1.4)
Audio	Realtek® ALC1220 CODEC (rev. 1.1) / Realtek® Audio CODEC (rev. 1.0) High Definition Audio, 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

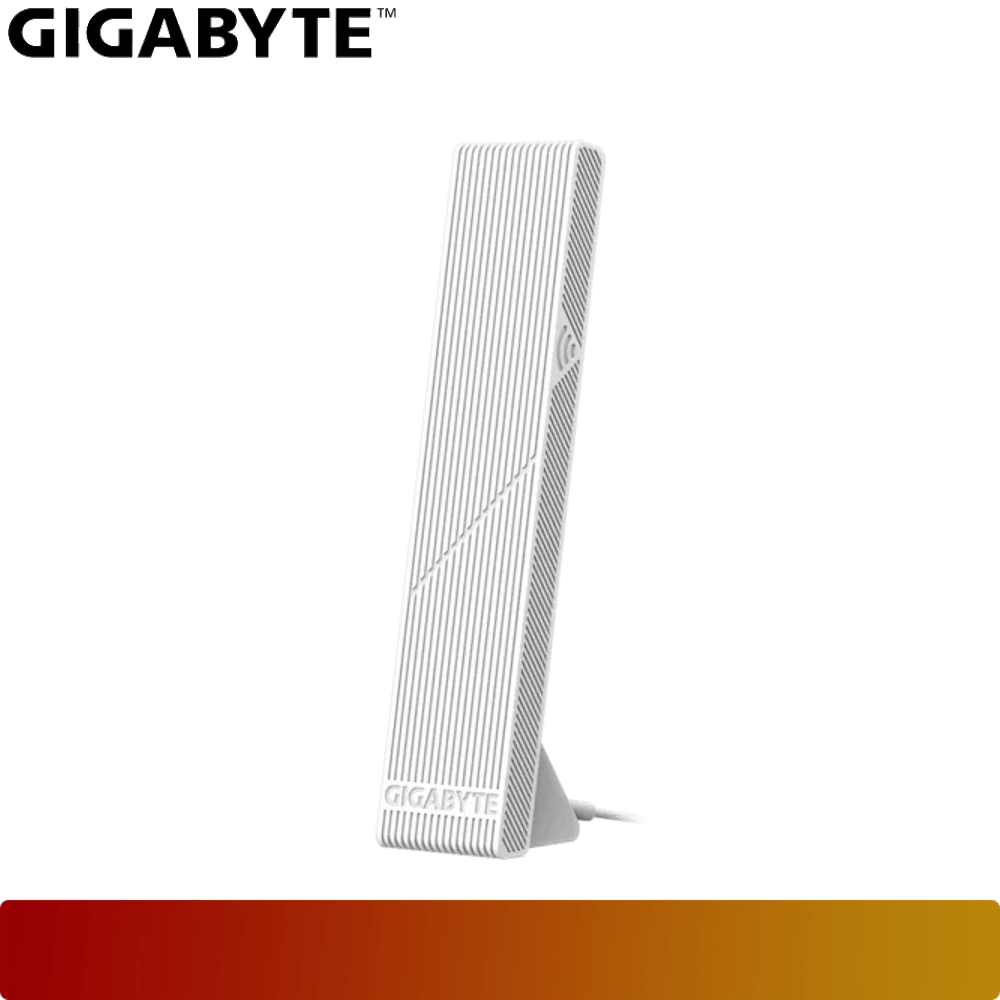

Wireless Communication Module	Realtek® Wi-Fi 6E RTL8852CE (WIFI a/b/g/n/ac/ax, 2.4/5/6 GHz) BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), from CPU (Supports up to PCIe 5.0 x16 mode) 1 x PCI Express x16 slot, from Chipset (PCIEX4), running at x4 (PCIe 3.0)
Storage Interface	1 x M.2 connector (M2A_CPU), from CPU (Supports up to PCIe 5.0 x4/x2 SSDs) 1 x M.2 connector (M2B_CPU), from CPU (Supports up to PCIe 4.0 x4/x2 SSDs) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD
USB	Back Panel (Total 8 ports): 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1 (1 port shared), 4 x USB 2.0/1.1 Internal Headers (Additional ports): 1 x USB Type-C® (USB 3.2 Gen 2x2), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
Internal I/O Connectors	Power: 1 x 24-pin ATX main, 1 x 8-pin ATX 12V Fans/Pump: 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump LED: 3 x addressable RGB Gen2, 1 x RGB LED Storage: 2 x M.2 Socket 3, 4 x SATA 6Gb/s Other: Front panel header, Front panel audio header, USB headers (Type-C Gen 2x2, Gen 1, 2.0/1.1), TPM header, HDMI port (Note), Reset button/jumper, Clear CMOS jumper

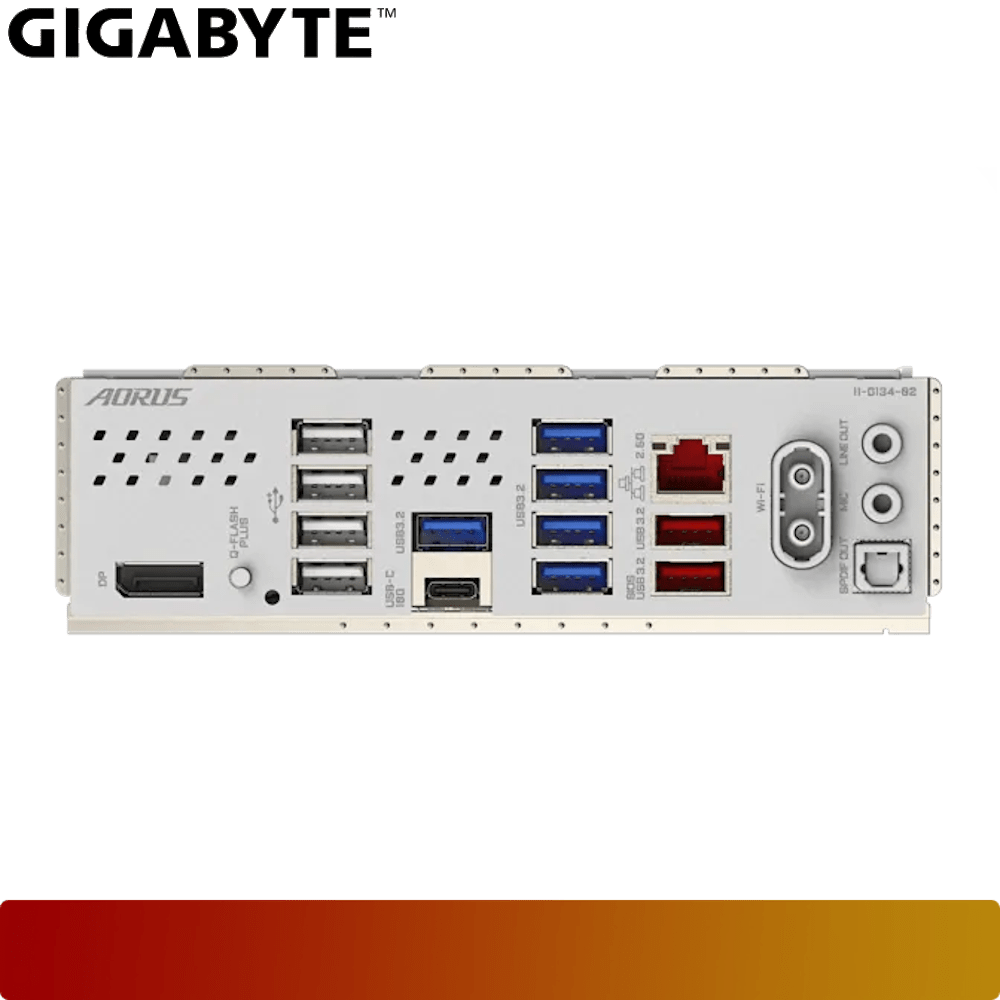

Back Panel Connectors	1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 5 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C® (USB 3.2 Gen 2), 1 x RJ-45, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out connector
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS	1 x 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System	Support for Windows 11 64-bit, Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
