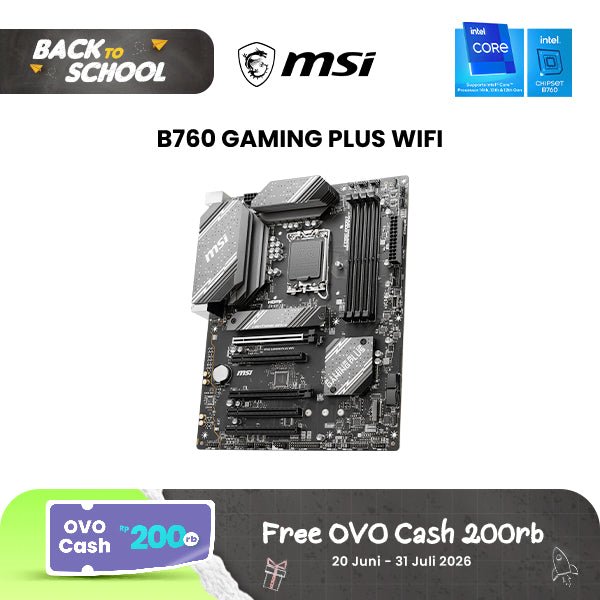

MSI B760 GAMING PLUS WIFI

CHIPSET
- INTEL B760

CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- LGA 1700

MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
- Supports Dual-Controller Dual-Channel mode

ONBOARD GRAPHICS
- 1x HDMI™
- 1x DisplayPort

SLOT
- 5x PCI-E x16 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4
- 4x SATA 6G

LAN
- Realtek® RTL8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTH
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

AUDIO
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO
- ATX
- 243.84mmx304.8mm
