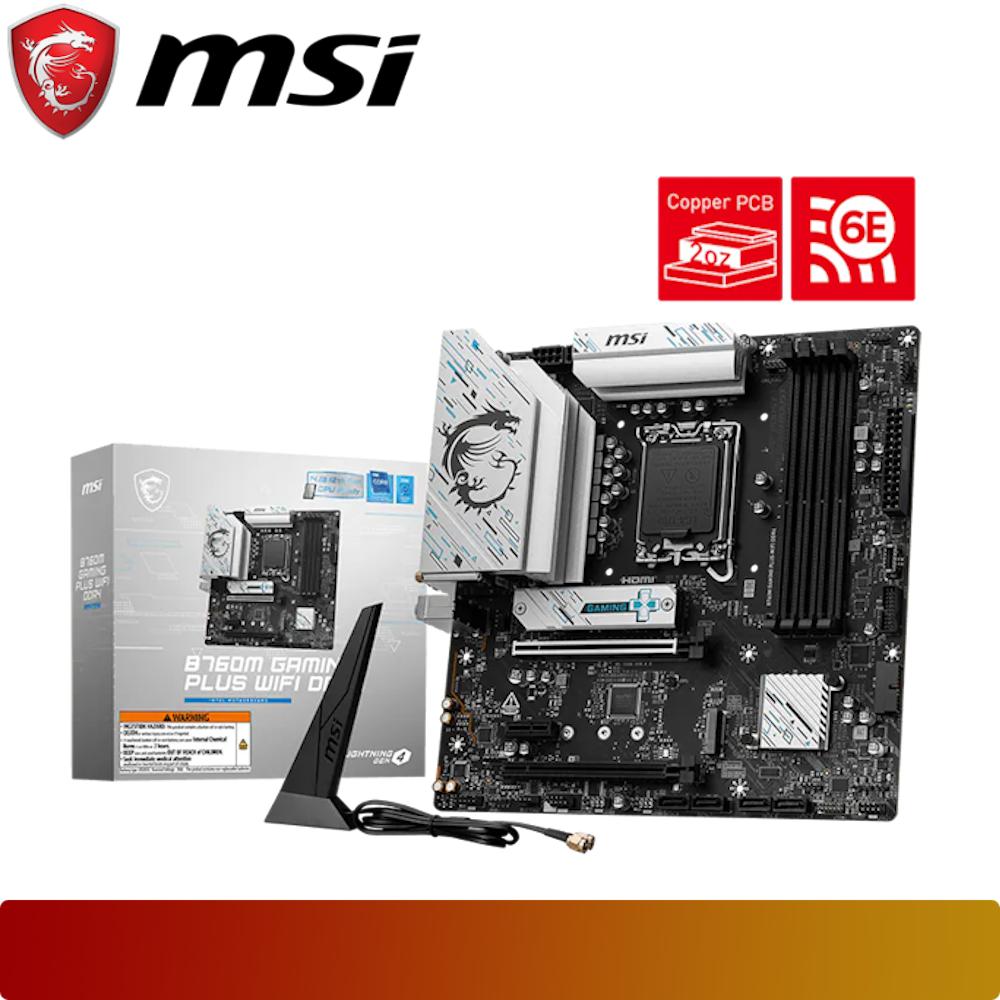

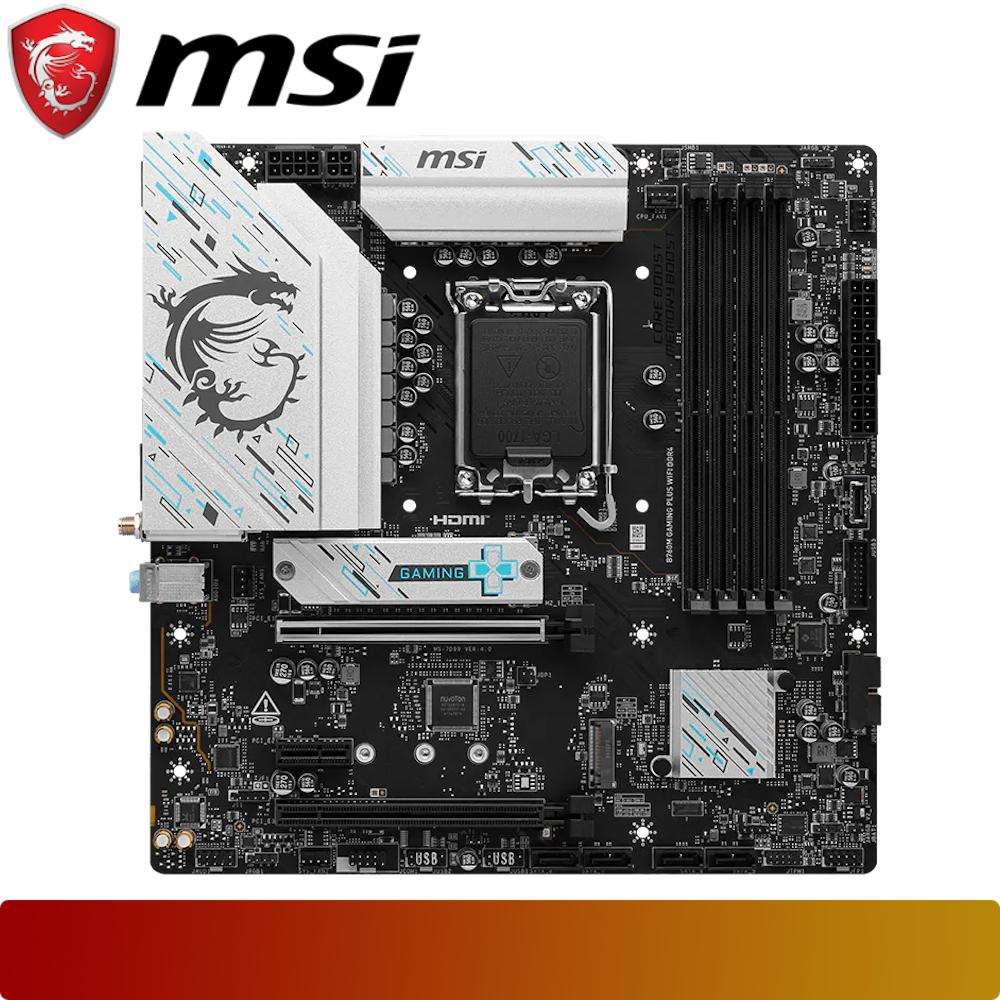

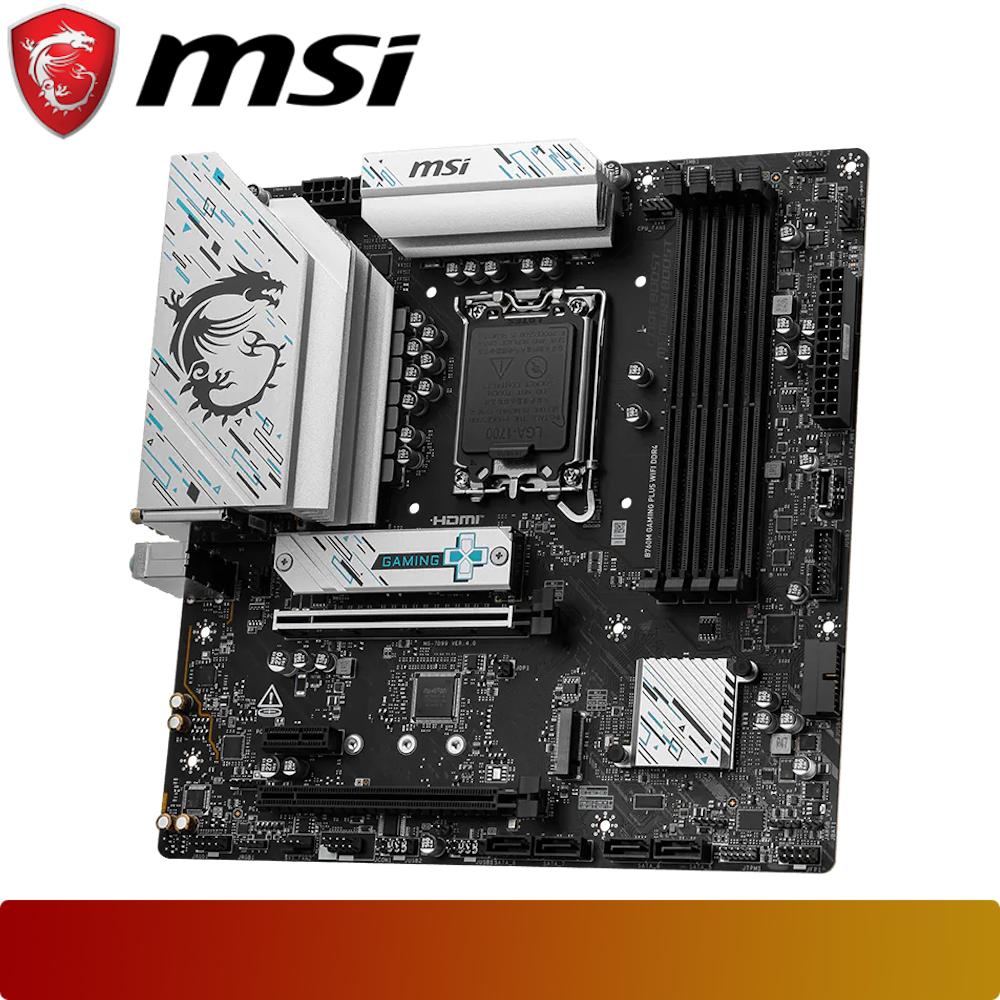

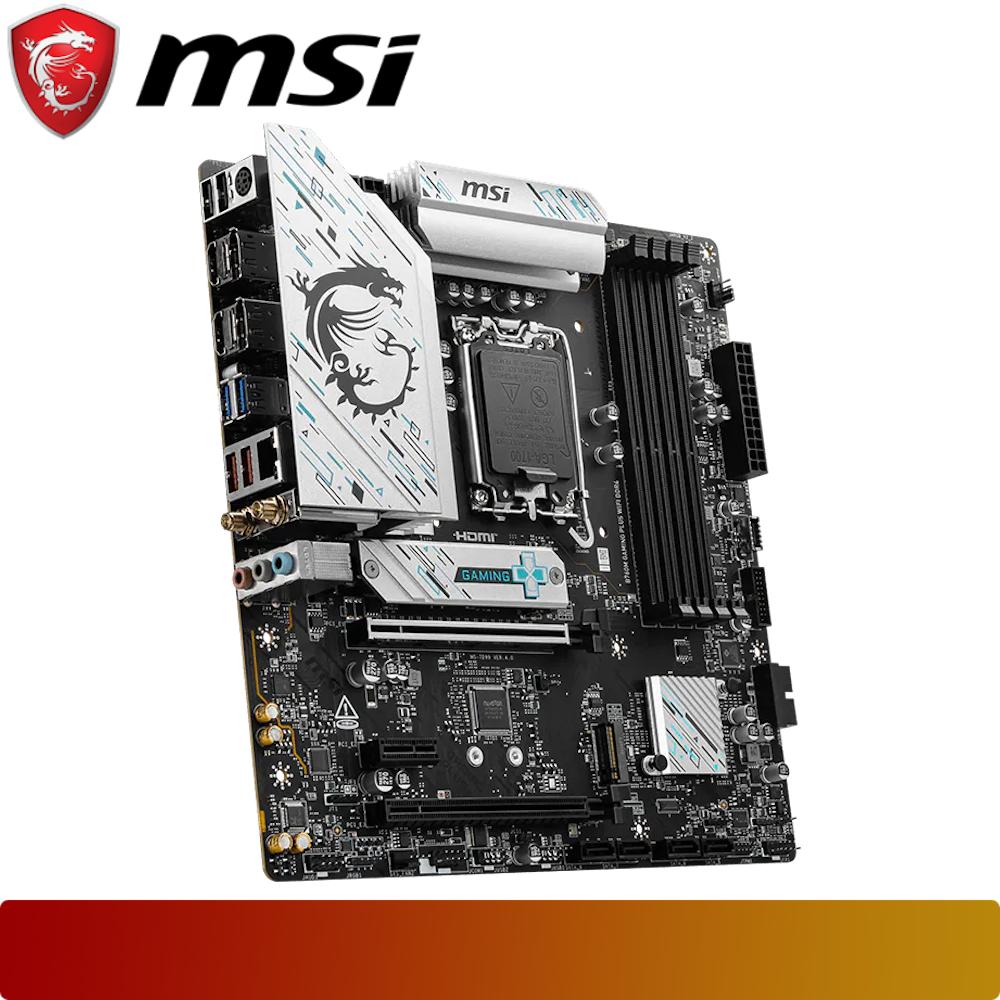

MSI B760M GAMING PLUS WIFI DDR4

Name: MSI B760M GAMING PLUS WIFI DDR4
Brand: MSi
Price: 2999000.0 IDR
Availability: InStock

Rp 2,999,000

Compare

Brand: MSi

SKU: 824142377338

Estimasi Berat: 2.8 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B760 Chipset, 4x DDR5 DIMM, Maximum Memory 128GB, Total 2 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, Micro ATX Form Factor

2 left

Also available at:

Specifications :

CHIPSET
- Intel B760

CPU SUPPORT
- Support Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- CPU Socket: LGA 1700

MEMORY SPECIFICATIONS
- 4 x DDR4, Maximum Memory Capacity: 128GB
- Supports up to 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)

ONBOARD GRAPHICS
- 2 x HDMI: Support HDMI 2.1, maximum resolution of 4K 60Hz
- 2 x DisplayPort: Support DP 1.4, maximum resolution of 4K 60Hz

EXPANSION SLOTS
- 2 x PCI-E x16 slots, 1 x PCI-E x1 slot
- PCI_E1: Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2: Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3: Gen PCIe 4.0 supports up to x4 (From Chipset)

AUDIO
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

STORAGE
- 2 x M.2 slots
- 4 x SATA 6Gb/s ports

LAN & NETWORKING
- Realtek RTL8125BG 2.5G LAN

WIRELESS & BLUETOOTH
- Intel Wi-Fi 6E
- Supports Bluetooth 5.3, FIPS, FISMA

LED FEATURE
- 4 x EZ Debug LED

OPERATING SYSTEM
- Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR & PCB
- Form Factor: mATX
- Dimensions: 243.84 mm x 243.84 mm
