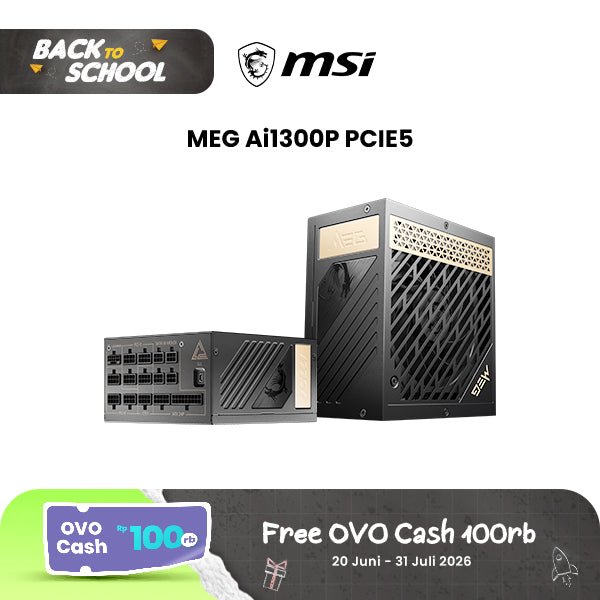

MSI MEG Ai1300P PCIE5

Efficiency Rating
- 80 PLUS Platinum (up to 92%)

Modular
- Yes (full modular)

Fan Size
- 120 mm

Fan Bearing
- Hydro Dynamic Bearing

Dimensions (DxWxH)
- 160 x 150 x 86 mm

PFC Type
- Active PFC

Input Voltage Range
- 100-240

Power Watt
- 1300W

Power Excursion
- 2600W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range
- 50-60 Hz

Protection
- OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

ATX (24 pin)
- 1

EPS (8 pin)
- 1

EPS (4+4 pin)
- 1

PCI-E 5.0 (16 pin)
- 1 (600W)

PCI-E (6+2 pin)
- 8

SATA (15 pin)
- 16

PERIPHERAL (4 pin)
- 4

FDD (4 pin)
- 1
