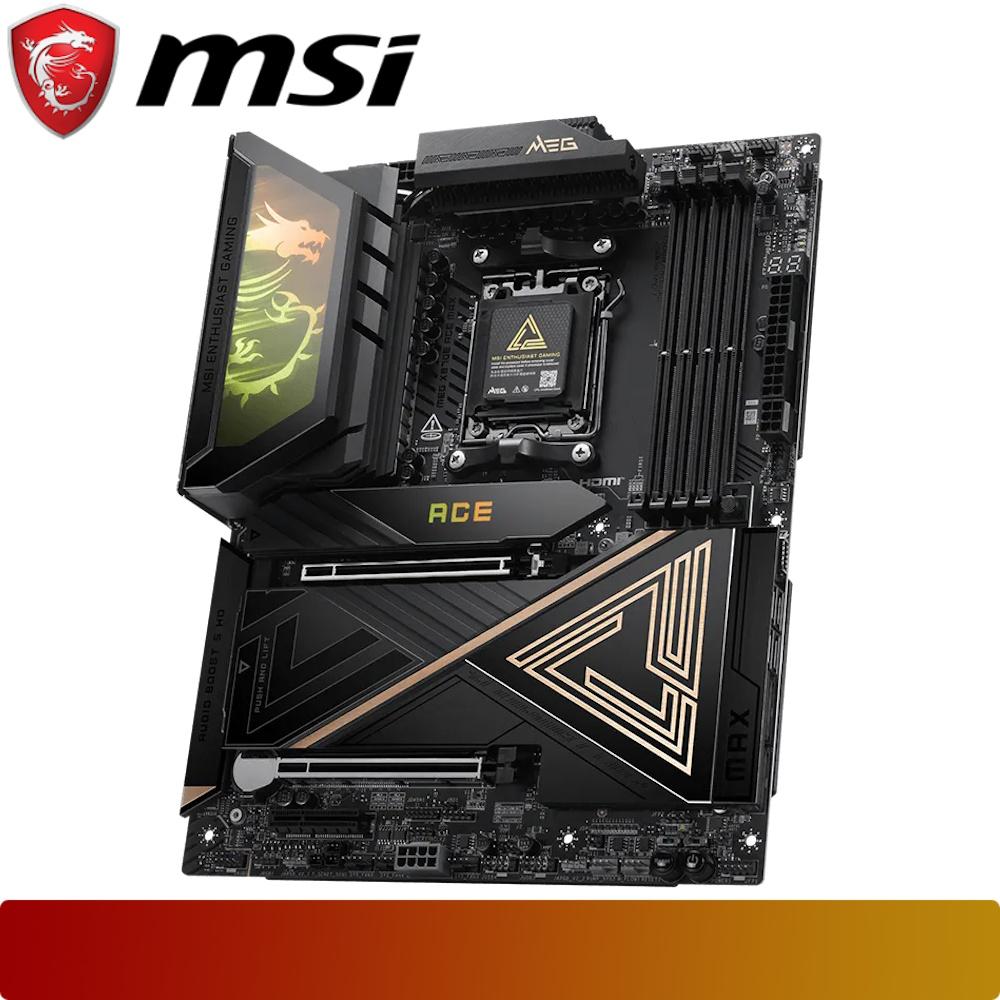

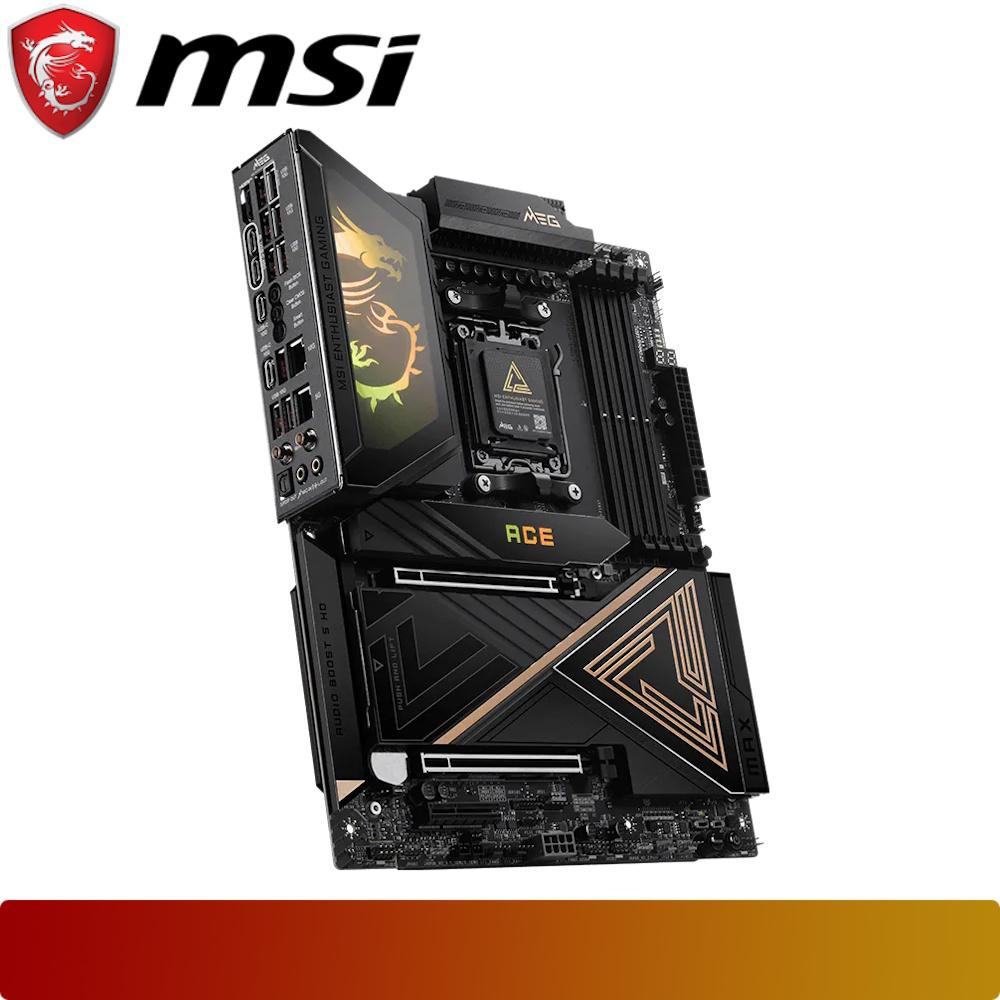

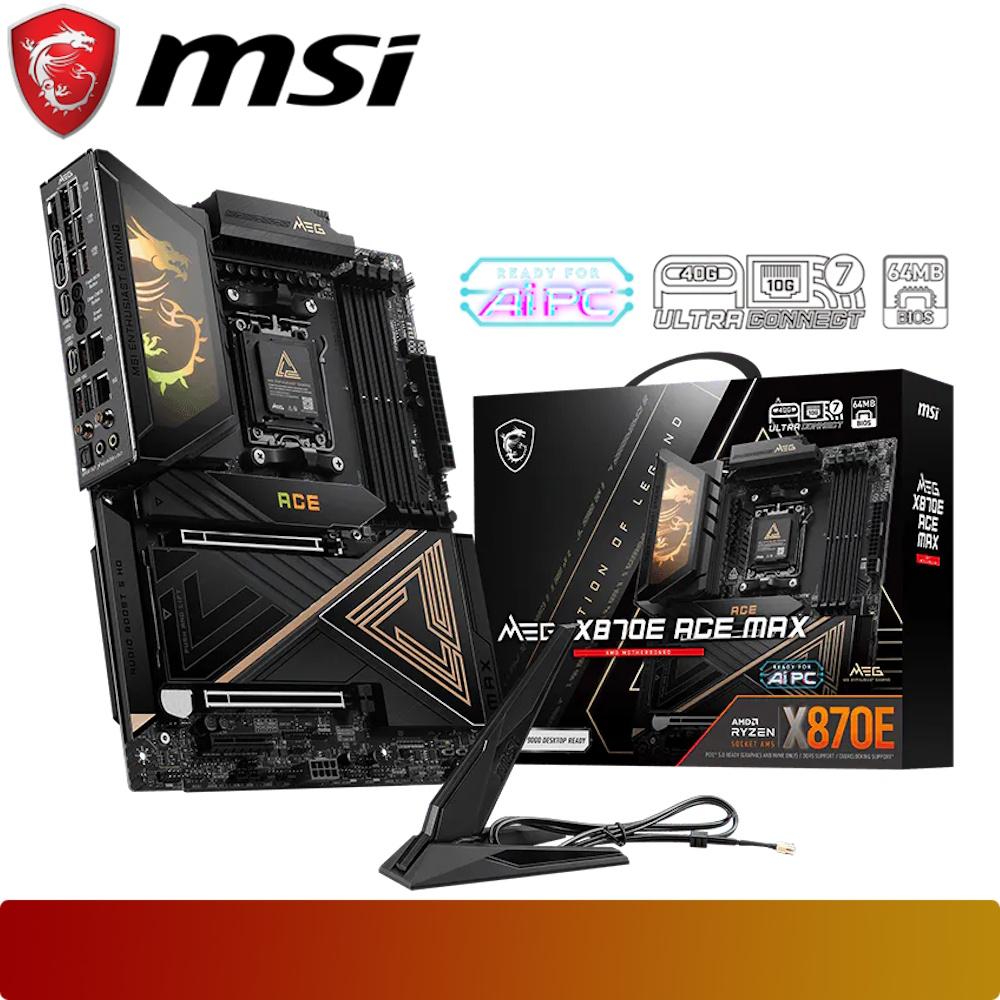

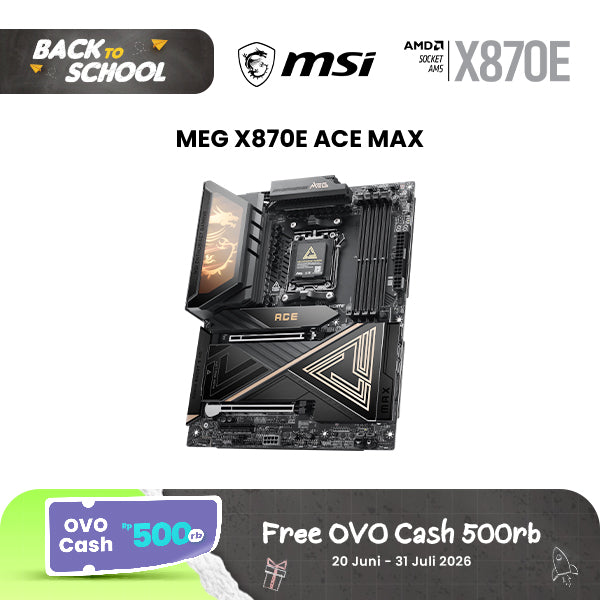

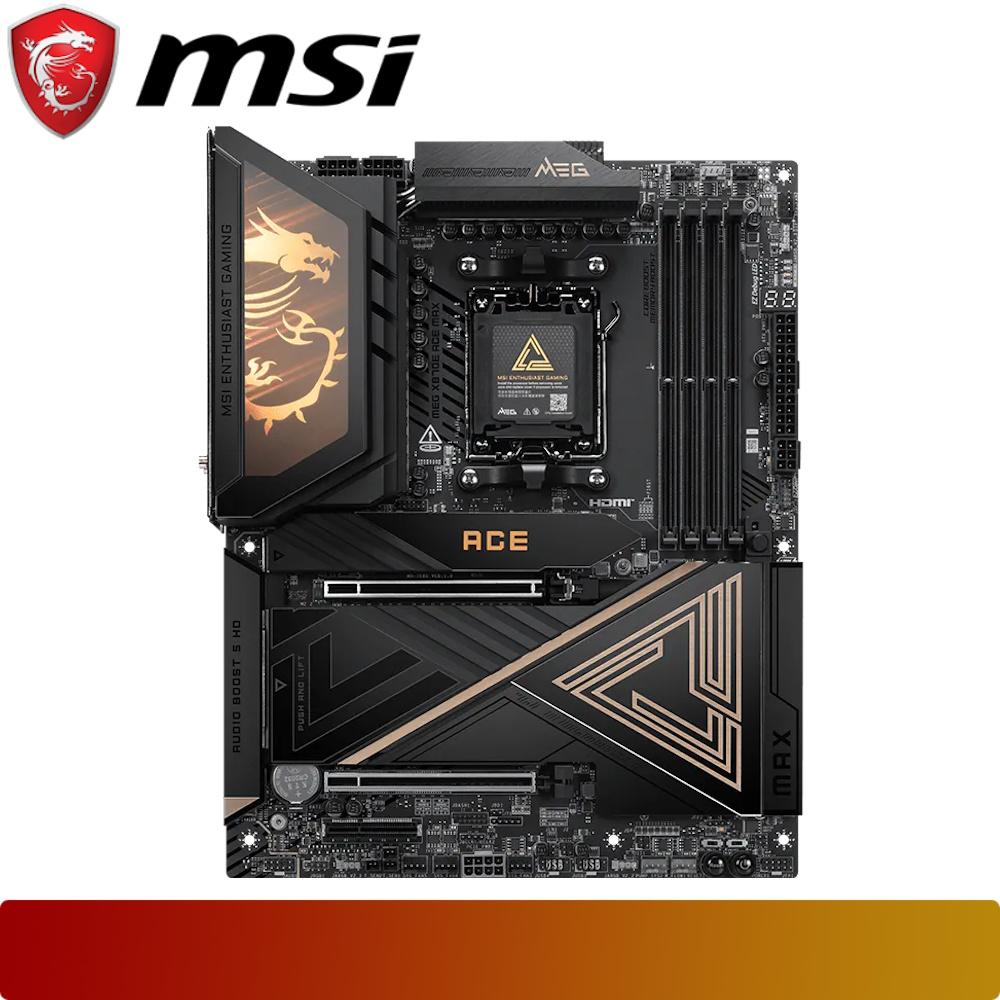

MSI MEG X870E ACE MAX

Name: MSI MEG X870E ACE MAX
Brand: MSi
Price: 11809000.0 IDR
Availability: InStock

Rp 11.809.000

Compare

Brand: MSi

SKU: 824142451182

Estimasi Berat: 3.5 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD X870E Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 5 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket AMD AM5, ATX Form Factor

1 left

Also available at:

Chipset	- AMD X870E
CPU	- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors - Socket AM5
Memory	- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB - Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Onboard Graphics	- 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz - 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz
Slot	- 2x PCI-E x16 slot - 1x PCI-E x4 slot
Audio	- Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA - 7.1-Channel USB High-Performance Audio - Supports S/PDIF output - Supports up to 32-Bit/384 kHz playback on front panel
Storage	- 5x M.2 - 4x SATA 6G
RAID	- Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

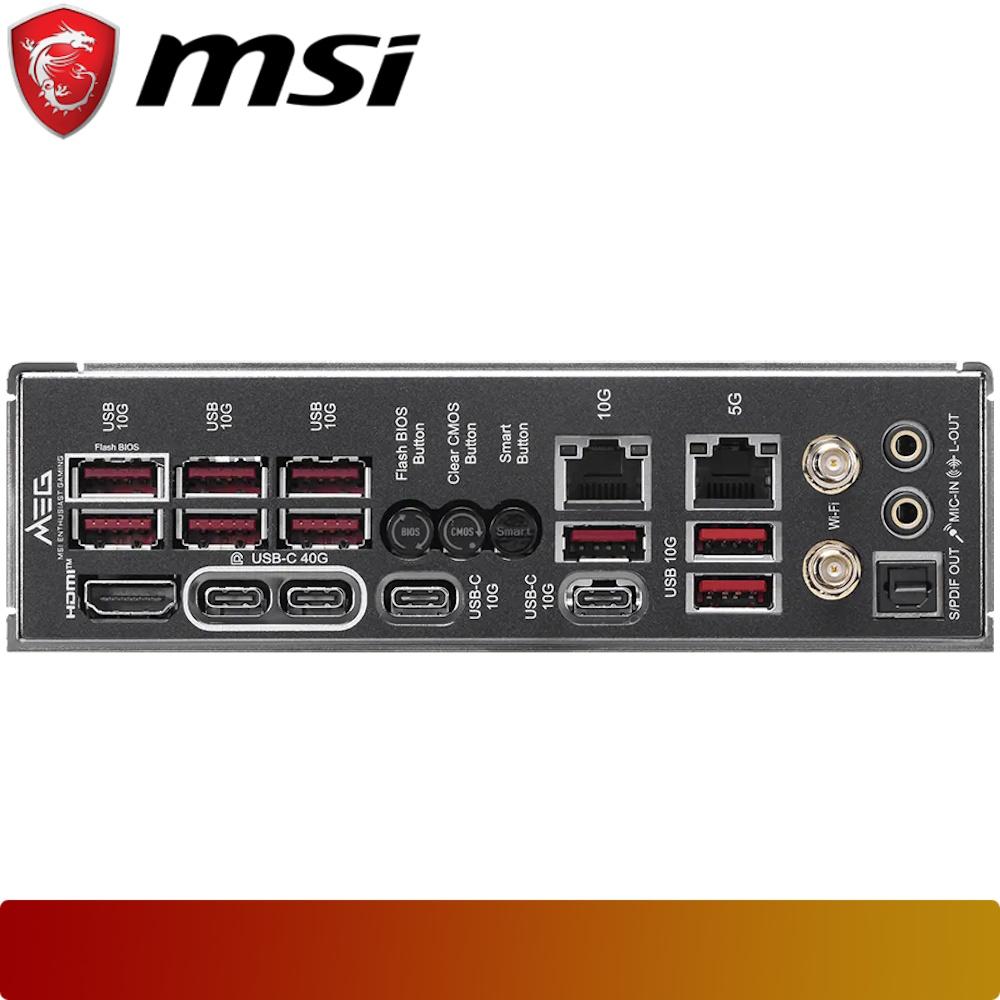

USB	- 4x USB 2.0 (Front) - 4x USB 5Gbps Type A (Front) - 9x USB 10Gbps Type A (Rear) - 2x USB 10Gbps Type C (Rear) - 1x USB 20Gbps Type C (Front) - 2x USB 40Gbps Type C (Rear)
LAN	- 1x Marvell AQC113CS 10Gbps LAN - 1x Realtek 8126 5Gbps LAN
WIRELESS LAN & BLUETOOTH	- Wi-Fi 7 Solution - Supports Bluetooth 5.4**, MLO, 4KQAM
LED FEATURE	- 1x EZ Digi-Debug LED - 4x EZ Debug LED - 1x EZ Memory Detection LED - 1x EZ LED Control switch
PCB Info	- ATX - 243.84mmx304.8mm
