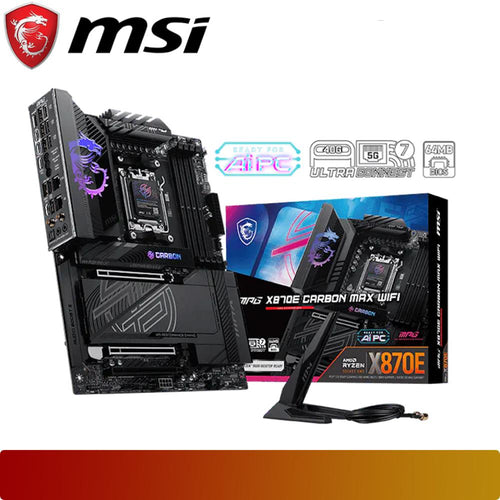

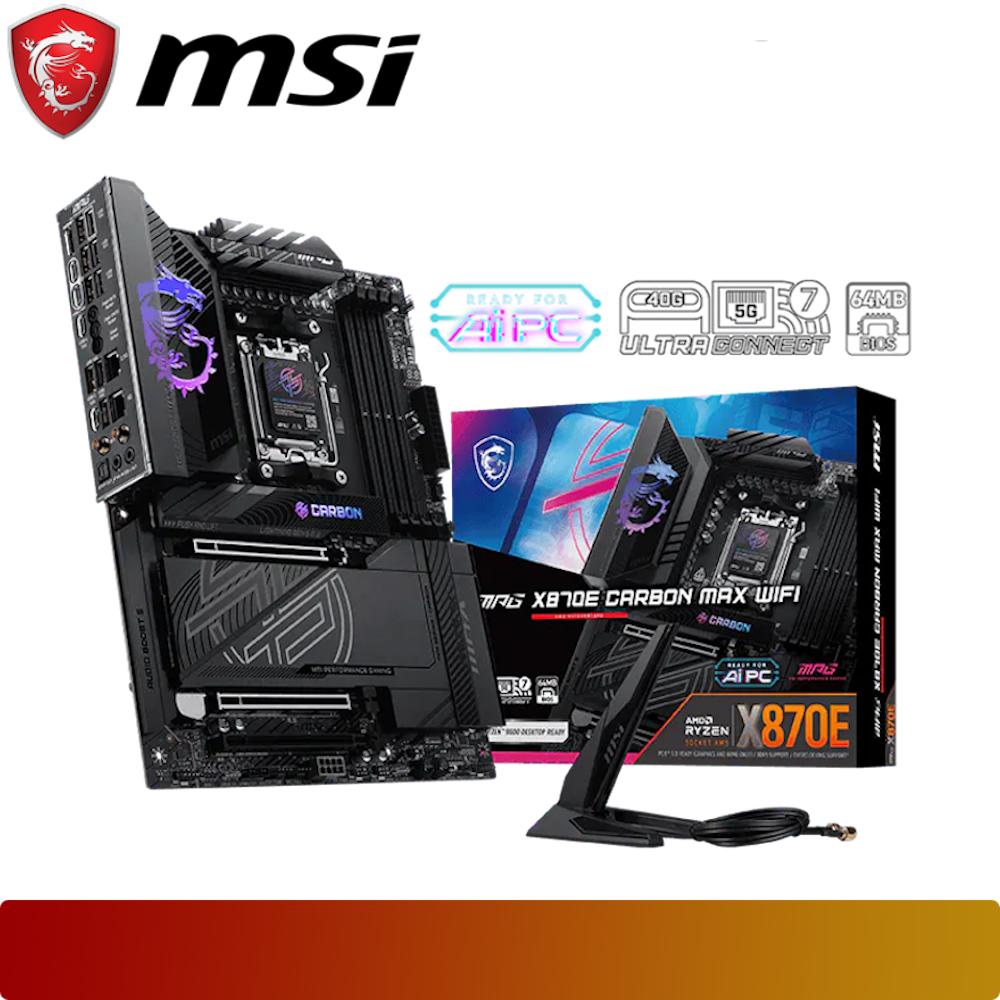

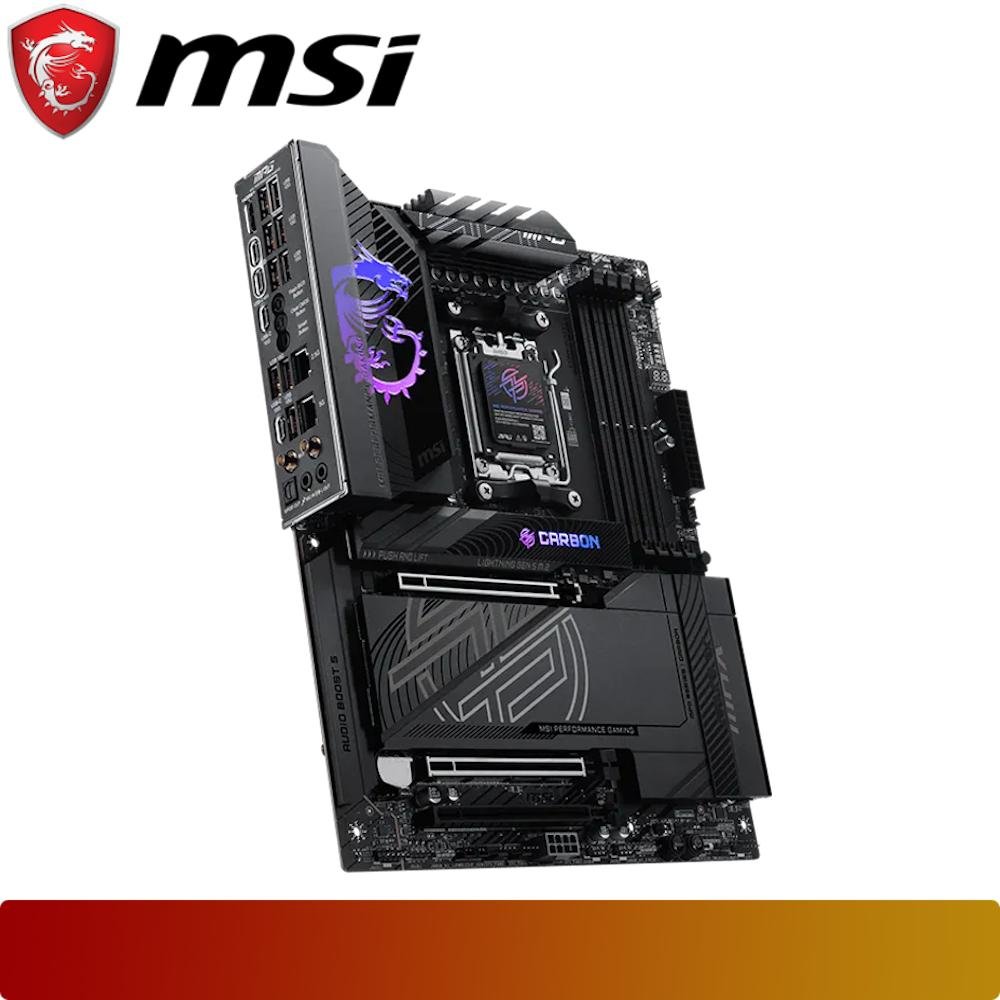

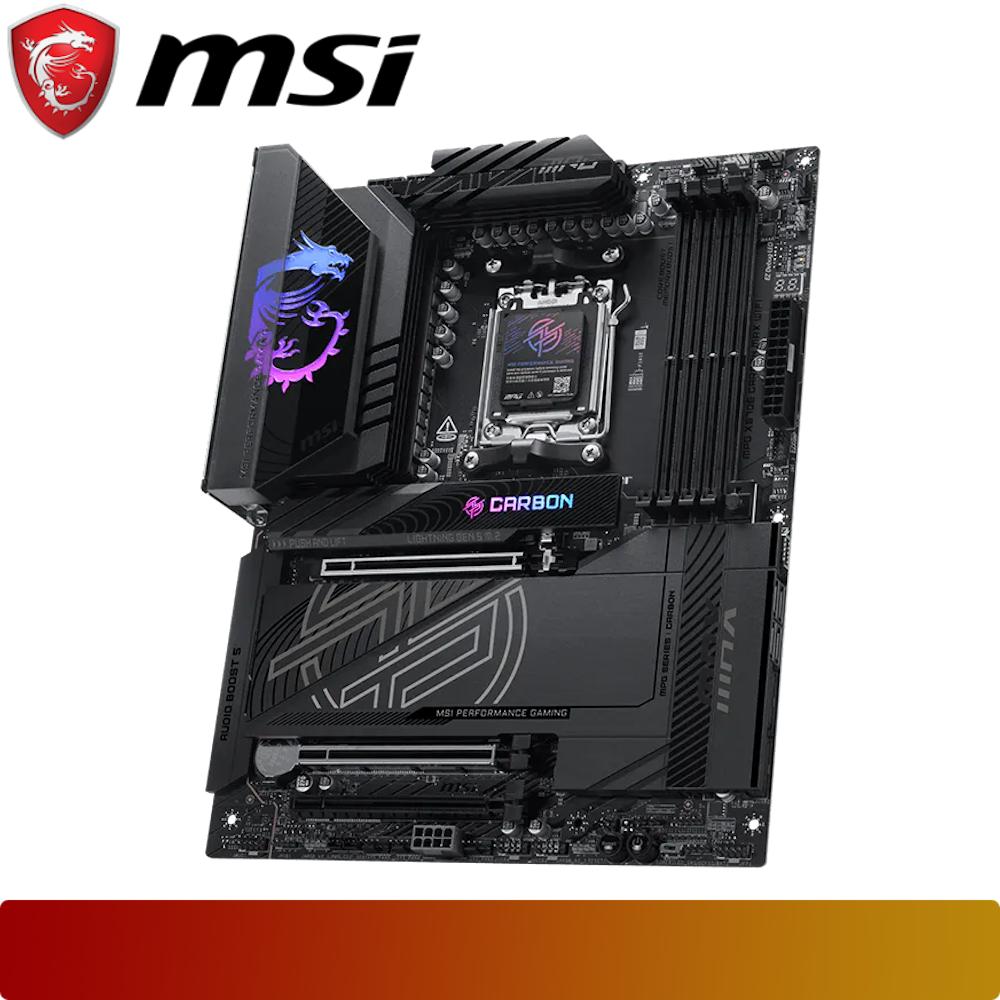

MSI MPG X870E CARBON MAX WIFI
Rp 8.719.000
Also available at:
Product description
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory |
| Onboard Graphics | - 1x HDMI™ 2.1 with FRL port (maximum resolution of 8K 60Hz) - 2x Type-C DisplayPort USB4® port (maximum resolution of 4K@60Hz) |
| Slot | 3x PCI-E x16 slot - PCI_E1 Gen PCIe 5.0 supports up to x16 - PCI_E2 Gen PCIe 5.0 supports up to x8 - PCI_E3 Gen PCIe 4.0 supports up to x4 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output |
| Storage | 4x M.2 (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | - 4x USB 2.0 (Front) - 4x USB 5Gbps Type A (Front) - 1x USB 20Gbps Type C (Front) - 9x USB 10Gbps Type A (Rear) - 2x USB 10Gbps Type C (Rear) - 2x USB 40Gbps Type C (Rear) |
| LAN | 1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN |
| Wireless LAN & Bluetooth | Wi-Fi 7 Solution Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4 |
| Internal IO | 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x Power Connector (PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan |
| LED Feature | 4x EZ Debug LED 1x EZ Digit Debug LED |

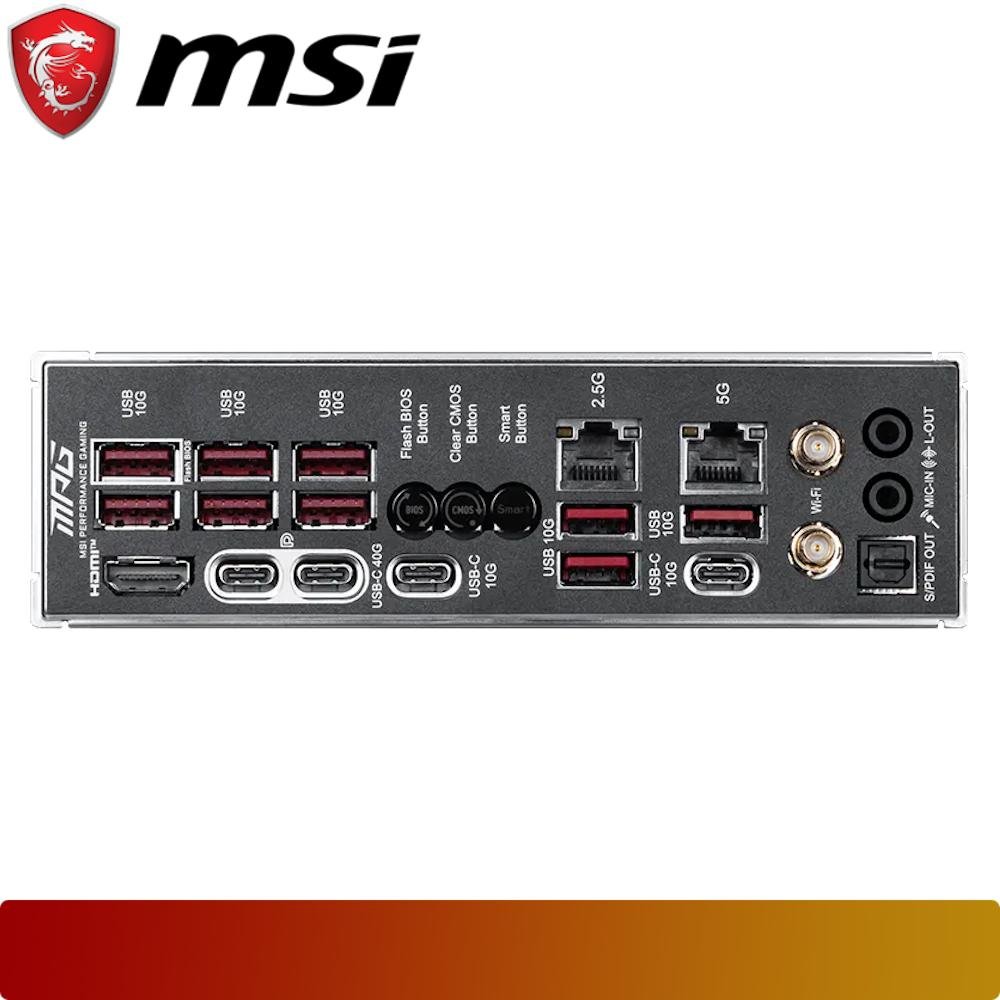

| Back Panel Ports | USB 10Gbps Type-A, Flash BIOS Button, Clear CMOS Button, Smart Button, 2.5G LAN, 5G LAN, Audio Connectors, HDMI™, USB 40Gbps Type-C, USB 10Gbps Type-C, Wi-Fi / Bluetooth, Optical S/PDIF Out |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX Form Factor 243.84mm x 304.8mm |
