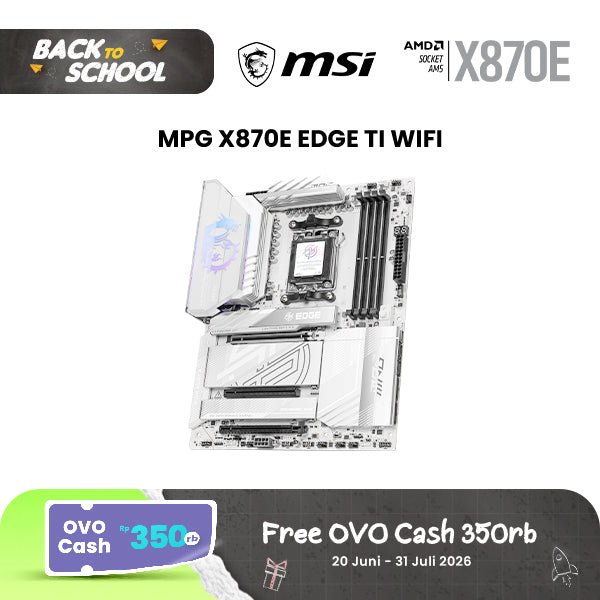

MSI MPG X870E EDGE TI WIFI

1. 4x DDR5 DIMMs, Maximum Memory Capacity 256GB
2. Memory Speed Support: DDR5 up to 8400+(OC) MT/s
3. Max overclocking frequency (Ryzen™ 9000 Series):
   • 1) 1DPC 1R Max speed up to 8400+ MT/s
   • 2) 1DPC 2R Max speed up to 6400+ MT/s
   • 3) 2DPC 1R Max speed up to 6400+ MT/s
   • 4) 2DPC 2R Max speed up to 6000+ MT/s
4. Supports Dual-Channel mode, Non-ECC, Un-buffered memory, and AMD EXPO™

1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)
2. 1x USB Type-C DisplayPort (Supports DisplayPort 1.4/HBR3, max resolution 4K 60Hz*)

*Available only on processors featuring integrated graphics.

1. 1x PCI-E x16 slot (PCI_E1 Gen **PCIe 5.0**, runs at x16 from CPU)
2. 1x PCI-E x16 slot (PCI_E3 Gen PCIe 4.0, runs at x4 from Chipset)
3. 1x PCI-E x1 slot (PCIe 3.0, from Chipset)

1. 1x M.2 slot (M.2\_1: **PCIe 5.0** x4 from CPU)
2. 3x M.2 slots (M.2\_2/M.2\_3/M.2\_4: PCIe 4.0 x4)
3. 6x SATA 6G ports

1. LAN: Realtek® 8126VB 5Gbps LAN
2. Wireless/Bluetooth: Wi-Fi 7 Solution & Bluetooth® 5.4 (pre-installed)

1. Rear Panel Ports: 1x USB4 Type-C 40Gbps, 1x USB-C 20Gbps (USB 3.2 Gen 2x2), 3x USB-A 10Gbps, 4x USB-A 5Gbps.
2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 2x USB 2.0 headers (supports 4 ports).
