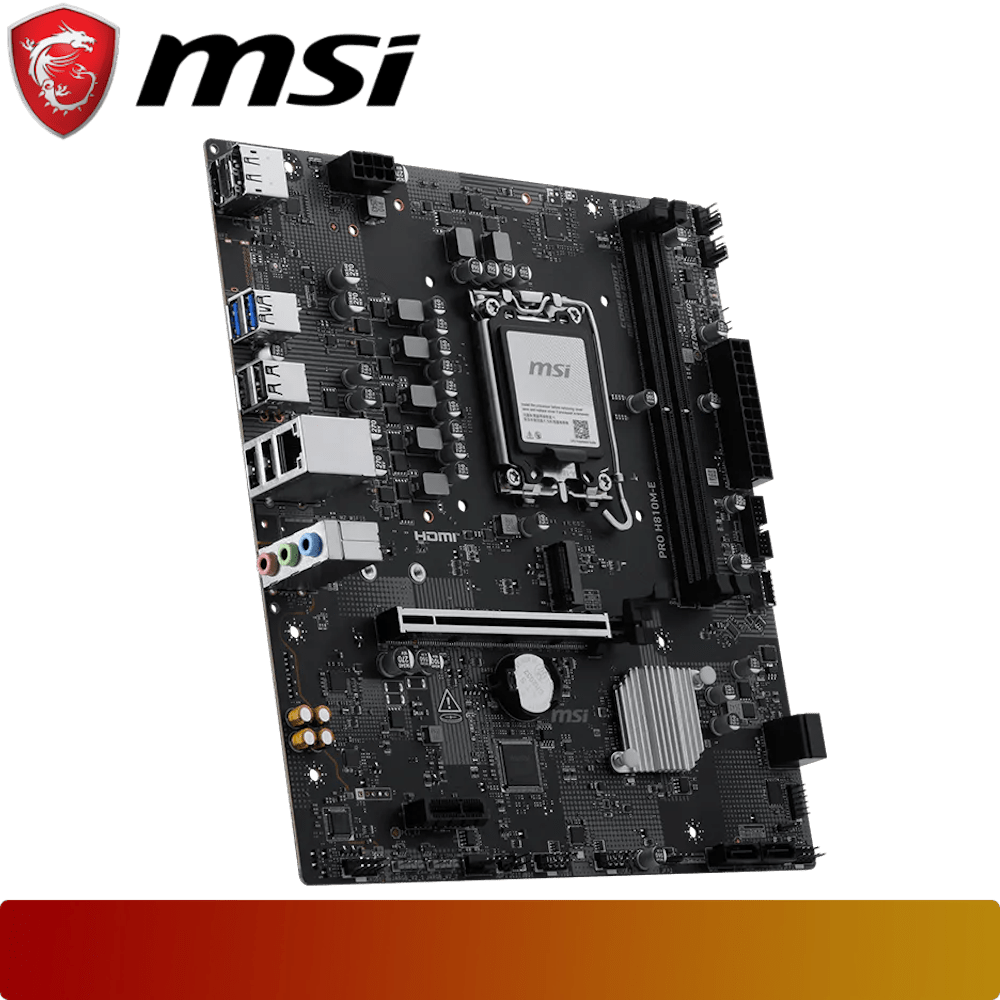

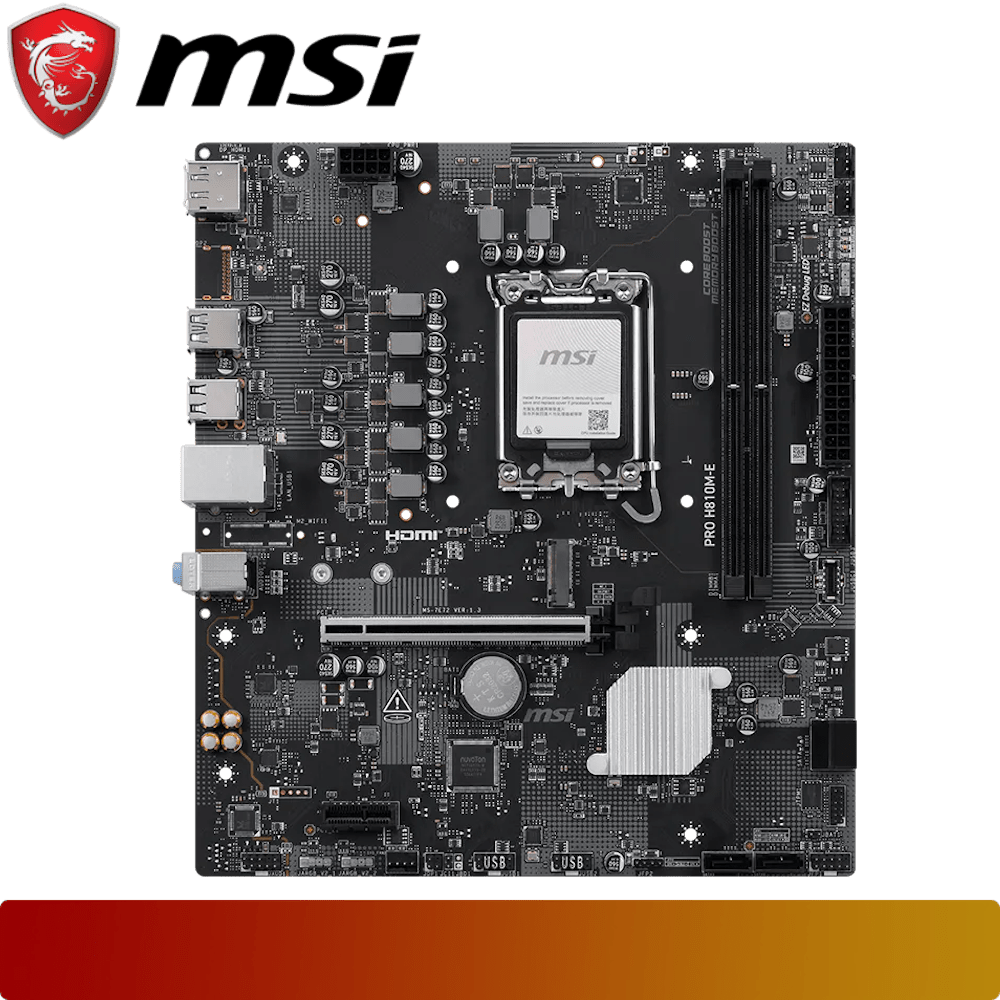

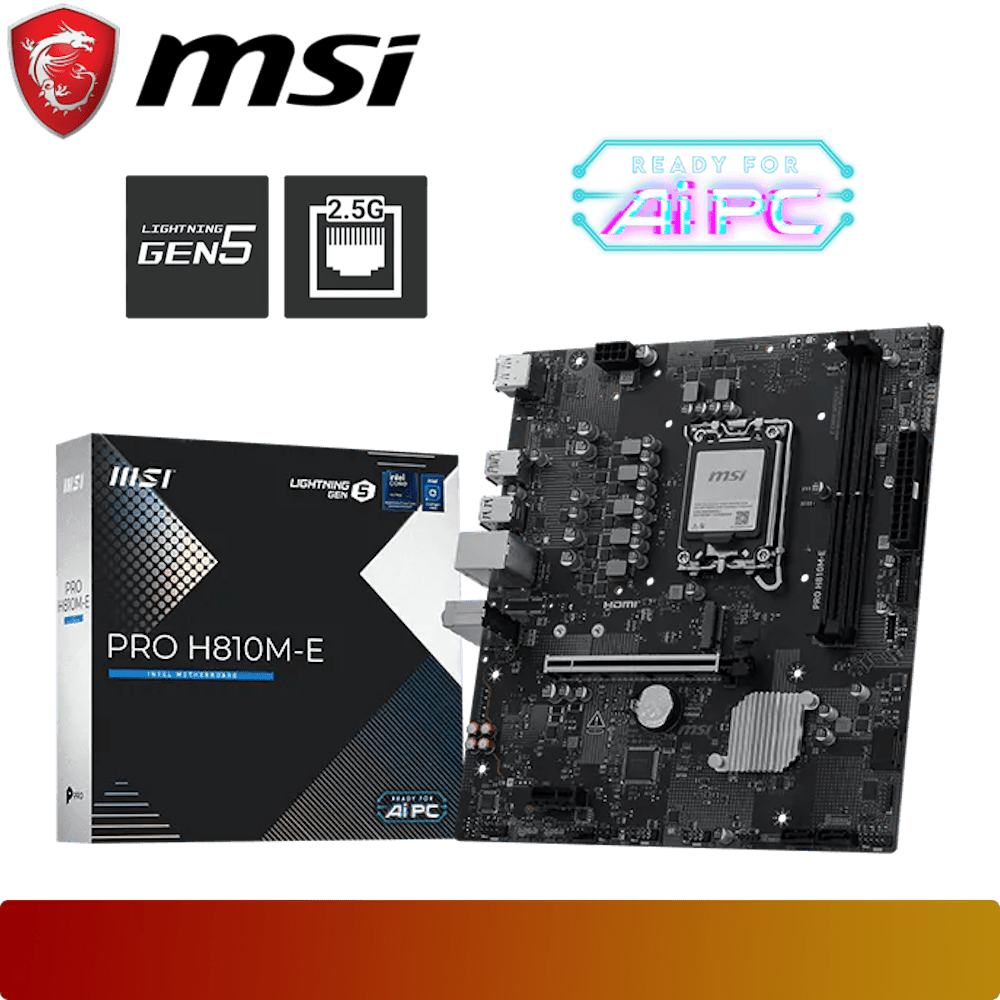

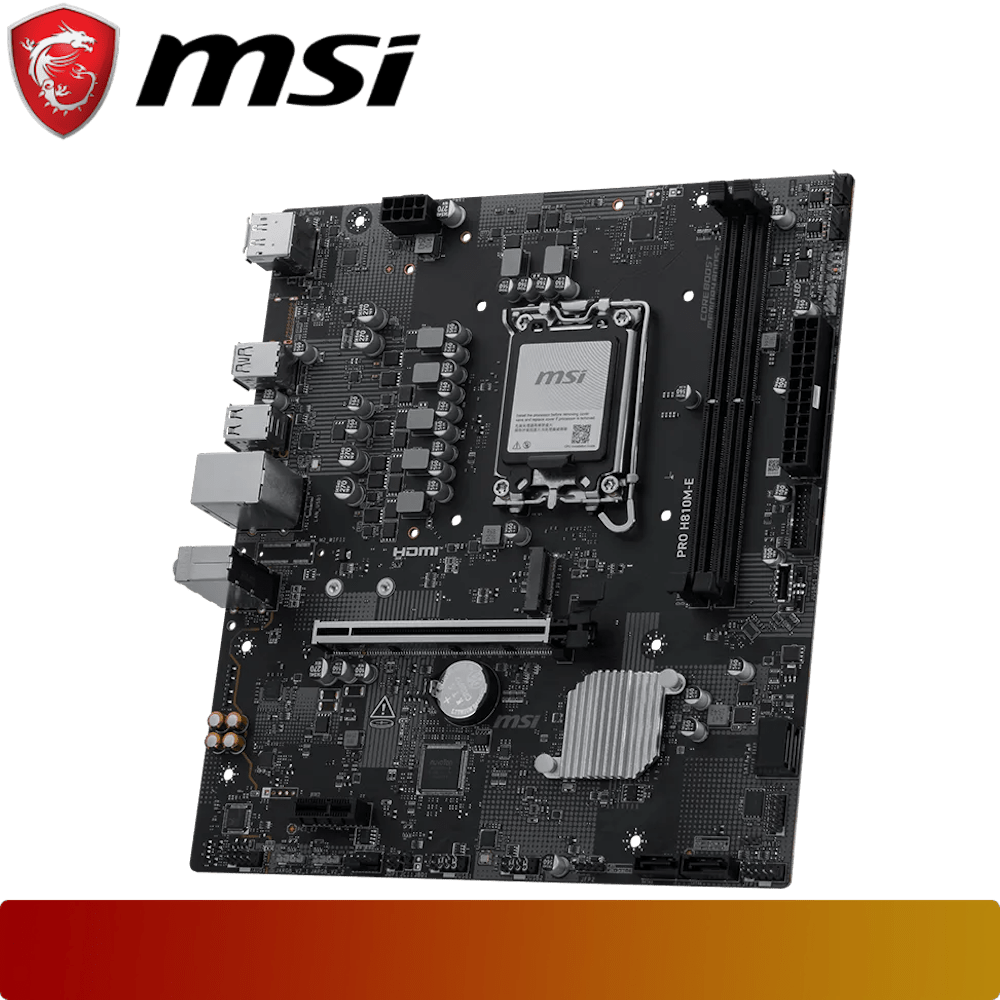

MSI PRO H810M-E
Rp 1.689.000
Also available at:
Product description
| Chipset | - INTEL H810 |
| CPU | - Supports Intel Core Ultra Processors (Series 2) - LGA 1851 |
| Memory | - 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Onboard Graphics | - 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz - 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Slot | - 1x PCI-E x16 slot - 1x PCI-E x1 slot - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | - Realtek ALC897 Codec - 7.1-Channel High Definition Audio |
| Storage | - 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - 4x SATA 6G |

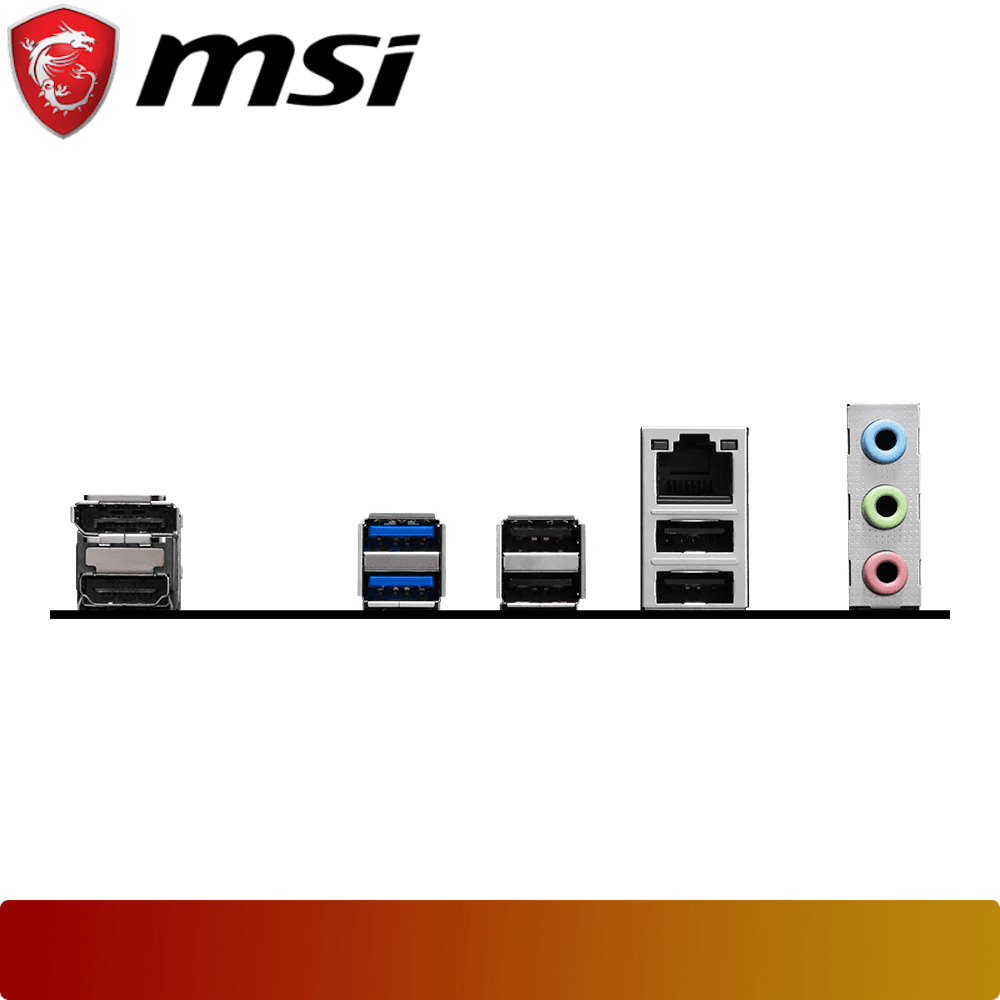

| USB | - 4x USB 2.0 (Rear) - 4x USB 2.0 (Front) - 2x USB 5Gbps Type A (Rear) - 2x USB 5Gbps Type A (Front) - 1x USB 5Gbps Type C (Front) |
| Internal IO | - 1x Power Connector(ATX_PWR) - 1x Power Connector(CPU_PWR) - 1x CPU Fan - 2x System Fan - 2x Front Panel (JFP) - 1x Chassis Intrusion (JCI) - 1x Front Audio (JAUD) - 3x Addressable V2 RGB LED connector (JARGB_V2) - 1x TPM pin header(Support TPM 2.0) - 4x USB 2.0 ports - 2x USB 5Gbps Type A ports - 1x USB 5Gbps Type C ports |
| LED FEATURE | - 4x EZ Debug LED - 1x EZ Memory Detection LED |
| OPERATING SYSTEM | - Support for Windows 11 64-bit |
| PCB Info | - ATX 220mmx243.84mm |
Warranty
Product Info
Nano Komputer
.
Produk resmi dan original
.
