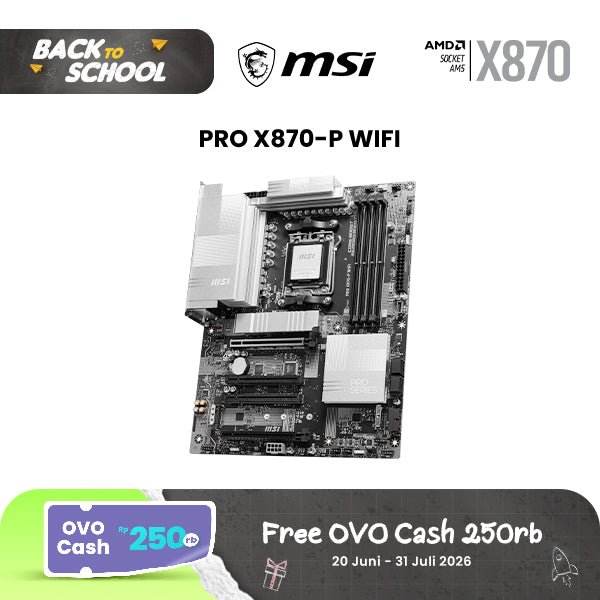

MSI PRO X870-P WIFI

1. 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
2. Memory Speed Support: DDR5 up to 8200+(OC) MT/s
3. Max overclocking frequency (Ryzen™ 9000 Series):
   • 1) 1DPC 1R Max speed up to 8200+ MT/s
   • 2) 1DPC 2R Max speed up to 6400+ MT/s
   • 3) 2DPC 1R Max speed up to 6400+ MT/s
   • 4) 2DPC 2R Max speed up to 4800+ MT/s
4. Supports Dual-Channel mode, Non-ECC, Un-buffered memory, and AMD EXPO™

1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)
2. 1x USB Type-C DisplayPort (Supports DisplayPort 1.4/HBR3, max resolution 4K 60Hz*)

*Available only on processors featuring integrated graphics.

1. 1x PCI-E x16 slot (PCI_E1 Gen **PCIe 5.0**, runs at x16 from CPU)
2. 1x PCI-E x16 slot (PCI_E4 Gen PCIe 4.0, runs at x4 from Chipset)
3. 2x PCI-E x1 slots (PCI_E2/PCI_E3 Gen PCIe 3.0, from Chipset)

1. 1x M.2 slot (M.2\_1: **PCIe 5.0** x4 from CPU)
2. 1x M.2 slot (M.2\_2: PCIe 4.0 x4 from Chipset)
3. 1x M.2 slot (M.2\_3: PCIe 4.0 x2 from Chipset*)
4. 4x SATA 6G ports

*M.2\_3 shares bandwidth with PCI_E4 slot (runs x2 when device is installed).

1. LAN: Realtek® 8126VB 5Gbps LAN
2. Wireless/Bluetooth: Wi-Fi 7 Solution & Bluetooth® 5.4 (pre-installed)

1. Rear Panel Ports: 1x USB4 Type-C 40Gbps, 1x USB-C 20Gbps (USB 3.2 Gen 2x2), 2x USB-A 10Gbps, 4x USB-A 5Gbps, 4x USB 2.0.
2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 4x USB 2.0 headers (supports 8 ports).
