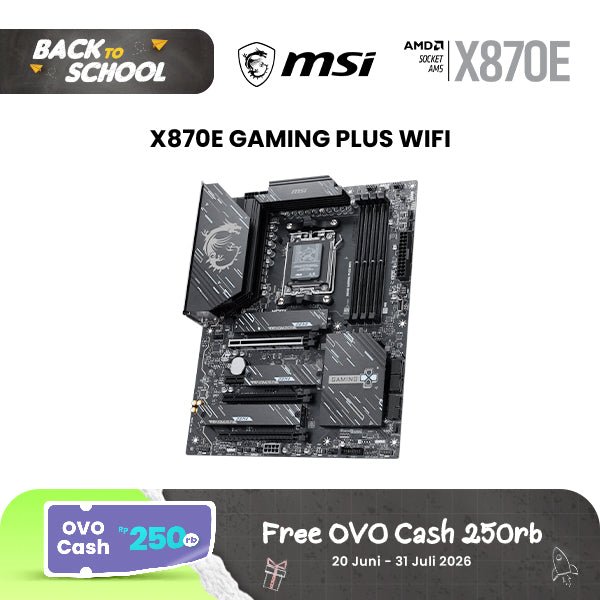

MSI X870E GAMING PLUS WIFI

Specifications :

Chipset
- AMD X870E

CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Socket AM5

Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Supports Dual-Channel mode

Onboard Graphics
- 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
- 1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*

Slot
- 3x PCI-E x16 slot
- 1x PCI-E x1 slot

Audio
- Realtek ALC897
- 7.1-Channel High Definition Audio

Storage
- 3x M.2
- 4x SATA 6G

LAN
- Realtek 8126VB 5G LAN

WIRELESS LAN & BLUETOOTH
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth 5.4**, MLO, 4KQAM

LED FEATURE
- 4x EZ Debug LED
- 1x EZ Memory Detection LED

OPERATING SYSTEM
- Support for Windows 11 64-bit

PCB Info
- ATX
- 243.84mmx304.8mm
