Stock: 73
NOCTUA NF-A12x25 G2 PWM chromax.black
Rp 549.000
Also available at:
Product description
| Key spec |
- Size (Form factor) : 120 x 120 x 25 mm (square) - Speed range : 0 – 1800 rpm - Airflow (max.) : 107.3 m³/h (63.15 CFM) - Acoustical noise (max.) : 22.5 dB(A) - Static pressure (max.) : 3.14 mm H₂O - Rated voltage : 12 V - Connector : 4-pin - Colour : Black - Warranty : 6 years |
| Scope of delivery |

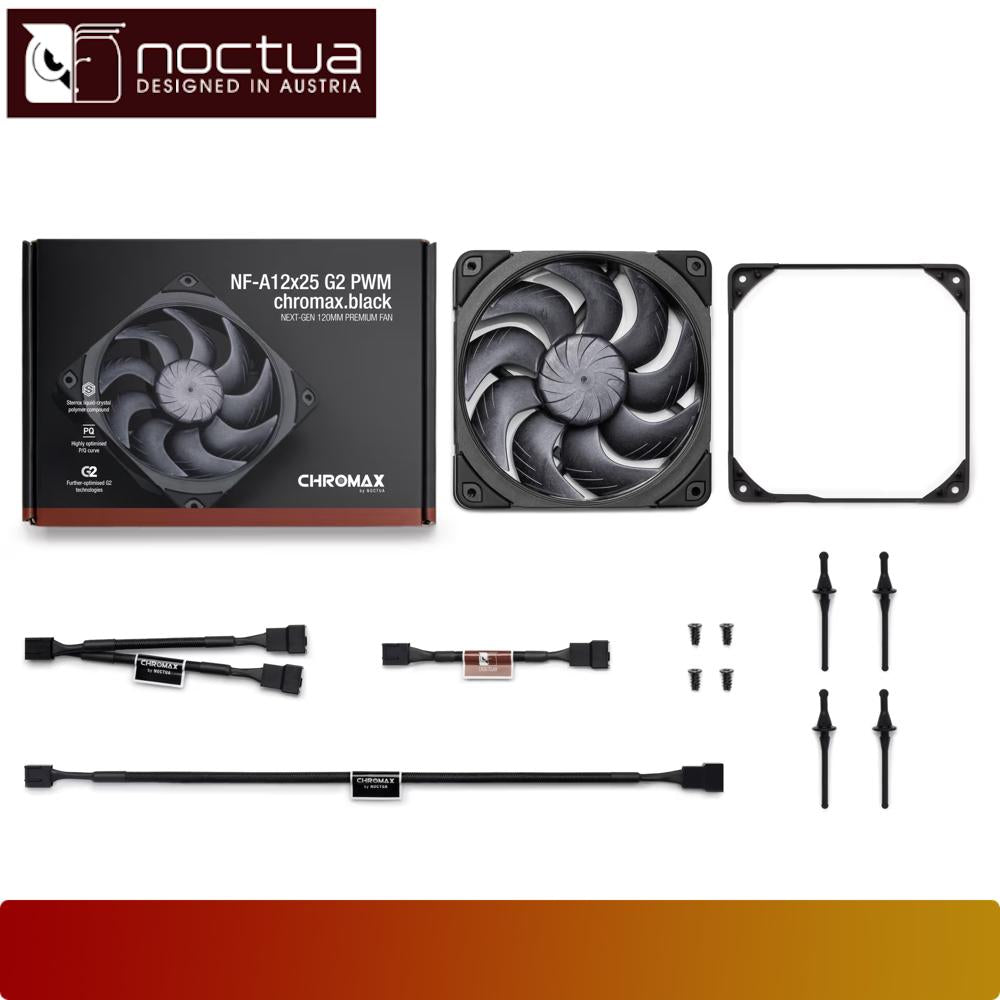

- NA-RC7 Low-Noise Adaptor (L.N.A.) - NA-YC1 chromax.black 4-pin PWM splitter cable - NA-EC1 chromax.black 30 cm extension cable - 4x NA-AV2 black anti-vibration mounts - NA-AVG1 chromax.black anti-vibration gasket for water cooling radiators - Fan screws |
| Mechanical |
- Dimensions without anti-vibration pads : 120 x 120 x 25 mm - Frame shape : Square - Mounting hole spacing(s) : 105 x 105 mm - Material frame : PBT ABS GF30 - Material impeller : LCP GF30 - Material anti-vibration pads : Silicone rubber - Bearing : SSO2 - Rotational direction : Counter-clockwise - Connector type : A2543-4PIN (or equal) - Cable length : 200 mm - Cable length with extension cable (included) : 500 mm - Wire : 26 AWG - Sleeving : Fibreglass silicone mesh |
| Performance |
- Rotational speed (max.) : 1800 rpm - Rotational speed with LNA (max.) : 1500 rpm - Rotational speed @ 20% PWM : 360 rpm - Rotational speed @ 0% PWM : 0 rpm - Acoustical noise (max.) : 22.5 dB(A) - Acoustical noise with LNA (max.) : 18.1 dB(A) - Airflow (max.) : 107.3 m³/h (63.15 CFM) - Airflow with LNA (max.) : 87.2 m³/h (51.32 CFM) - Static pressure (max.) : 3.14 mm H₂O - Static pressure with LNA (max.) : 1.71 mm H₂O |
| Safety, compliance & environmental |
- Operating temperature : -10°C to +60°C - Operating humidity : 15 – 90 % - Storage temperature : -20°C to +65°C - Storage humidity : 15 – 90 % - MTTF : > 150,000 h |
