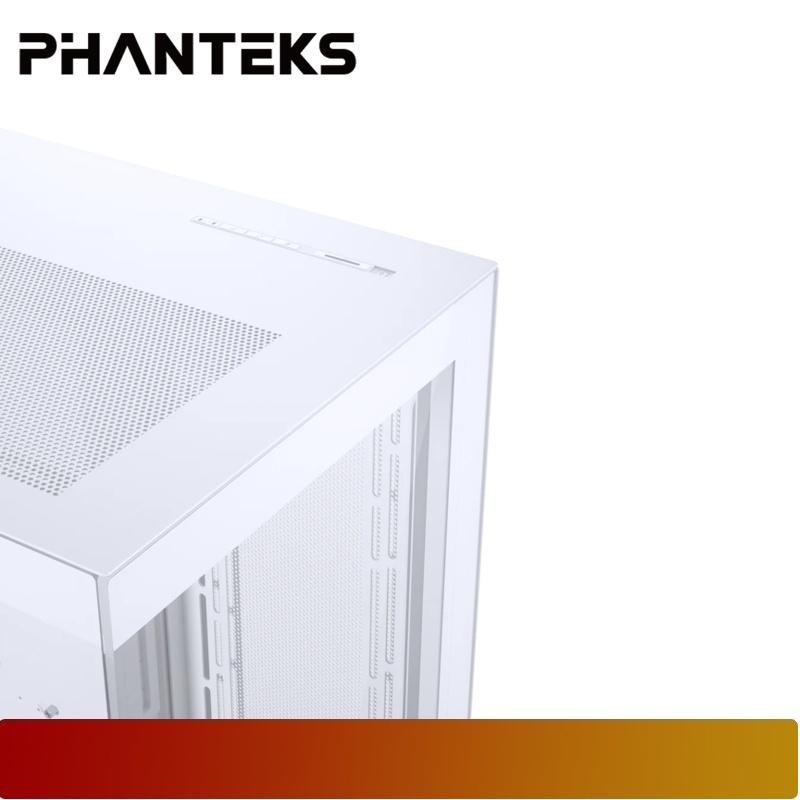

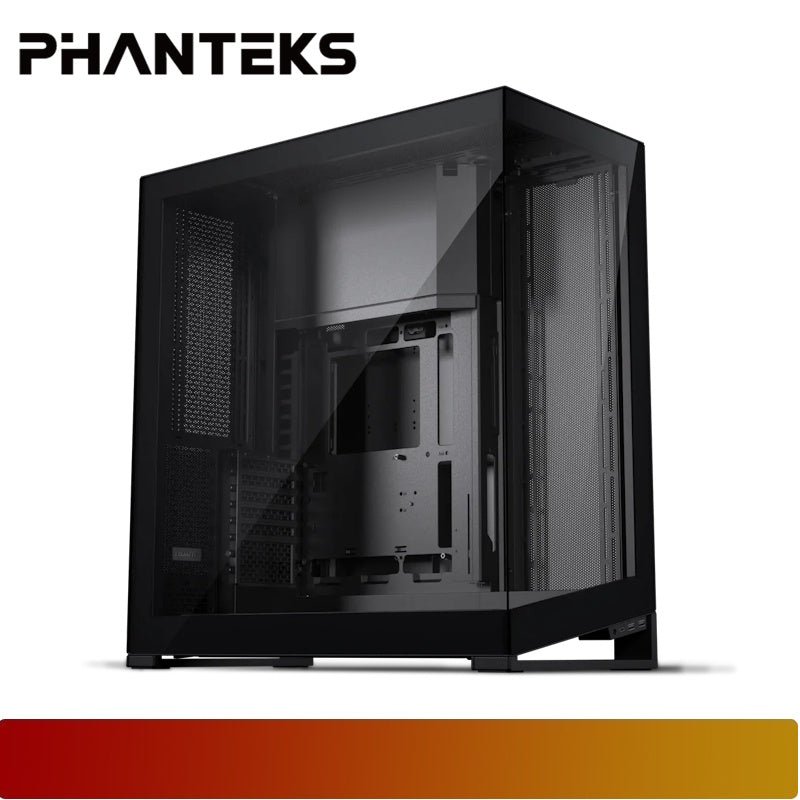

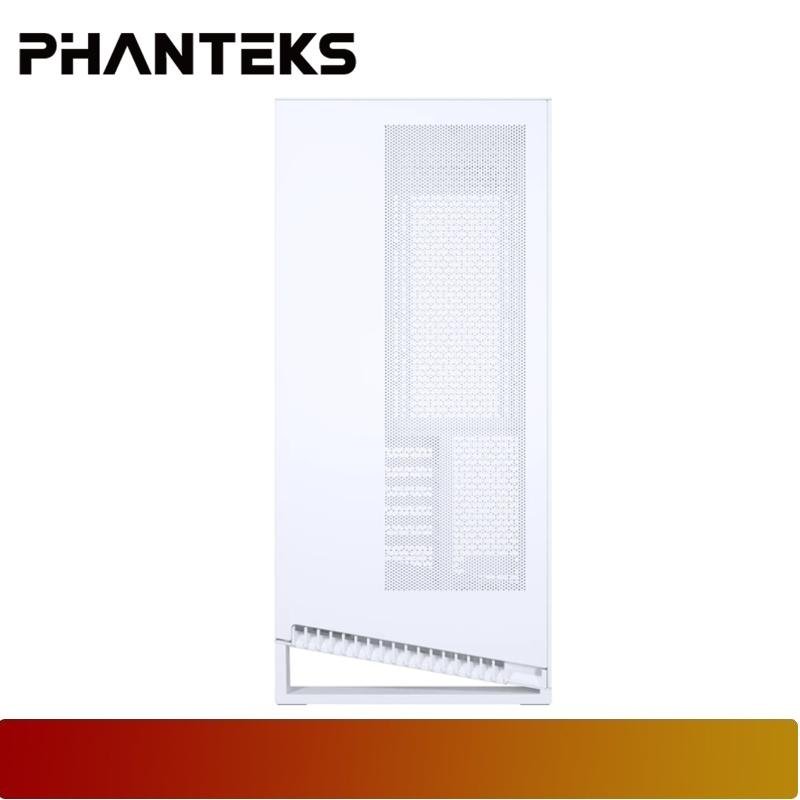

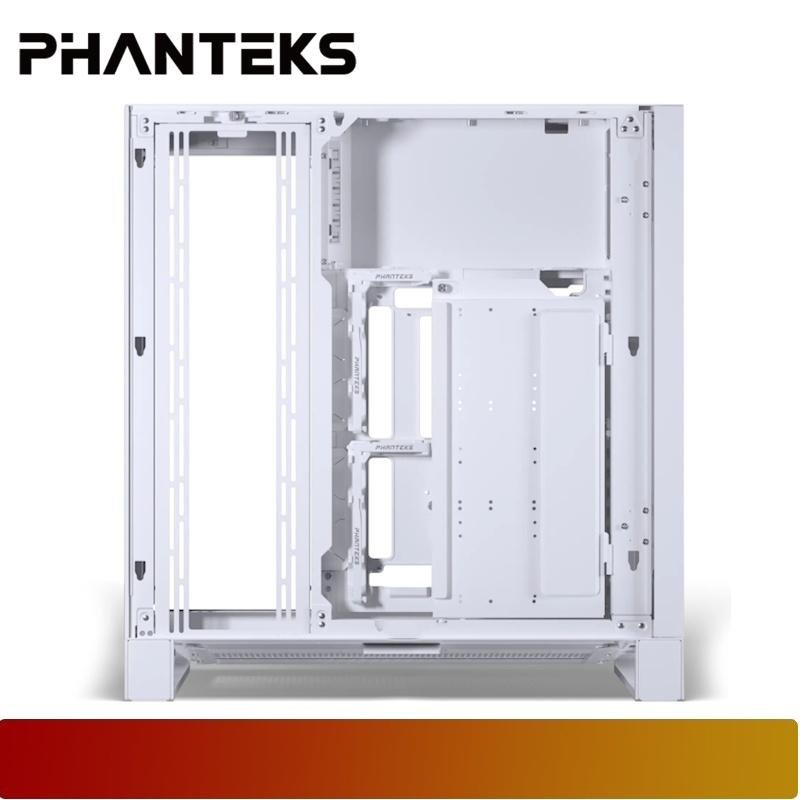

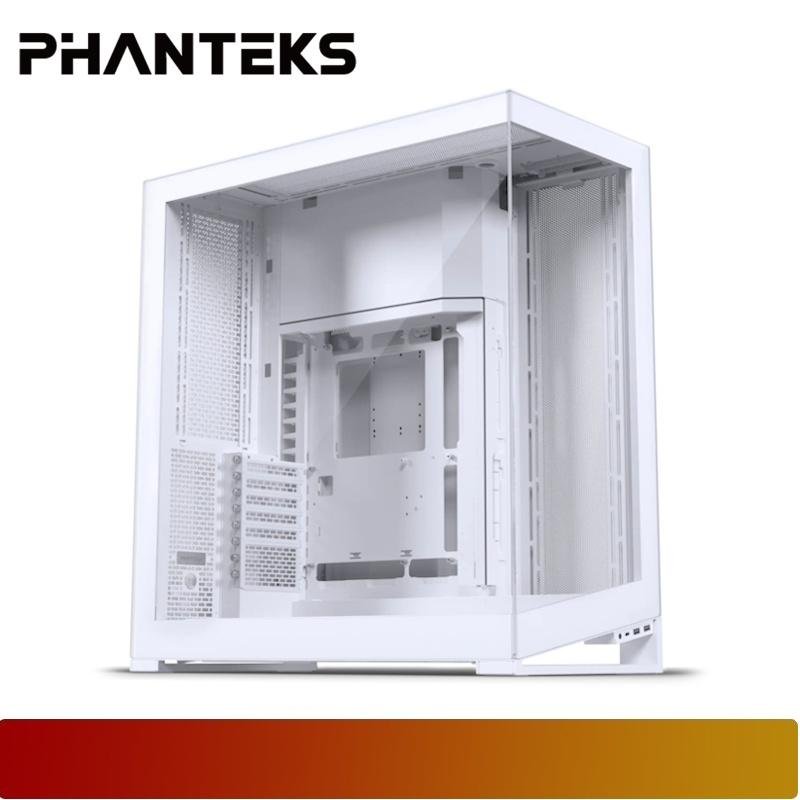

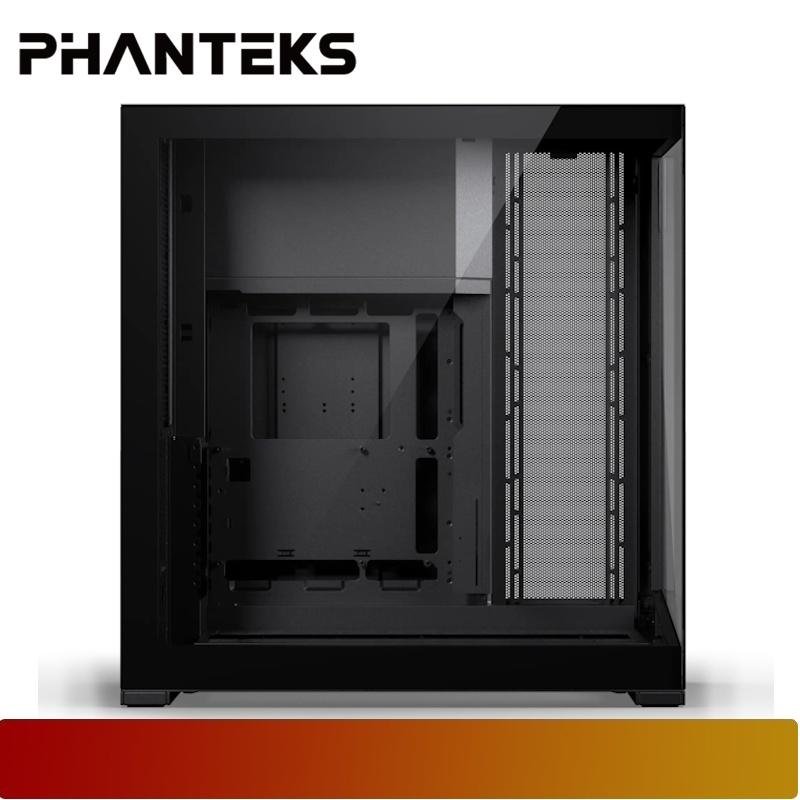

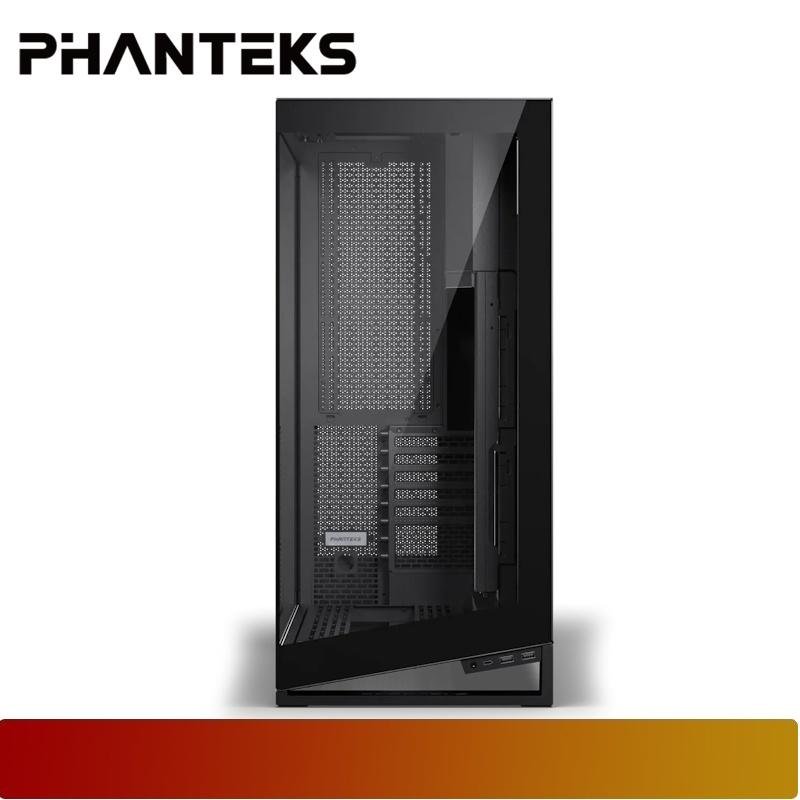

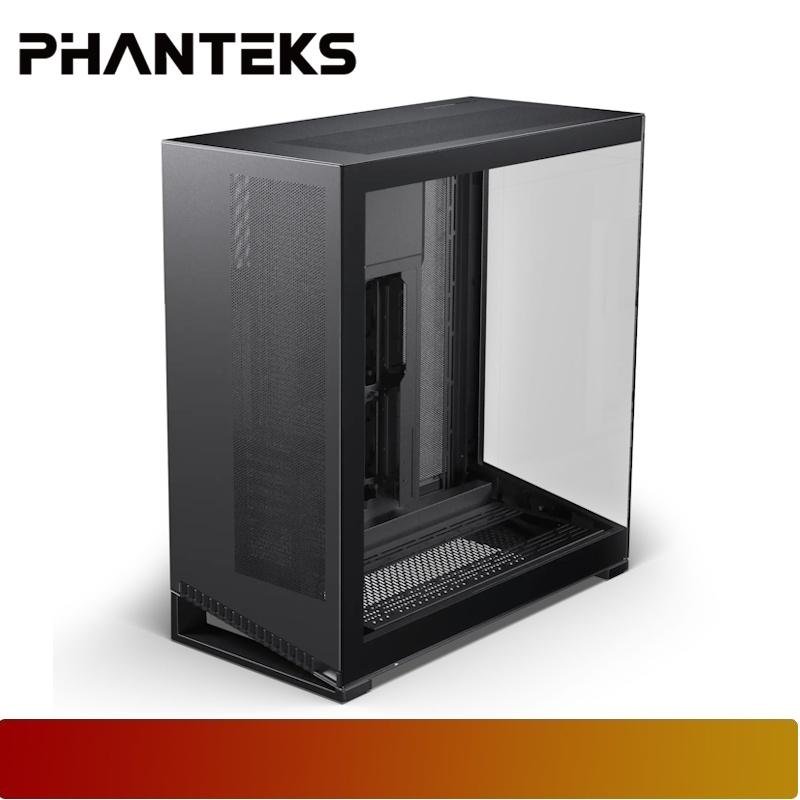

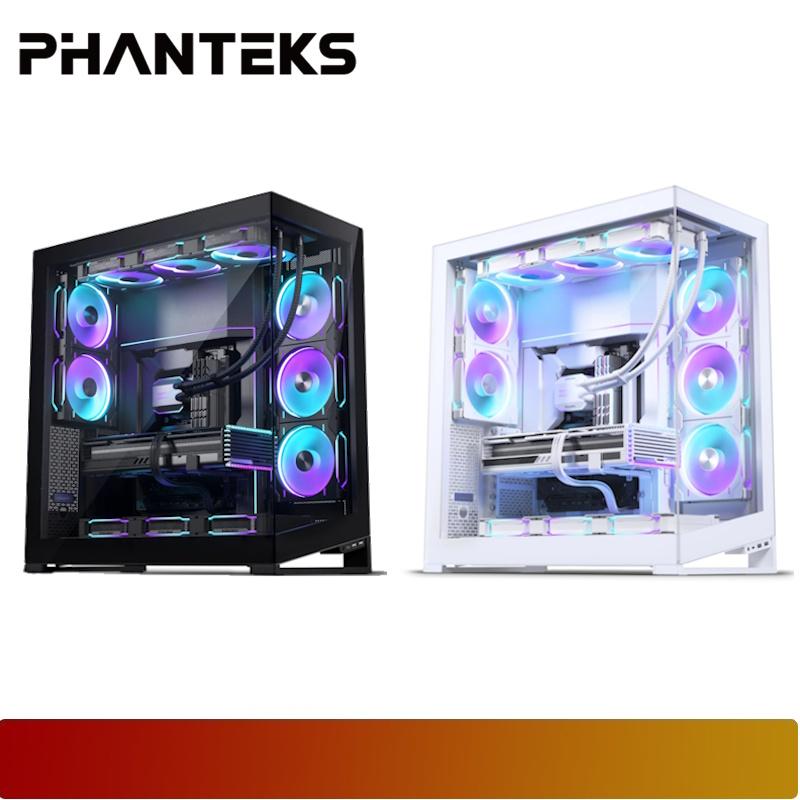

PHANTEKS NV9 MKII

Name: PHANTEKS NV9 MKII
Brand: Phanteks
Price: 2999000.0 IDR
Availability: OutOfStock

Rp 2.999.000

Compare

Brand: Phanteks

SKU: 886523303497

Estimasi Berat: 38.0 kg

Category: Computer Case

Sub Category: Full Tower Case

Full Tower Case, MB Support up to E-ATX, Radiator Support up to 480mm, CPU Height Clearance up to 205mm, GPU Length Clearance up to 490mm, PSU Support ATX

1 left

Also available at:

Part Number	- PH-NV923TG_DBK02 ( Black ) - PH-NV923TG_DMW02 ( White )
Dimension	- 575 x 280 x 615 mm / 22.63 x 11.02 x 24.21 in (DxWxH)
Form Factor	- Full Tower
Material(s)	- Steel Chassis, Tempered Glass
Motherboard Support	- ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 280mm wide) Reverse motherboard connectors, BTF, Project Zero
Front I/O	- 2x USB 3.0, USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel
Connectors	- Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E, Power LED
Window	- Yes, Front and Side Tempered Glass
Expansion & Drive Bays	- Expansion slots : 8 - Vertical GPU support : Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01 - Internal 3.5”: Max 3* (3x included) (Max 24mm HDD height when SSDs installed) - Internal 2.5": Max 6 (6x included) (2x if 3x HDD positions are used) - D-RGB Controller output : 7A per Channel, 4A per port (Total 14 Watt)
Cooling	- 120mm fan : Side 4x \| Top3x\| Rear2x \| Bottom 3x - 140mm fan: Side 3x \| Top3x\| Rear2x \| Bottom 3x
Liquid Cooling	- 120mm radiator: Side Up to 480 \| Top Up to 360 \| Rear Up to 240\| Bottom Up to 360 - 140mm radiator: Side Up to 420 \| Top Up to 420 \| Rear Up to 280\| Bottom Up to 420
Clearance	- Graphic card length : 490mm - Graphic card width : 205mm - CPU cooler height : 205mm - PSU length : 210mm - Side 360 Radiator : 525 x 154 mm - Top 360 Radiator : 515 x 154 mm - Rear 240 Radiator : 325 x 154 mm
Scope OF Delivery	- 1x NV9 MKII chassis - 1x Storage bracket ( Pre-installed )
Accessory Box	- 1x GPU support bracket - 2x Airflow covers - 6x Zip ties - 1x D-RGB mainboard adapter ( 500 mm ) - 1x Microfiber cloth
Screws	- 34x Mainboard \| SSD screws - 4x Power supply screws - 9x HDD screws - 4x thumbscrews - 1x Mainboard stand-off - 1x Stand-off removal tool - 1x Extra right-side panel screw
