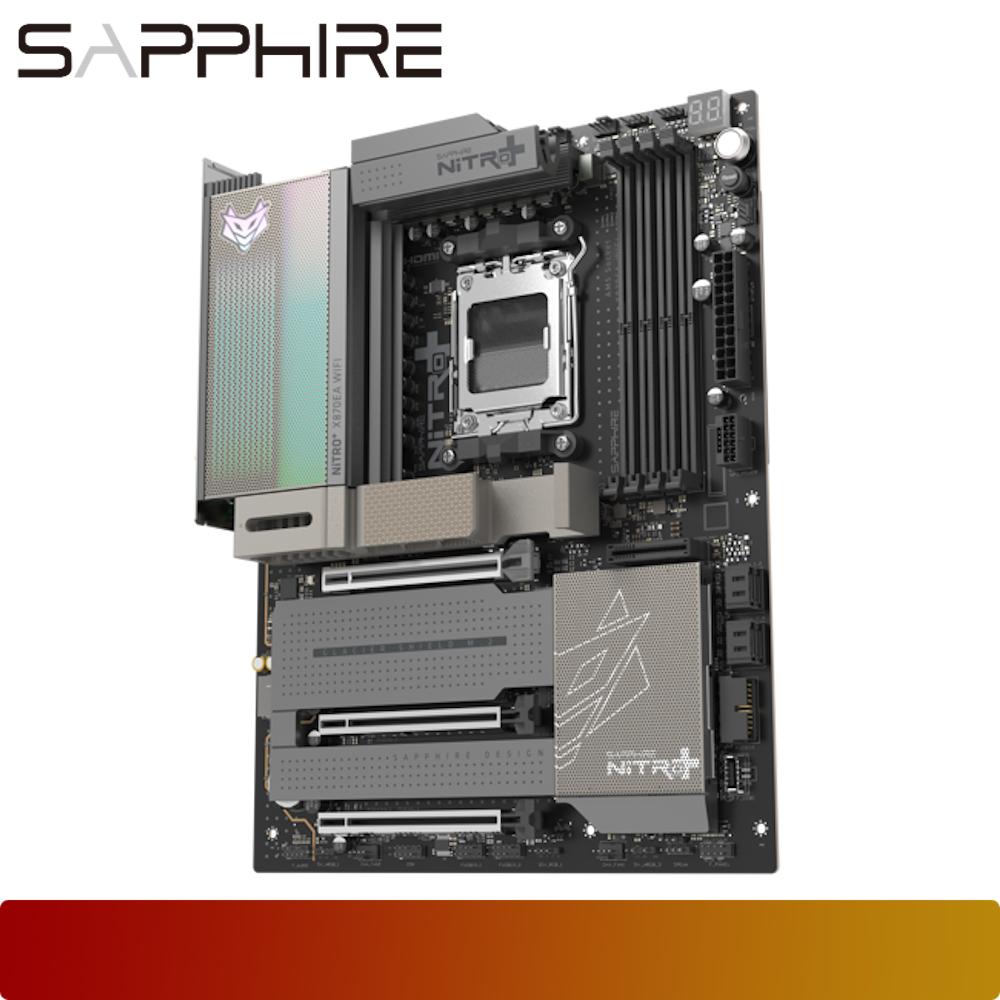

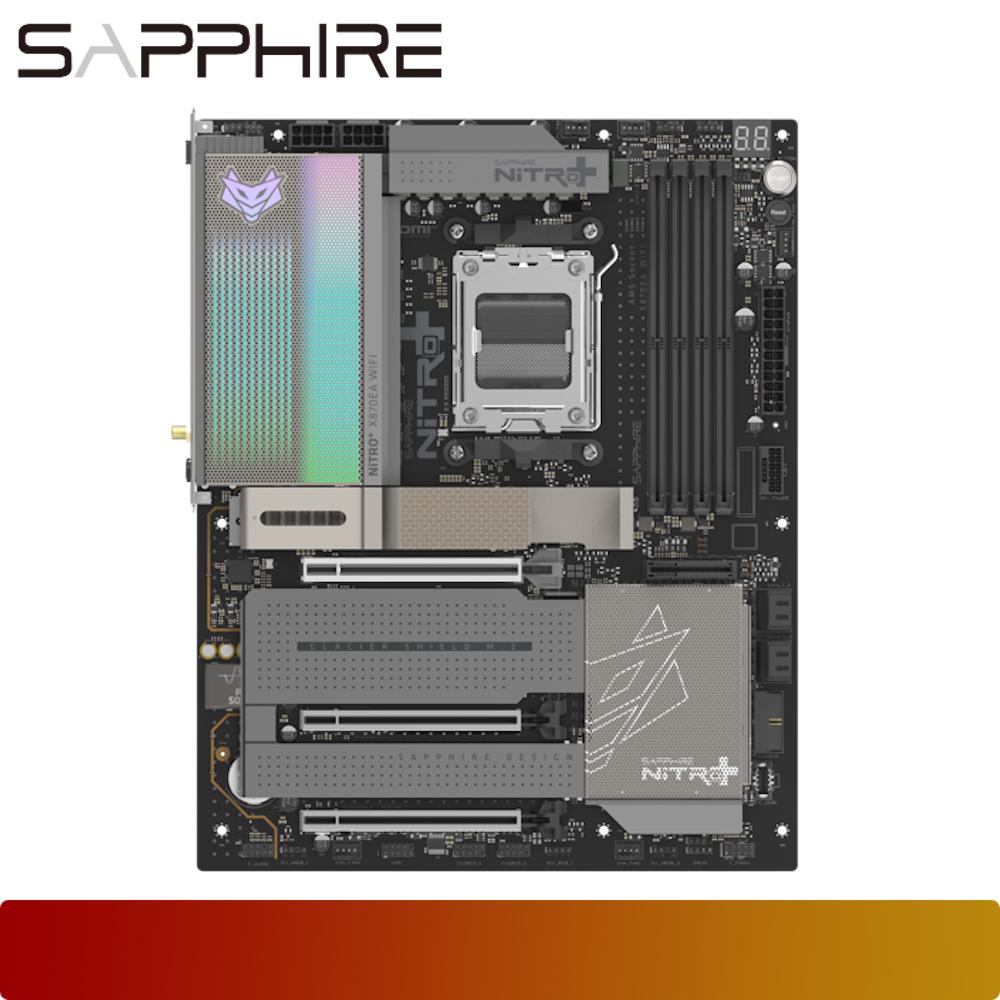

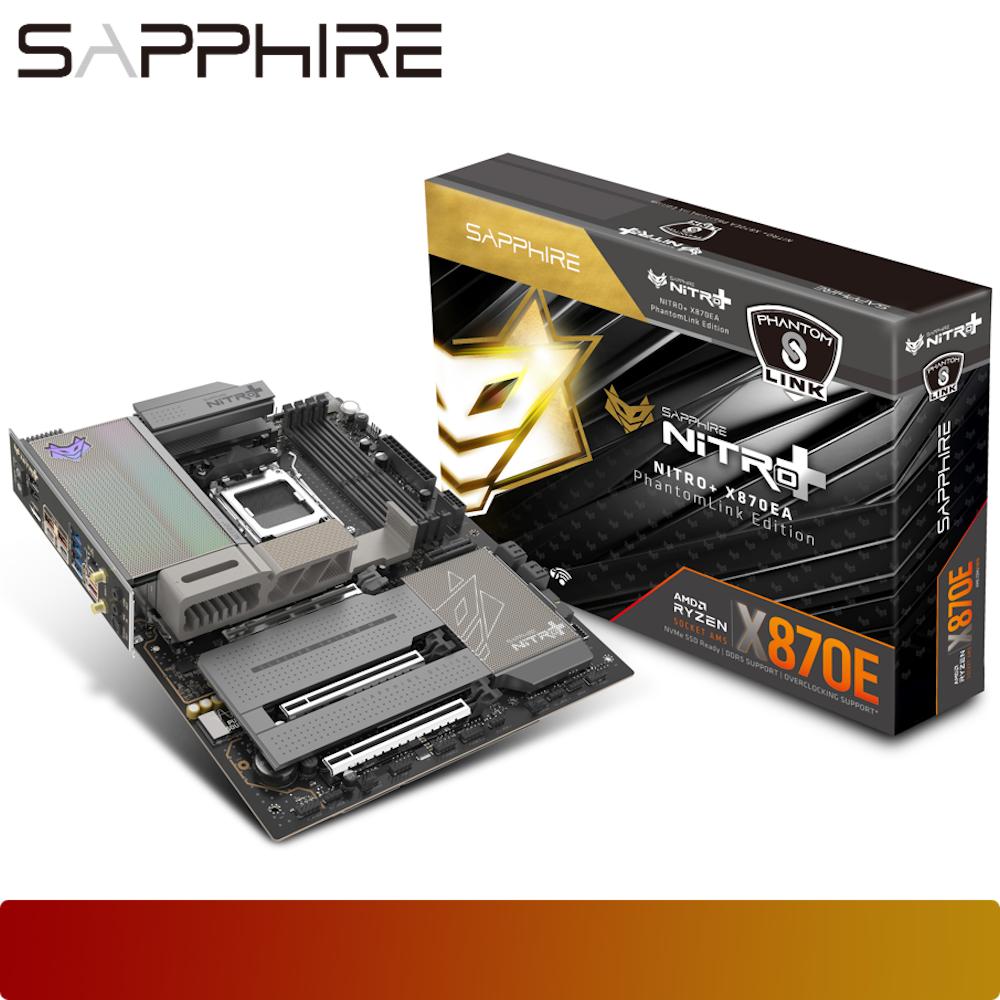

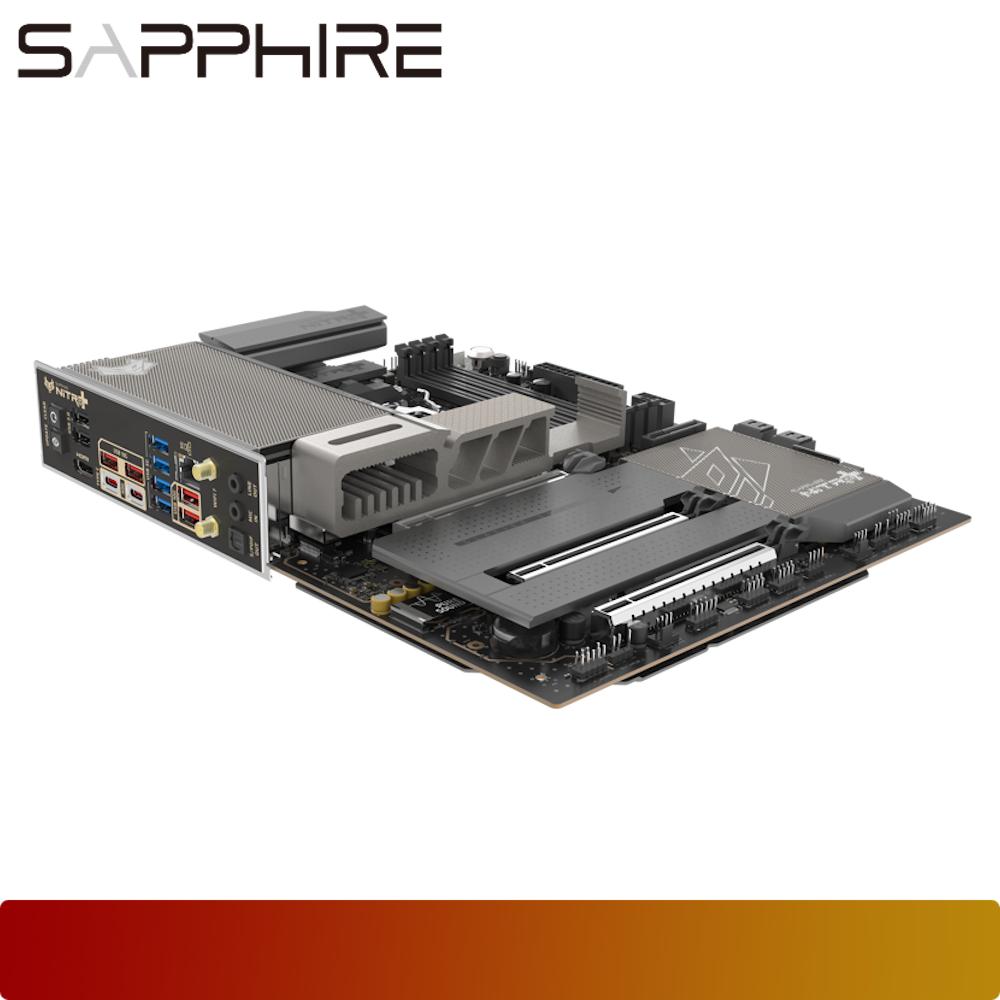

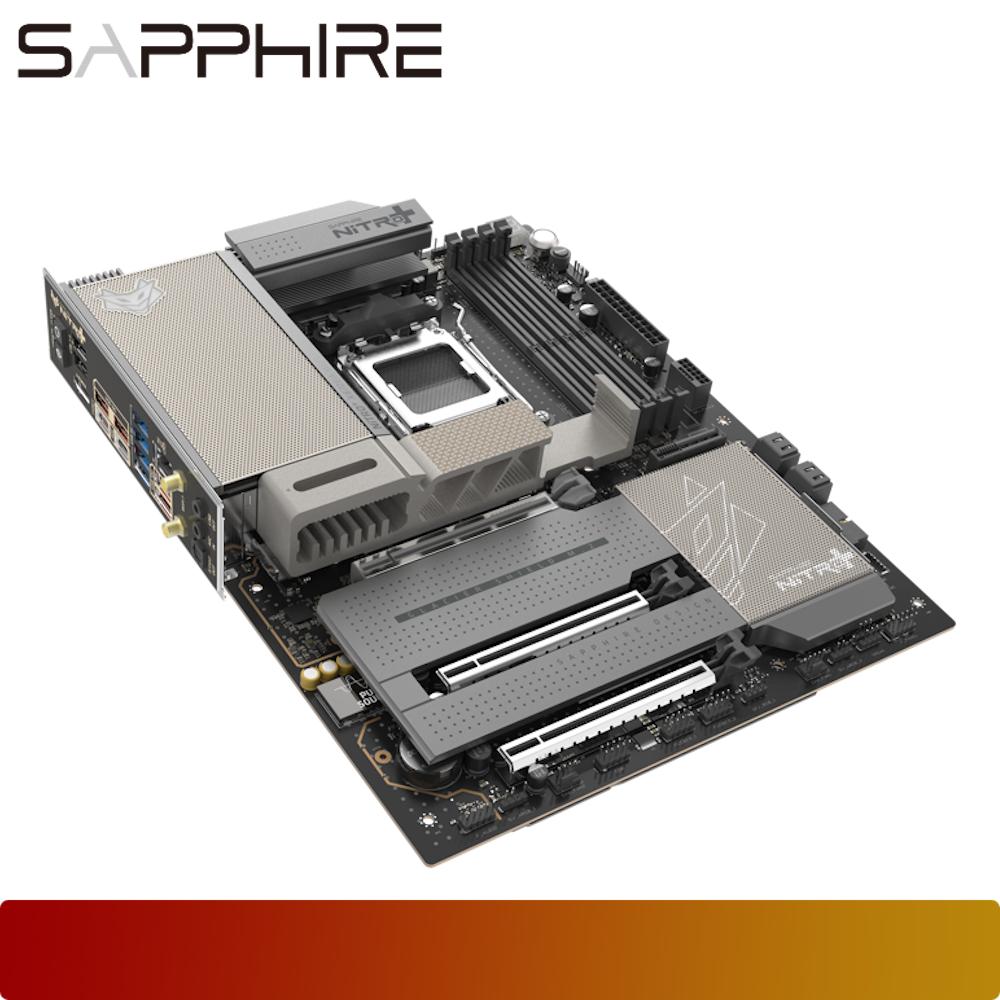

SAPPHIRE NITRO+ X870EA PhantomLink Edition

Name: SAPPHIRE NITRO+ X870EA PhantomLink Edition
Brand: SAPPHIRE
Price: 7489000.0 IDR
Availability: OutOfStock

Rp 7.489.000

Compare

Brand: SAPPHIRE

SKU: 4895106296893

Estimasi Berat: 3.5 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD X870E Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 4 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket AMD AM5, ATX Form Factor

Out of stock

Also available at:

Chipset & CPU	- Chipset : AMD X870E - CPU Support : AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series Desktop Processors)
Memory	- Slots : 4x DIMMs (Dual Channel DDR5) - Max Capacity : 256GB (4x 64GB) - Speed : Up to 8400 MHz (OC)
Expansion Slots	- PCIe 5.0 : 1x PCIe 5.0 x16 - PCIe 4.0 : 2x PCIe 4.0 x4 (in x16 slot)
Storage	- M.2 NVMe : 2x PCIe 5.0 M.2 + 2x PCIe 4.0 M.2 - SATA : 4x SATA ports
Audio & Network	- Audio : Realtek ALC897 HD Audio (5.1 Channel with S/PDIF) - LAN : Realtek RTL8126 5 Gbps Ethernet - Wireless : M.2 WiFi 7 Module (802.11 a/b/g/n/ac/ax/be, 2.4/5/6 GHz, Bluetooth 5.4)
Front USB Headers	- USB 3.2 Gen 2x2 : 1x Type-C (30W PD) - USB 3.2 Gen 1 : 1x (Supports 2x Type-A) - USB 2.0 : 2x (Supports 4x Type-A)
Rear I/O Ports	- Video : 1x HDMI (Supports DisplayPort Alt mode via USB4) - USB 4.0 : 2x USB 4.0 40G Type-C (with 15W PD) - USB 3.2 : 4x USB 3.2 Gen 2 Type-A + 4x USB 3.2 Gen 1 Type-A - USB 2.0 : 2x USB 2.0 - Connectivity : 1x RJ45 LAN, 2x Wi-Fi Antenna - Audio : 2x Audio Jack + 1x S/PDIF - Buttons : One-click Flash BIOS, One-click Clear CMOS
Diagnostics	- Debug LED : DRAM (Yellow), CPU (Red), GPU (White), Boot (Green) - Diagnostic Screen : LED Debug Diagnostic Screen
Physical Spec	- Form Factor : ATX - Dimensions : 305 x 244 mm
