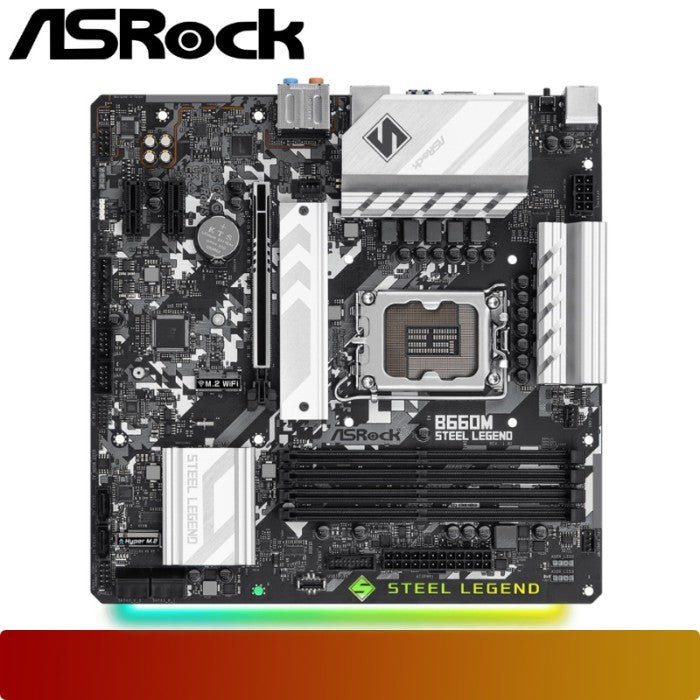

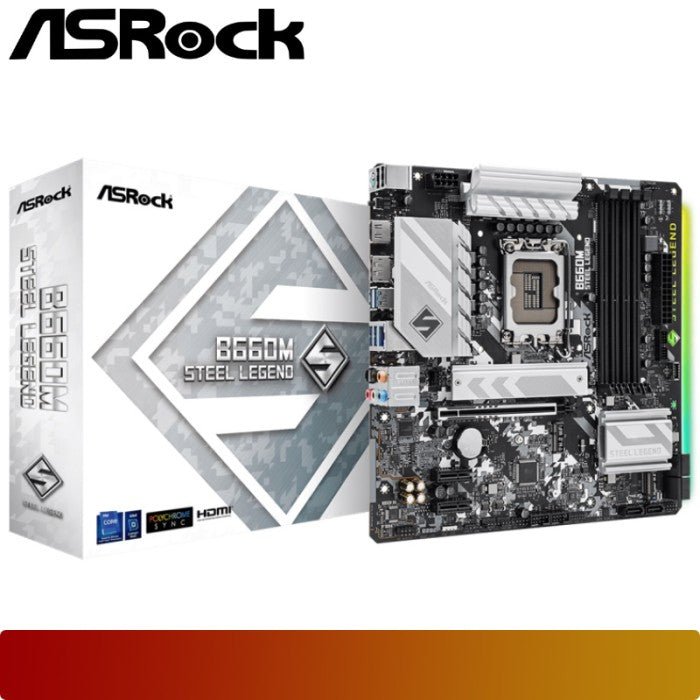

ASROCK B660M Steel Legend
Rp 2.019.000
Also available at:
Product description
| Unique Features |
|
|---|---|
| CPU (Soket) | Mendukung Prosesor Intel® Core™ Generasi ke-13 & ke-12 (LGA1700). |
| Chipset | Intel® B660 |
| Memory | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Kapasitas Maksimal: 128GB Mendukung DDR4 non-ECC, un-buffered memory hingga 5000+(OC) |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (mode x16) 1 x PCIe 3.0 x16 Slot (mode x4) 1 x PCIe 3.0 x1 Slot 1 x M.2 Socket (Key E) untuk Modul WiFi/BT* *Modul WiFi dijual terpisah. |
| Storage (M.2 & SATA) | Total 2x M.2 Slots: 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) (Dari CPU) 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) (Dari Chipset) 4 x SATA3 6.0 Gb/s Connectors |
| Graphics Output | 1 x HDMI 2.1 Port (Max. 4K 60Hz) 1 x DisplayPort 1.4 (Max. 8K 60Hz / 5K 120Hz dengan DSC) *Memerlukan CPU dengan Grafis Terintegrasi. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN (2.5 Gb/s) |

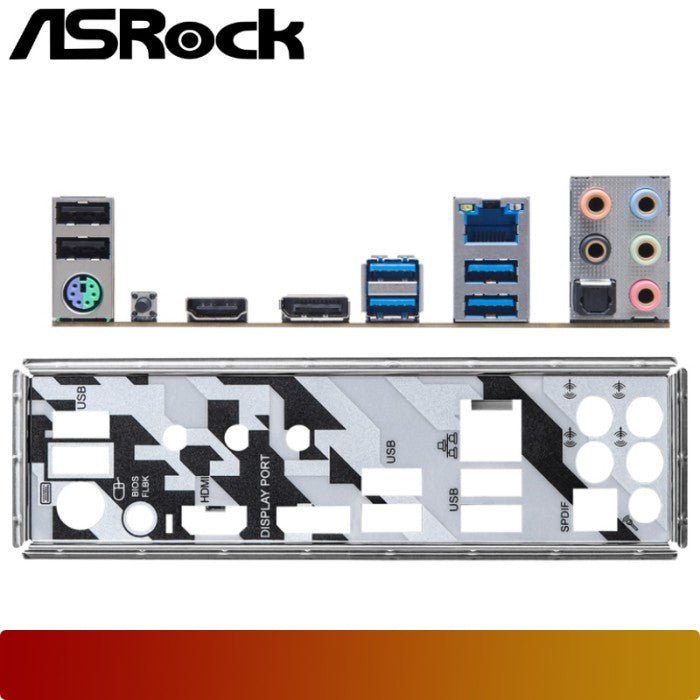

| Rear Panel I/O | 2x Antenna Mounting Points (untuk modul WiFi opsional) 1x HDMI, 1x DisplayPort 1.4 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) 2x USB 3.2 Gen1 Type-A Ports (5 Gb/s) 2x USB 2.0 Ports 1x RJ-45 LAN Port, 1x Optical SPDIF Out Port HD Audio Jacks, 1x BIOS Flashback Button |
| Form Factor | Micro ATX Form Factor (24.4 cm x 24.4 cm) |
| OS | Microsoft Windows® 11 64-bit / Windows 10 64-bit |
