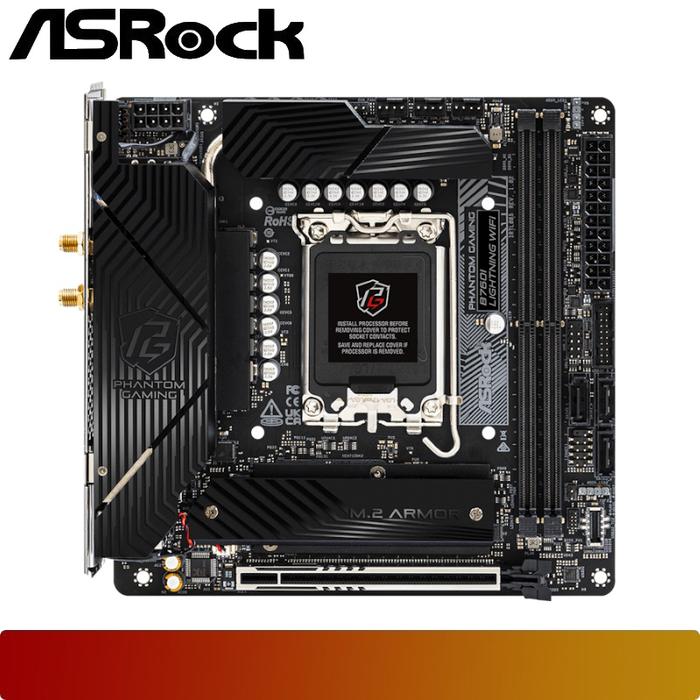

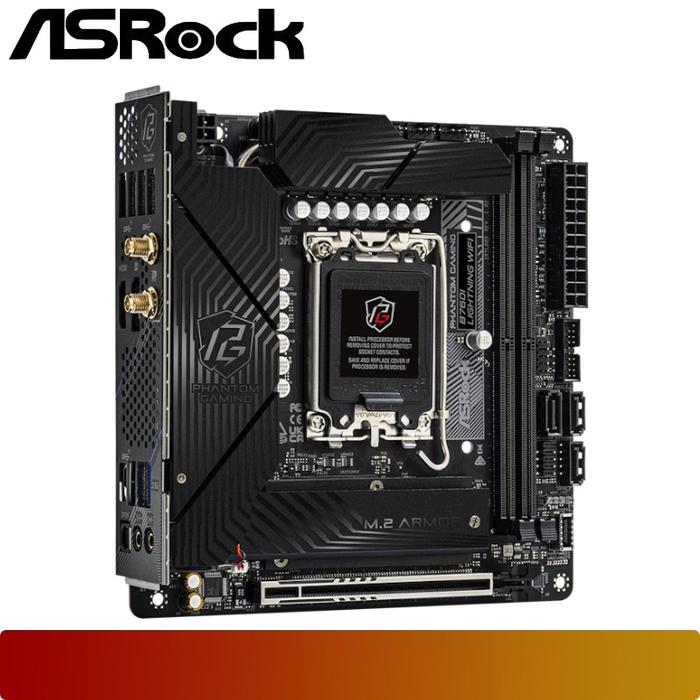

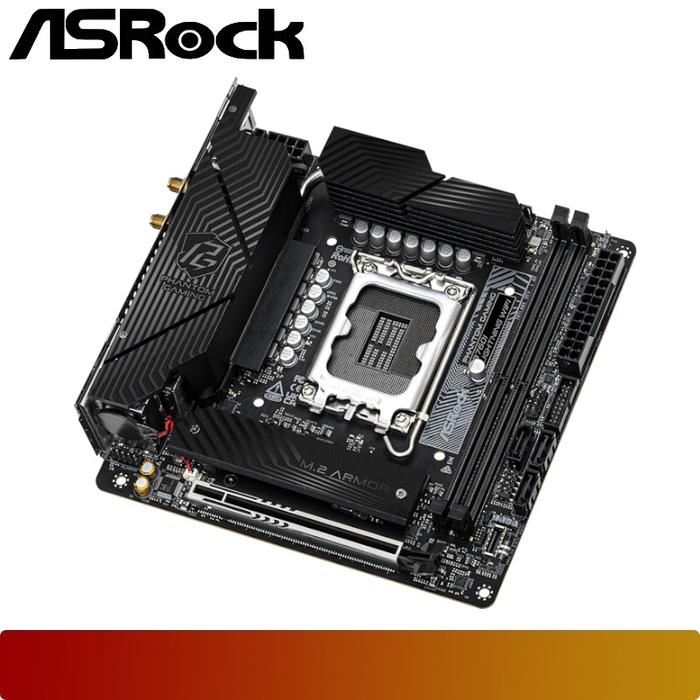

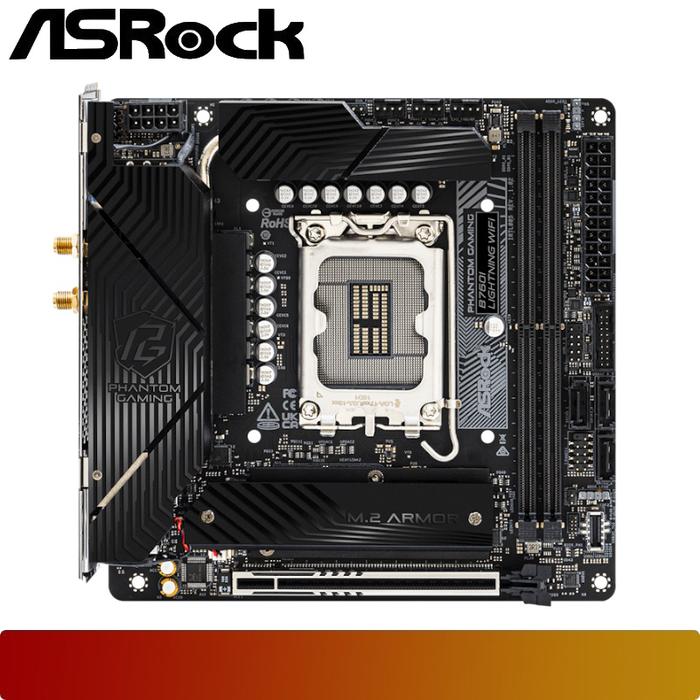

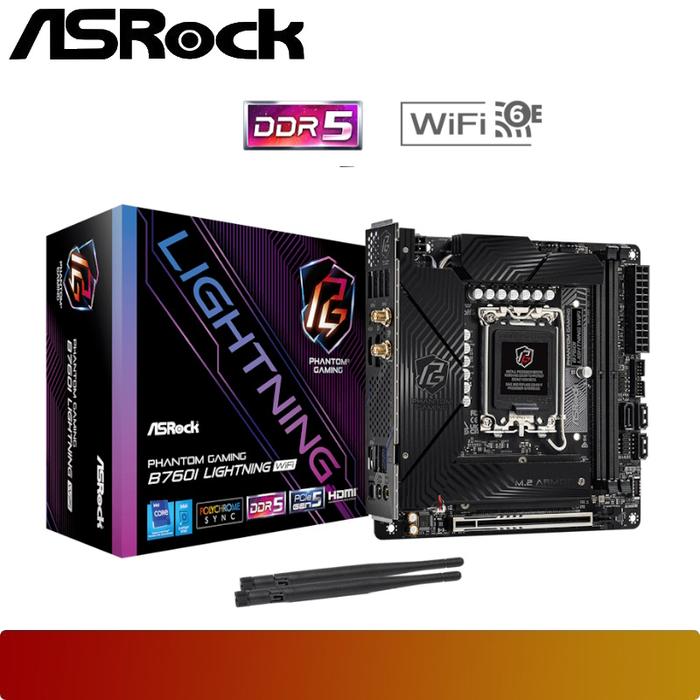

ASROCK B760I Lightning WiFi

Name: ASROCK B760I Lightning WiFi
Brand: ASROCK
Price: 3769000.0 IDR
Availability: OutOfStock

Rp 3.769.000

Compare

Brand: ASROCK

SKU: 4710483946677

Estimasi Berat: 1.5 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B760, 2x DDR5 UDIMM, Maximum Memory 128GB, Total 2 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, Mini ITX Form Factor

Out of stock

Also available at:

Unique Features	10+1+1 Power Phase Design, Dr.MOS PCB 8 Layer PCIe Gen5 (Graphics) Killer 2.5G LAN & 802.11ax Wi-Fi 6E Module HDMI 2.1 & DisplayPort 1.4
CPU (Soket)	Mendukung Prosesor Intel® Core™ Generasi ke-14, ke-13, & ke-12 (LGA1700).
Chipset	Intel® B760
Memory	Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Kapasitas Maksimal: 96GB Mendukung DDR5 non-ECC, un-buffered memory hingga 8000+(OC)
Expansion Slots	1 x PCIe 5.0 x16 Slot (mode x16) (Dari CPU) 1 x Vertical M.2 Socket (Key E) untuk Modul WiFi/BT (Sudah terpasang)
Storage (M.2 & SATA)	Total 2x M.2 Slots: 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) (Dari CPU) 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) (Dari Chipset) 4 x SATA3 6.0 Gb/s Connectors
Graphics Output	1 x HDMI 2.1 Port (Max. 4K 60Hz) 1 x DisplayPort 1.4 (Max. 8K 60Hz / 5K 120Hz dengan DSC) *Memerlukan CPU dengan Grafis Terintegrasi.
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN & Wireless	LAN Kabel: Killer™ E3100G 2.5 Gigabit LAN Nirkabel: 802.11ax Wi-Fi 6E Module + Bluetooth 5.3

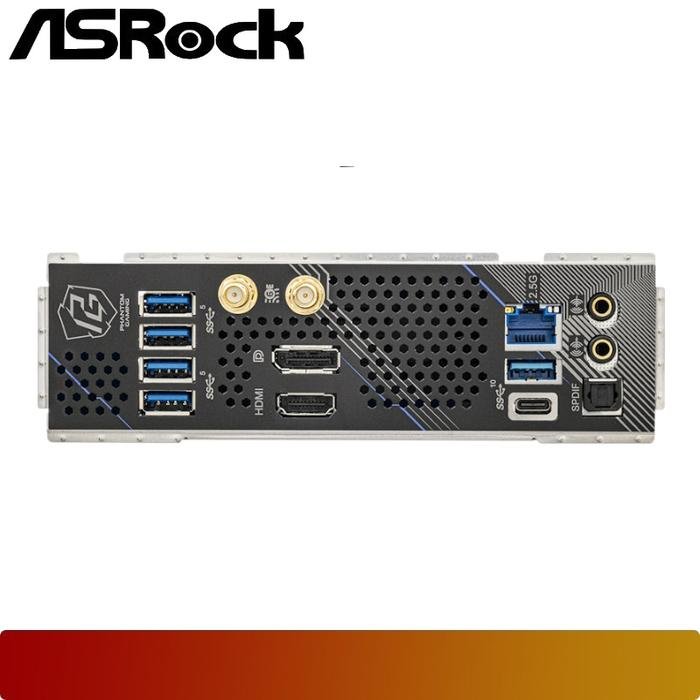

Rear Panel I/O	2x Antenna Ports, 1x HDMI, 1x DisplayPort 1.4 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4x USB 3.2 Gen1 Type-A Ports (5 Gb/s) 2x USB 2.0 Ports 1x RJ-45 LAN Port, 1x Optical SPDIF Out Port HD Audio Jacks, 1x BIOS Flashback Button
Form Factor	Mini-ITX Form Factor (17.0 cm x 17.0 cm)
OS	Microsoft Windows® 11 64-bit / Windows 10 64-bit
