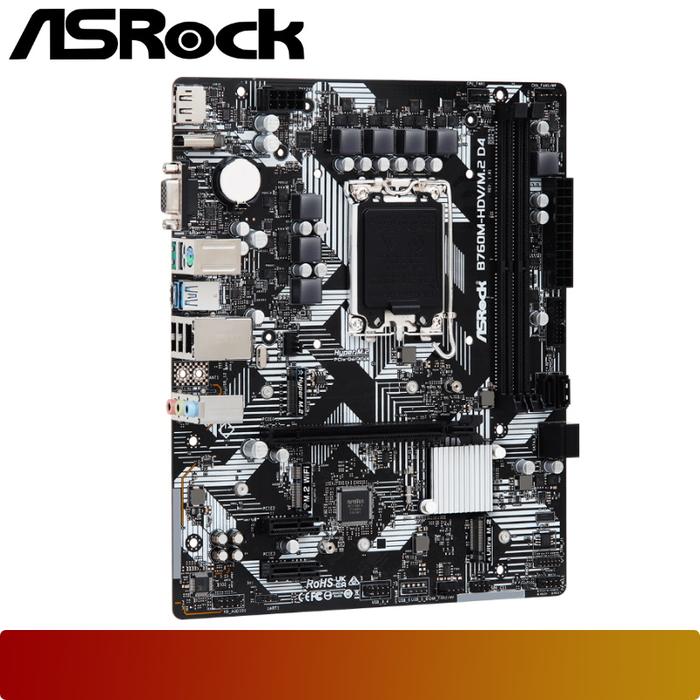

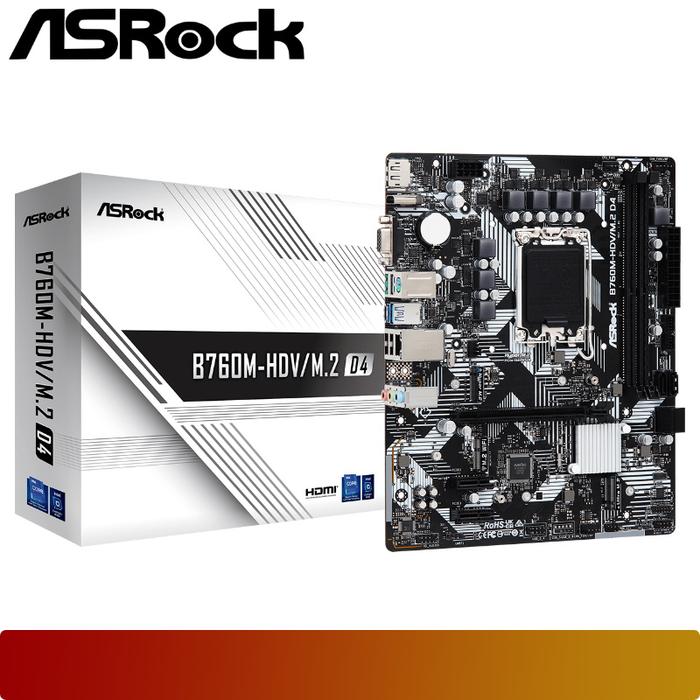

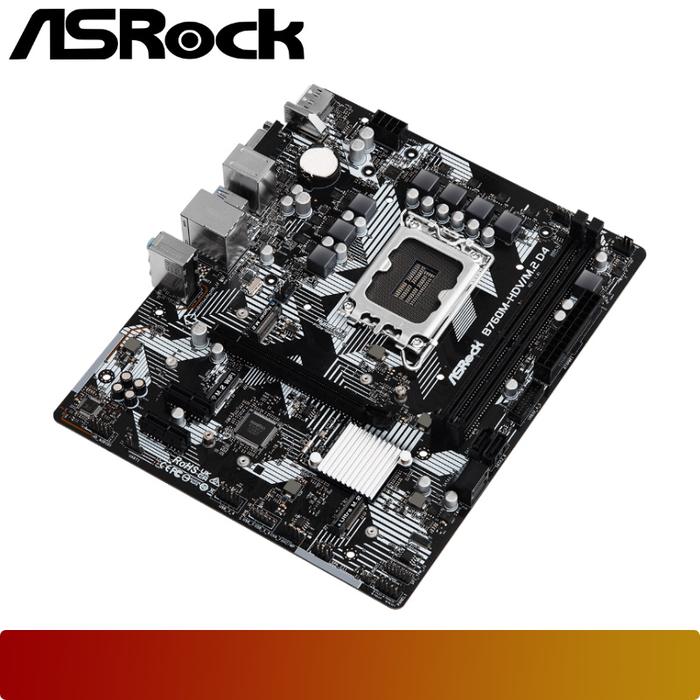

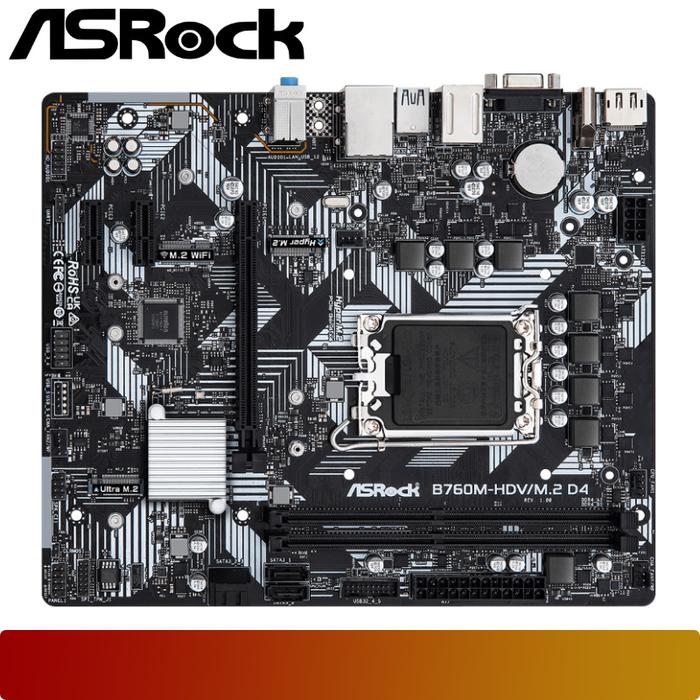

ASROCK B760M-HDV/M.2 D4
Rp 1.469.000
Also available at:
Product description
| Unique Features |
|
|---|---|
| CPU (Socket) | Supports 14th, 13th, & 12th Gen Intel® Core™ Processors (LGA1700). |
| Chipset | Intel® B760 |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Maximum Capacity: 64GB Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (x16 mode) 2 x PCIe 3.0 x1 Slots 1 x M.2 Socket (Key E) for WiFi/BT Module* *WiFi module sold separately. |
| Storage (M.2 & SATA) | Total 2x M.2 Slots: 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) (From CPU) 1 x M.2 (PCIe Gen3x4 & SATA3 - 32 Gb/s) (From Chipset) 4 x SATA3 6.0 Gb/s Connectors |
| Graphics Output | 1 x HDMI 2.1 Port (Max. 4K 60Hz) 1 x DVI-D Port 1 x D-Sub (VGA) Port *Requires CPU with Integrated Graphics. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Realtek Gigabit LAN (10/100/1000 Mb/s) |
| Rear Panel I/O | 1x PS/2 Keyboard/Mouse Port 1x D-Sub, 1x DVI-D, 1x HDMI 2x USB 3.2 Gen1 Type-A Ports (5 Gb/s) 4x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks |
| Form Factor | Micro ATX Form Factor (24.4 cm x 20.1 cm) |
| OS | Microsoft Windows® 11 64-bit / Windows 10 64-bit |
Warranty
Product Info
Nano Komputer
.
Produk resmi dan original
.
