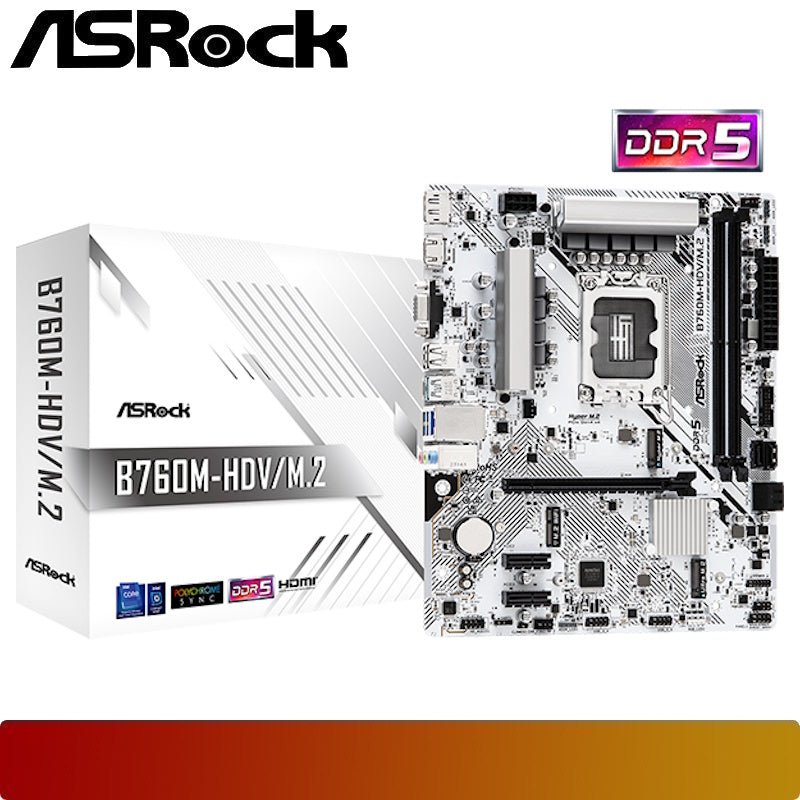

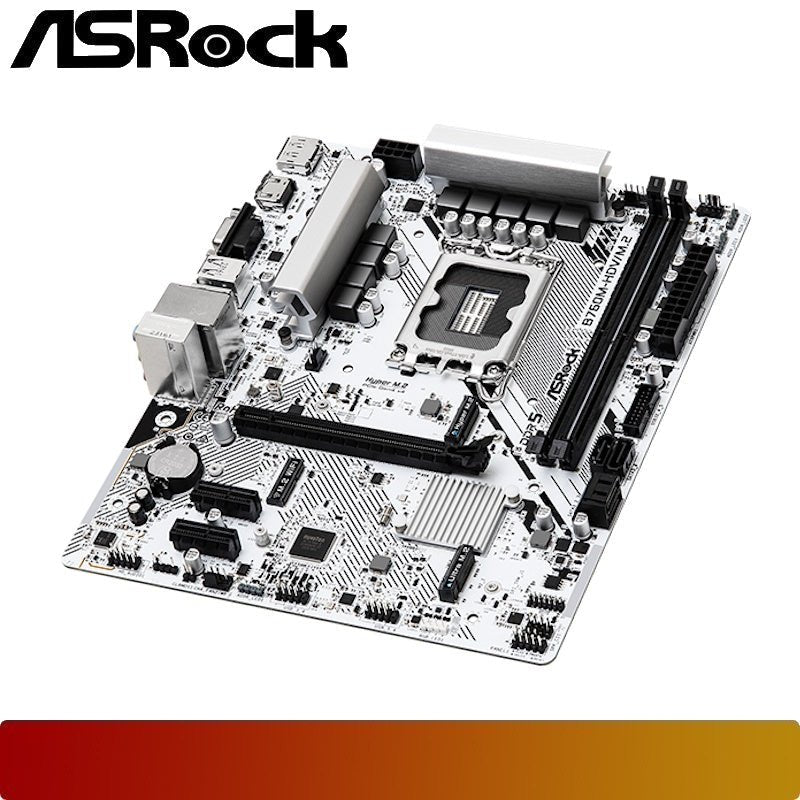

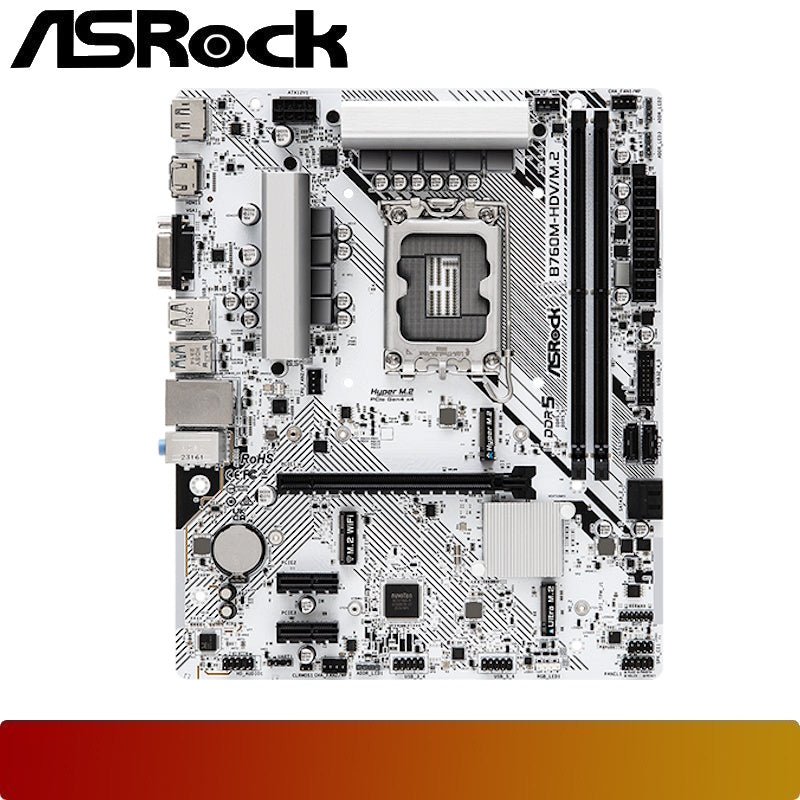

ASROCK B760M-HDV/M.2

Unique Feature
- Dual Channel DDR5
- 7+1+1 Power Phase
-ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
- 2.5G LAN

CPU
- Supports 13th & 12th Gen Intel® Core™ Processors (LGA1700)

Chipset
- Intel® B760

Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG

Slots
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 3.0 x1 Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
- 1 x Hyper M.2 Socket
- 1 x Ultra M.2 Socket
- 4 x SATA3 6.0 Gb/s Connectors

Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
