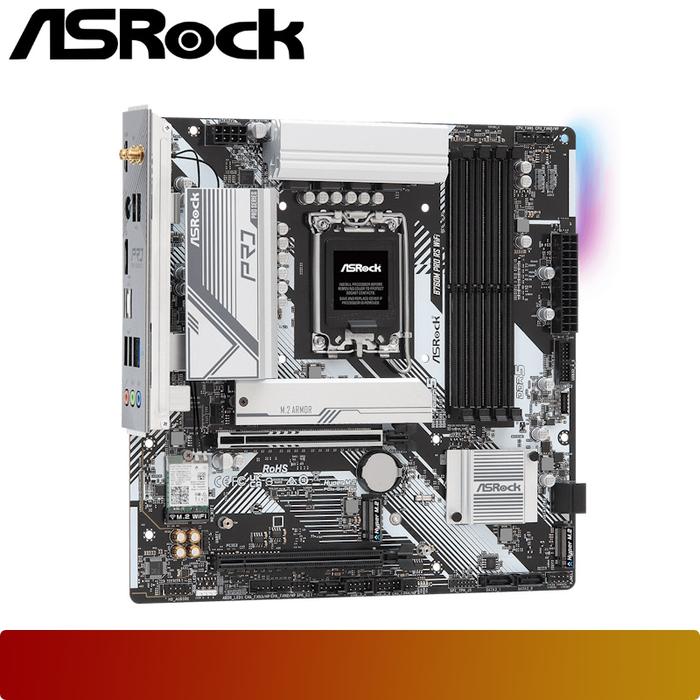

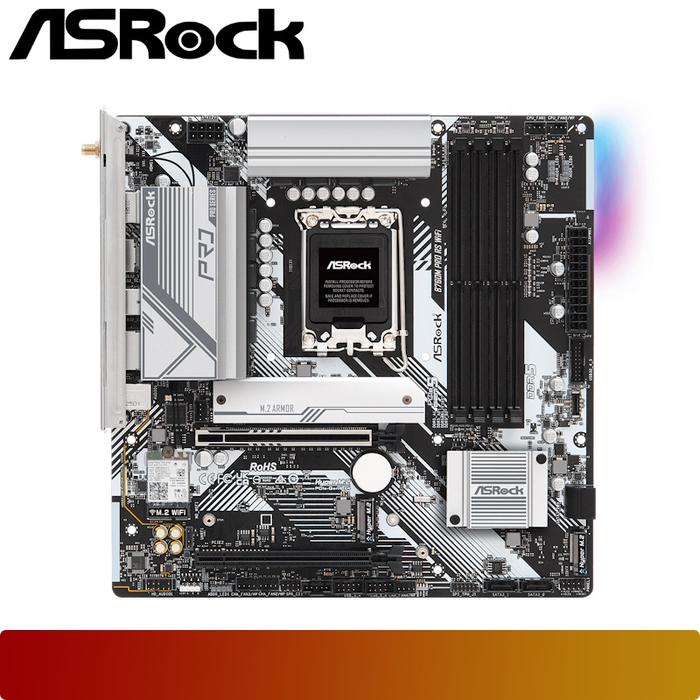

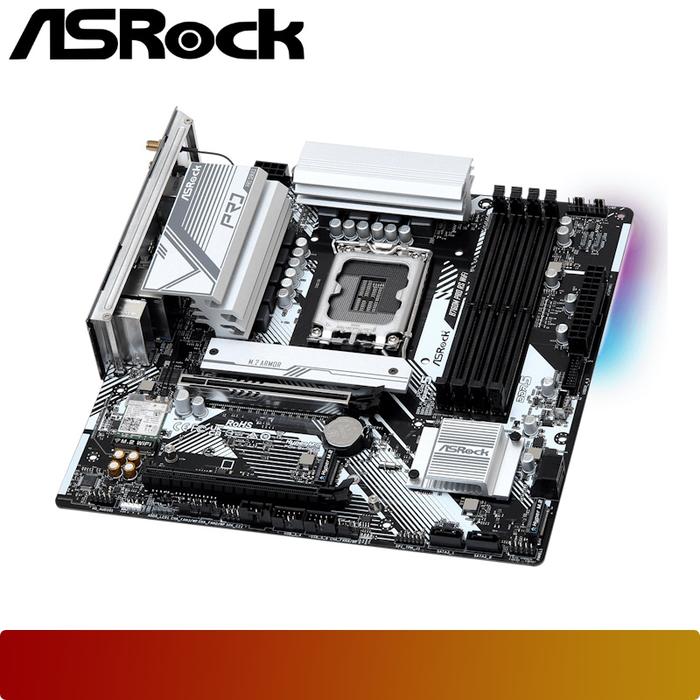

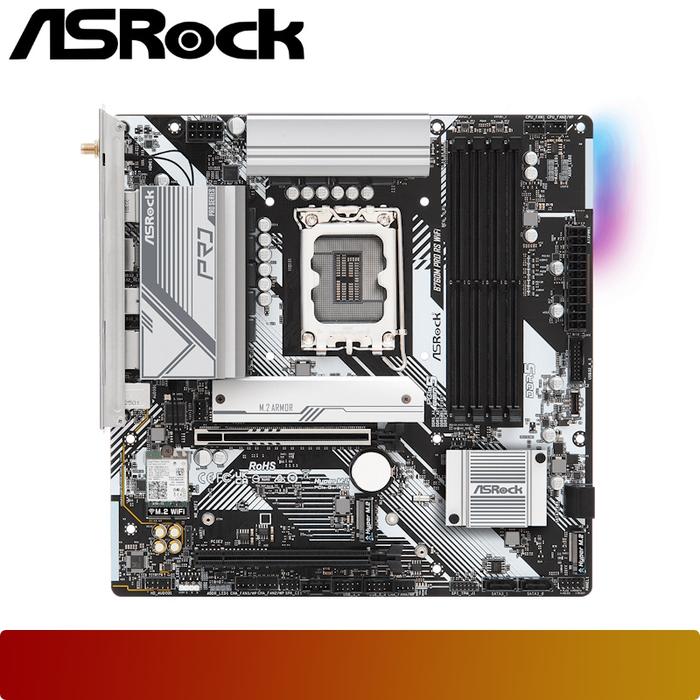

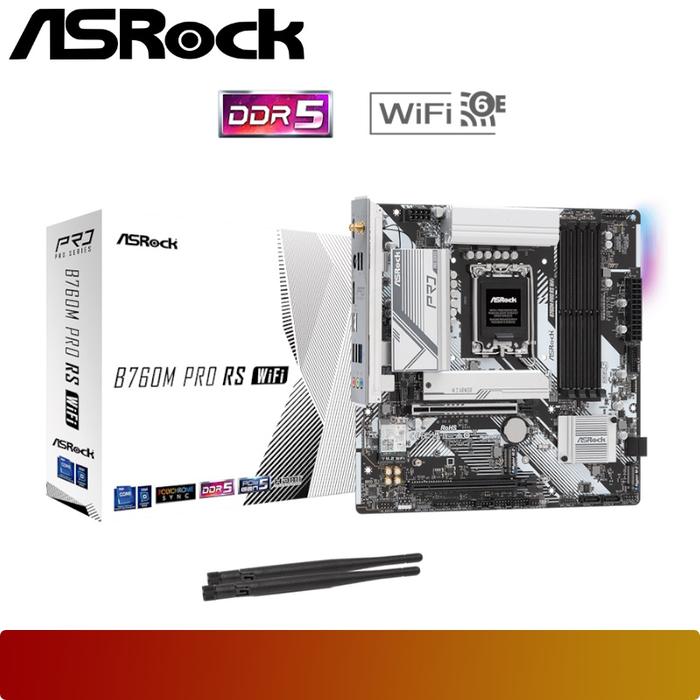

ASROCK B760M Pro RS WiFi

Name: ASROCK B760M Pro RS WiFi
Brand: ASROCK
Price: 2599000.0 IDR
Availability: OutOfStock

Rp 2.599.000

Compare

Brand: ASROCK

SKU: 4710483944611

Estimasi Berat: 1.6 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B760, 4x DDR5 UDIMM, Maximum Memory 256GB, Total 3 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, Micro ATX Form Factor

Out of stock

Also available at:

Unique Features	12+1+1 Power Phase Design, Dr.MOS PCB 6 Layer PCIe Gen5 (Graphics) Dragon 2.5G LAN & Intel® Wi-Fi 6E Module ASRock Auto Driver Installer
CPU (Soket)	Mendukung Prosesor Intel® Core™ Generasi ke-14, ke-13, & ke-12 (LGA1700).
Chipset	Intel® B760
Memory	Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Kapasitas Maksimal: 192GB Mendukung DDR5 non-ECC, un-buffered memory hingga 7200+(OC)
Expansion Slots	1 x PCIe 5.0 x16 Slot (mode x16) 1 x PCIe 4.0 x16 Slot (mode x4) 1 x PCIe 3.0 x1 Slot 1 x M.2 Socket (Key E) untuk Modul WiFi/BT (Sudah terpasang)
Storage (M.2 & SATA)	Total 3x M.2 Slots: 1 x Blazing M.2 (PCIe Gen5x4 - 128 Gb/s) 2 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) 4 x SATA3 6.0 Gb/s Connectors
Graphics Output	1 x HDMI 2.1 Port (Max. 4K 60Hz) 1 x DisplayPort 1.4 (Max. 8K 60Hz / 5K 120Hz dengan DSC) *Memerlukan CPU dengan Grafis Terintegrasi.
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN & Wireless	LAN Kabel: Dragon RTL8125BG 2.5 Gigabit LAN Nirkabel: Intel® 802.11ax Wi-Fi 6E Module + Bluetooth 5.3

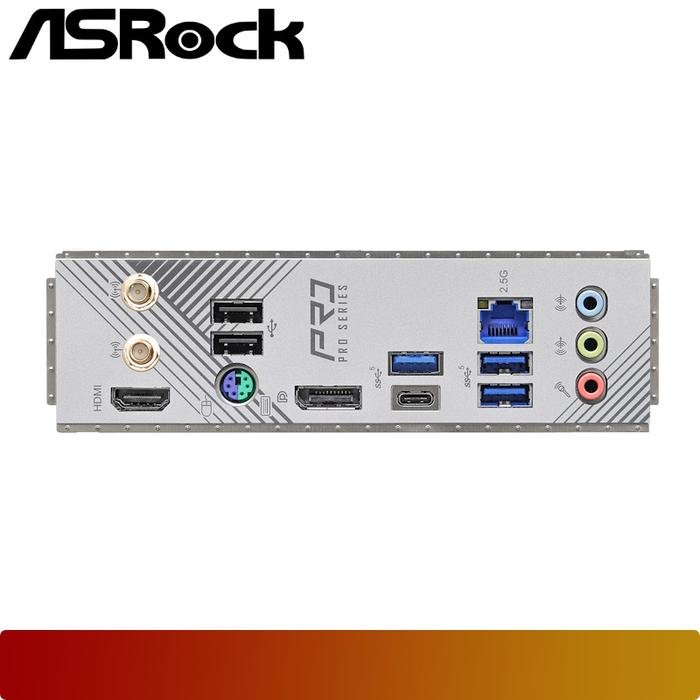

Rear Panel I/O	2x Antenna Ports, 1x HDMI, 1x DisplayPort 1.4 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) 3x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 2x USB 2.0 Ports 1x RJ-45 LAN Port, 1x Optical SPDIF Out Port HD Audio Jacks, 1x BIOS Flashback Button
Form Factor	Micro ATX Form Factor (24.4 cm x 24.4 cm)
OS	Microsoft Windows® 11 64-bit / Windows 10 64-bit
