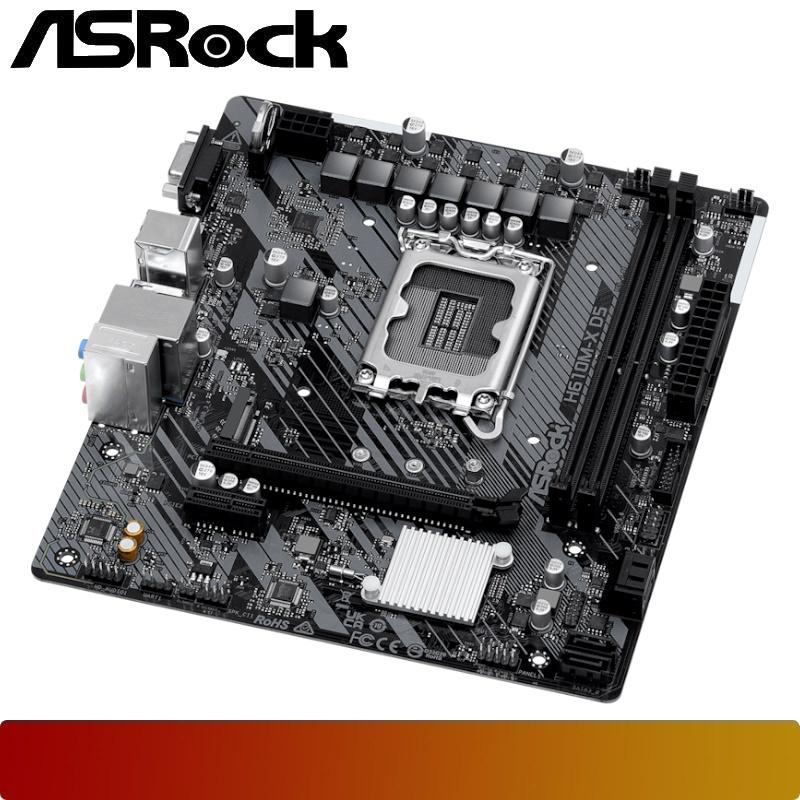

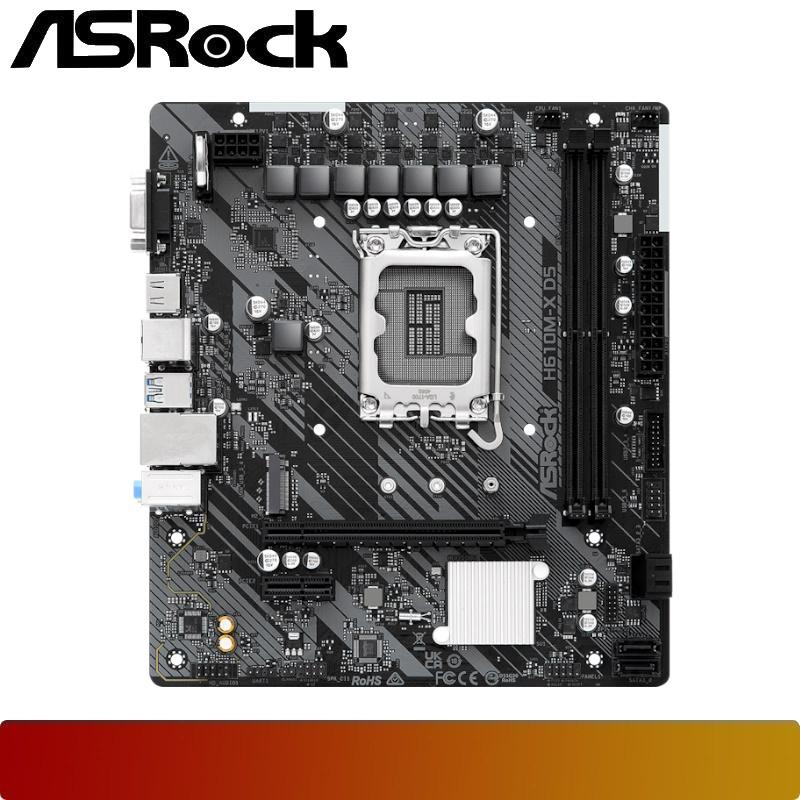

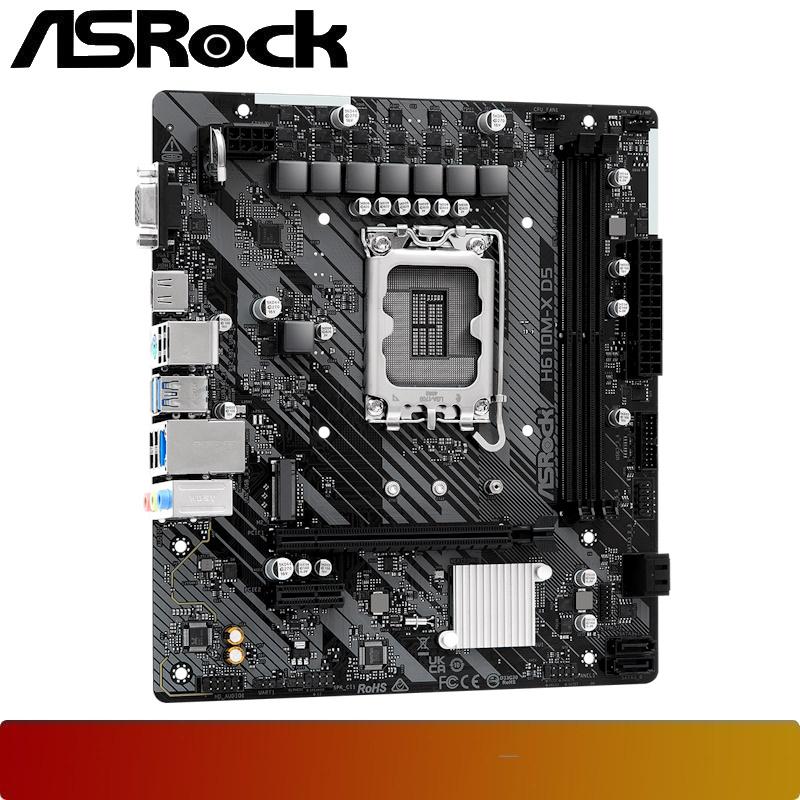

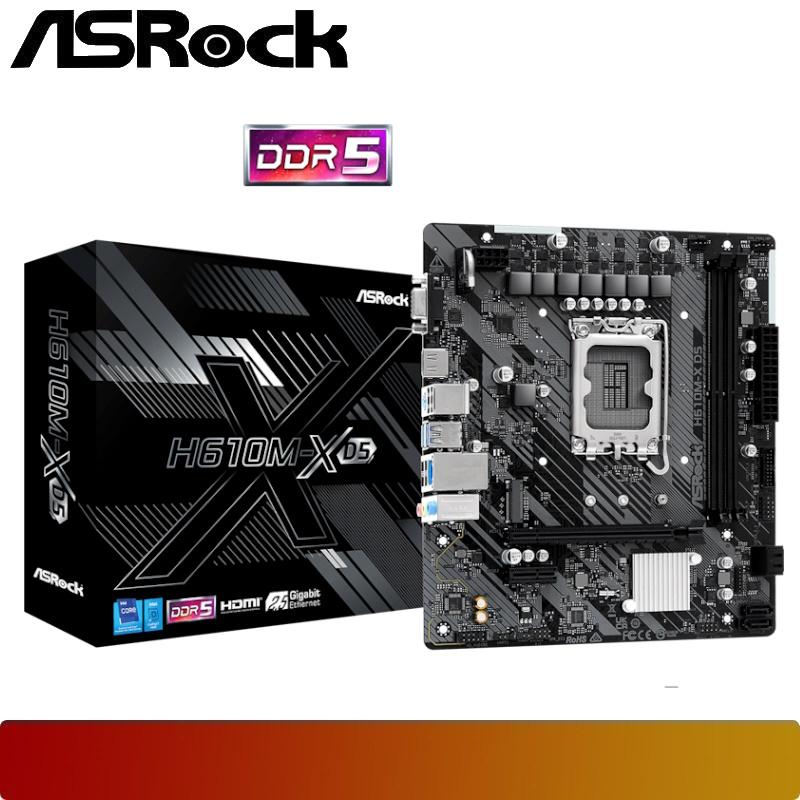

ASROCK H610M-X D5

Unique Feature
Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1 Power Phase
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- ASRock Auto Driver Installer

CPU
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)

Chipset
- Intel H610

Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Max. capacity of system memory: 96GB

Graphics
- Intel Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software

Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*

Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors*

USB
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS
- Microsoft Windows 10 64-bit / 11 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
