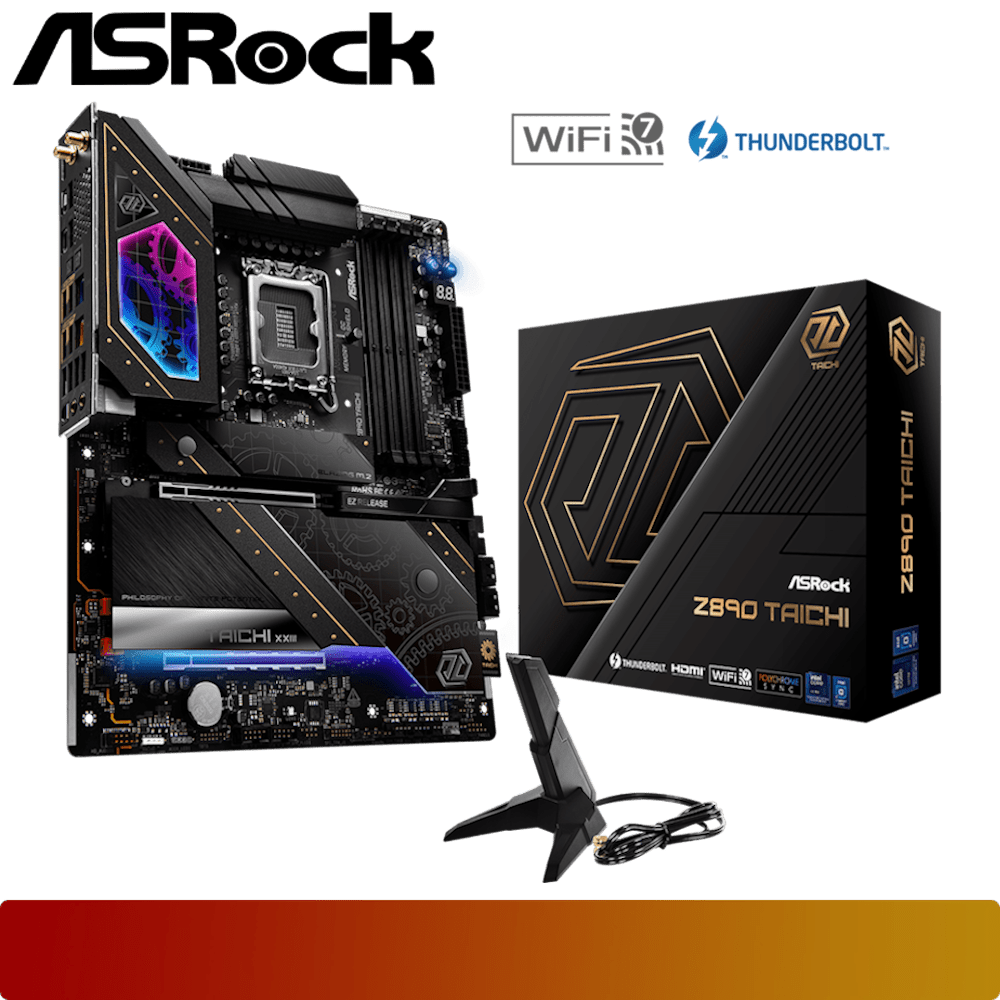

  • ASROCK Z890 Taichi - 1 - Nano Komputer

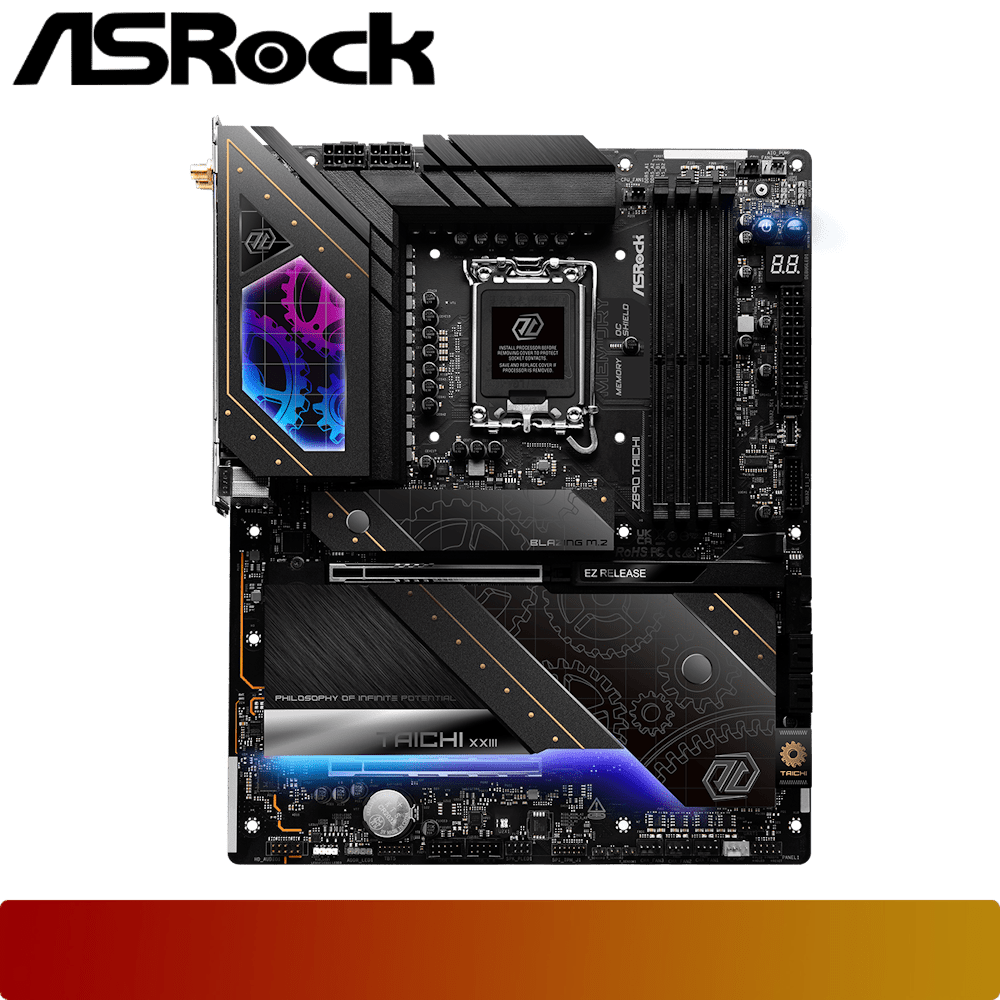

  • ASROCK Z890 Taichi - 2 - Nano Komputer

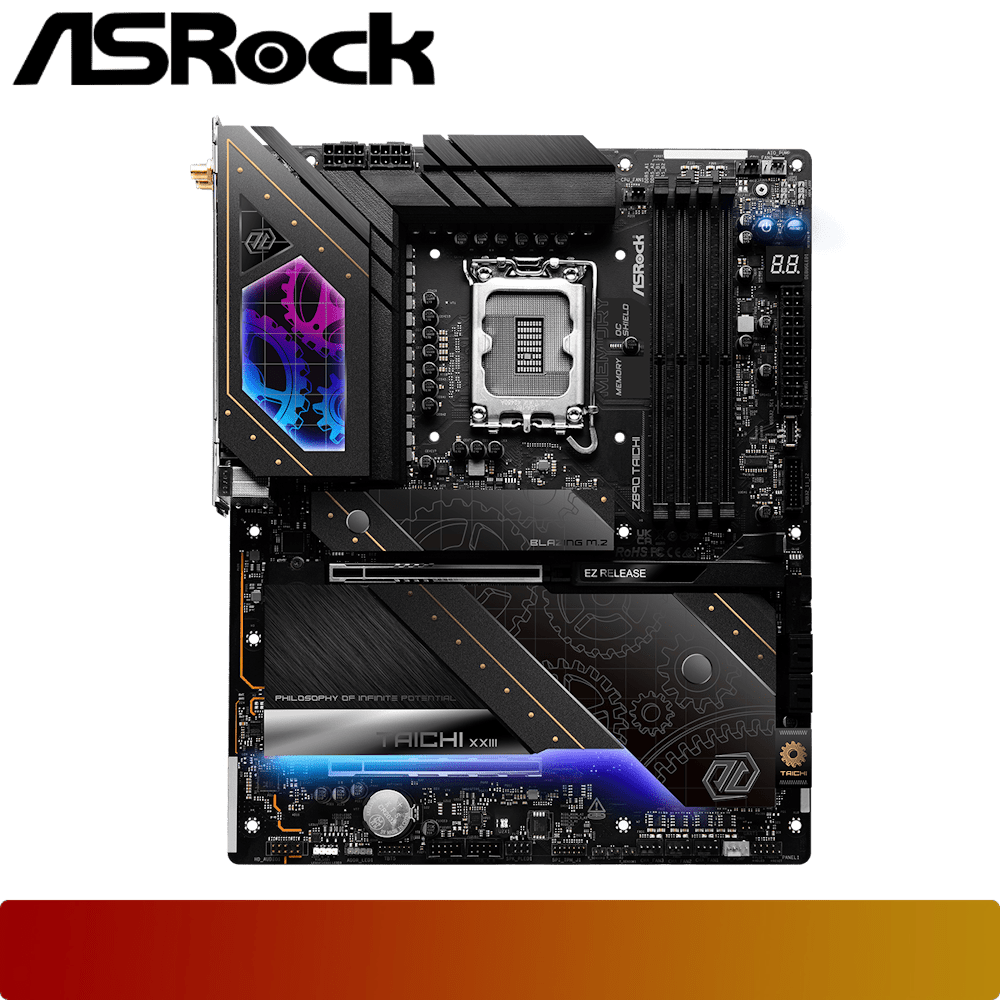

  • ASROCK Z890 Taichi - 3 - Nano Komputer

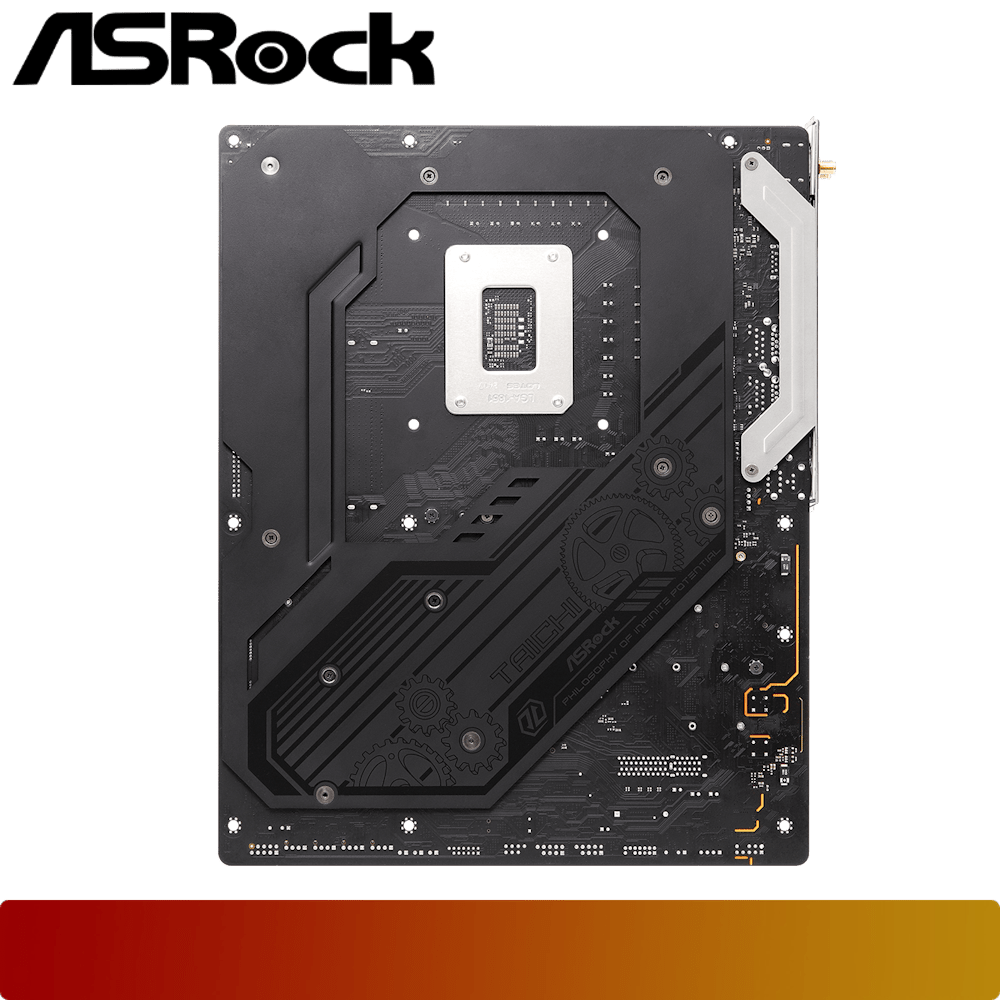

  • ASROCK Z890 Taichi - 4 - Nano Komputer

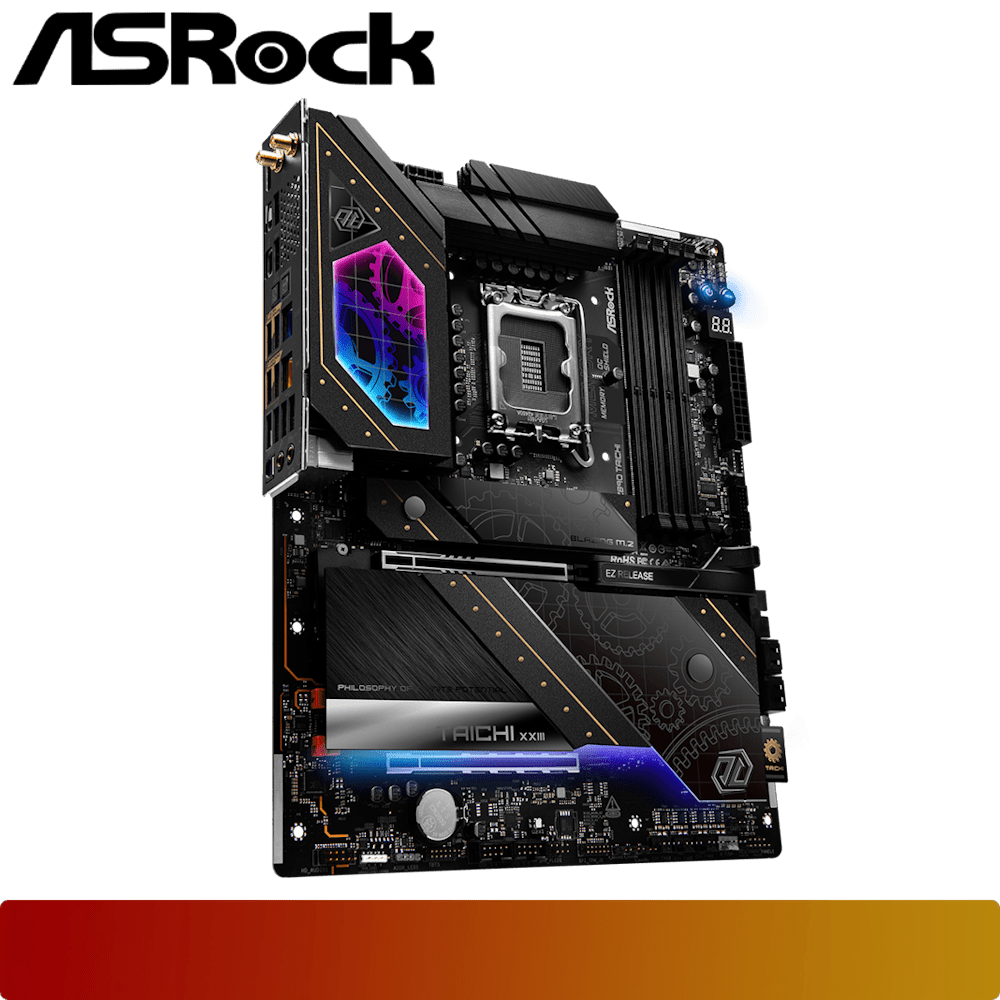

  • ASROCK Z890 Taichi - 5 - Nano Komputer

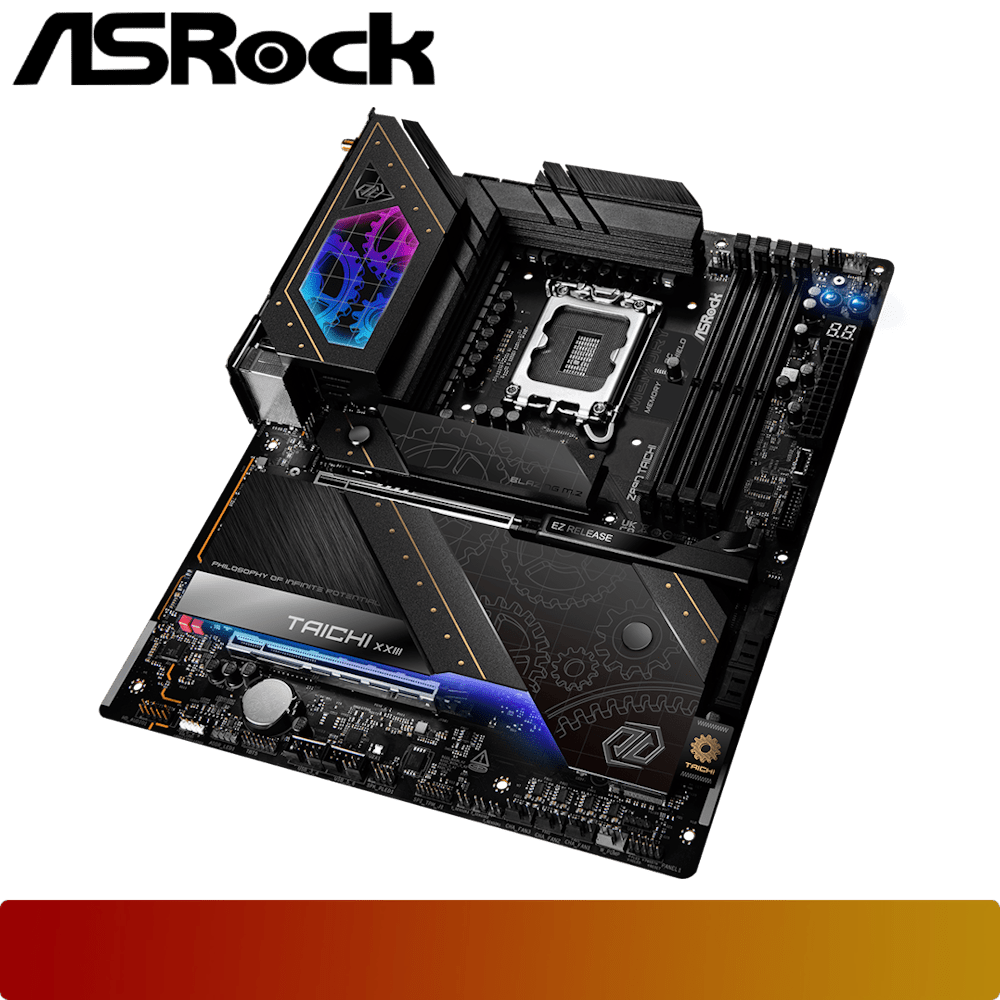

  • ASROCK Z890 Taichi - 6 - Nano Komputer

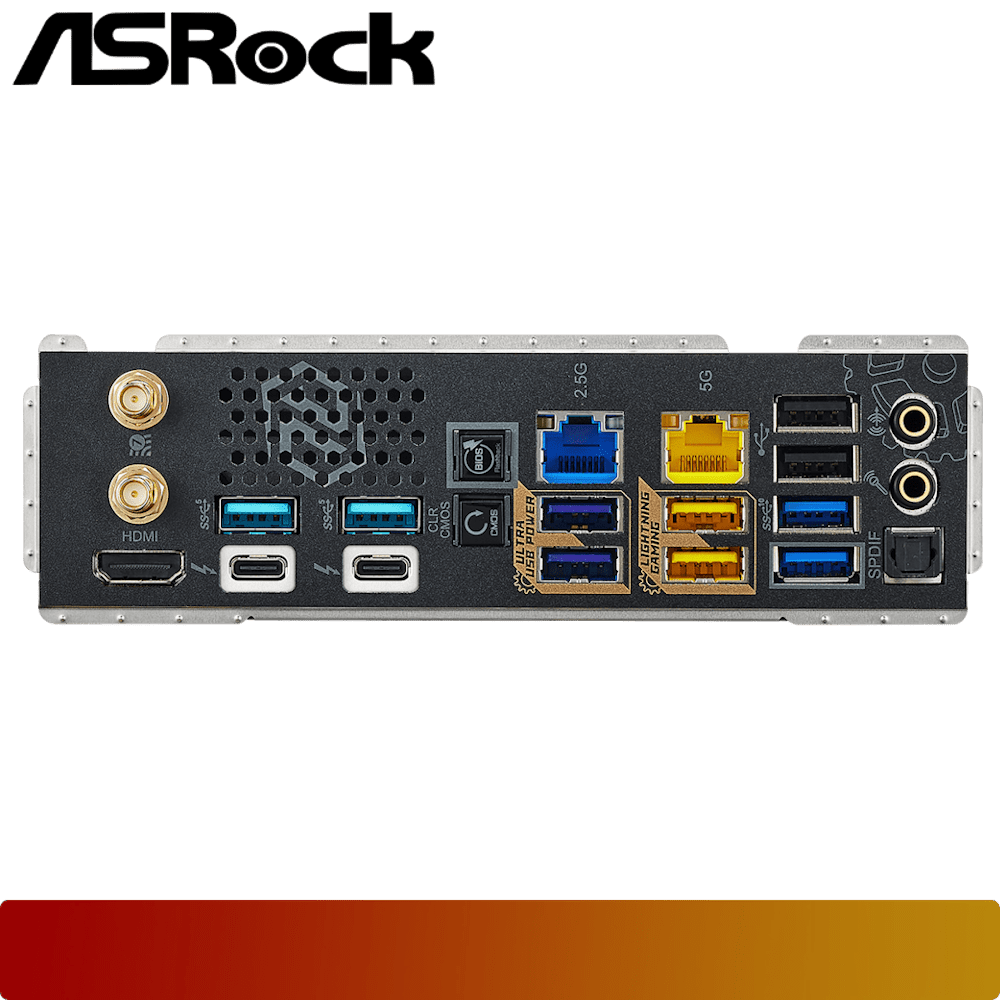

  • ASROCK Z890 Taichi - 7 - Nano Komputer
ASROCK Z890 Taichi

ASROCK Z890 Taichi

Rp 7.279.000

Brand: ASROCK

SKU: 4710483949685

Estimasi Berat: 4.0 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel Z890 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 6 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket Intel LGA 1851, ATX Form Factor
Out of stock

Also available at:

Product description

Unique Features
  • Superb Productivity
    • PCIe Gen5 (Graphics, M.2)
    • Dual Channel DDR5
    • Thunderbolt 4 Type-C Ports (40 Gb/s)
  • Rock-Solid Durability
    • Server-Grade Low-Loss PCB
    • 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
    • Memory OC Shield
    • Flexible Integrated I/O Shield
    • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  • Ultrafast Connectivity
    • 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module
    • ASRock Lightning Gaming Ports
  • EZ Update
    • BIOS Flashback Button
    • ASRock Auto Driver Installer
CPU Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel Z890
Memory Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC)*
Max. capacity of system memory: 256GB
Graphics Intel Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
Audio 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
WIMA Audio Capacitors (For Rear Outputs)
ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
LAN 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Supports Dragon 2.5G LAN Software
Wireless LAN 802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 320MHz channel bandwidth with 6GHz* frequency band
Slots CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
Accessories 4 x SATA Data Cables
1 x M.2 Expansion Card
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
3 x Thermistor Cables
1 x Screw for M.2 Socket
1 x Standoff for M.2 Socket
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB
2oz Copper PCB
OS Microsoft Windows 11 64-bit
Certifications FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
CEC Tier II ready
Warranty

Limited 3 Years by EMD
