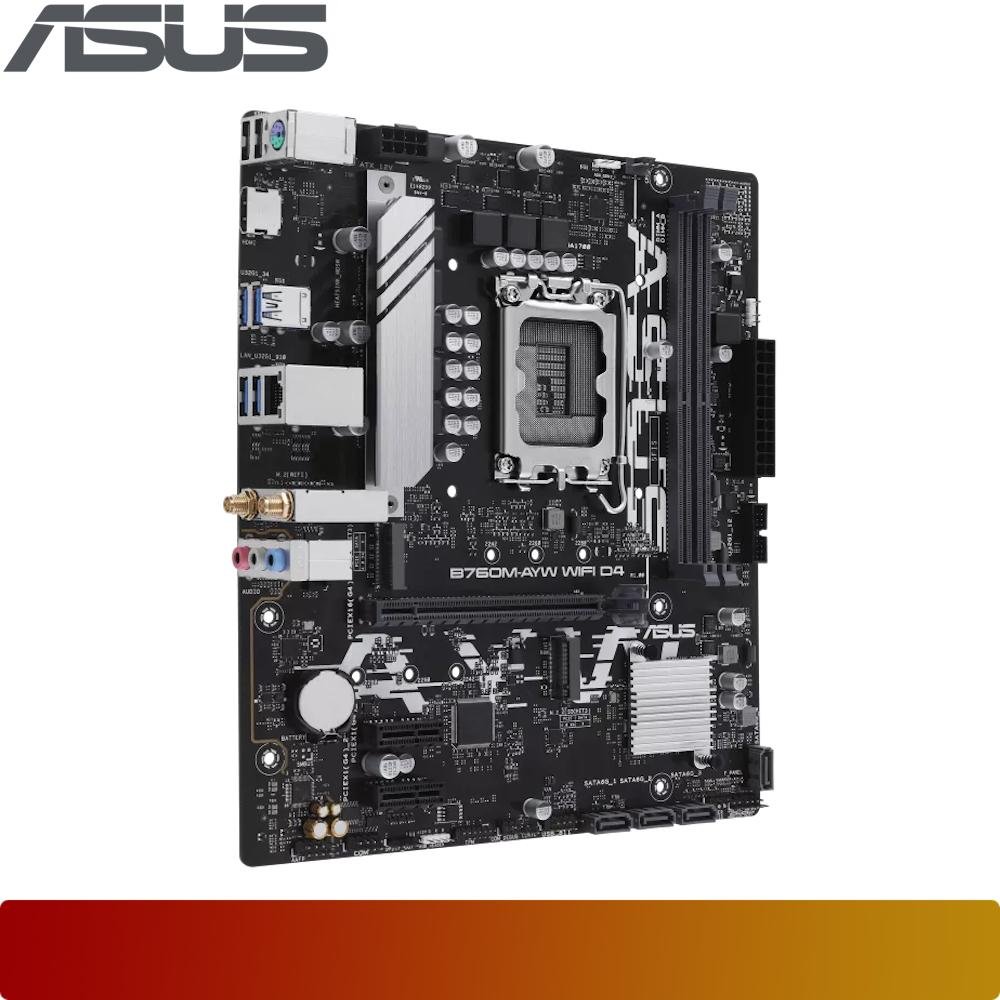

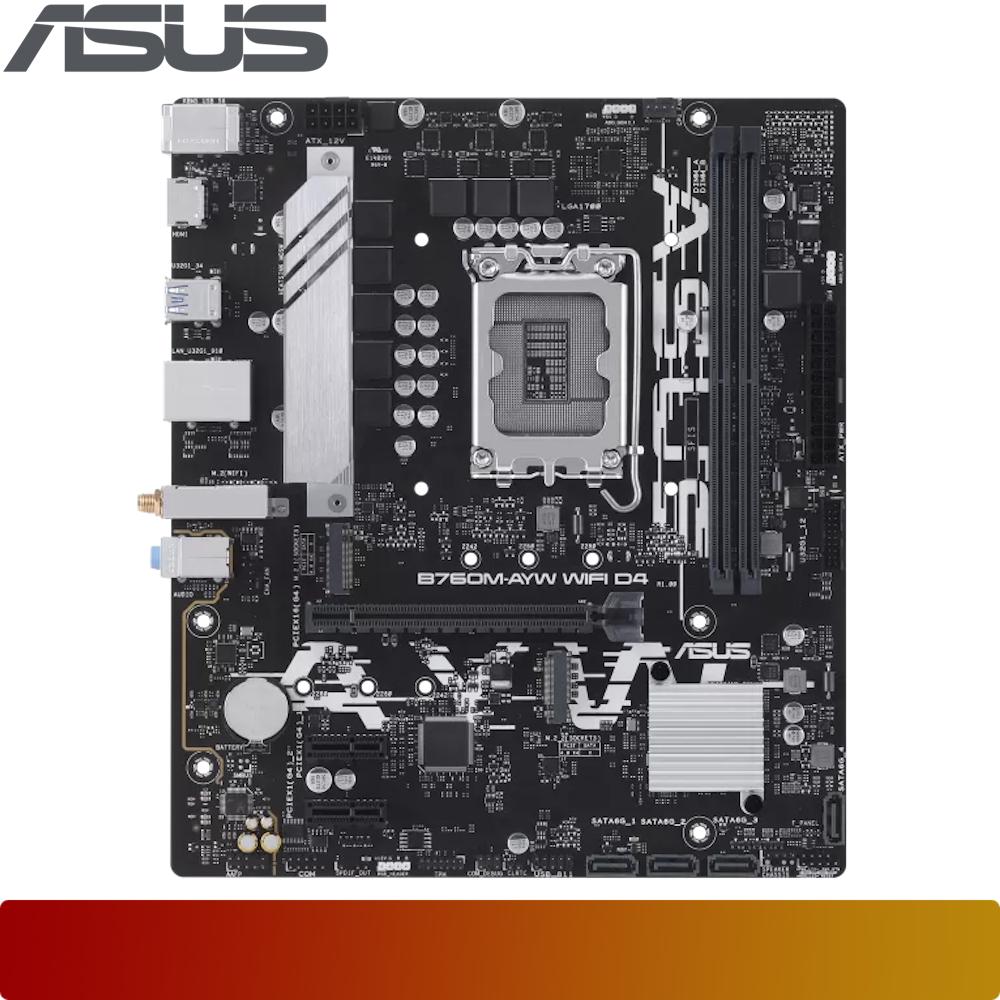

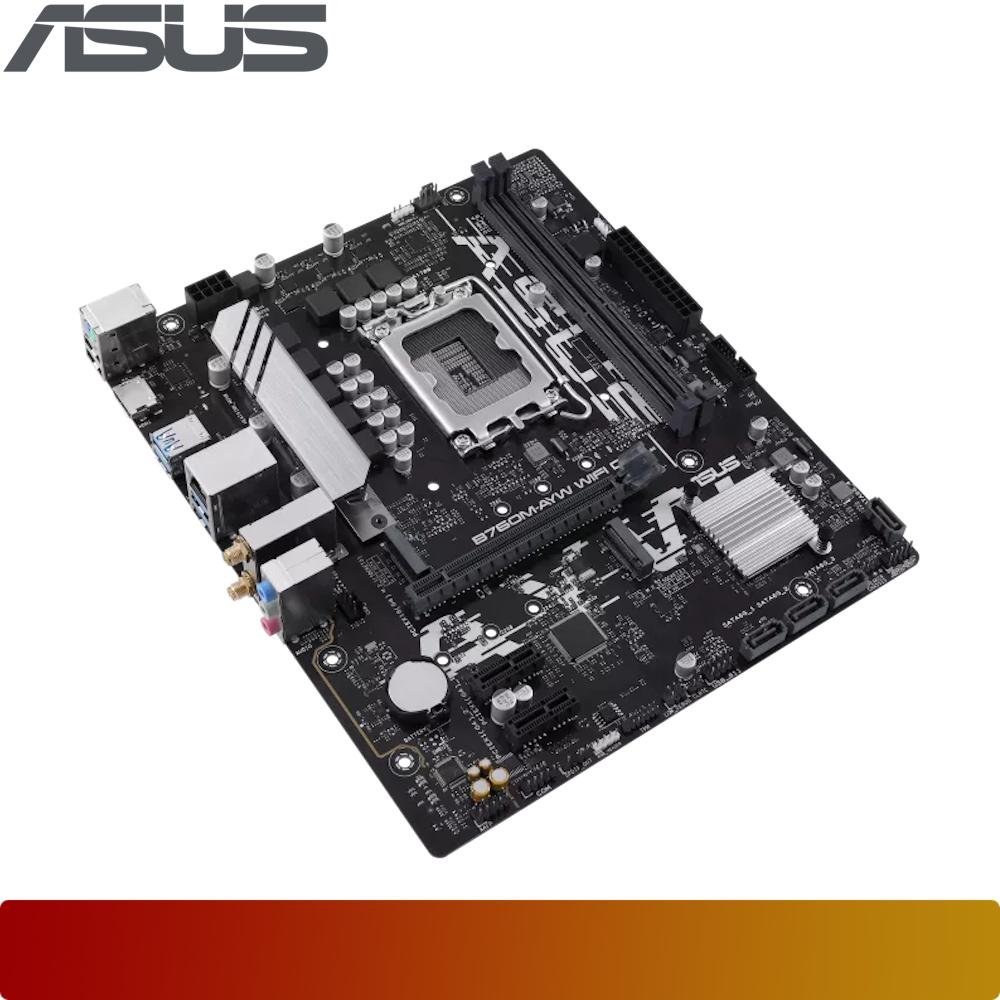

ASUS B760M-AYW WIFI D4

Name: ASUS B760M-AYW WIFI D4
Brand: ASUS
Price: 2159000.0 IDR
Availability: InStock

Rp 2,159,000

Compare

Brand: ASUS

SKU: 199291065475

Estimasi Berat: 2.5 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B760 Chipset, 2x DDR4 DIMM, Maximum Memory 64GB, Total 2 Slot NVMe, WiFi 6, Bluetooth 5.2, Support Desktop Processors Socket Intel LGA 1700, Micro ATX Form Factor

2 left

Also available at:

Specifications :

MODEL NAME
- B760M-AYW WIFI D4

CPU SUPPORT
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

CHIPSET
- Intel B760 Chipset

MEMORY SPECIFICATIONS
- 2 x DIMM, Max. 64GB, DDR4
- Supports up to 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture, Supports Intel XMP

GRAPHICS & DISPLAY
- 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

EXPANSION SLOTS
- 1 x PCIe 4.0 x16 slot (From CPU)
- 2 x PCIe 4.0 x1 slots (From Chipset)

STORAGE
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M, type 2242/2260/2280): PCIe 4.0 x4 mode (From CPU)
- M.2_2 slot (Key M, type 2242/2260/2280): PCIe 4.0 x4 mode (From Chipset)
- 4 x SATA 6Gb/s ports

ETHERNET & NETWORKING
- 1 x Realtek 2.5Gb Ethernet
- ASUS LANGuard

WIRELESS & BLUETOOTH
- Wi-Fi 6
- Bluetooth v5.2

FORM FACTOR
- mATX Form Factor
- Dimensions: 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
