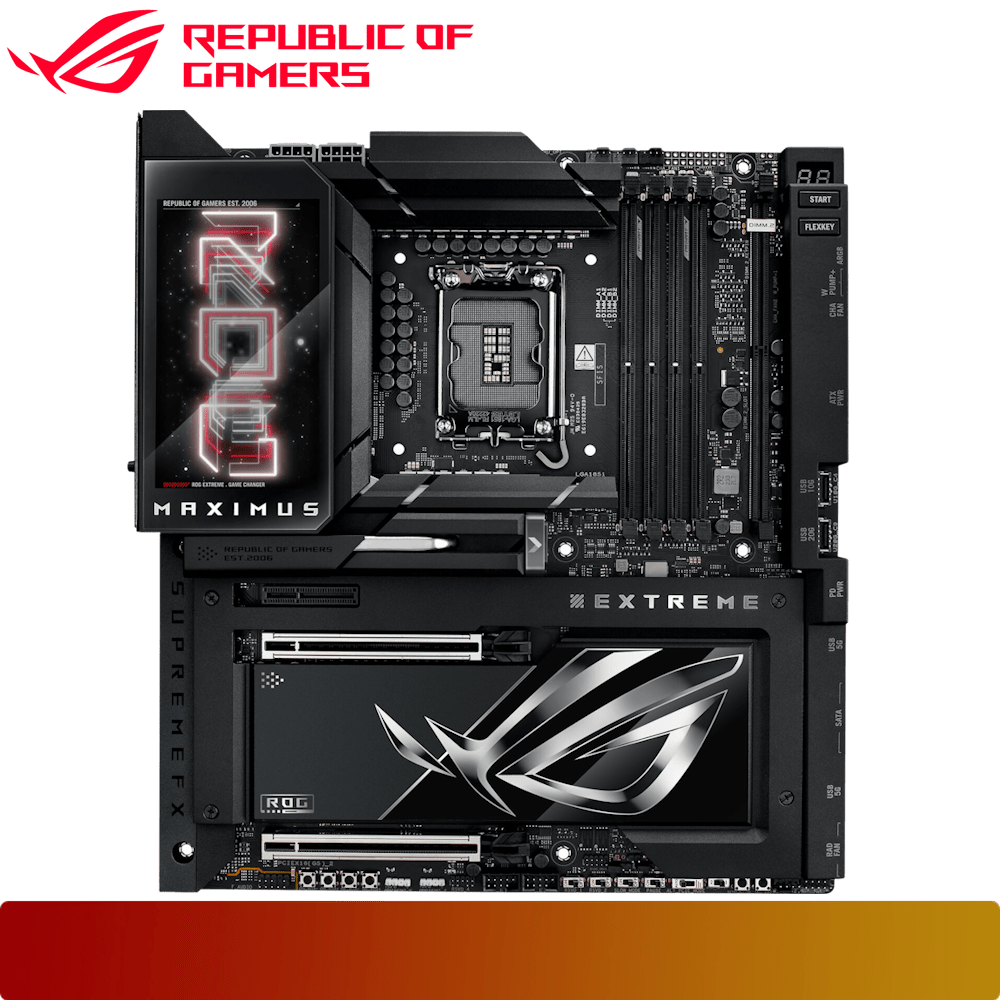

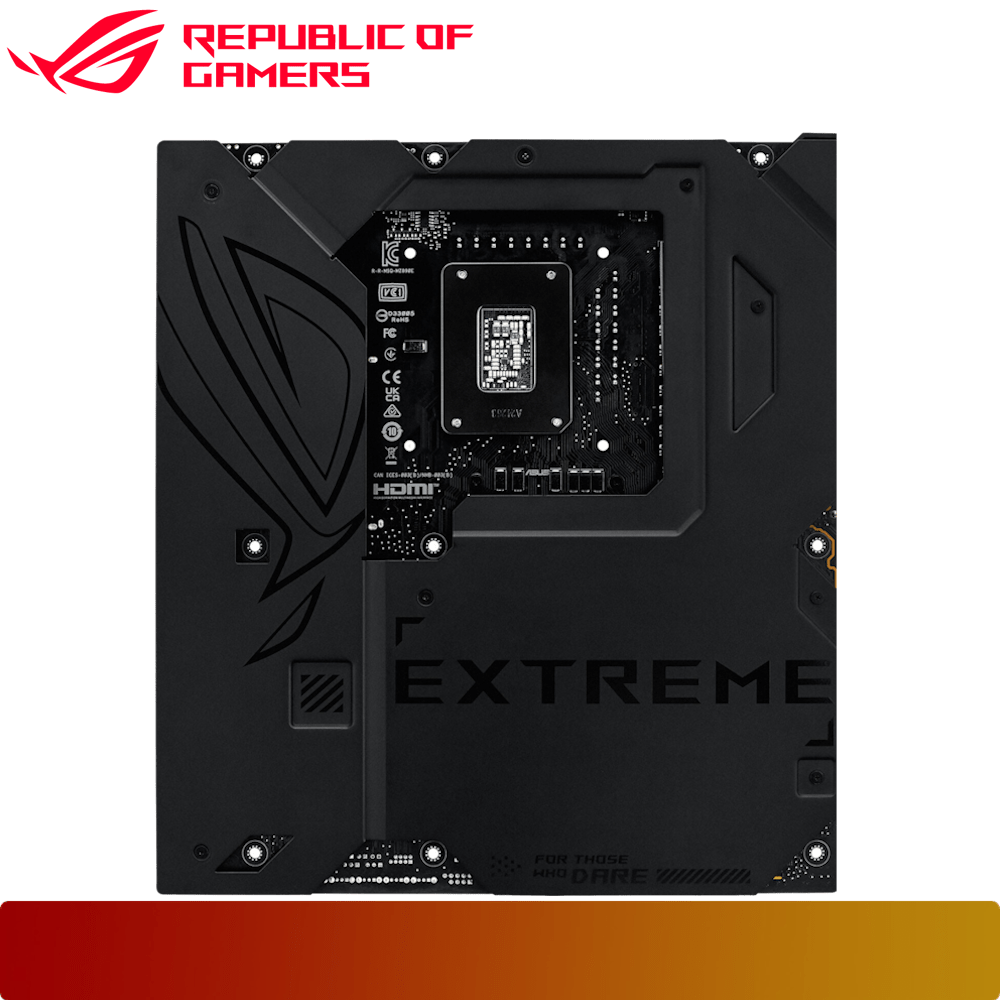

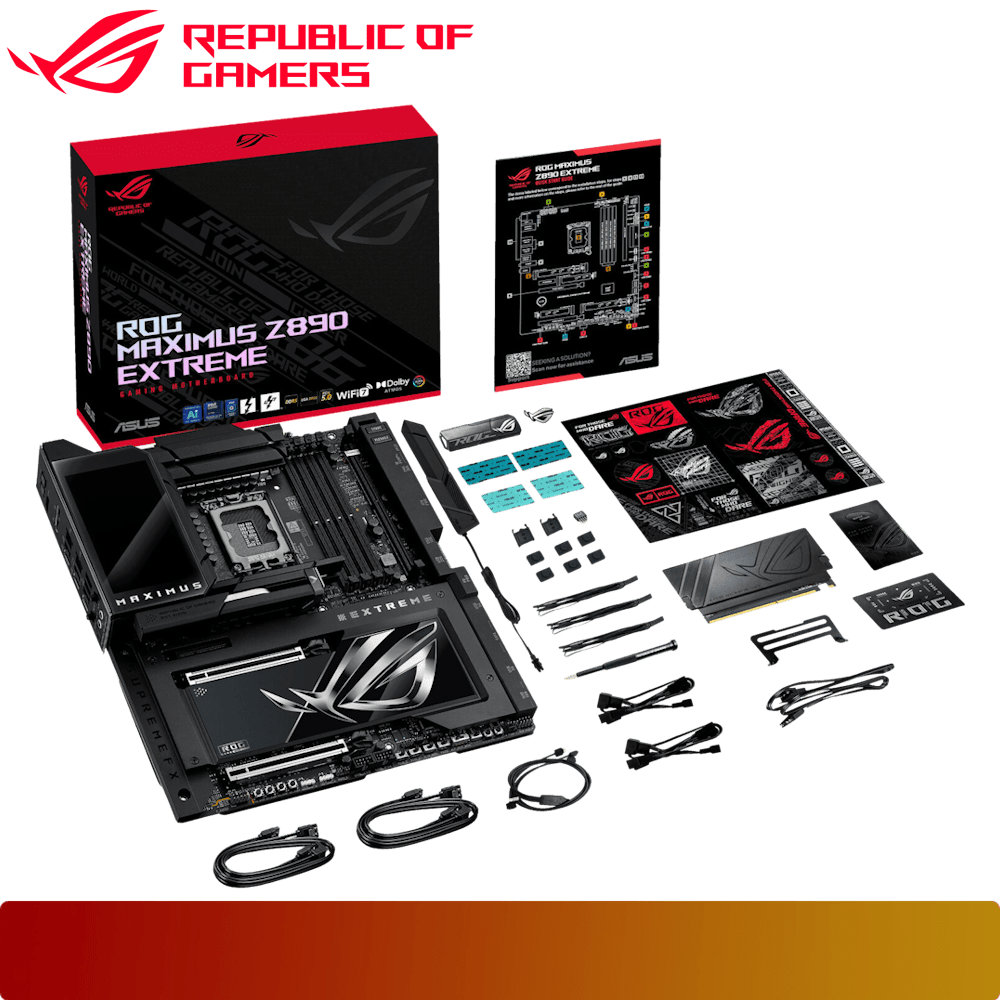

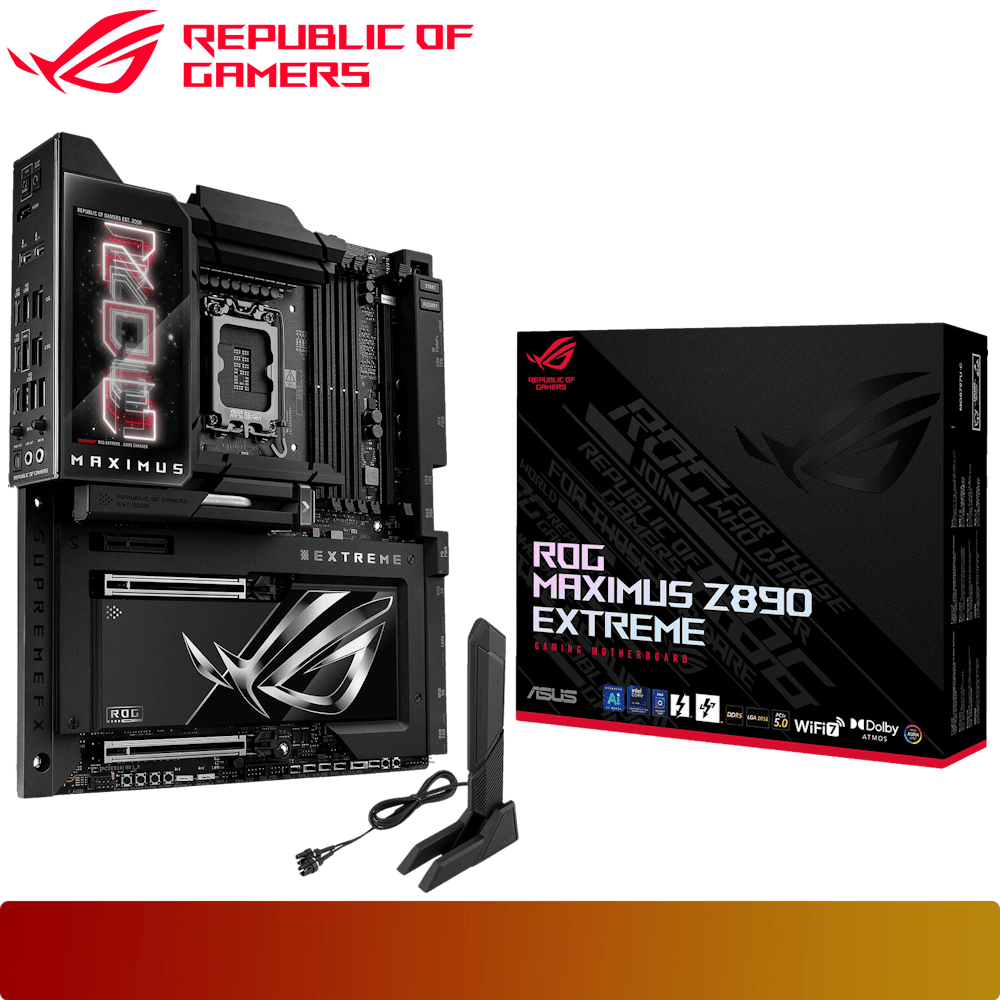

ASUS ROG MAXIMUS Z890 EXTREME

Name: ASUS ROG MAXIMUS Z890 EXTREME
Brand: ASUS
Price: 19859000.0 IDR
Availability: OutOfStock

Rp 19.859.000

Compare

Brand: ASUS

SKU: 197105754164

Estimasi Berat: 6.0 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel Z890 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 6 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket Intel LGA 1851, E-ATX Form Factor

Out of stock

Also available at:

Model	ROG MAXIMUS Z890 EXTREME
CPU	Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Supports DIMM Flex, DIMM Fit, NitroPath DRAM Technology
Graphics	1 x HDMI™ port (Supports max. 8K@60Hz with DSC) 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
Expansion Slots	Intel® Core™ Ultra Processors (Series 2): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel® Z890 Chipset: 1 x PCIe 4.0 x4 slot
Storage	Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1, M.2_3, M.2_4 slots: PCIe 5.0 x4 mode (from CPU) M.2_2 slot: PCIe 4.0 x4 mode (from CPU) DIMM.2_1, DIMM.2_2 slots: PCIe 4.0 x4 mode (via ROG Q-DIMM.2, from Chipset) 4 x SATA 6Gb/s ports
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Intel® Wi-Fi 7 (2x2 802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4
USB (Rear)	2 x Thunderbolt™ 5 ports (USB Type-C®) 1 x USB 20Gbps port (USB Type-C®) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
USB (Front)	1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional ports 2 x USB 2.0 headers support 4 additional ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs SupremeFX Shielding Technology ESS® ES9219 QUAD DAC LED-illuminated audio jacks Rear optical S/PDIF out port Premium audio capacitors

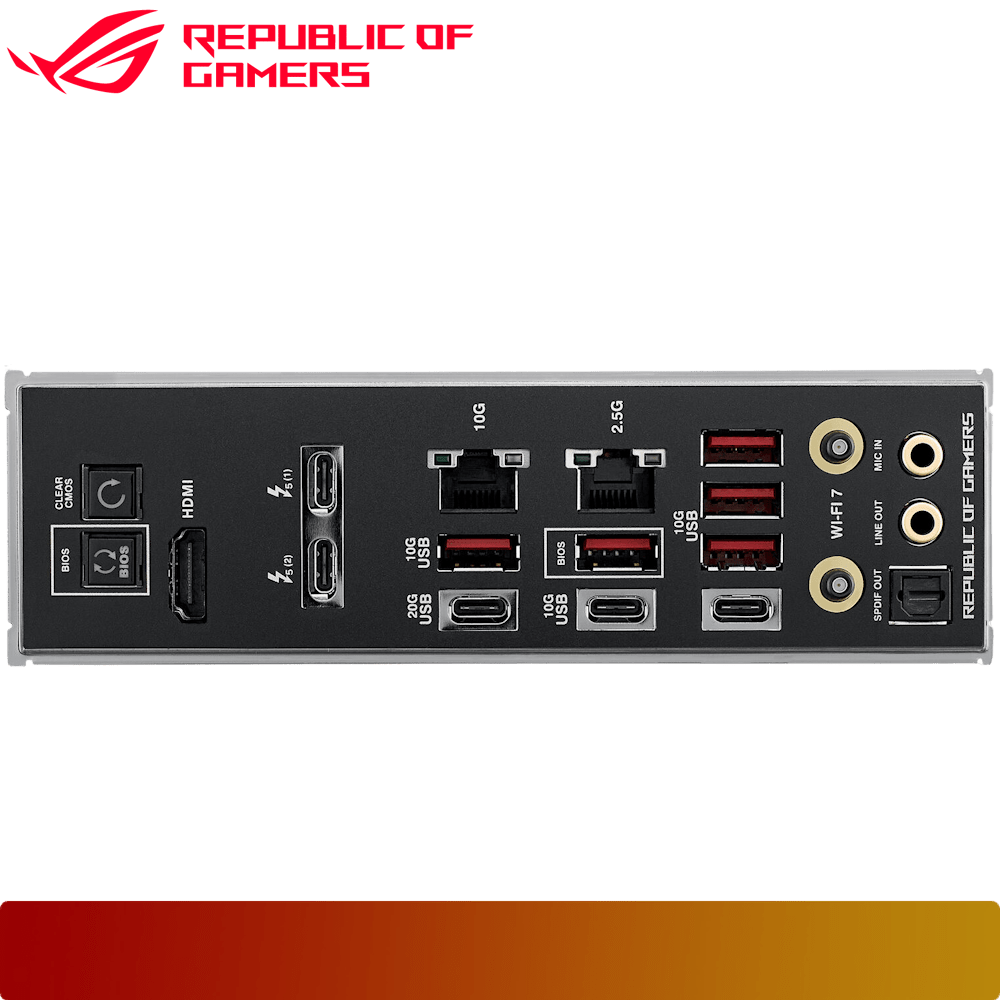

Back Panel I/O Ports	2 x Thunderbolt™ 5 USB Type-C® ports 1 x USB 20Gbps port (USB Type-C®) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Operating System	Windows 11 (22H2 & later)
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	E-ATX Form Factor (30.5 cm x 27.7 cm)
