ASUS ROG MAXIMUS Z890 HERO

Name: ASUS ROG MAXIMUS Z890 HERO
Brand: ASUS
Price: 14299000.0 IDR
Availability: OutOfStock

Rp 14,299,000

Compare

Brand: ASUS

SKU: 197105747234

Estimasi Berat: 4.7 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel Z890 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 6 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket Intel LGA 1851, ATX Form Factor

Out of stock

Also available at:

ROG MAXIMUS Z890 HERO Motherboard Specifications

Model	ROG MAXIMUS Z890 HERO
CPU	Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM FIT ASUS Enhanced Memory Profile III (AEMP III)
Graphics	1 x HDMI™ port (Supports max. 8K@60Hz with DSC) 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
Expansion Slots	Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Storage	Supports up to 6 x M.2 slots, 1 x SlimSAS connector and 4 x SATA 6Gb/s ports M.2_1, M.2_3, M.2_4 slots: PCIe 5.0 x4 mode M.2_2, M.2_5, M.2_6 slots: PCIe 4.0 x4 mode 4 x SATA 6Gb/s ports SlimSAS connector: Supports PCIe 4.0 x4 mode or up to 4 SATA devices
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7 (2x2 802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4
USB (Rear)	2 x Thunderbolt™ 4 ports (USB Type-C®) 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A)
USB (Front)	1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional ports 2 x USB 2.0 headers support 4 additional ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs SupremeFX Shielding Technology ESS® ES9219 QUAD DAC Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors

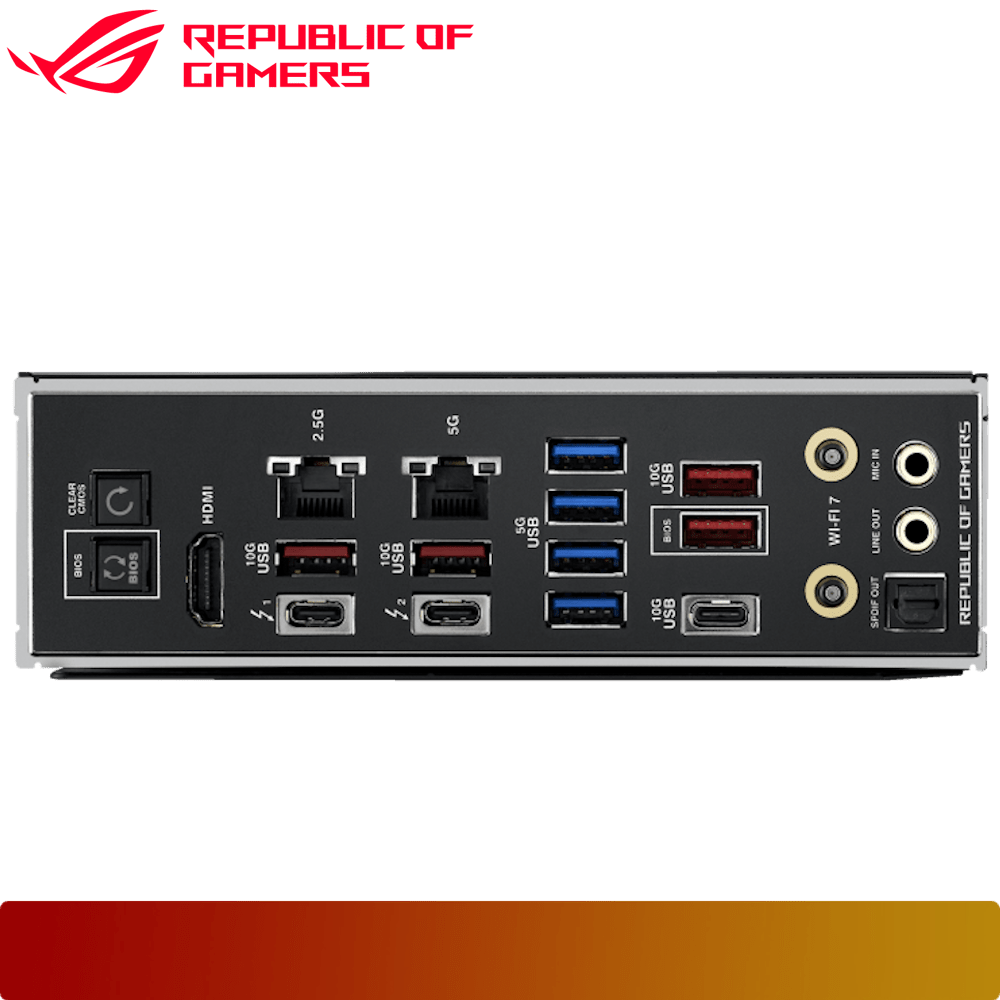

Back Panel I/O Ports	2 x Thunderbolt™ 4 USB Type-C® ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Operating System	Windows 11 (22H2 & later)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor (30.5 cm x 24.4 cm)
