ASUS ROG STRIX B860-F GAMING WIFI

Name: ASUS ROG STRIX B860-F GAMING WIFI
Brand: ASUS
Price: 5459000.0 IDR
Availability: InStock

Rp 5.459.000

Compare

Brand: ASUS

SKU: 197105806962

Estimasi Berat: 2.7 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B860 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 4 Slot NVMe, WiFi 7, Bluetooth 5.4, Support Desktop Processors Socket Intel LGA 1851, ATX Form Factor

2 left

Also available at:

Model	- ROG STRIX B860-F GAMING WIFI

CPU	- Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2) - Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset	- Intel B860 Chipset

Memory	- 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered Memory - Dual channel memory architecture - Supports Intel Extreme Memory Profile (XMP) - ASUS Enhanced Memory Profile III (AEMP III)

Graphics	- 1 x HDMI port (Supports 4K@60Hz) - 1 x DisplayPort (Supports 8K@60Hz) - 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output

Expansion Slots	- 1 x PCIe 5.0 x16 slot - 1 x PCIe 4.0 x16 slot (supports x4 mode) - 1 x PCIe 4.0 x1 slot

Storage	- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports

Ethernet	- 1 x Intel 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth	- Wi-Fi 7 - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Bluetooth v5.4

USB	Rear USB (Total 8 ports): - 1 x USB 20Gbps port (1 x USB Type-C) - 1 x USB 10Gbps port (1 x USB Type-C) - 2 x USB 10Gbps ports (2 x Type-A) - 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports): - 1 x USB 10Gbps connector (supports USB Type-C) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports

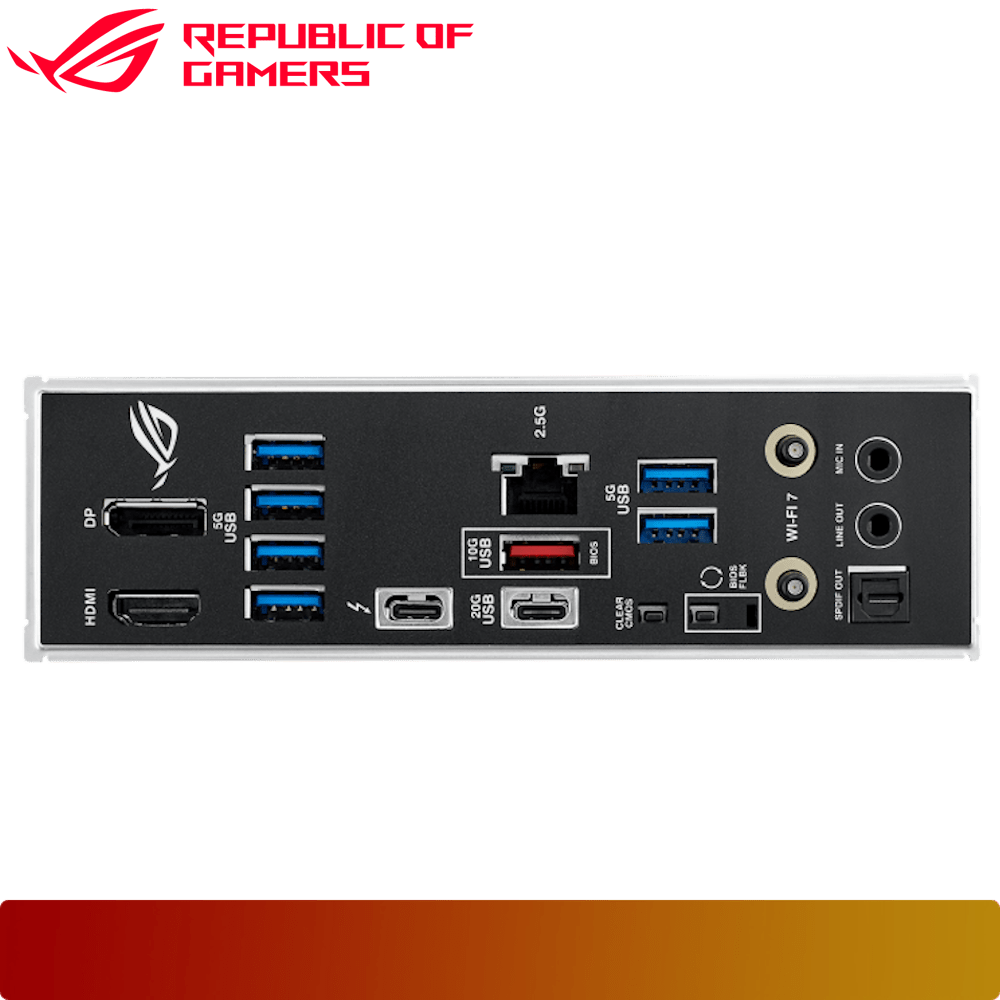

Back Panel I/O Ports	- 1 x USB 20Gbps (USB Type-C) - 3 x USB 10Gbps (1 x USB Type-C + 2 x Type-A) - 4 x USB 5Gbps (Type-A) - 1 x HDMI port - 1 x DisplayPort - 1 x Wi-Fi Module - 1 x Intel 2.5Gb Ethernet port - 1 x Optical S/PDIF out port - 2 x Audio jacks - 1 x BIOS FlashBack button

Form Factor	- ATX Form Factor (30.5 cm x 24.4 cm)
