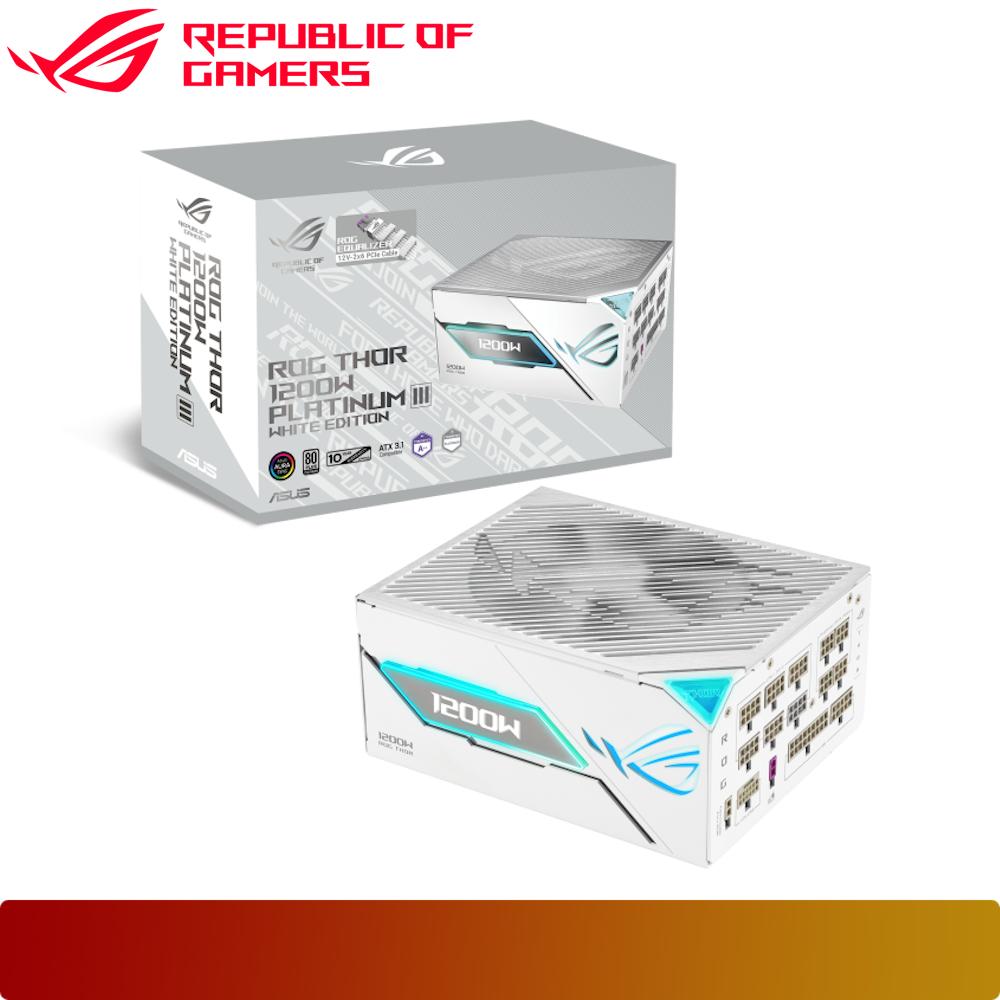

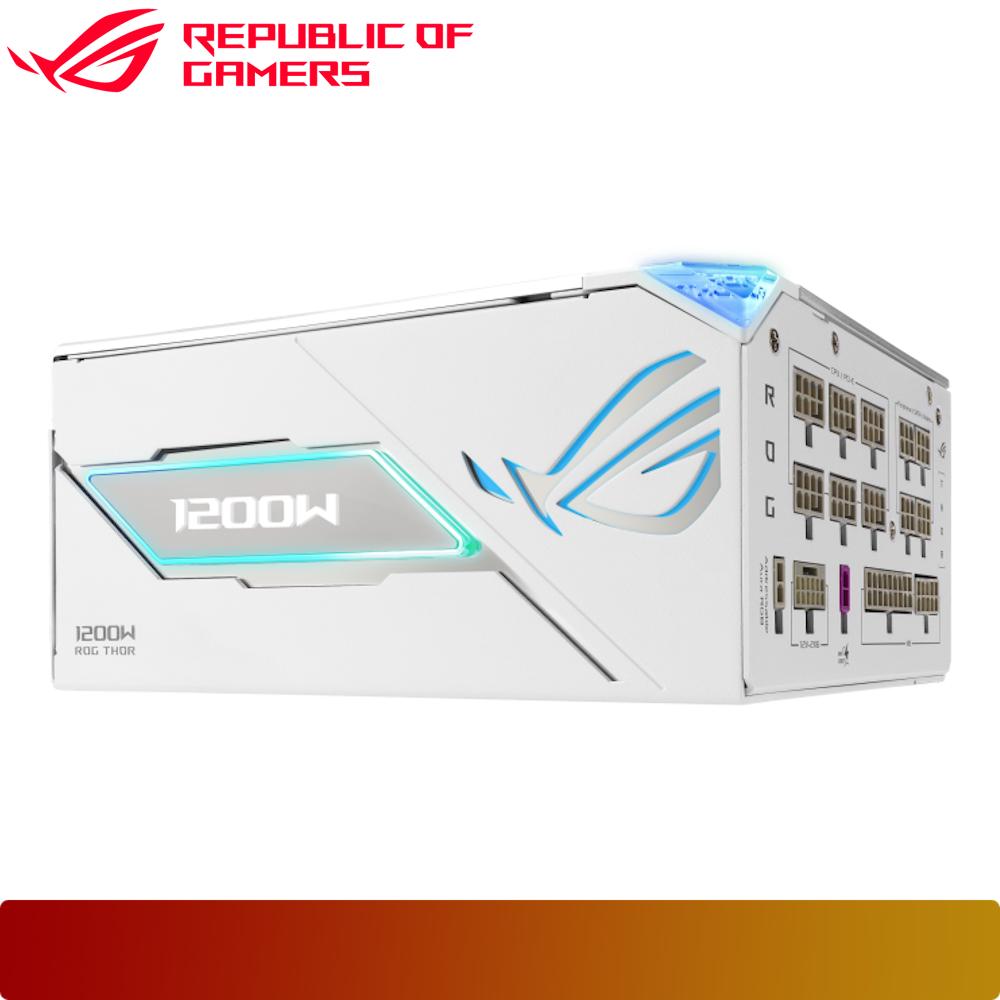

ASUS ROG Thor 1200W Platinum III White Edition (ROG Equalizer)

Specification :

Intel Form Factor
- ATX12V

PFC Type
- Active PFC

ATX Standard
- ATX 3.1

80 PLUS Efficiency
- 80Plus Platinum

Cybenetics Efficiency
- Platinum (230V) ; Platinum (115V)

Protection Features
- OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials
- ROHS

AC Input Range
- 100-240Vac

DC Output Voltage
- +3.3V +5V +12V -12V +5Vsb

- Maximum Load
- 30A 25A 100A 0.3A 3A

Combined Load
- 125W 125W 1200W 3.6W 15W

Total Output
- 1200W

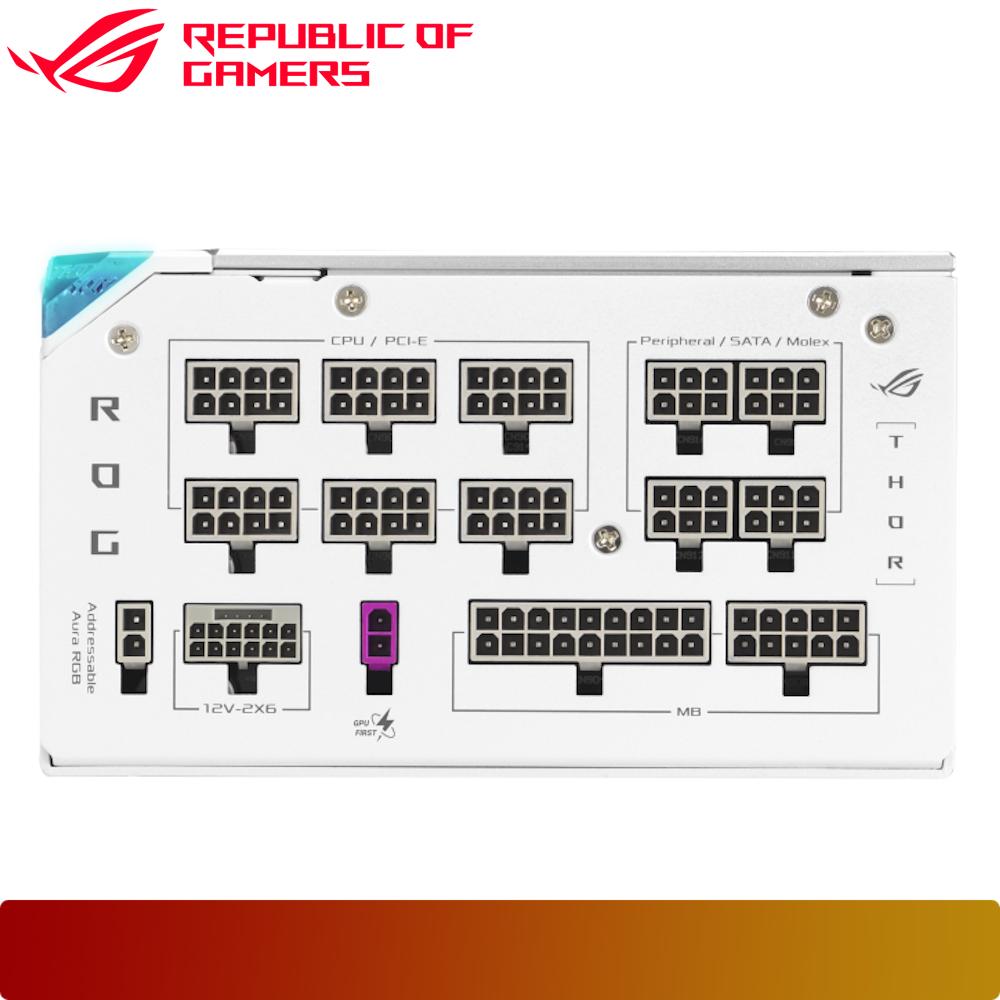

Cable Connectors
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1 (12V-2x6)
- PCI-E 6+2-pin x 4
- SATA x 7
- PERIPHERAL x 6

Package Contents
- Power Cord x 1
- Motherboard Power Cable x 1 (610mm)
- CPU Cable x 2 (1000mm)
- ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
- PCI-E Cable 1-to-1 x 4 (750mm)
- SATA Cable 1-to-4 x 1 (400+120+120+120mm)
- SATA Cable 1-to-3 x 1 (400+120+120mm)
- Peripheral 1-to-3 x 2 (400+150+150mm)
- Addressable RGB Cable x 1 (800mm)
- ROG sticker x 1
- ROG cable tie x 6
- Chassis Screws Package x 1
- Cable Tie x 12
- User Manual x 1

Dimensions
- 190 x 150 x 86 mm

Weight
- 2.37 KG (single PSU)

Cybenetics Noise Level Certification
- A++

AURA SYNC
- Yes

MTBF
- >120,000 hrs @ 25°C

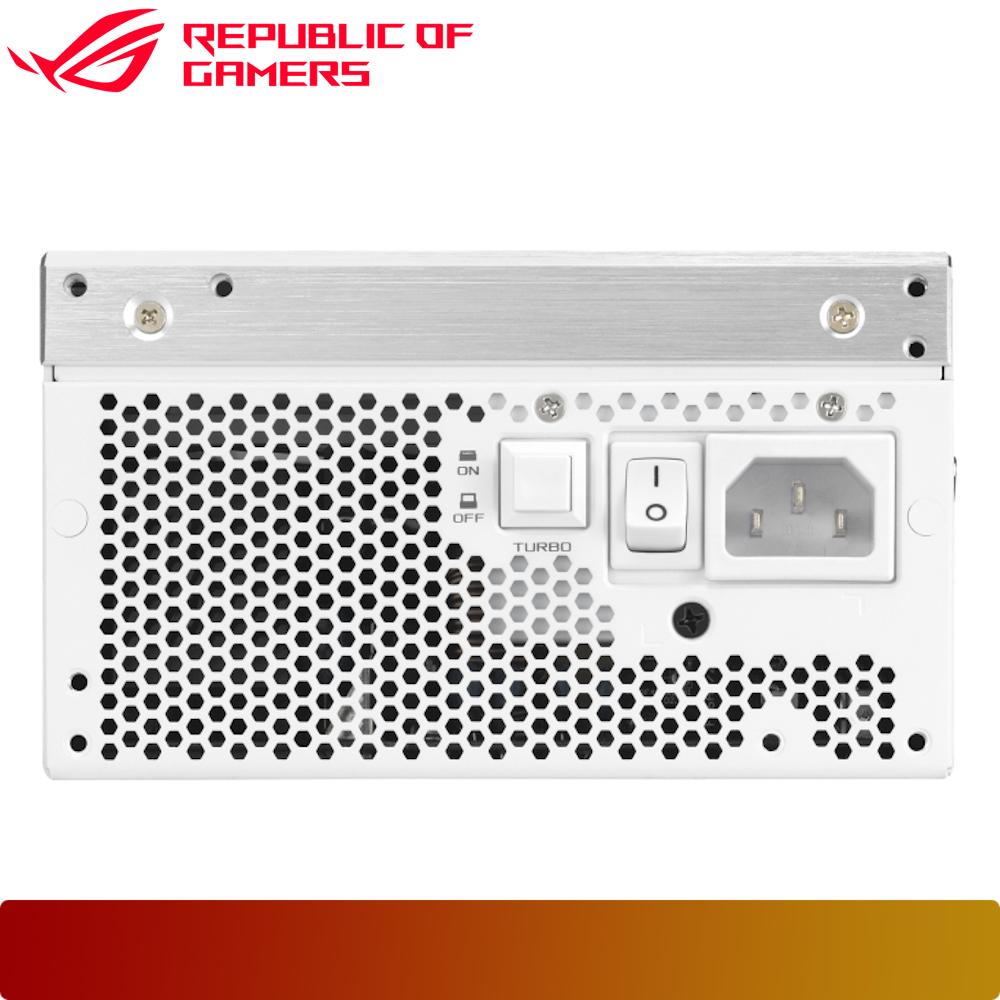

0dB Fan Button
- Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.

Warranty
- 10-year limited
