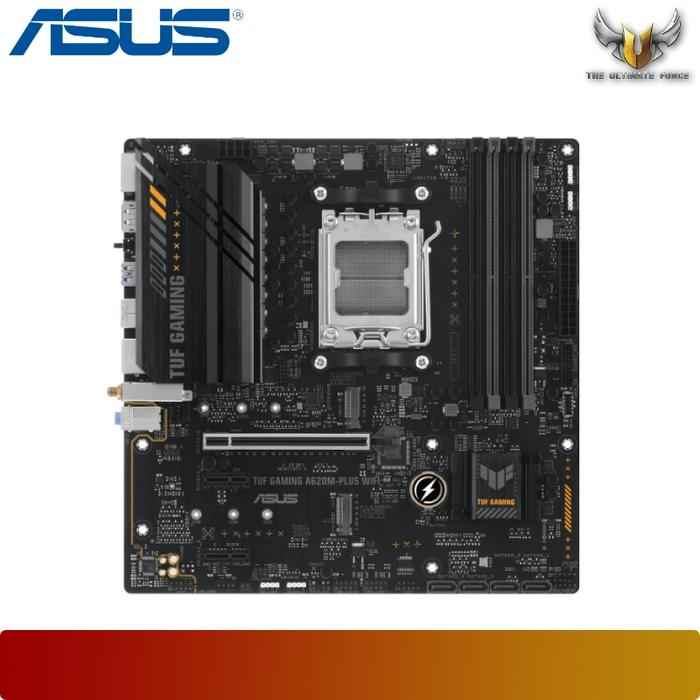

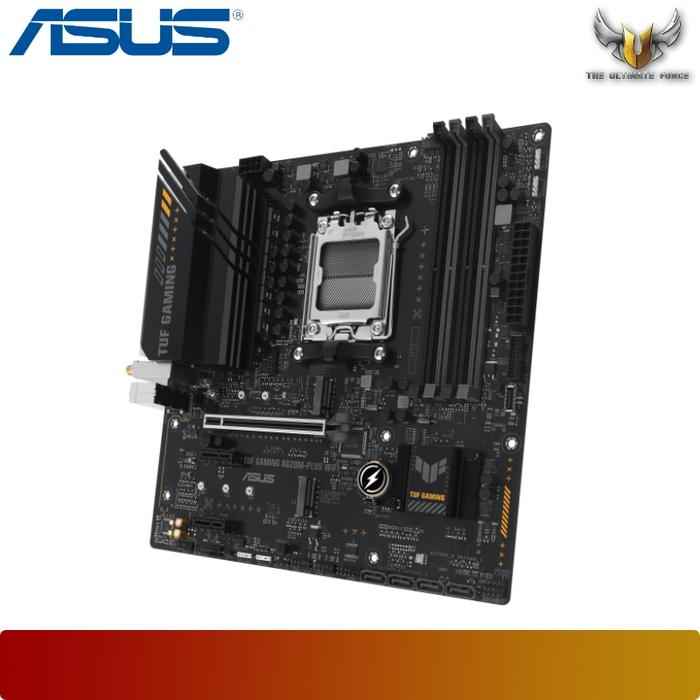

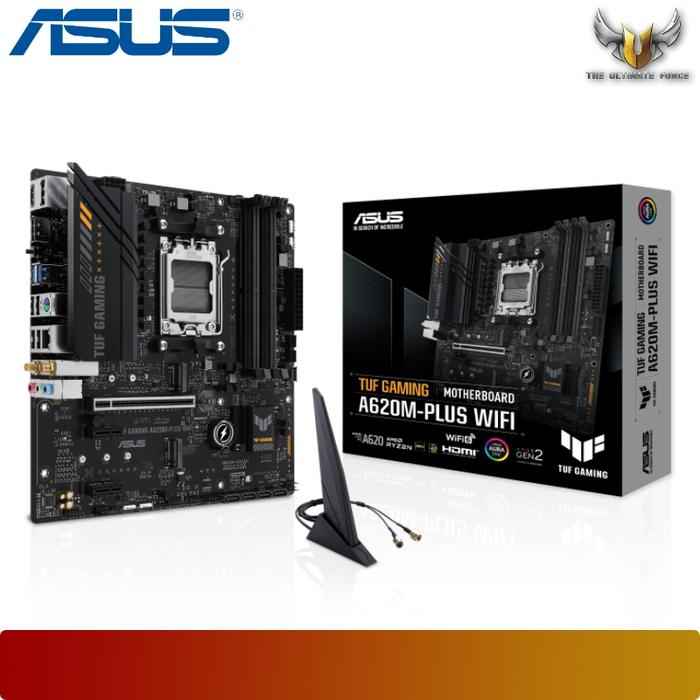

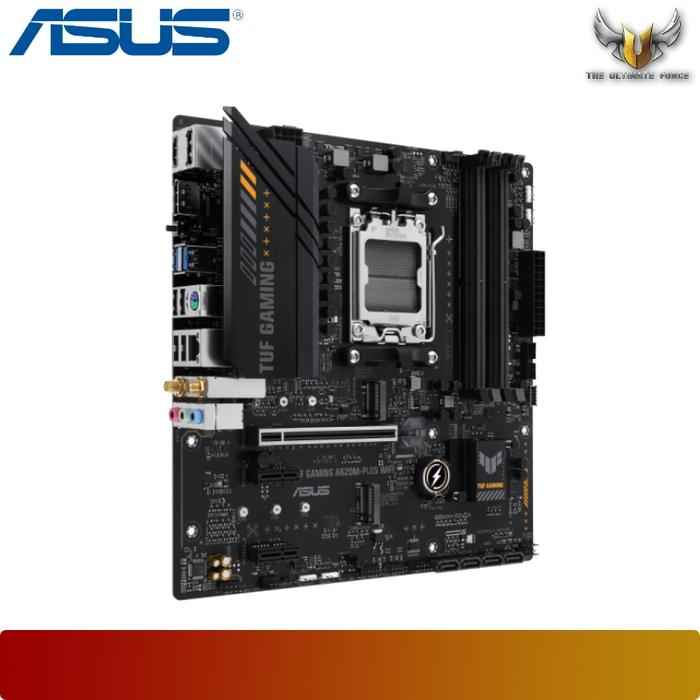

ASUS TUF GAMING A620M-PLUS WIFI | Motherboard AMD A620 Ryzen AM5

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- TUF GAMING A620M-PLUS WIFI

CPU
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

Chipset
- AMD A620 Chipset

Memory
- 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ - 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- OptiMem II

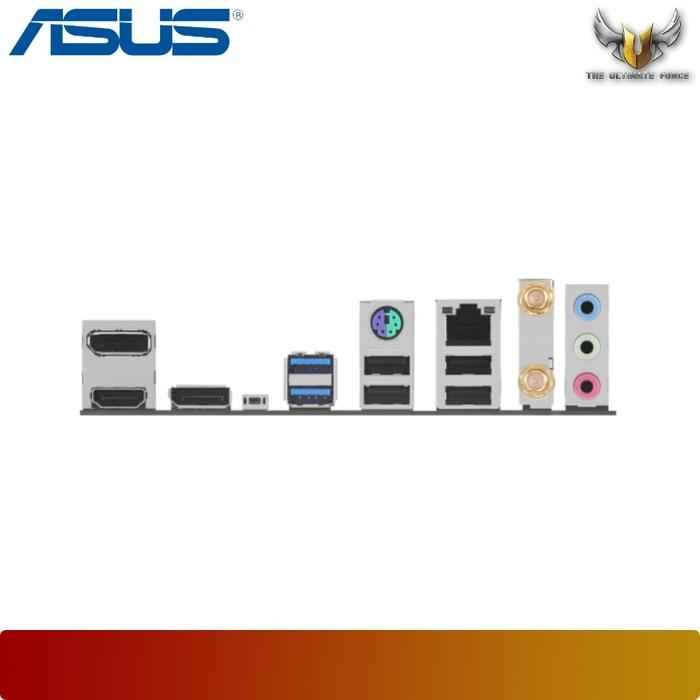

Graphics
- 2 x DisplayPort**
- 1 x HDMI™ port***

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slot
AMD A620 Chipset
- 2 x PCIe 3.0 x1 slots

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 6
- 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth® v5.3

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

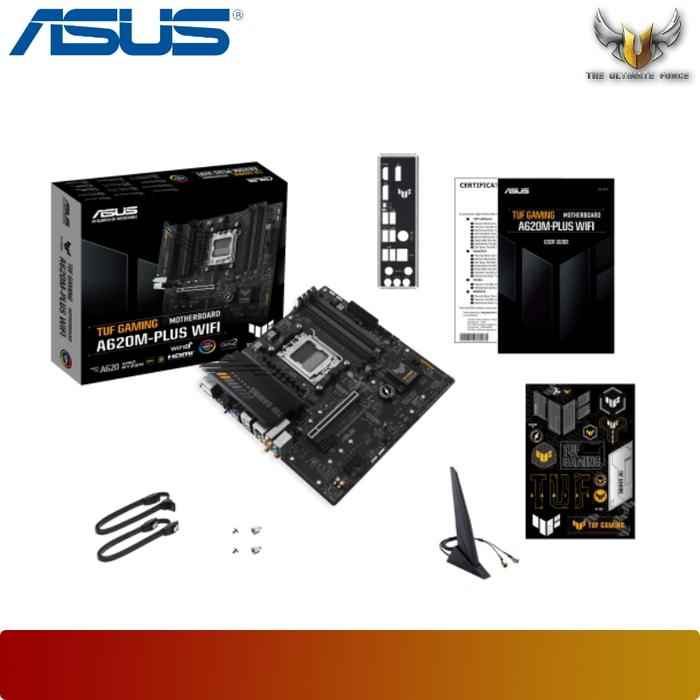

Accessories
- Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x TUF Gaming sticker
- 1 x Screw package for M.2 SSD
Documentation
- 1 x TUF Certification card
- 1 x User guide

Operating System
- Windows® 11, Windows® 10 64-bit

Form Factor
- Micro-ATX Form Factor
- 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
