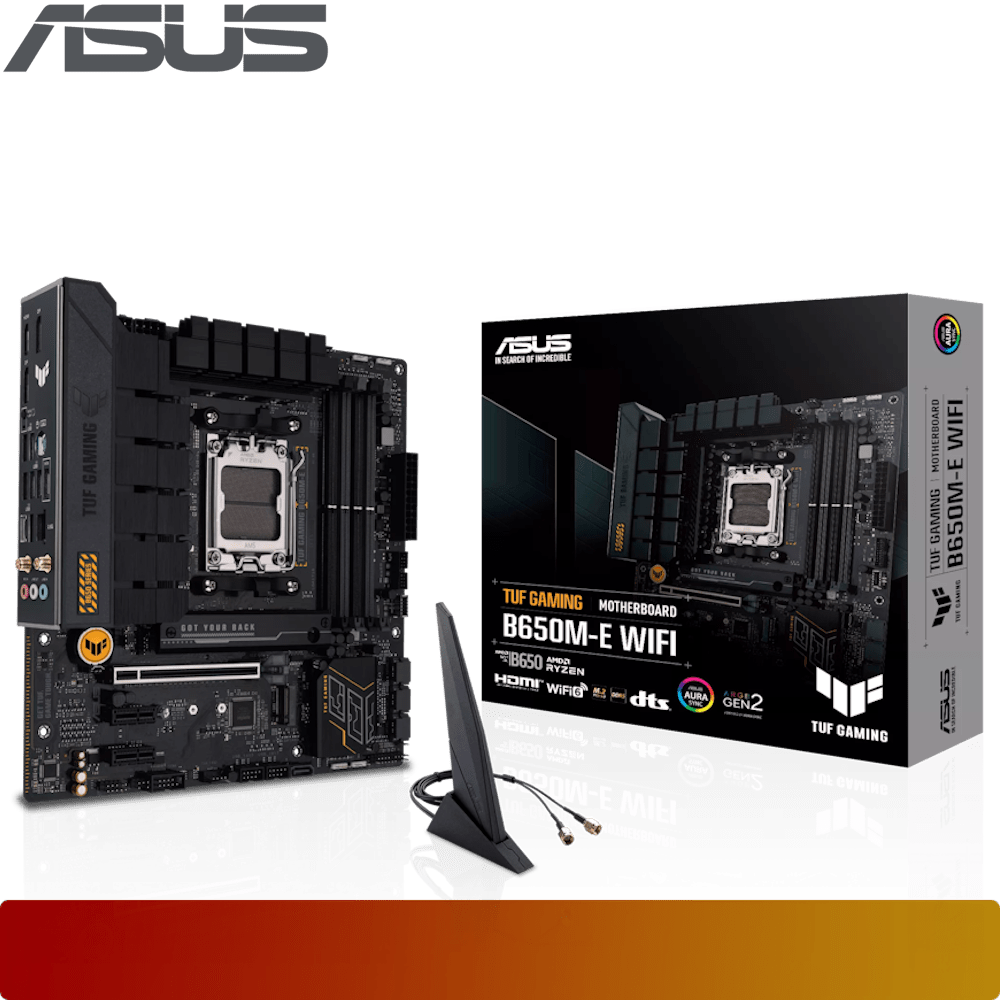

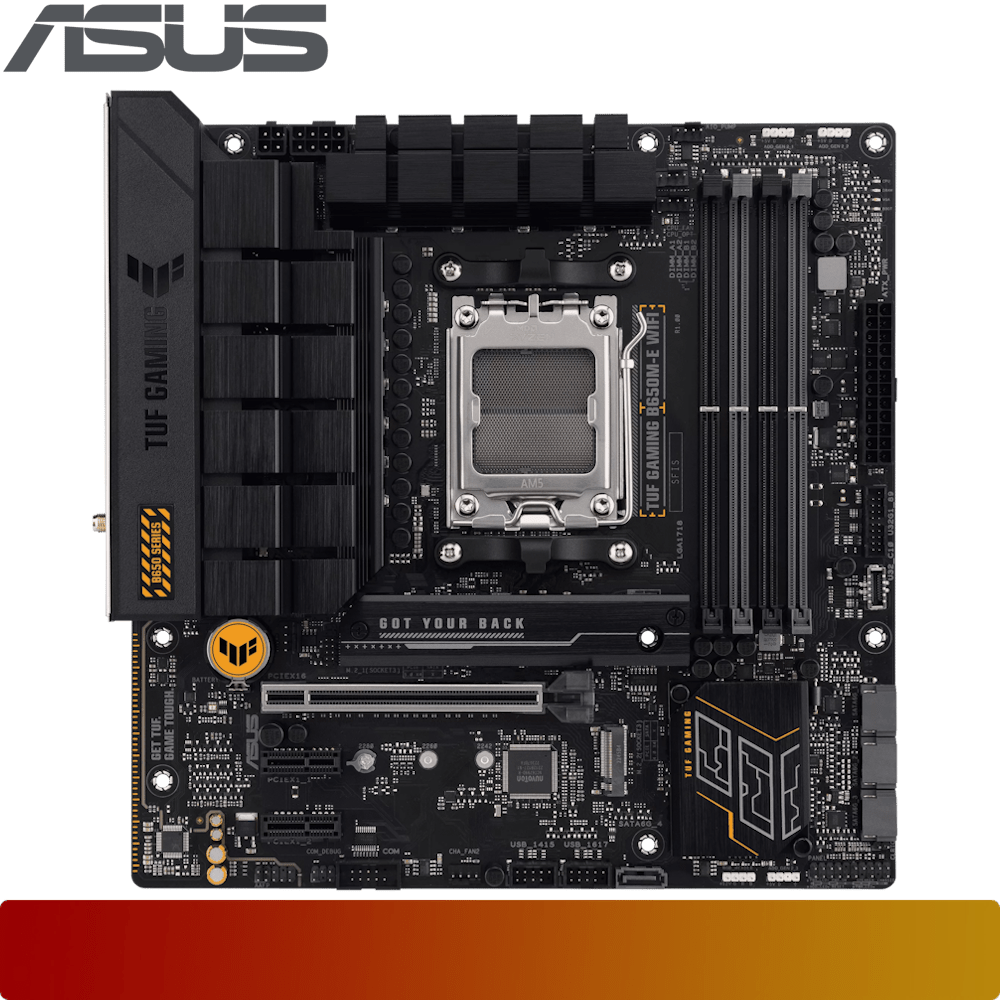

ASUS TUF GAMING B650M-E WIFI
Rp 2.809.000
Also available at:
Product description
| Model | TUF GAMING B650M-E WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD B650 |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+ (OC)/.../4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) & OptiMem II |
| Graphics | 2 x DisplayPort** (Max. 8K@60Hz) 1 x HDMI™ port*** (Max. 4K@60Hz) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset: 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* M.2_1 slot: Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode with R9000/7000; PCIe 4.0 x4 mode with R8000) M.2_2 slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 1x1 Supports 2.4/5GHz frequency band Bluetooth® v5.2* |
| USB (Total 15 Ports) | Rear USB (Total 8): 2 x USB 3.2 Gen 2 (10G) (1 x Type-A + 1 x Type-C®), 2 x USB 3.2 Gen 1 (5G) (Type-A), 4 x USB 2.0 (Type-A) Front USB (Total 7): 1 x USB 3.2 Gen 1 (5G) connector (Type-C®), 1 x USB 3.2 Gen 1 (5G) header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC* Supports up to 24-Bit/192 kHz playback |

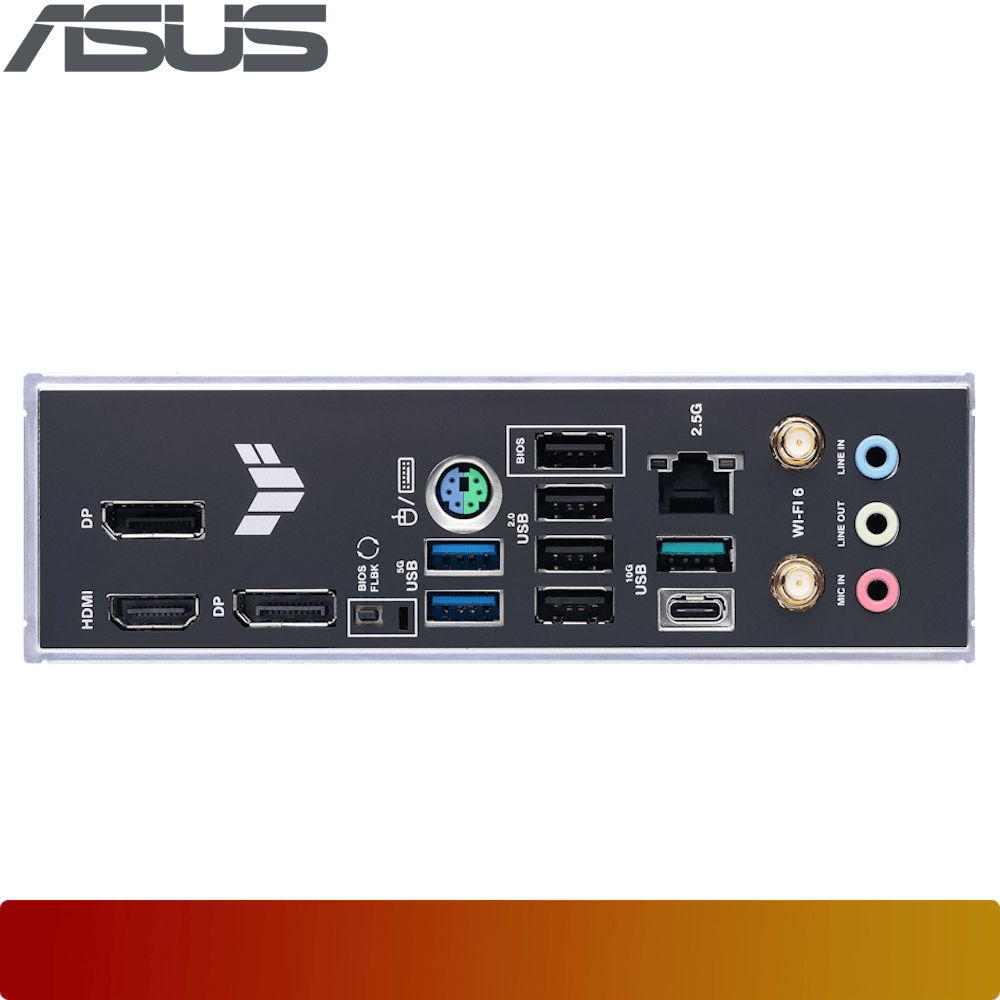

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (10G), 2 x USB 3.2 Gen 1 (5G), 4 x USB 2.0, 2 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
