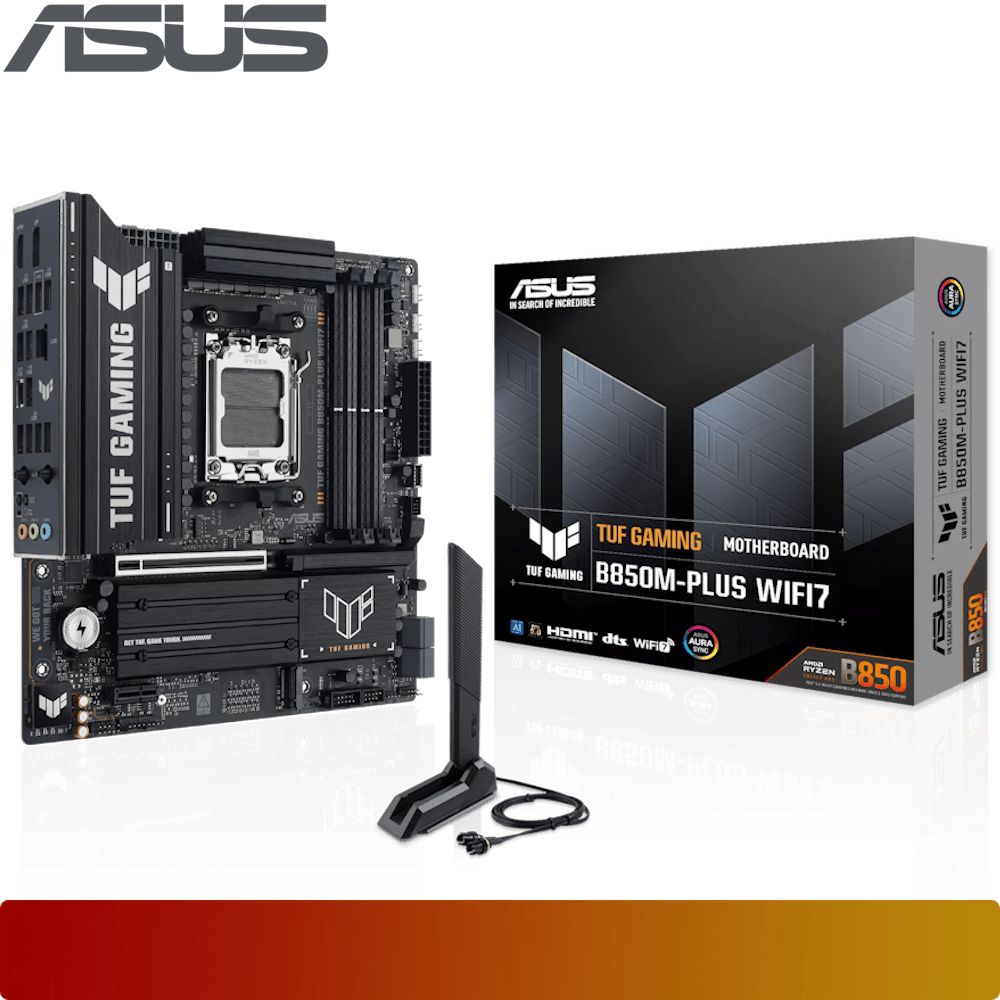

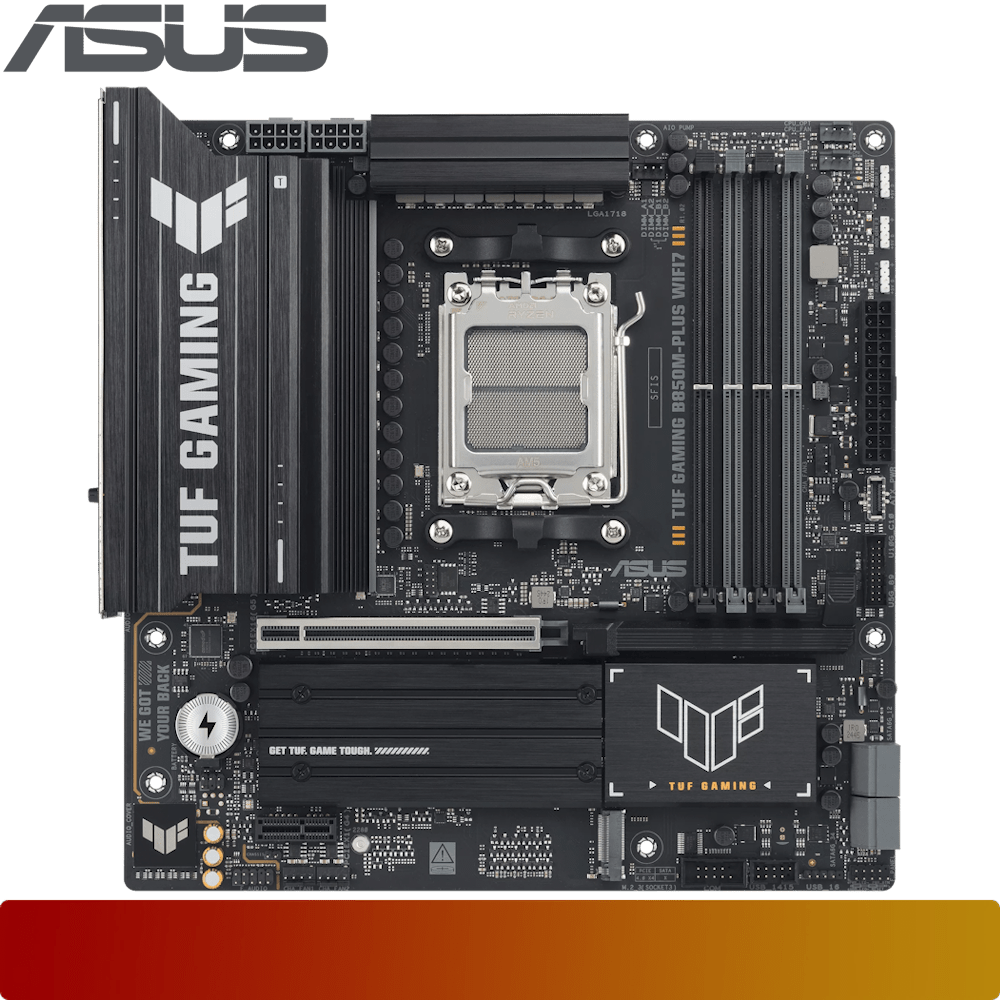

ASUS TUF GAMING B850M-PLUS WIFI

Name: ASUS TUF GAMING B850M-PLUS WIFI
Brand: ASUS
Price: 3689000.0 IDR
Availability: InStock

Rp 3.689.000

Compare

Brand: ASUS

SKU: 197105764927

Estimasi Berat: 2.3 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD B850 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 3 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket AMD AM5, Micro ATX Form Factor

5 left

Also available at:

Model	TUF GAMING B850M-PLUS WIFI
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) & ASUS Enhanced Memory Profile (AEMP)
Graphics	1 x DisplayPort (Max. 8K@30Hz) 1 x HDMI™ port* (Max. 4K@60Hz)
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset: 1 x PCIe 4.0 x1 slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot: Type 2280 (Supports PCIe 5.0 x4 mode with R9000/7000; PCIe 4.0 x4 mode with R8000) M.2_2 slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) M.2_3 slot: Type 2280 (Supports PCIe 4.0 x4 mode via B850 Chipset) 4 x SATA 6Gb/s ports
RAID Support	AMD RAIDXpert2 Technology Ryzen™ 9000/7000 Series: RAID 0/1/5/10; Ryzen™ 8000 Series: RAID 0/1
Ethernet	1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth	Wi-Fi 6E (802.11ax) 2x2 Supports 2.4/5/6GHz frequency band Bluetooth® v5.3**
USB (Total 18 Ports)	Rear USB (Total 12): 1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front USB (Total 6): 1 x USB 10Gbps connector (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)
Audio	Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Supports up to 32-Bit/192 kHz playback

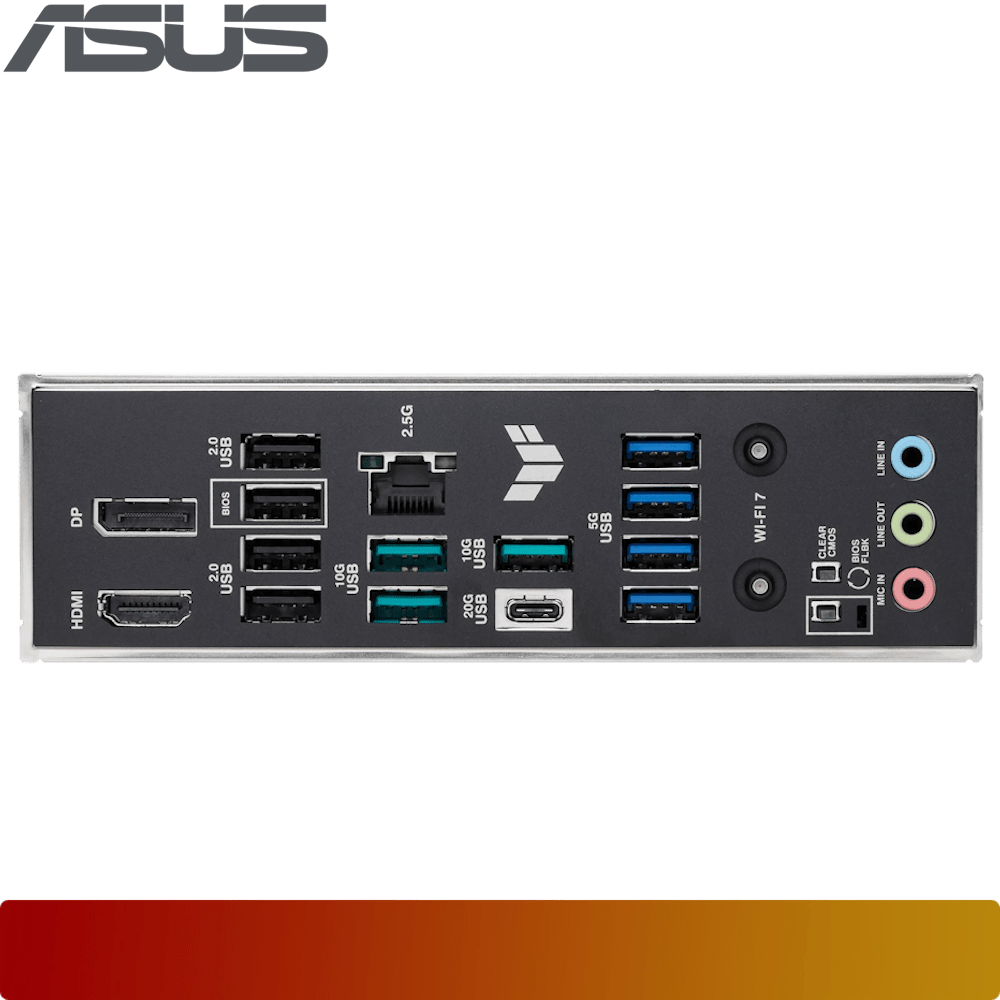

Back Panel I/O Ports	1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
