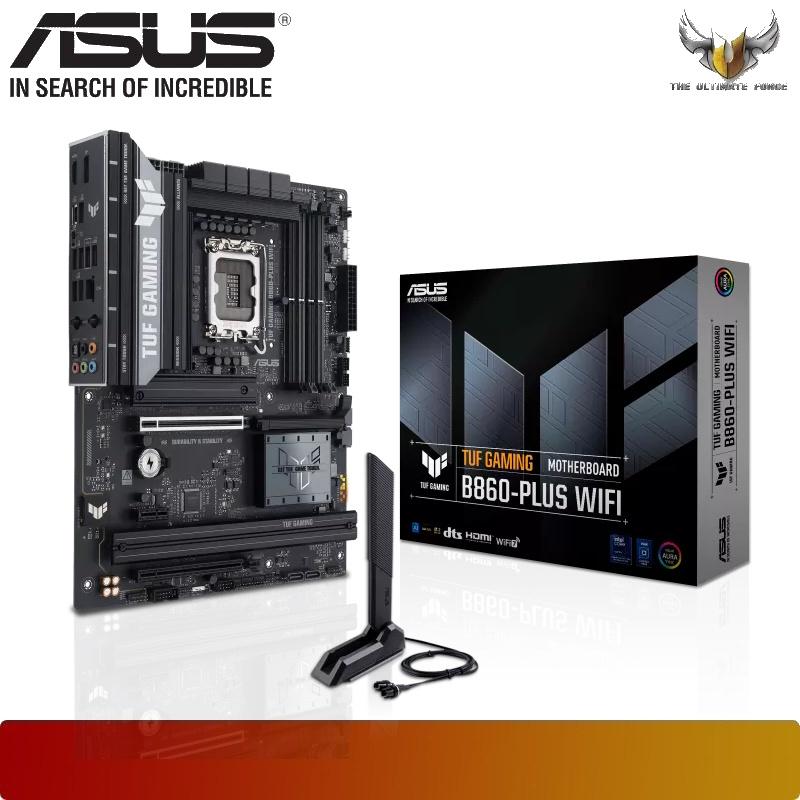

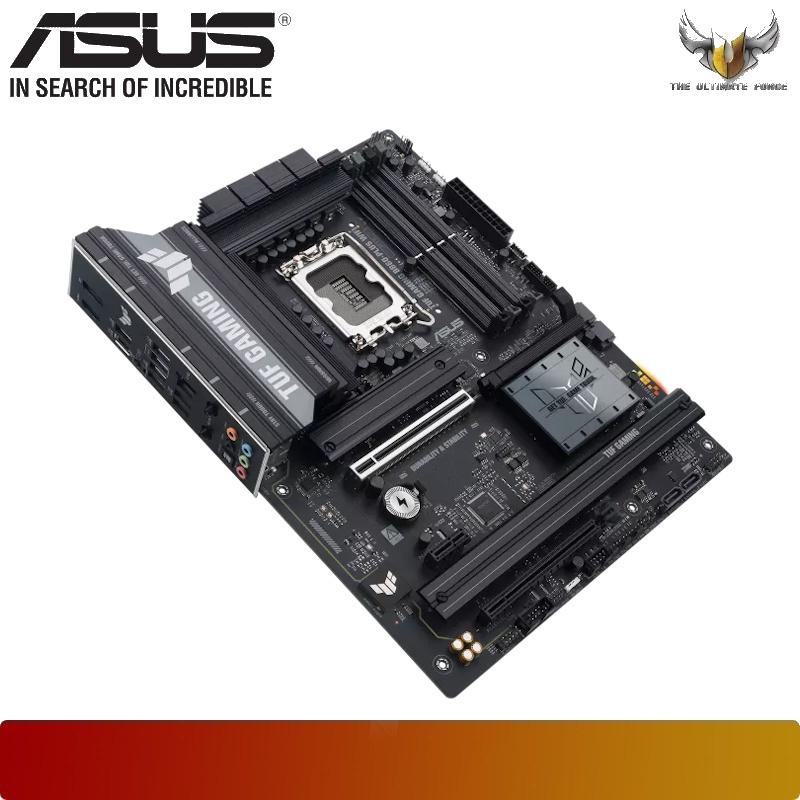

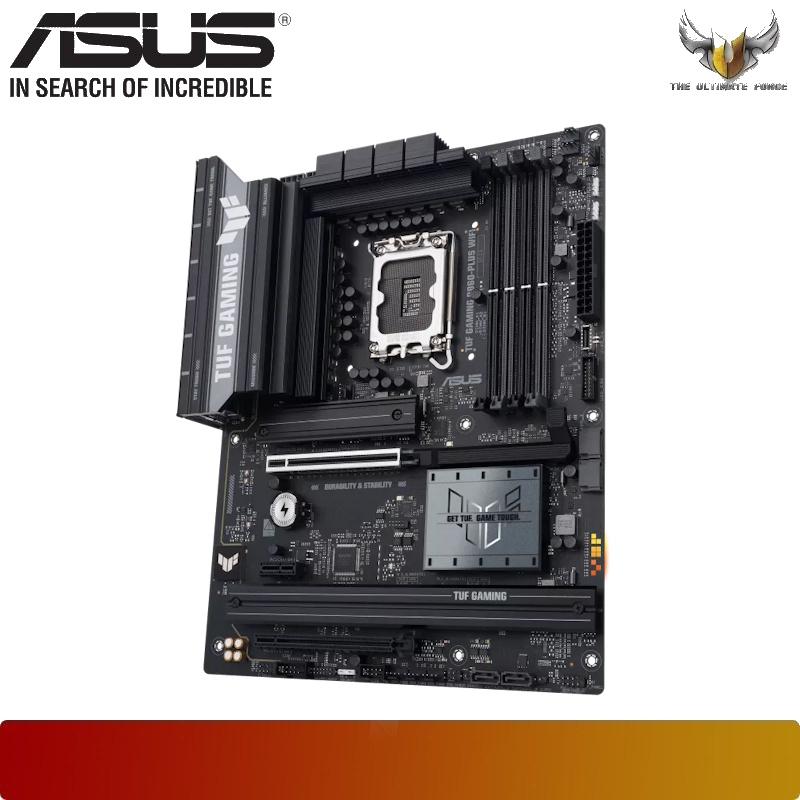

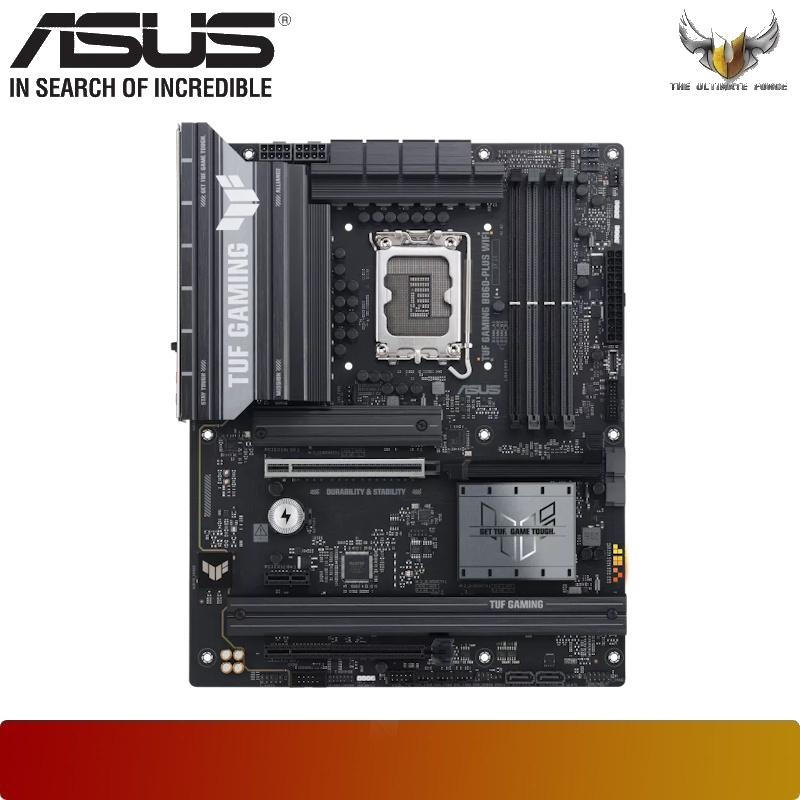

ASUS TUF GAMING B860-PLUS WIFI
Rp 3.979.000
Also available at:
Product description
| Model | - TUF GAMING B860-PLUS WIFI |
| CPU | - Support Intel Core Ultra Processors(Series 2) , LGA1851 |
| Chipset | - Intel B860 Chipset |
| Memory | - 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), - Dual channel memory architecture |
| Graphics | - 1 x DisplayPort - 1 x HDMI port - 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
| Expansion Slots | Intel Core Ultra Processors(Series 2) - 1 x PCIe 5.0 x16 slot Intel B860 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode) - 1 x PCIe 4.0 x1 slot PCIEX16(G4) shares bandwidth with PCIEX1(G4) |
| Storage | - Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(Series 2)* - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset - M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports |
| Ethernet | - 1 x Realtek 2.5Gb Ethernet - TUF LANGuard |
| Wireless & Bluetooth | - Wi-Fi - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. - Bluetooth v5.4 |
| USB | Rear USB (Total 8 ports) - 1 x USB 20Gbps port (1 x USB Type-C) - 2 x USB 10Gbps ports (2 x Type-A) - 3 x USB 5Gbps ports (3 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) |

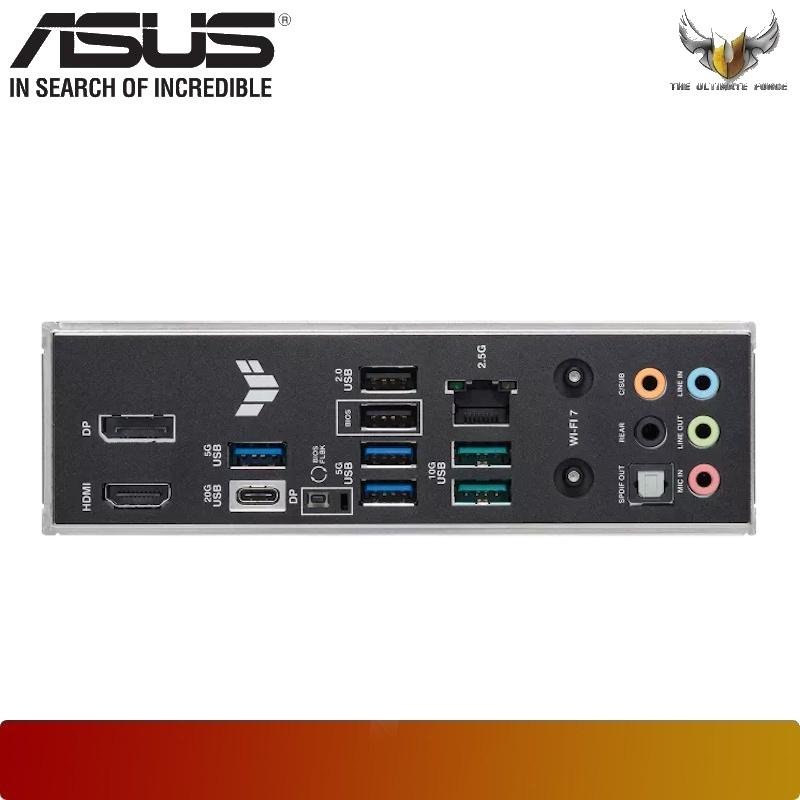

| Back Panel I/O Ports | - 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) - 2 x USB 10Gbps ports (2 x USB Type-A) - 3 x USB 5Gbps ports (3 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) - 1 x DisplayPort - 1 x HDMI port - 1 x Wi-Fi module - 1 x Realtek 2.5Gb Ethernet port - 5 x Audio jacks - 1 x Optical S/PDIF out port - 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and Cooling Related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 4 x 4-pin Chassis Fan headers Power Related - 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors Storage Related - 3 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports USB - 1 x USB 10Gbps connector (supports USB Type-C ) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous - 3 x Addressable Gen 2 headers - 1 x Clear CMOS header - 1 x Chassis Intrusion header - 1 x COM Port header - 1 x Front Panel Audio header (F_AUDIO) - 1 x 10-1 pin Front System Panel header - 1 x Thunderbolt (USB4) header |
| Accessories | Cables - 2 x SATA 6Gb/s cables Miscellaneous - 1 x ASUS WiFi Q-Antenna - 2 x M.2 rubber packages - 1 x Screw package for M.2 SSD - 1 x TUF GAMING sticker Documentation - 1 x Quick start guide |
| Form Factor | - ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
