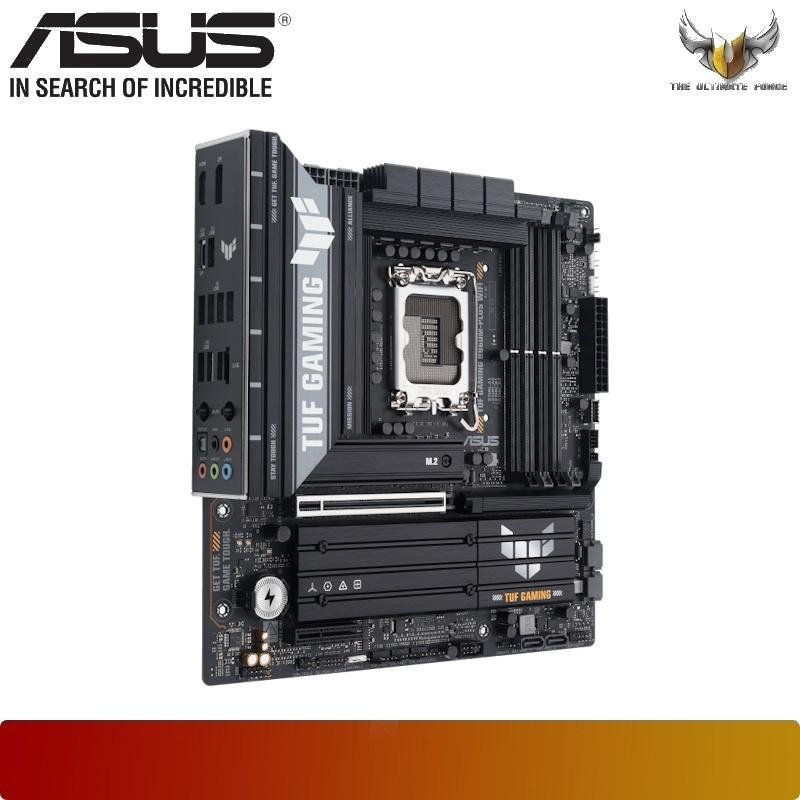

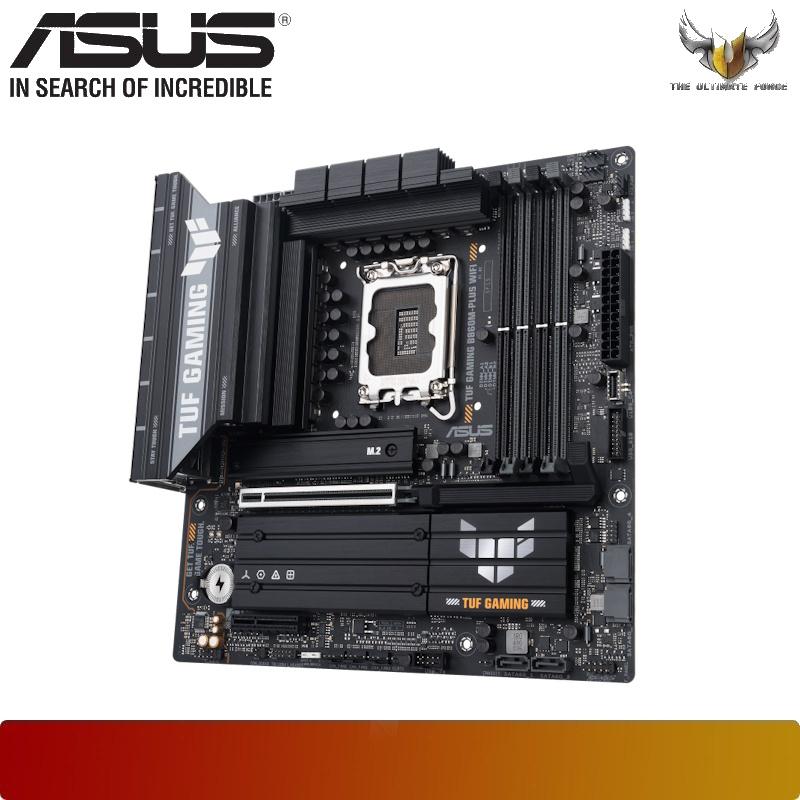

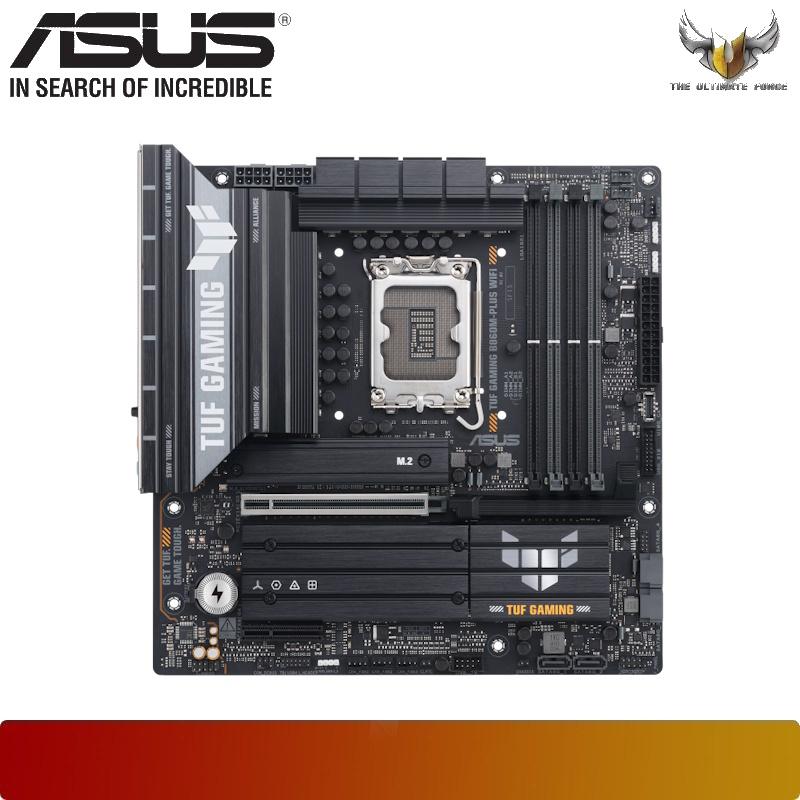

ASUS TUF GAMING B860M-PLUS WIFI

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- TUF GAMING B860M-PLUS WIFI

CPU
- Support Intel Core Ultra Processors (Series 2) ,LGA1851*

Chipset
- Intel B860 Chipset

Memory
- 4 x DIMM slots, max. 256GB, DDR5
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP) memory module

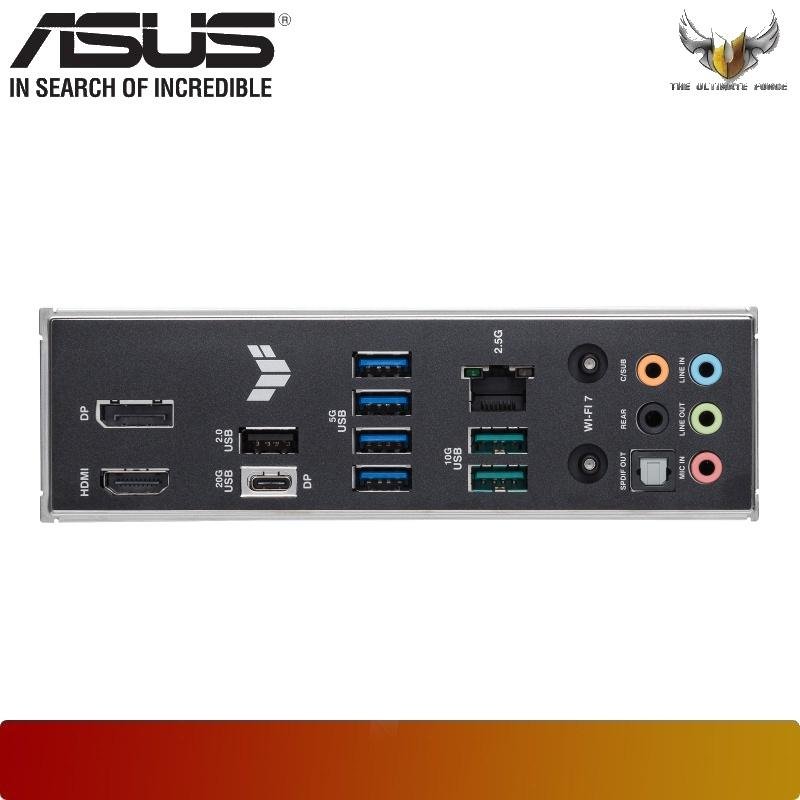

Graphics
- 1 x DisplayPort**
- 1 x HDMI port***
- 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output**

Expansion Slots
Intel CoreTM Ultra Processors(Series 2)*
- 1 x PCIe 5.0 x16 slot
Intel B860 Chipset
- 1 x PCIe 4.0 x4 slot

Storage
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth v5.4***

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

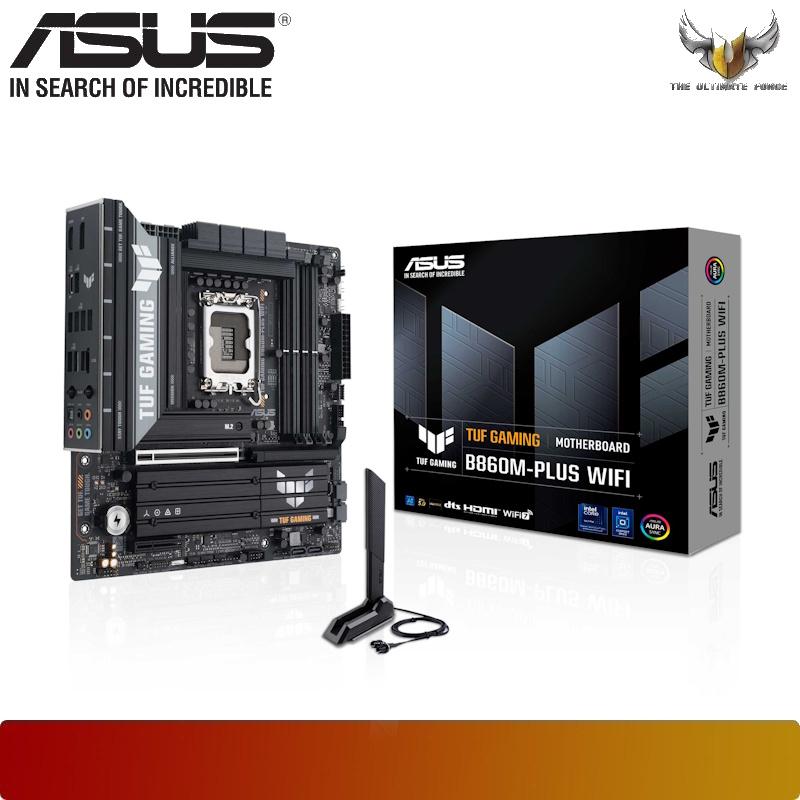

Accessories
Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 2 x M.2 Rubber Packages
- 1 x TUF Gaming sticker
- 1 x Screw package for M.2 SSD
Documentation
- 1 x Quick start guide

Operating System
- Windows 11 (22H2 & later)

Form Factor
- mATX Form Factor
- 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
