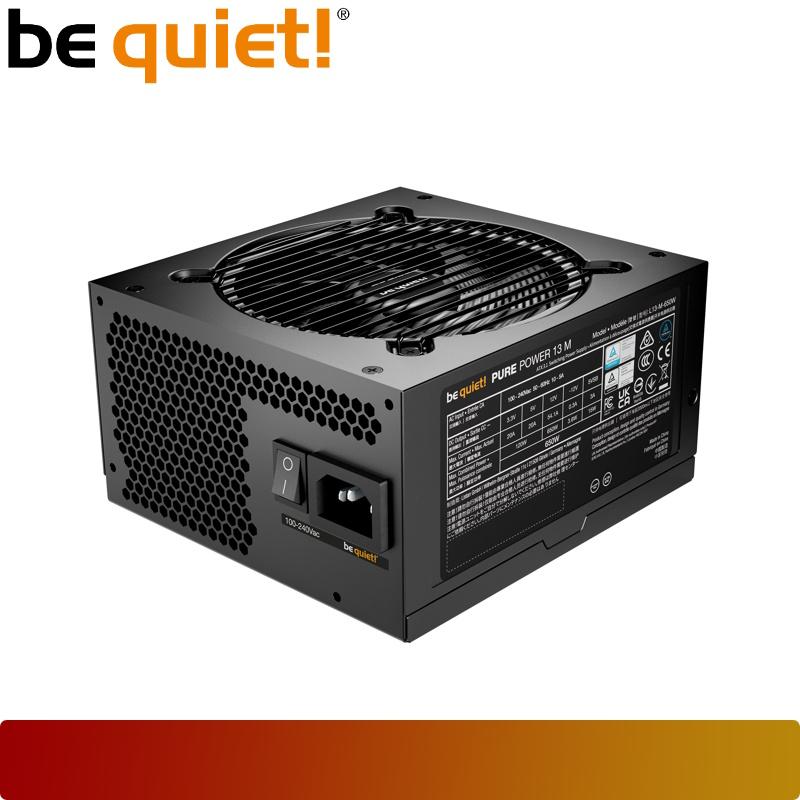

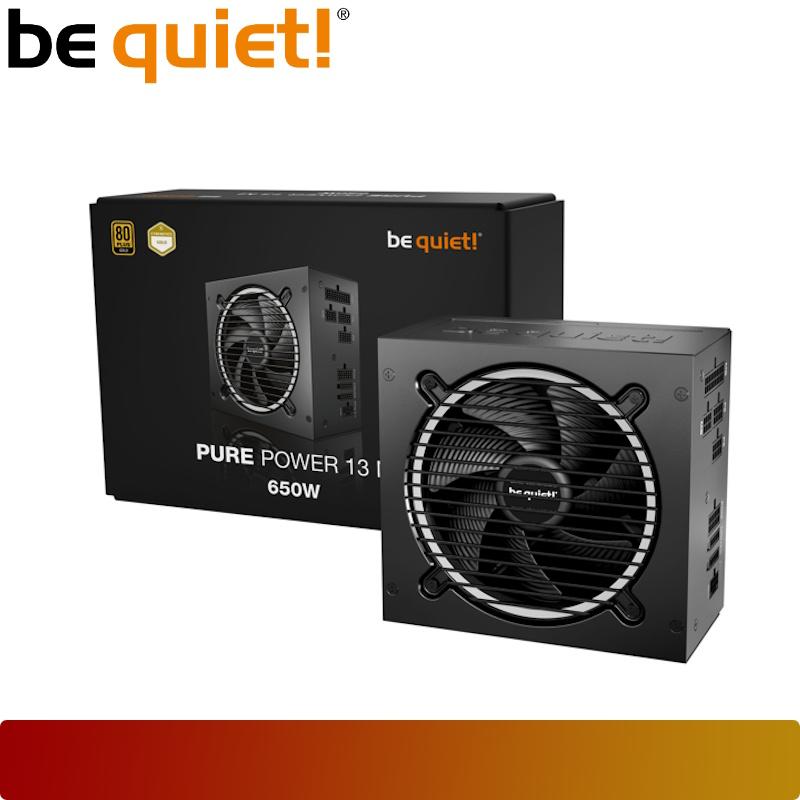

BE QUIET! PURE POWER 13 M 650W
Rp 1.599.000
Also available at:
Product description
| Product Name | be quiet! PURE POWER 13 M | 650W |
| Continuous Power (W) | 650 |
| Peak Power (W) | 720 |
| Form Factor | ATX 3.1 |
| Form Factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input Current (A) | 10 / 5 |
| Power Factor at 100% Load | >0.98 |
| Modern Standby | Yes |
| Power Consumption in Standby (W) | <0.1 |
| Average Life Time (h / 25°C) | >100,000 |
| Operating Temperature up to (°C) | 40 |
| Efficiency | |
| 80 PLUS Certification | Gold |
| Efficiency (%) at 230V, 2% Load | 71.1 |
| Efficiency (%) at 230V, 10% Load | 90.0 |
| Efficiency (%) at 230V, 20% Load | 93.1 |
| Efficiency (%) at 230V, 50% Load | 94.2 |
| Efficiency (%) at 230V, 100% Load | 92.8 |
| Fan and Cooling Technology | |
| Fan Type | Silence-optimized be quiet! fan |
| Fan Size (mm) | 120 |
| Bearing Technology | Rifle |
| Motor Technology | 4-pole fan motor |
| Max. Fan Speed (rpm) | 1800 |
| dB(A) at 10% Load | 7.2 |
| dB(A) at 20% Load | 7.3 |
| dB(A) at 50% Load | 8.4 |
| dB(A) at 100% Load | 15.9 |
| Output Specifications | |
| 12V Single Rail Operation | Yes |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 54.1 |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. Combined Power 12V (W) | 650 |
| Max. Combined Power 12V-2x6 (W) | 450 |
| Max. Combined Power 3.3V + 5V (W) | 120 |
| Hold-up Time at 100% Load (ms) | 22.5 |
| Power Good Signal (ms) | 100 - 150 |

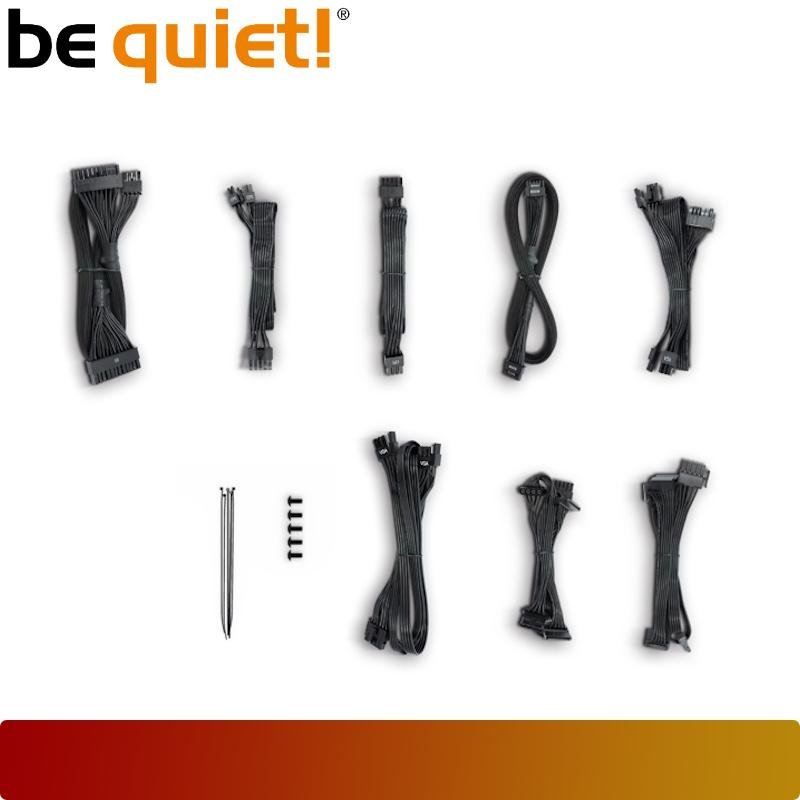

| Cables and Connectors | |
| Modular Cables | Yes |
| Sleeved Cables | Yes |
| Flat Cables | Yes |
| Maximum Cable Length (cm) | 95 |
| Cable Length to Motherboard (cm) | 55 |
| No. of Cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P4 (CPU) | 1 |
| 12V-2x6 Cables | 1 |
| PCI-e 6+2-pin (GPU) | 2 |
| SATA Connectors | 5 |
| PATA Connectors | 2 |
| Protection Features | |
| Safety Protections | OTP, OCP, OPP, SCP, OVP, UVP, SIP |
| Certifications & Directives | |
| Safety Certifications | BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA |
| Environmental Directives | Energy Star 8.0, ErP, WEEE, RoHS |
| Casing & Dimensions | |
| Dimensions without Cable (L x W x H) | 160 x 150 x 86 mm |
| Weight | 2.32 kg |
| Color | Black |
| Service & Warranty | |
| Warranty | 10 Years |
