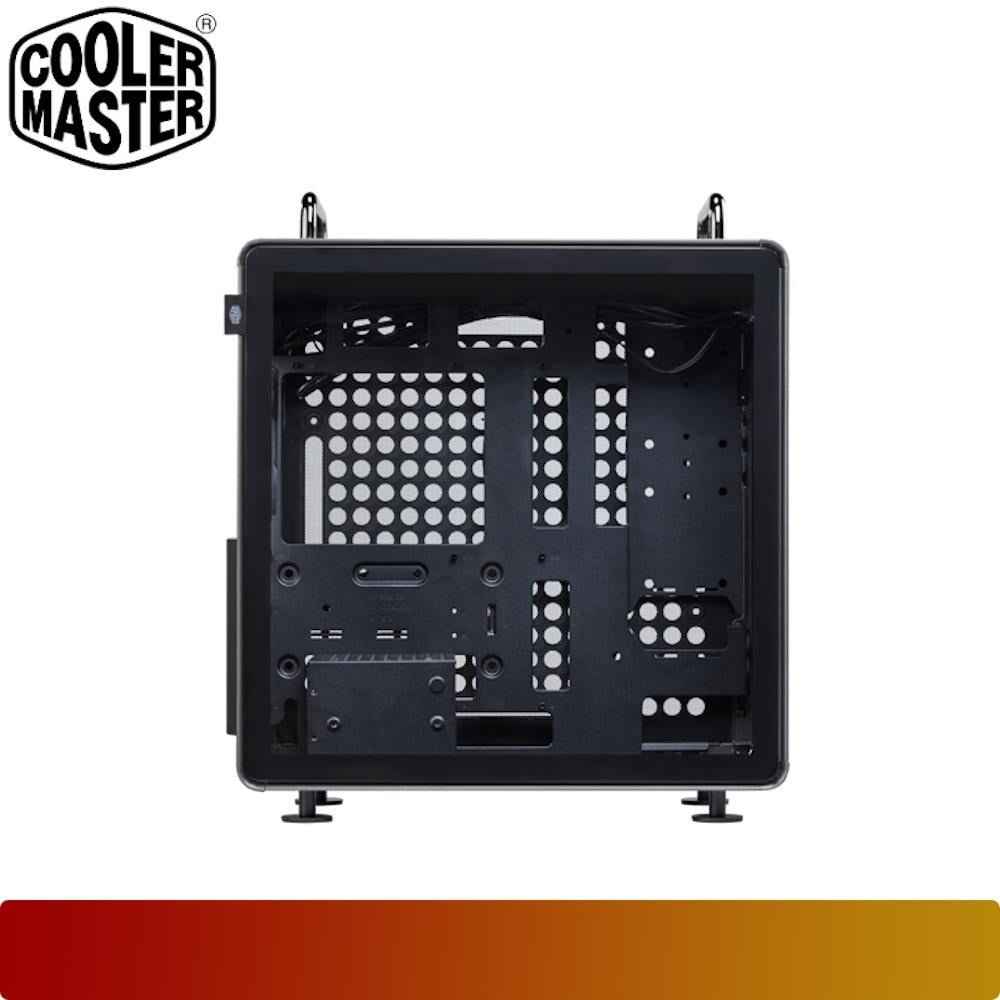

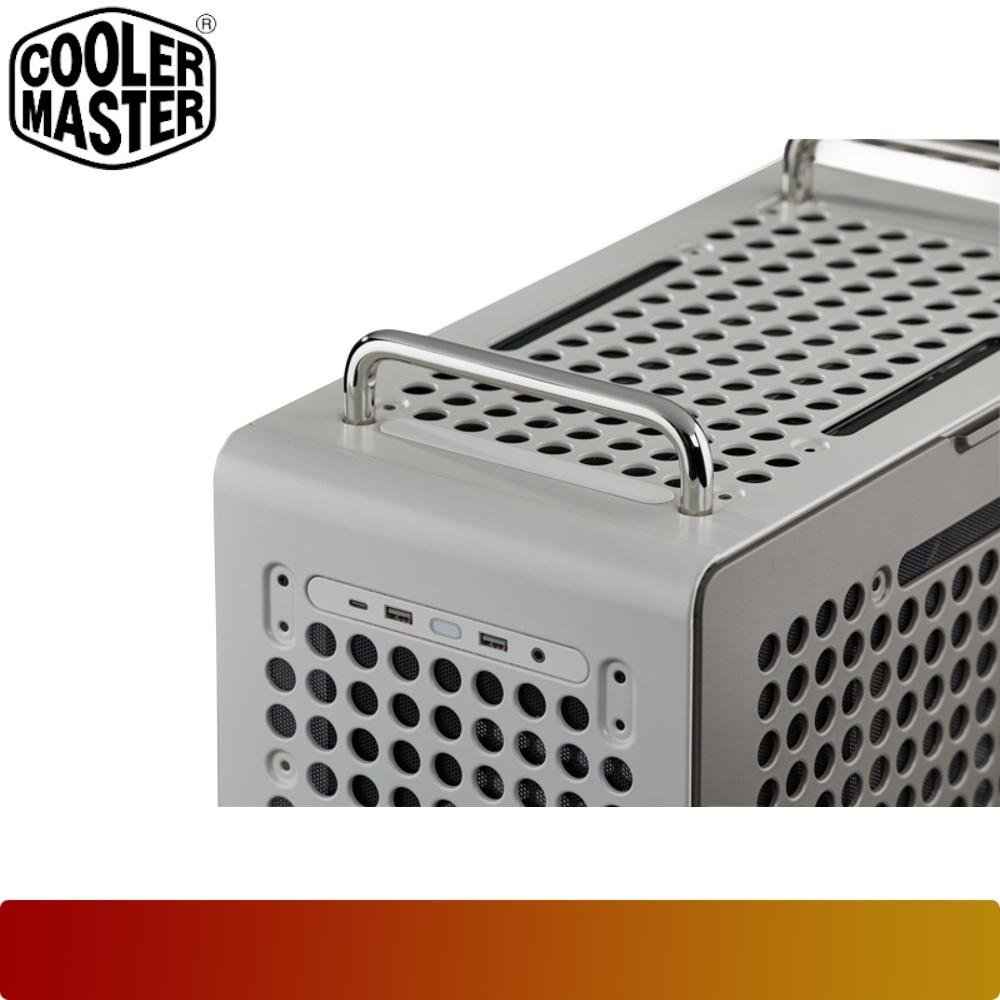

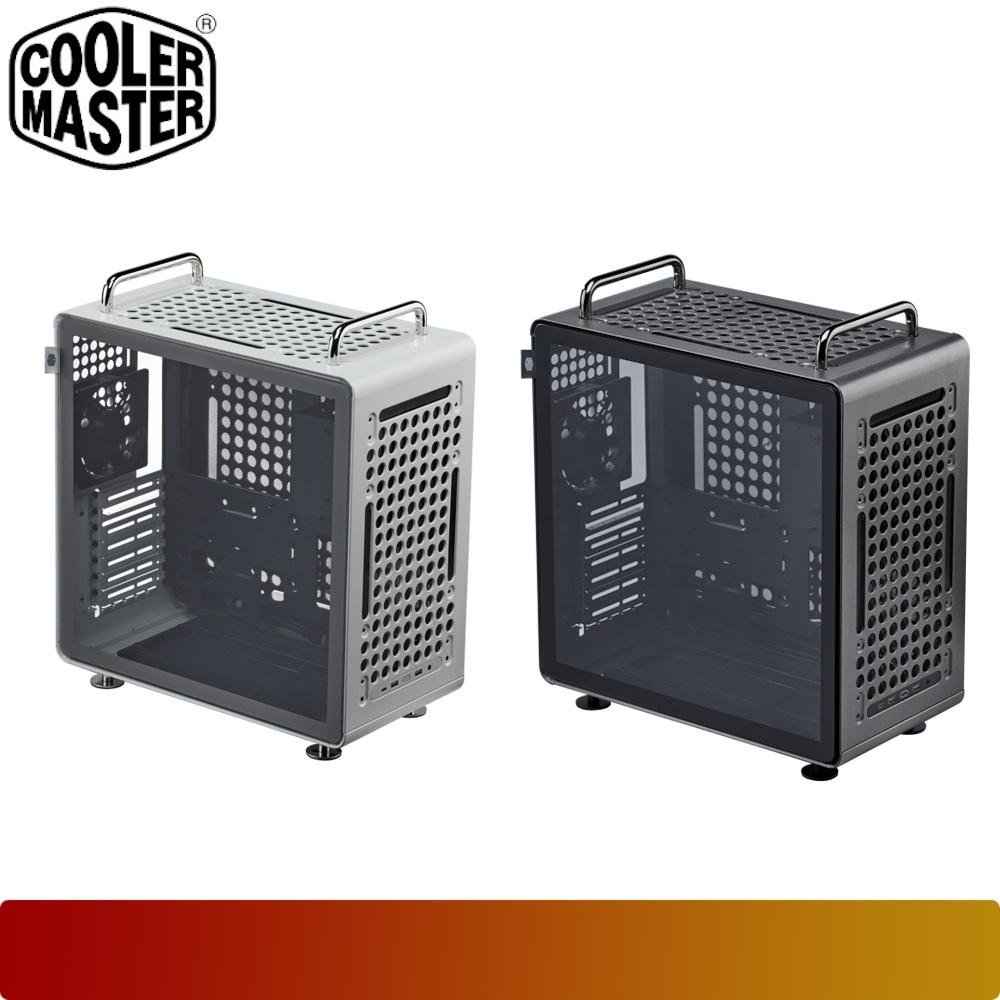

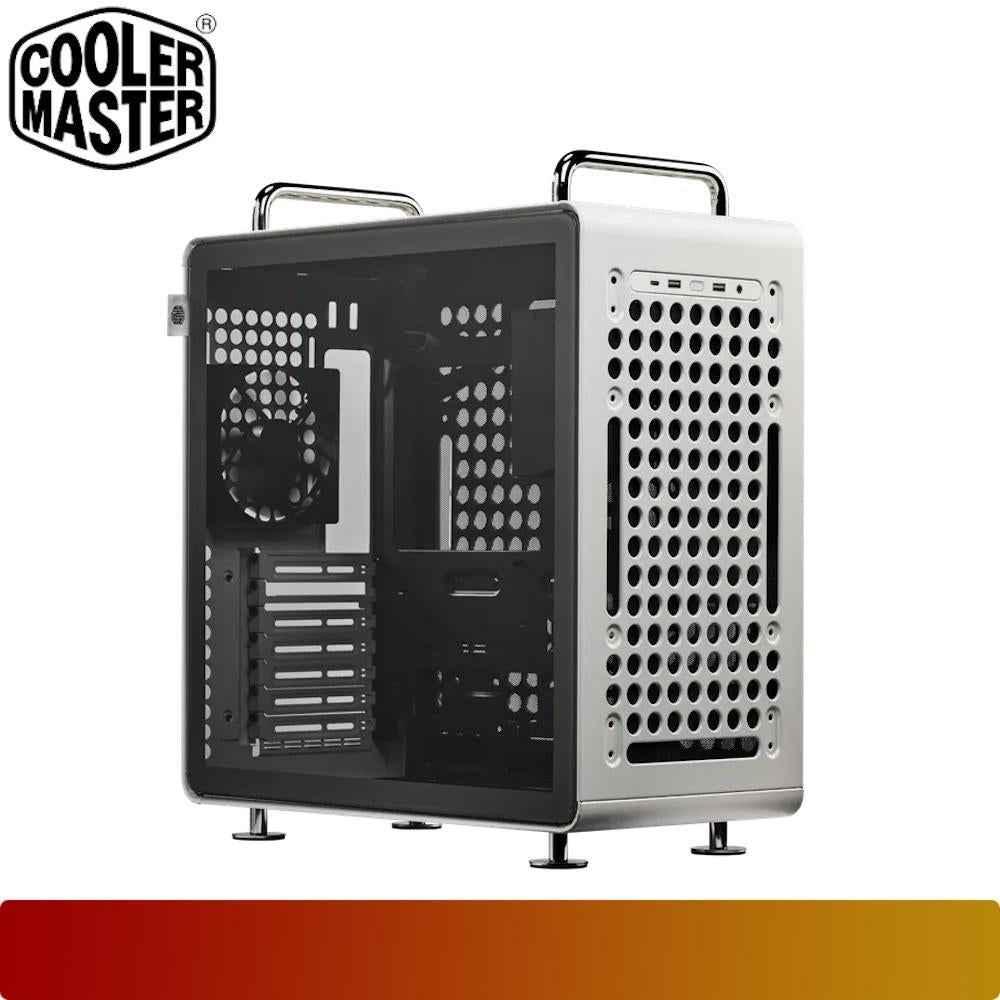

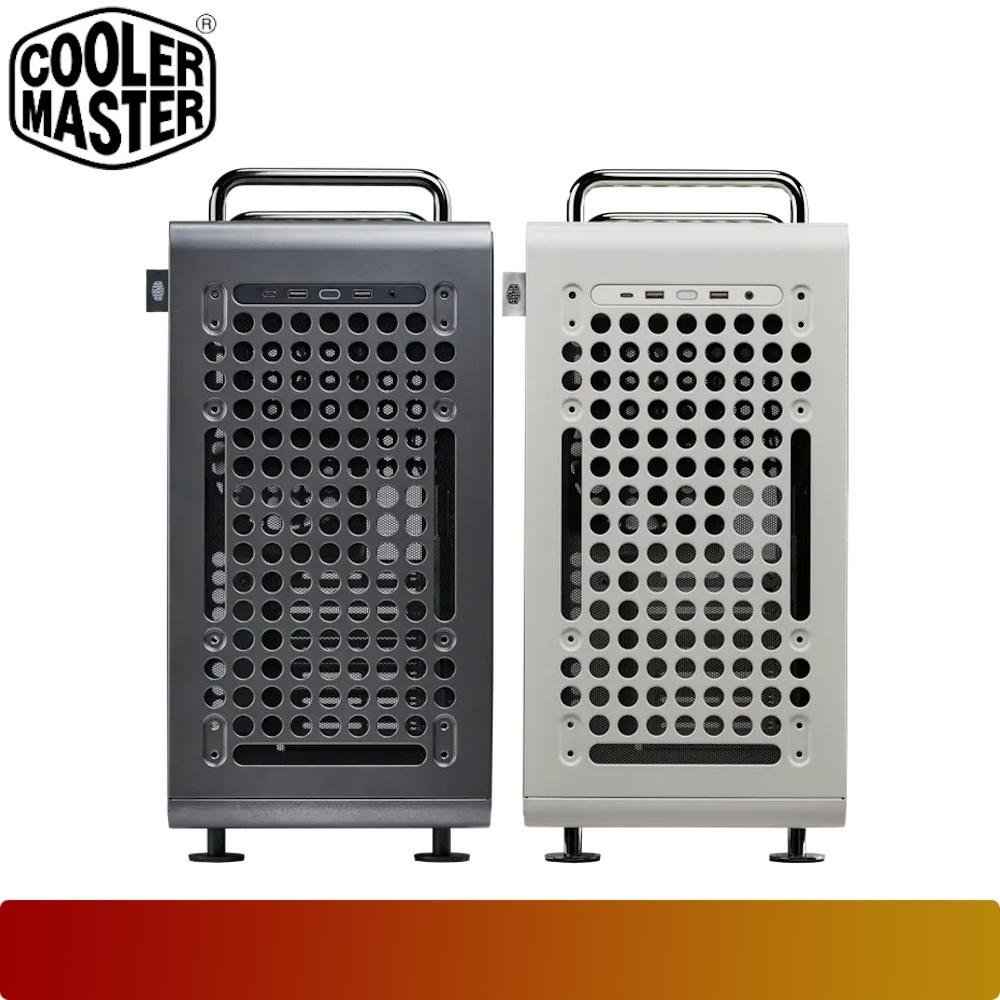

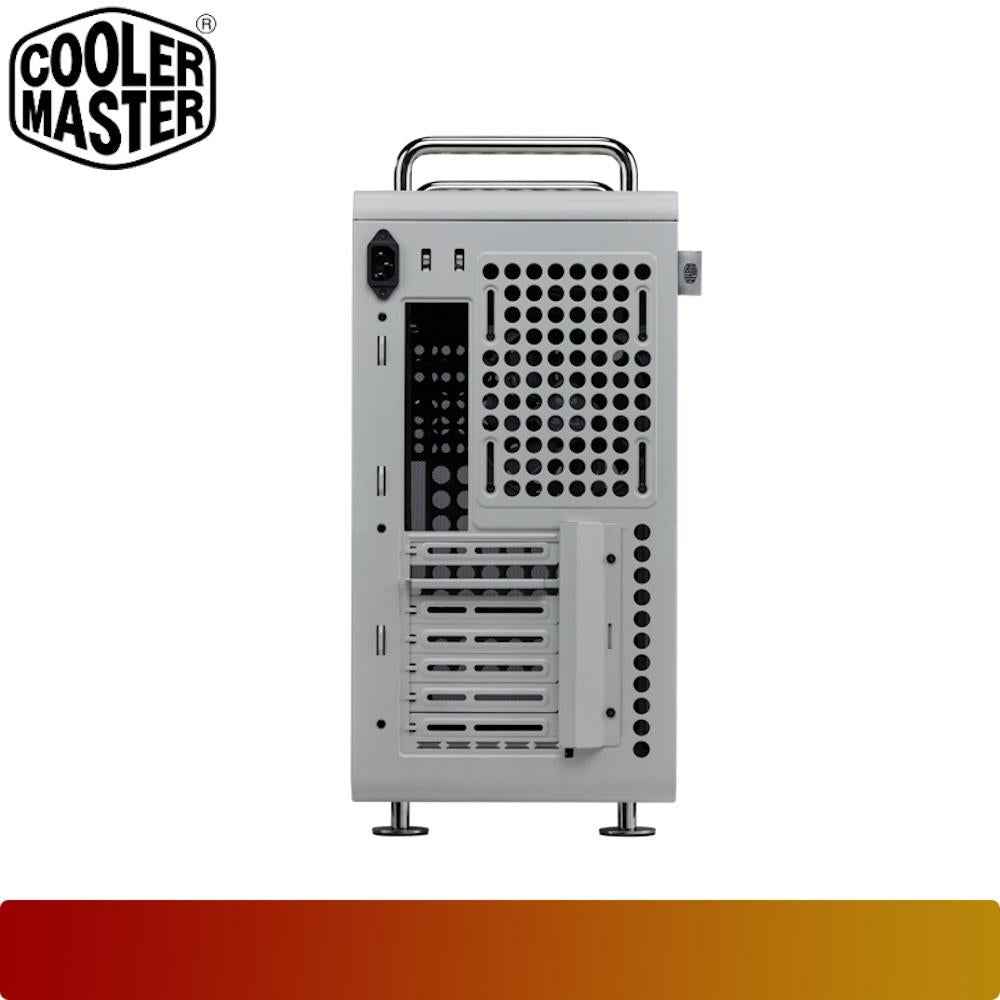

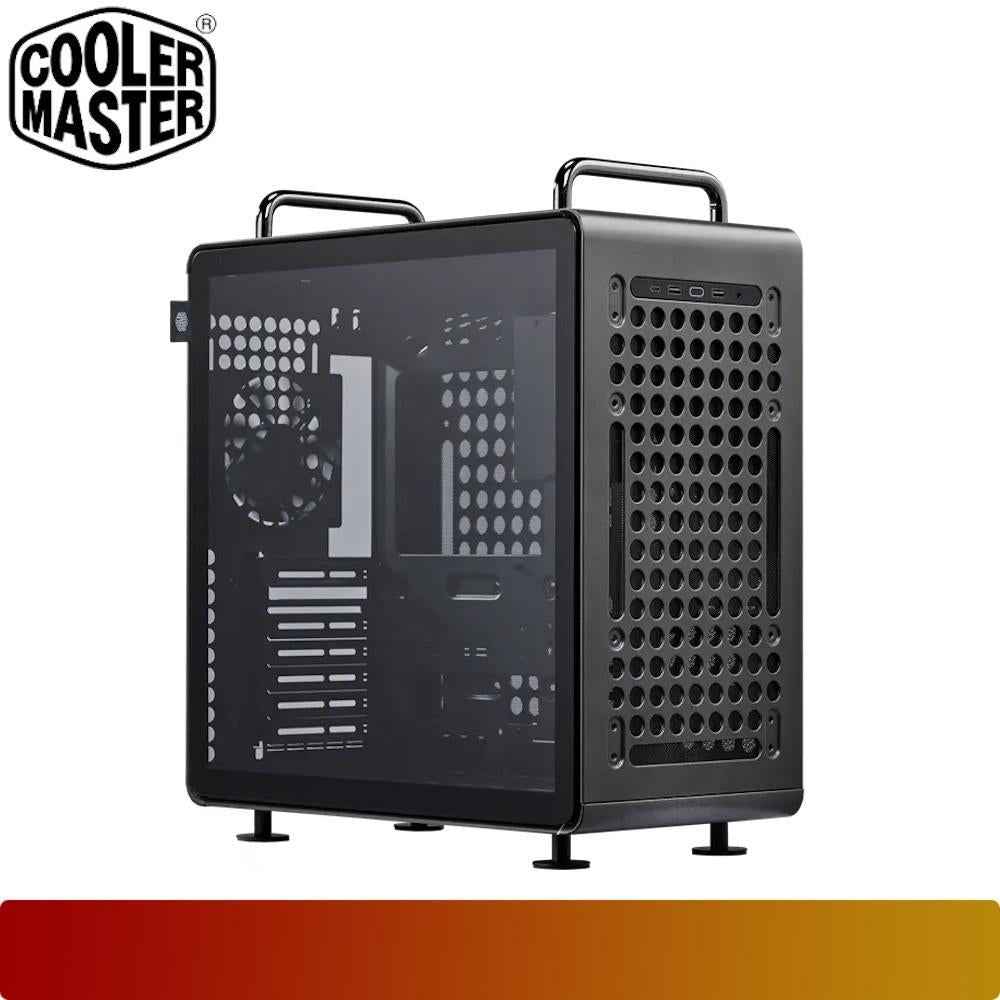

COOLER MASTER QUBE 540
Rp 1.309.000
Also available at:
Product description
| Product Name | - QUBE 540 |
| Model Number | - Stardust Iron: Q540-MGNN-S00 - Moonstone: Q540-LGNN-S00 |
| Color(s) | - Stardust Iron / Moonstone |
| Materials - Exterior | - Steel |
| Material - Side Panel (Right) | - Steel |
| Material - Side Panel (Left) | - TG |
| Dimensions (L x W x H) | - Excl. Protrusions: 425 x 225 x 425 mm |
| Volume (w/o protrusions) | - 40.64 L |
| Volume (with panel, protrusions and feet) | - 48.55 L |
| Motherboard Support | - ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm) |
| Expansion Slots | - 7 |
| Drive Bays - 5.25" ODD | - N/A |
| Drive Bays - 3.5" HDD | - 1 (Shared 3.5" and 2.5" mounting on PSU bracket) |
| Drive Bays - 2.5" SSD | - 2 (Max. 5) |
| I/O Panel - USB Ports | - 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel - Audio In / Out | - 1 x 3.5 Mic / Audio Combo Jack |
| Fan Support - Front | - 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support - Top | - 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support - Rear | - 1x 120mm |
| Fan Support - Bottom | - 3 x 120 mm / 2 x 140 mm |
| Preinstalled Fan(s) - Front | - N/A |
| Preinstalled Fan(s) - Top | - N/A |
| Pre-installed Fans - Rear | - 1x 120mm Black Fan |
| Radiator Support - Front | - 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support - Top | - 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support - Rear | - 120 mm |
| Radiator Support - Bottom | - 140 / 280 / 360mm (w/o I/O panel) |
| Clearances - CPU Cooler | - 172 mm |
| Clearances - Power Supply | - 200 mm |
| Clearances - Graphics Card | - 415 mm (w/o Front Fan) |
| Cable Routing - Behind Motherboard Tray | - 27 mm |
| Dust Filters | - Top / Bottom / Front |
| Power Supply Support | - ATX / SFX |
| Warranty | - 2 years |
| Series | - QUBE Series |
| Size | - Mid Tower |
