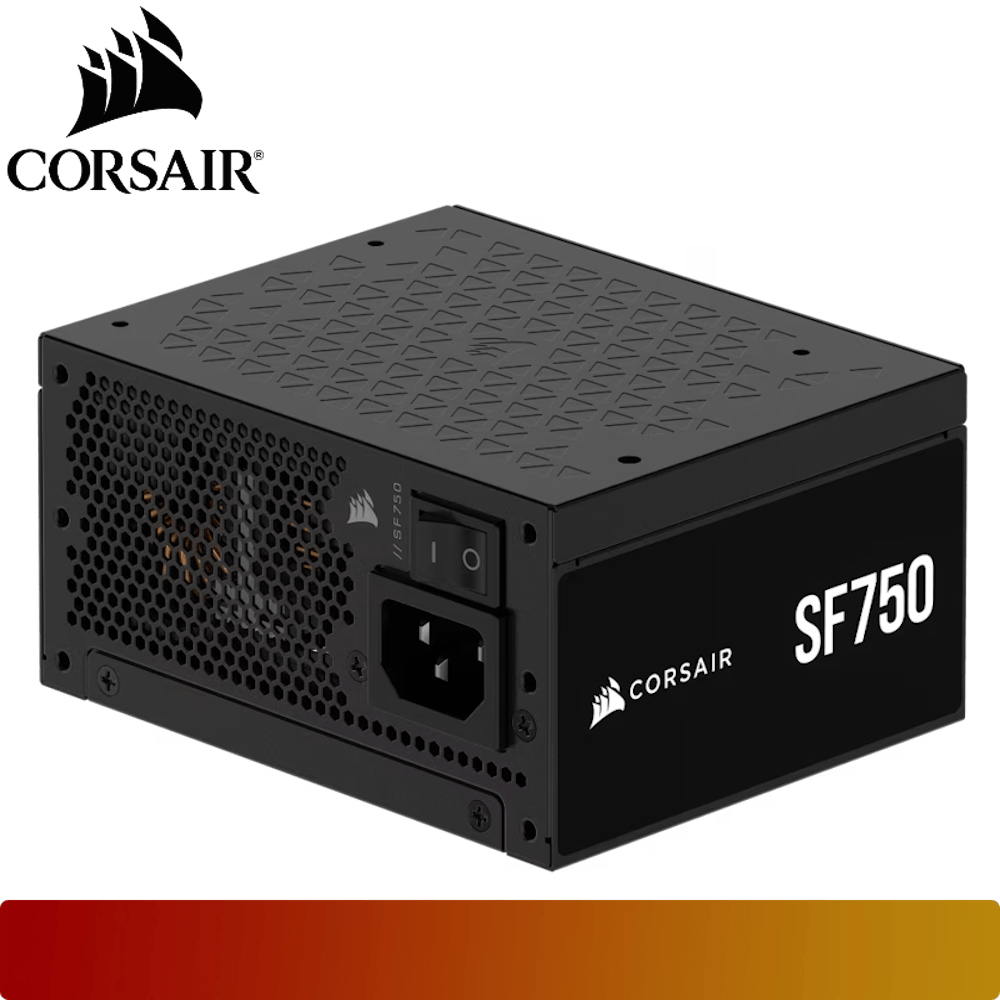

CORSAIR SF750 (CP-9020284-EU)
Rp 2.849.000
Also available at:
Product description
| Product Name | CORSAIR SF750 (CP-9020284-EU) |
| Form Factor | SFX |
| ATX Version | ATX 3.1 (PCIe 5.1 Ready) |
| PFC | Active PFC |
| Input Voltage | 100-240Vac |
| Input Current | 10A-5A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 100*125*63.5mm |
| Fan Size | 92mm (FDB Fan) |
| Hold Up Time | >16msec |
| Efficiency | 80 Plus Platinum (Up to 92%) |
| MTBF | >100,000 Hours |
| Operating Temperature | 0-50°C |
| Protections | OVP / OCP / OPP / OTP / SCP / UVP |
| Regulatory | CB / CE / TUV / FCC / cTUVus / RCM / CCC |
| Connectors (Type 5 Micro-Fit) | |
| M/B 20+4Pin | 1 |
| CPU 4+4Pin (EPS12V) | 2 |
| 12V-2x6 (PCIe 5.1) | 1 (300W/450W) |
| PCIE 6+2 | 3 |
| SATA | 8 |
| Molex 4Pin | 3 |
| AC Input / DC Output Details | |
| AC Input | 100-240Vac 50-60Hz 10A |
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Max. Output Current | 20A | 20A | 62.5A | 0.3A | 3.5A |
| Max. Output Power | 130W | 750W | 3.6W | 17.5W |
| Total POWER | 750W |
