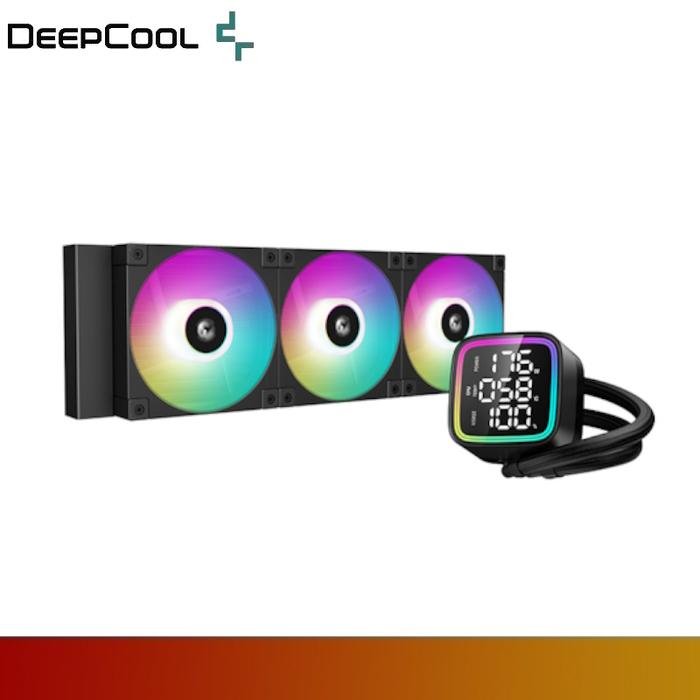

DEEPCOOL LD360 | 360mm Liquid Cooler With a Multi- Line Display

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Application For
- Intel : LGA1700/1200/1151/1150/1155
- AMD : AM5/AM4

Radiator Dimensions
- 402×120×27 mm(L×W×H)

Radiator Material
- Aluminum

Tube length
- 410 mm

Pump Dimensions
89×78×53 mm(L×W×H)

Pump Speed
- 3400 RPM±10%

Pump Connector
- 3-pin

Pump Rated Voltage
- 12 VDC

Pump Rated Current
- 0.35 A

Pump Power Consumption
- 4.2 W

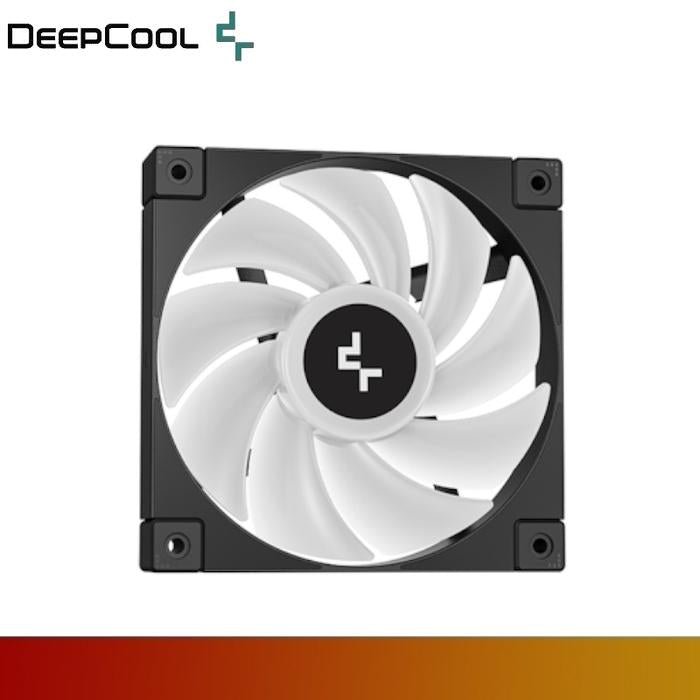

Fan Dimensions
- 120×120×25 mm(L×W×H)

Fan Speed
- 600~2400 RPM±10%

Fan Airflow
- 72.04 CFM

Fan Air Pressure
- 3.48 mmAq

Fan Noise
- ≤38.71 dB(A)

Fan Connector
- 4-pin PWM

Bearing Type
- Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
- 0.22 A

Fan Power Consumption
- 2.64 W

LED Type
- Addressable RGB LED

LED Connector
- 3-pin(+5V-D-G)

LED Rated Voltage
- 5 VDC

LED Power Consumption
- 2.55 W（PUMP）/ 3.15 W（FAN×3

Display Type
- LED Digital Display
