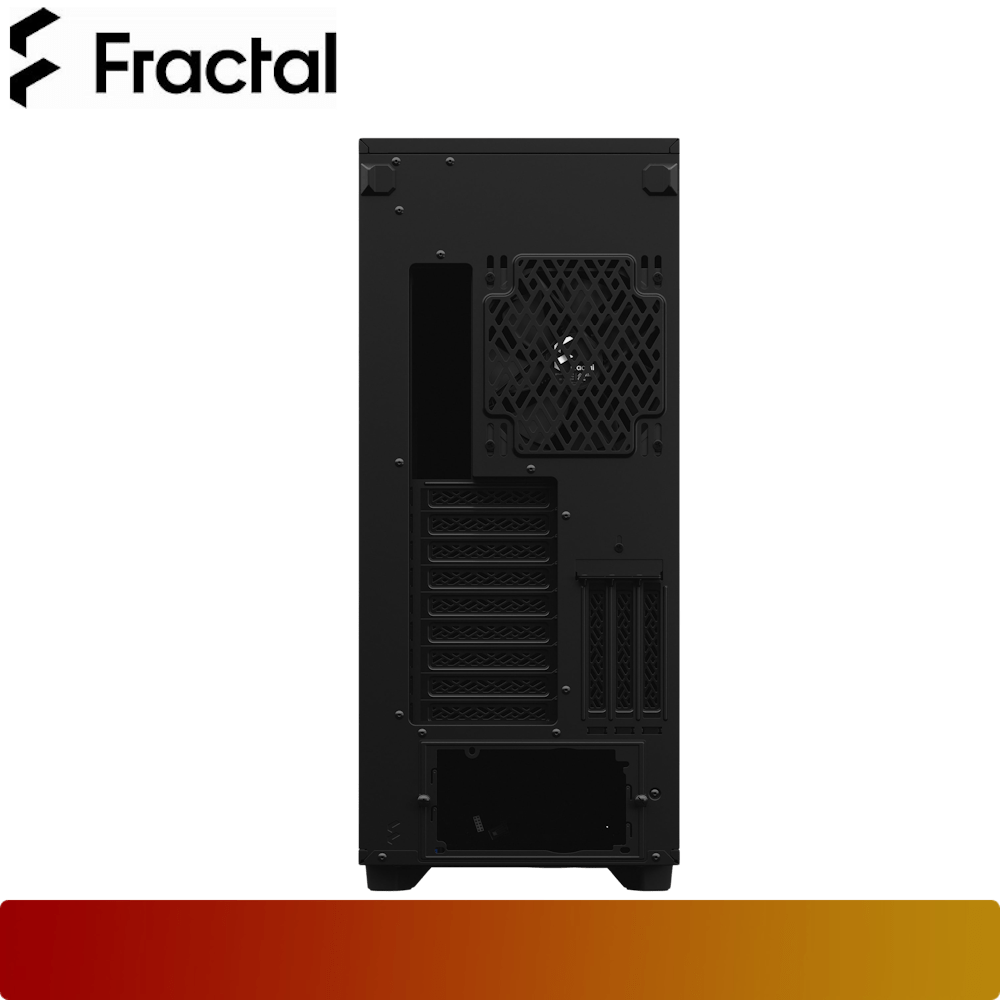

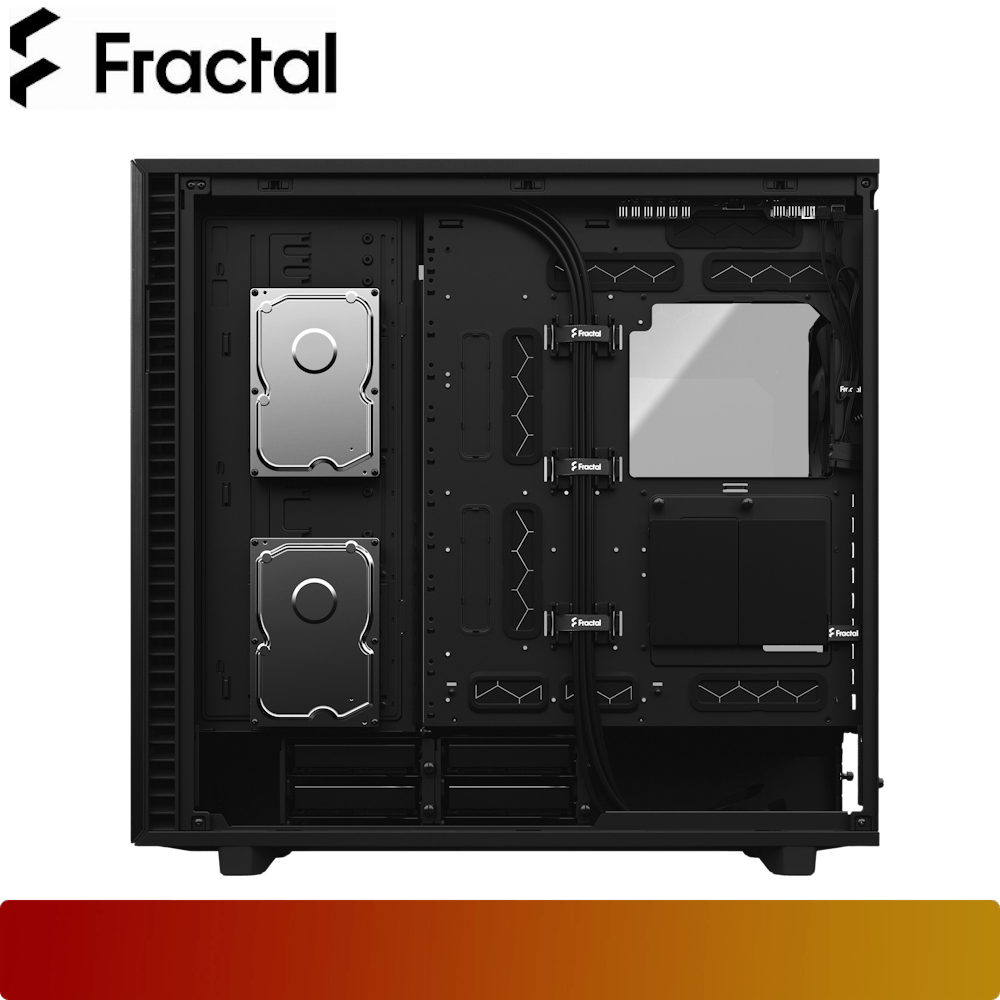

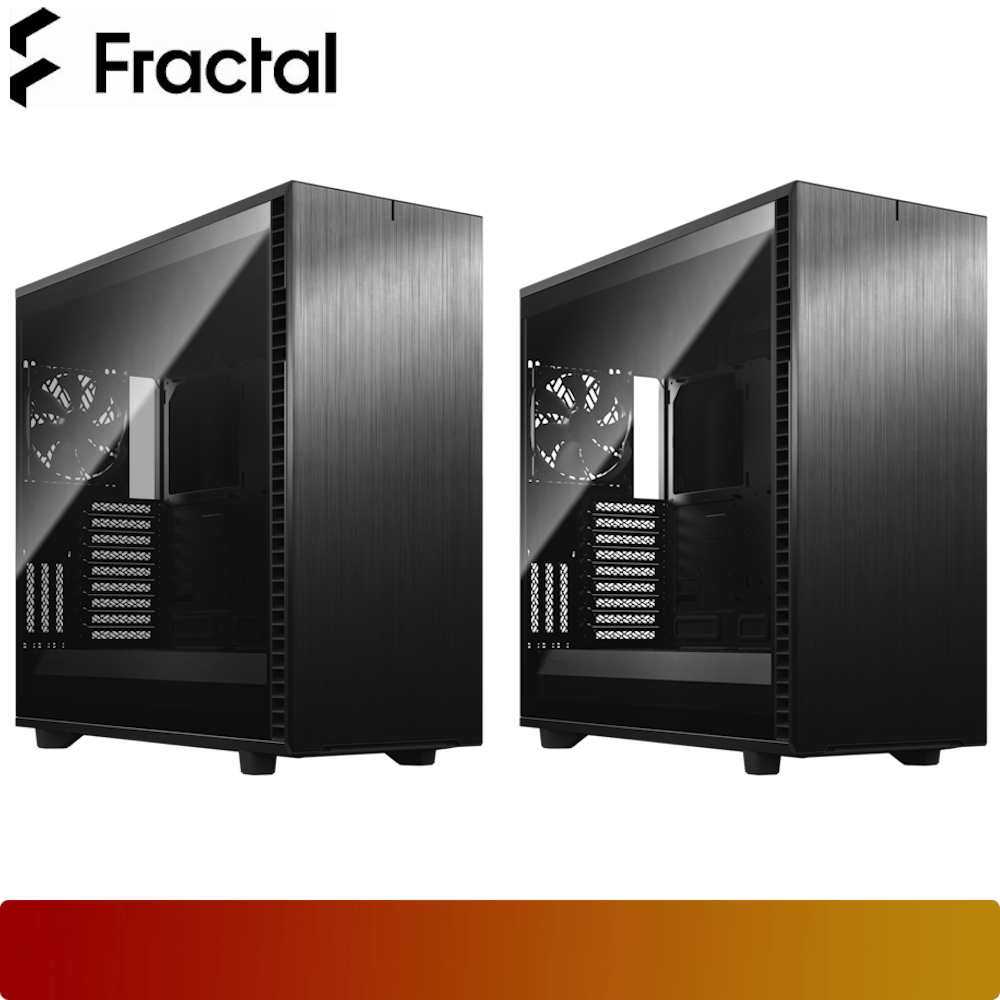

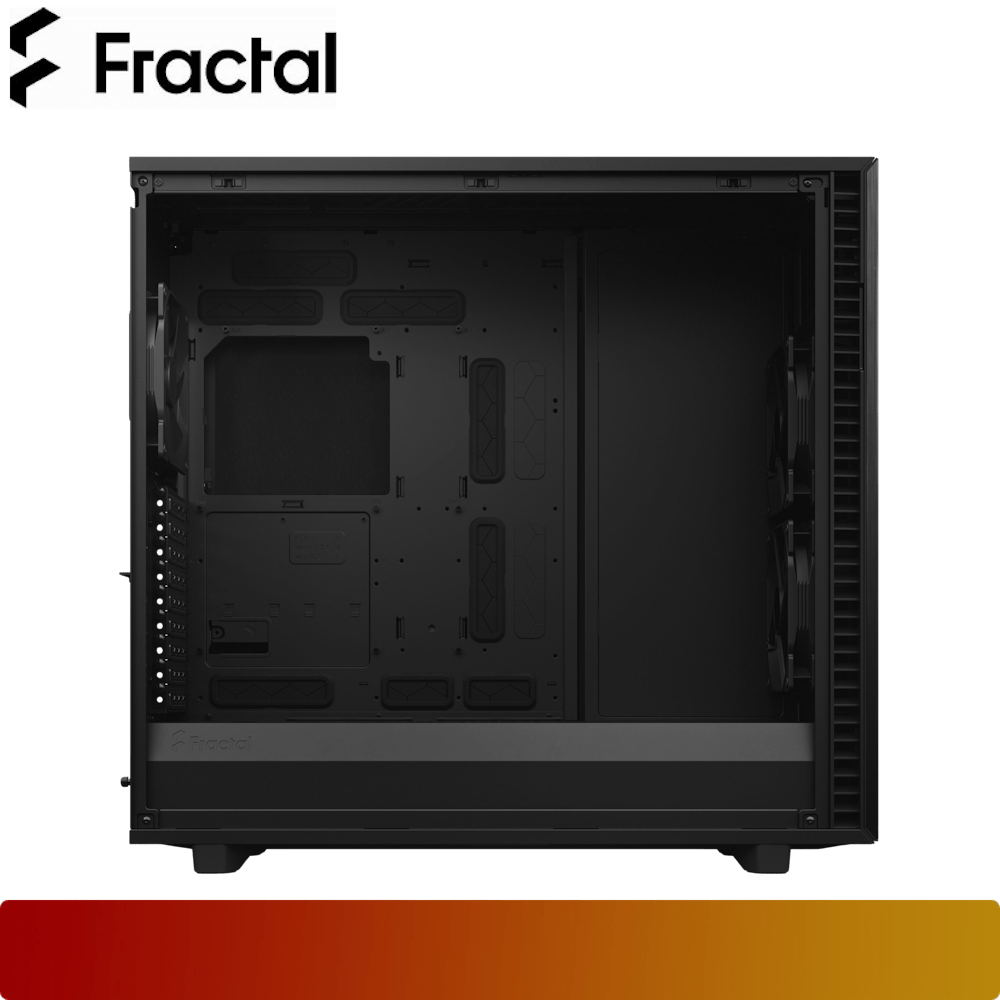

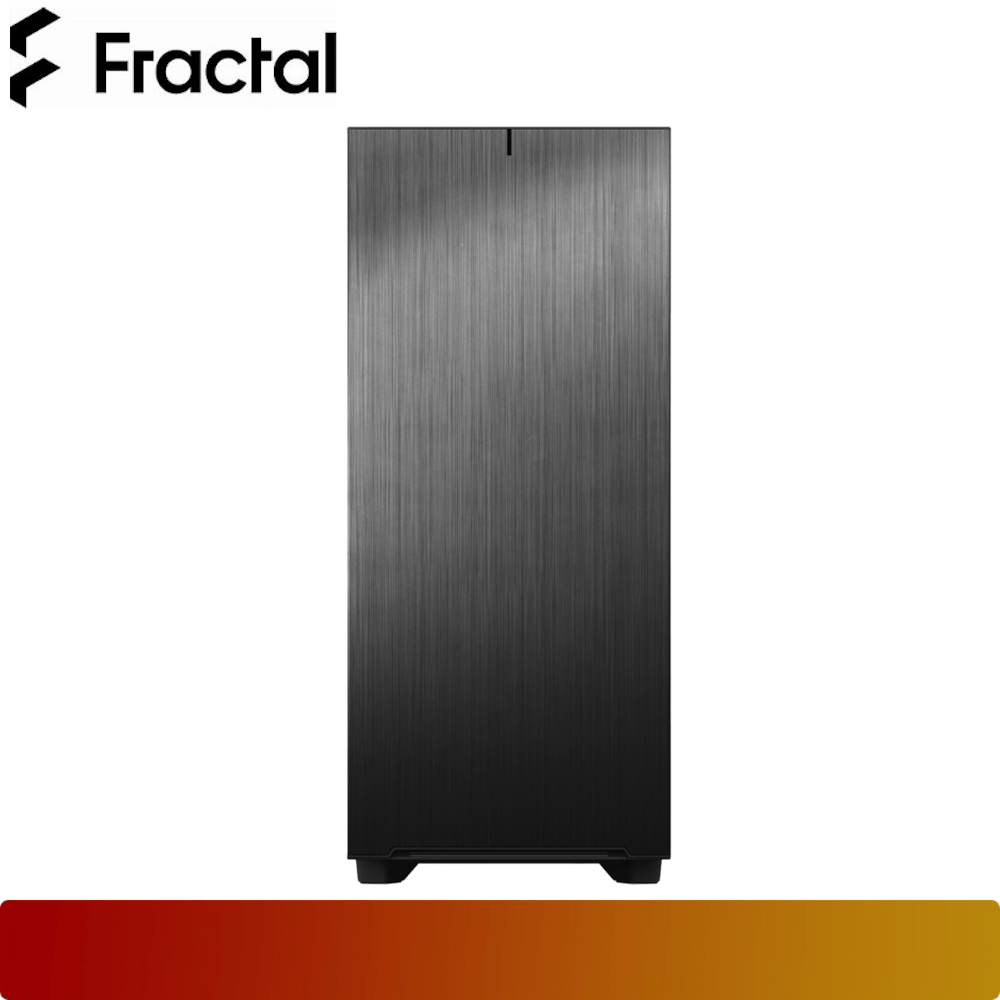

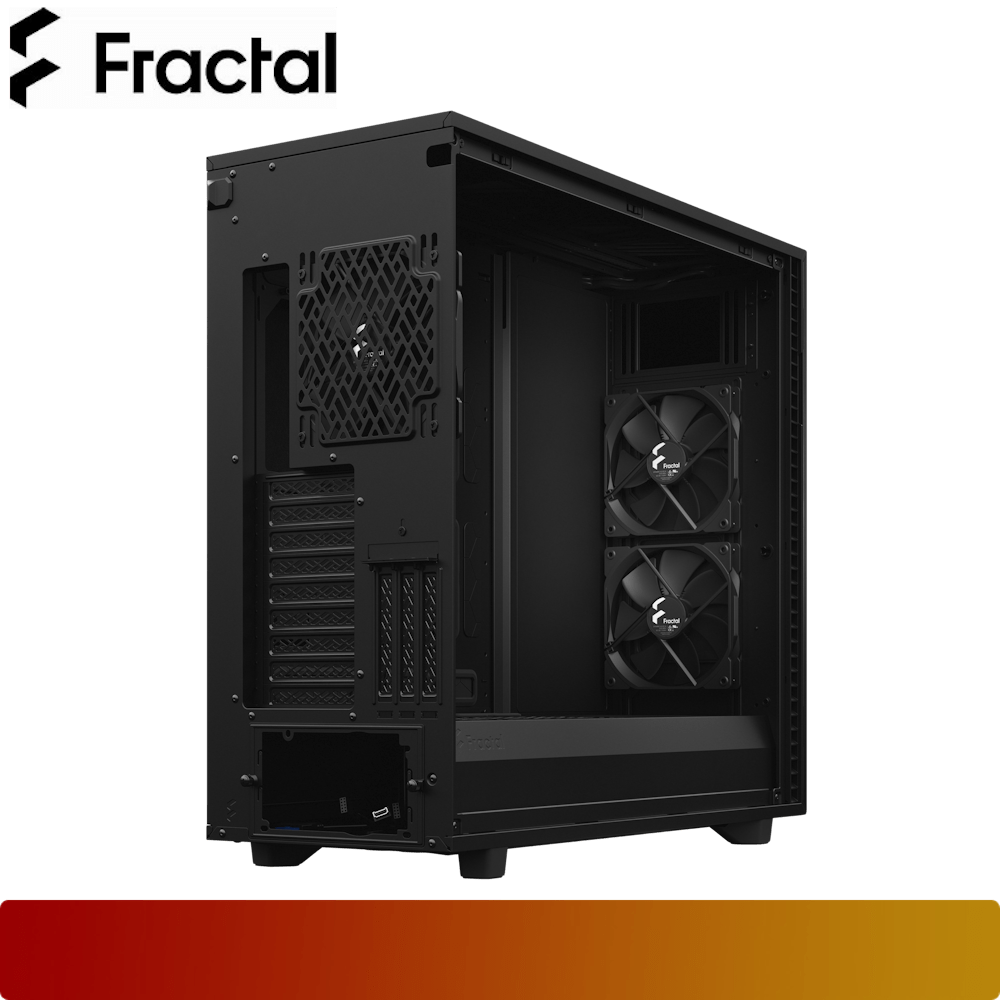

Fractal Design Define 7 XL
Rp 3.469.000
Also available at:
Product description
| General | |
|---|---|
| 3.5"/2.5" Universal drive brackets | 6 + 2 included, 18 positions total |
| Dedicated 2.5" drive brackets | 2 included, 5 positions total |
| 5.25” drive mounts | 2 |
| Expansion slots | 9 + 3 |
| Front ports | 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 11 x 120 mm or 9 x 140 mm |
| Front fan | 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) |
| Top fan | 4 x 120 mm or 3 x 140 mm |
| Rear fan | 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Top, 2 x Front, Bottom + PSU |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Left side panel | Industrial sound-damped steel or Tempered Glass |
| Right side panel | Industrial sound-damped steel |
| Compatibility | |
| Motherboard compatibility | E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB |
| Power supply type | ATX |
| PSU max length | 250 mm (both HDD cages installed) |
| GPU max length | Storage layout: 340 mm Open layout: 530 mm (505 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 480/420 mm |
| Top radiator | Up to 480/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Vertical GPU Support (with Flex B-20 or Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Dimensions | |
| Case dimensions (LxWxH) | 604 x 240 x 566 mm |
| Case dimensions w/o feet/protrusions/screws | 590 x 240 x 548 mm |
| Package dimensions (LxWxH) | 646 x 357 x 708 mm |
| Other | |
| Warranty | 2 Years |
| Package contents | Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays |
| Product code | TG Dark Tint: FD-C-DEF7X-03, TG Light Tint: FD-C-DEF7X-02 |
