FSP VITA GM 1000W White

Name: FSP VITA GM 1000W White
Brand: FSP
Price: 2329000.0 IDR
Availability: InStock

Rp 2.329.000

Compare

Brand: FSP

SKU: 845685014825

Estimasi Berat: 3.6 kg

Category: PSU

Sub Category: Fully Modular PSU

Fully Modular PSU, ATX 3.1, Input Range 100-240VAC, Total Power 1000W, 80 Plus Gold, Form Factor ATX, 150 x 140 x 86 mm

1 left

Also available at:

Model

VITA-1000GM (White Edition)

Rated Output Power

1000W

Form Factor

ATX12V V3.1 / EPS 12V V2.92 (Compact 140mm depth)

80 PLUS Certification

Gold (Efficiency ≥90% at typical load)

Cybenetics Certification

Gold / Lambda A- (Acoustic Noise)

ATX/PCIe Standard

ATX 3.1 & PCIe 5.1 (Native 12V-2x6 Connector Included)

Cabling Type

Fully Modular (Features All-White Cables & Connectors)

Input Voltage / Current

100-240V ~ 12-6A

Input Frequency

50-60Hz

PFC

Active (≥ 0.9)

Fan Type

120mm Hydraulic Bearing (HYB) Fan

Dimensions (L x W x H)

140 x 150 x 86 mm

Protections

OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

Operation Temperature

40°C

Warranty

10 Years

DC Output / Max Current / Max Combined Power

DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	83.33A	0.3A	3A
Max Combined Power	100W		1000W	3.6W	15W

Total Power: 1000W

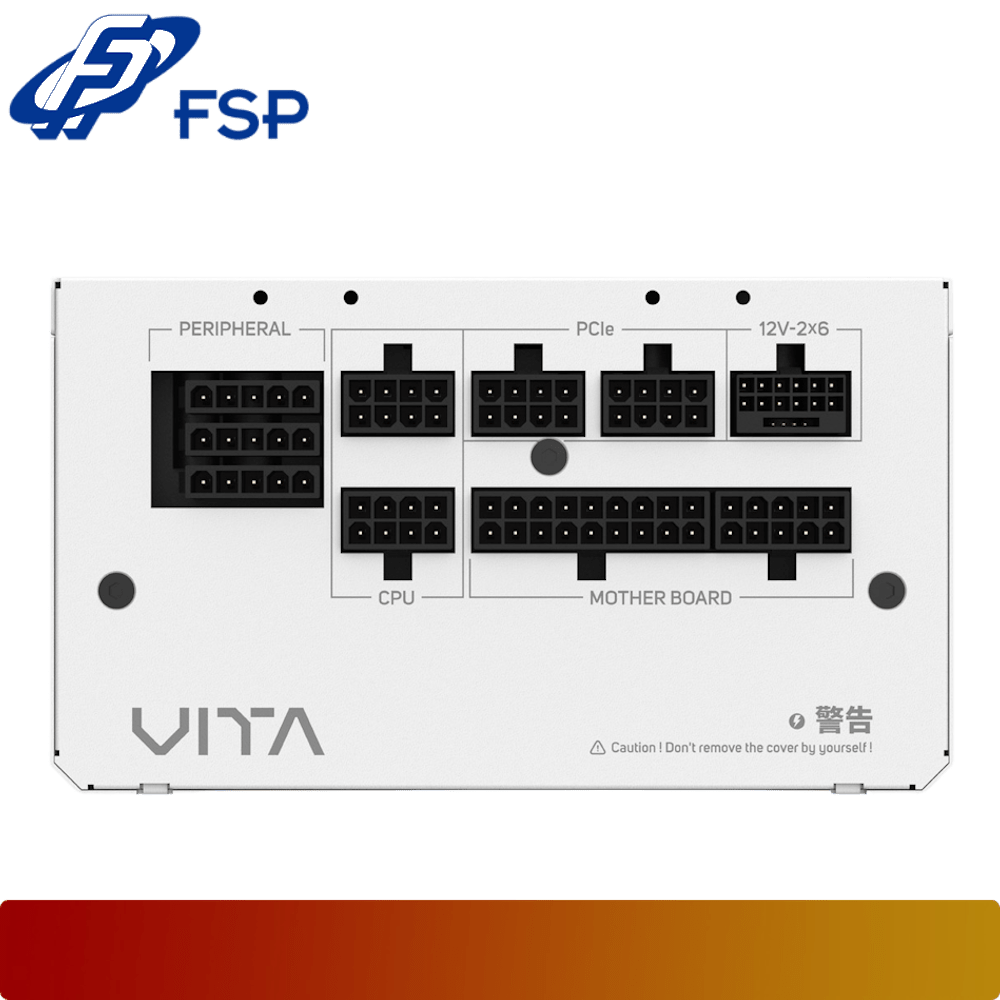

Connectors (Fully Modular, All-White)

MB 20+4 PIN: 1 connector (600 mm)
CPU 4+4 PIN: 2 connectors (on 2 separate cables, 700 mm each)
PCIe 6+2 PIN: 4 connectors (on 2 cables, 800 mm each)
PCIe 12V-2x6: 1 connector (700 mm, sleeved cable)
SATA: 8 connectors (4 on one cable, 4 on two shared SATA/MOLEX cables)
Molex (Peripheral): 4 connectors (on two shared SATA/MOLEX cables, 910 mm)
