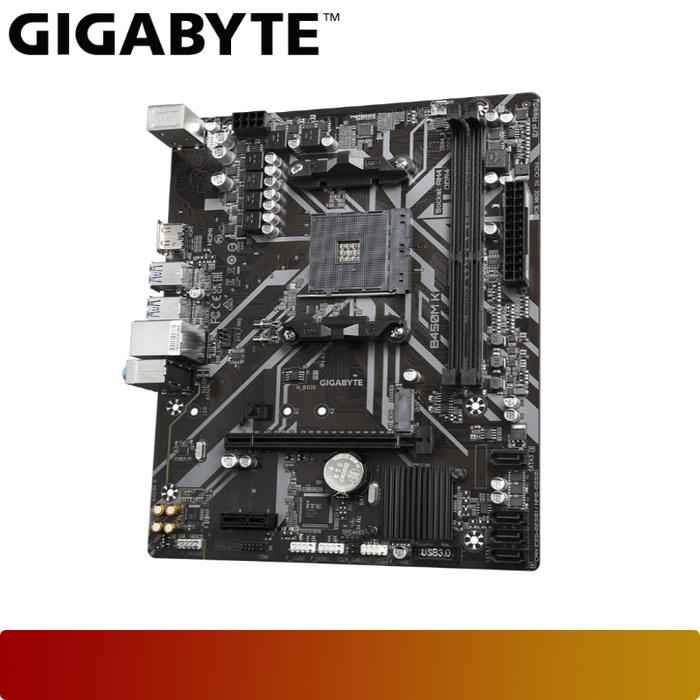

GIGABYTE B450M K

CPU
- AMD Socket AM4

Chipset
- AMD B450

Memory
- Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel

LAN
- Realtek® GbE LAN chip (1 Gbps/ 100 Mbps)

Expansion Slots
- CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1

Storage Interface
- 1 x M.2 connector Socket 3, M key, type 22110/2280/2260/2242
- 4 x SATA 6Gb/s connectors

BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- Support for Windows 7 64-bit

Form Factor
- Micro ATX Form Factor; 24.4cm x 19.5cm
