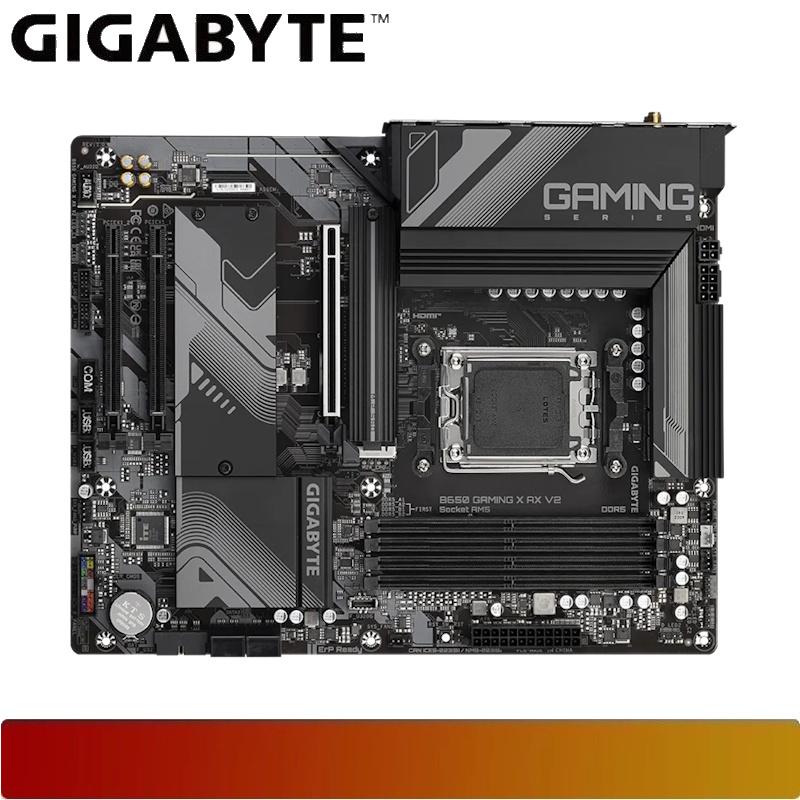

GIGABYTE B650 GAMING X AX V2

Name: GIGABYTE B650 GAMING X AX V2
Brand: Gigabyte
Price: 3699000.0 IDR
Availability: InStock

Rp 3.699.000

Compare

Brand: Gigabyte

SKU: 889523041376

Estimasi Berat: 2.5 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD B650 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 3 Slot NVMe, WiFi 6E, Bluetooth 5.2, Support Desktop Processors Socket AMD AM5, ATX Form Factor

2 left

Also available at:

Model	B650 GAMING X AX V2 (rev. 1.x)
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 8000(OC)/.../4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB Dual channel memory architecture, support for AMD EXPO™ & XMP
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort (max. 3840x2160@144 Hz) 1 x HDMI port (max. 4096x2160@60 Hz)
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & Bluetooth	Realtek® Wi-Fi 6E RTL8852CE / AMD Wi-Fi 6E RZ616 / Intel® Wi-Fi 6E AX210 (tergantung revisi PCB) Mendukung Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) dan Bluetooth 5.2/5.3
Expansion Slots	1 x PCI Express x16 slot (PCIEX16, CPU Integrated, supports PCIe 4.0 x16/x8/x4 mode) 2 x PCI Express x16 slots (Chipset Integrated, supports PCIe 3.0 x1 mode)
Storage Interface	1 x M.2 connector (M2A_CPU, supports PCIe 5.0 x4/x2 SSDs) 1 x M.2 connector (M2B_CPU, supports PCIe 4.0 x4/x2 SSDs) 1 x M.2 connector (M2C_SB, supports PCIe 4.0 x4/x2 SSDs) 4 x SATA 6Gb/s connectors Support for RAID 0, 1, dan 10
USB (Rear Panel)	1 x USB Type-C® port (USB 3.2 Gen 2) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports
Internal I/O Headers	1 x USB Type-C® header (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 3 x M.2, 4 x SATA, Power Connectors (24-pin, 8-pin, 4-pin), Fan/Pump Headers (Total 5), Addressable/RGB LED Headers, TPM, Serial Port Header, dll.

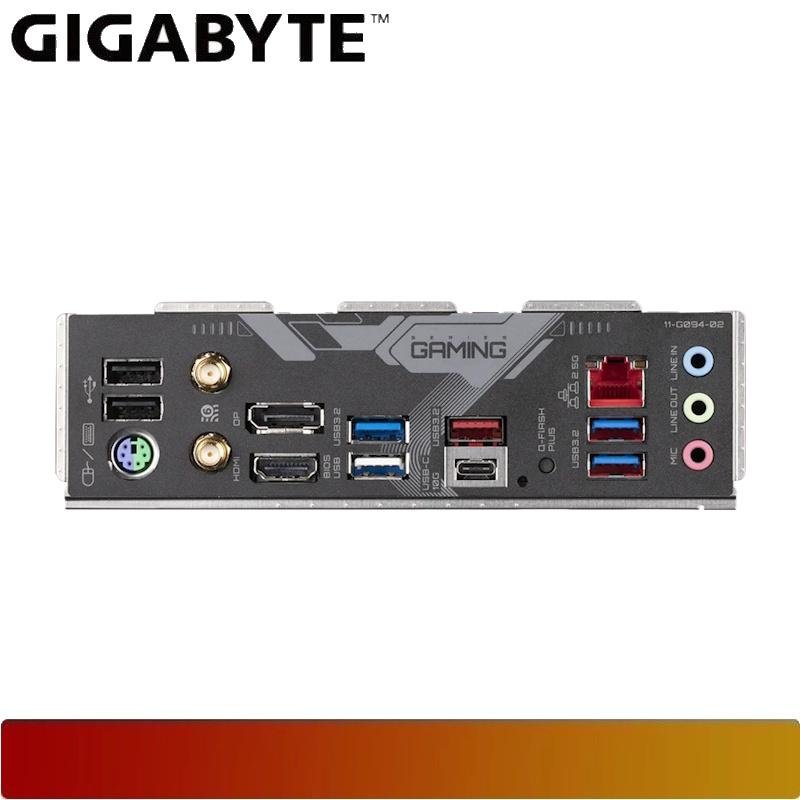

Back Panel Connectors	2x SMA antenna, Q-Flash Plus button, DisplayPort, HDMI, 1x USB Type-C Gen 2, 1x USB 3.2 Gen 2 Type-A (red), 3x USB 3.2 Gen 1, 3x USB 2.0/1.1, RJ-45, 3x Audio Jacks
Form Factor	ATX Form Factor (30.5cm x 24.4cm)
Operating System	Support for Windows 11 64-bit dan Windows 10 64-bit
