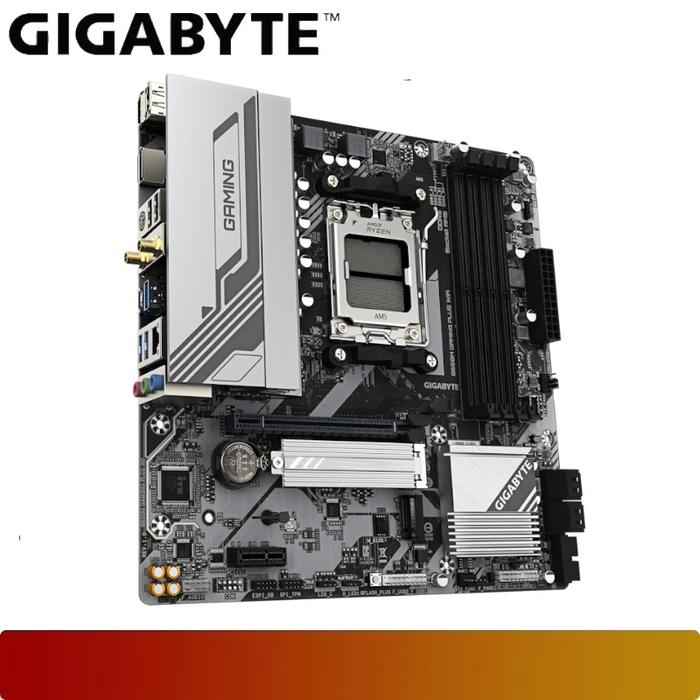

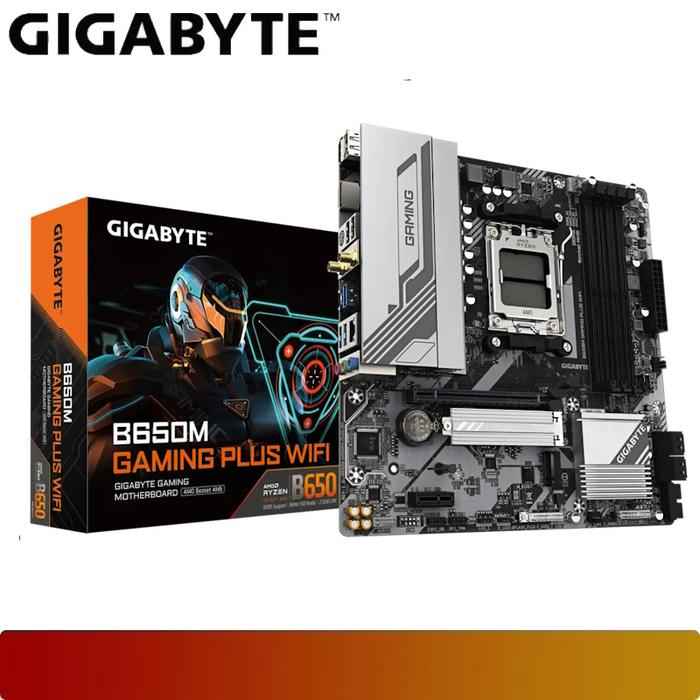

GIGABYTE B650M GAMING PLUS WIFI
Rp 2.399.000
Also available at:
Product description
| Model | B650M GAMING PLUS WIFI (rev. 1.0/1.1/1.2) |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8000(OC)/.../4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB Dual channel memory architecture Support for non-ECC Un-buffered DIMM, AMD EXPO™ and XMP memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 2 x DisplayPorts (max. 3840x2160@144 Hz) 1 x HDMI port (max. 4096x2160@60 Hz) Support for up to triple-display at the same time |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | **rev. 1.0:** Realtek® Wi-Fi 6E RTL8852CE (WIFI a/b/g/n/ac/ax, 2.4/5/6 GHz, BLUETOOTH 5.3, 11ax 160MHz) **rev. 1.1/1.2:** Realtek® Wi-Fi 6 RTL8851BE (WIFI a/b/g/n/ac/ax, 2.4/5 GHz, BLUETOOTH 5.3, 11ax 80MHz) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (supports PCIe 4.0 x16/x8/x4 mode) 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset (supports PCIe 3.0 x1) |
| Storage Interface | 1 x M.2 connector (M2A_CPU, PCIe 4.0 x4/x2) - CPU Integrated 1 x M.2 connector (M2C_SB, PCIe 4.0 x4/x2) - Chipset Integrated 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 (NVMe SSDs and SATA devices) |
| USB (Rear Panel) | 1 x USB Type-C® port (USB 3.2 Gen 1) 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |

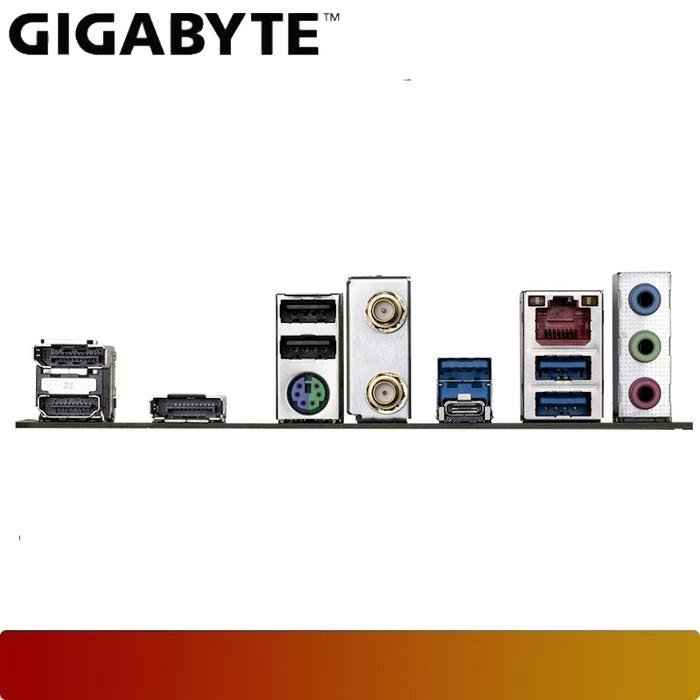

| Back Panel Connectors | PS/2, USB Type-C/A, HDMI, 2x DisplayPorts, 2x Antenna Connectors, RJ-45, 3x Audio Jacks, Q-Flash Plus button |
| Internal I/O Headers | ATX Power (24-pin, 8-pin), CPU/System Fan, 2x Addressable LED, 1x RGB LED, 2x M.2, 4x SATA, Front Panel/Audio, USB Type-C (Gen 1), USB 3.2 Gen 1, 2x USB 2.0/1.1, Q-Flash Plus, Reset/Clear CMOS jumpers, TPM header |
| H/W Monitoring | Voltage, Temperature, Fan speed detection, Fan fail warning, Fan speed control |
| Operating System | Support for Windows 11 64-bit dan Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
