GIGABYTE B760M AORUS ELITE WIFI6E GEN5

Name: GIGABYTE B760M AORUS ELITE WIFI6E GEN5
Brand: Gigabyte
Price: 3369000.0 IDR
Availability: OutOfStock

Rp 3.369.000

Compare

Brand: Gigabyte

SKU: 889523049976

Estimasi Berat: 2.0 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B760 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 2 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, Micro ATX Form Factor

Out of stock

Also available at:

Unique Features	Advanced Thermal Design (Fully Covered MOSFET Heatsinks) Twin 12*+1+1 Digital VRM Design Mendukung PCIe 5.0 x16 Slot Intel® 2.5GbE LAN & Intel® Wi-Fi 6E Ultra Durable™ PCIe Armor
CPU (Soket)	Mendukung Prosesor Intel® Core™ Generasi ke-14, ke-13, & ke-12 (LGA1700).
Chipset	Intel® B760 Express Chipset
Memory	Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Kapasitas Maksimal: 192GB Mendukung DDR5 non-ECC, un-buffered memory hingga 7600(O.C.)/MT/s
Expansion Slots	1 x PCI Express x16 Slot (PCIe 5.0 - x16 mode) (Dari CPU) 1 x PCI Express x16 Slot (PCIe 4.0 - x4 mode) (Dari Chipset) 1 x PCI Express x1 Slot (PCIe 3.0)
Storage (M.2 & SATA)	Total 2x M.2 Slots: 1 x M.2 Connector (Socket 3, M key, PCIe 4.0 x4) (Dari CPU) 1 x M.2 Connector (Socket 3, M key, PCIe 4.0 x4) (Dari Chipset) 4 x SATA3 6.0 Gb/s Connectors
Graphics Output	1 x HDMI Port (Max. 4096x2160@60 Hz) 1 x DisplayPort (Max. 7680x4320@60 Hz) *Memerlukan CPU dengan Grafis Terintegrasi.
Audio	Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel
LAN & Wireless	LAN Kabel: Intel® 2.5GbE LAN chip (2.5 Gb/s) Nirkabel: Wi-Fi 6E (Intel® Wi-Fi 6E AX211) + Bluetooth 5.3

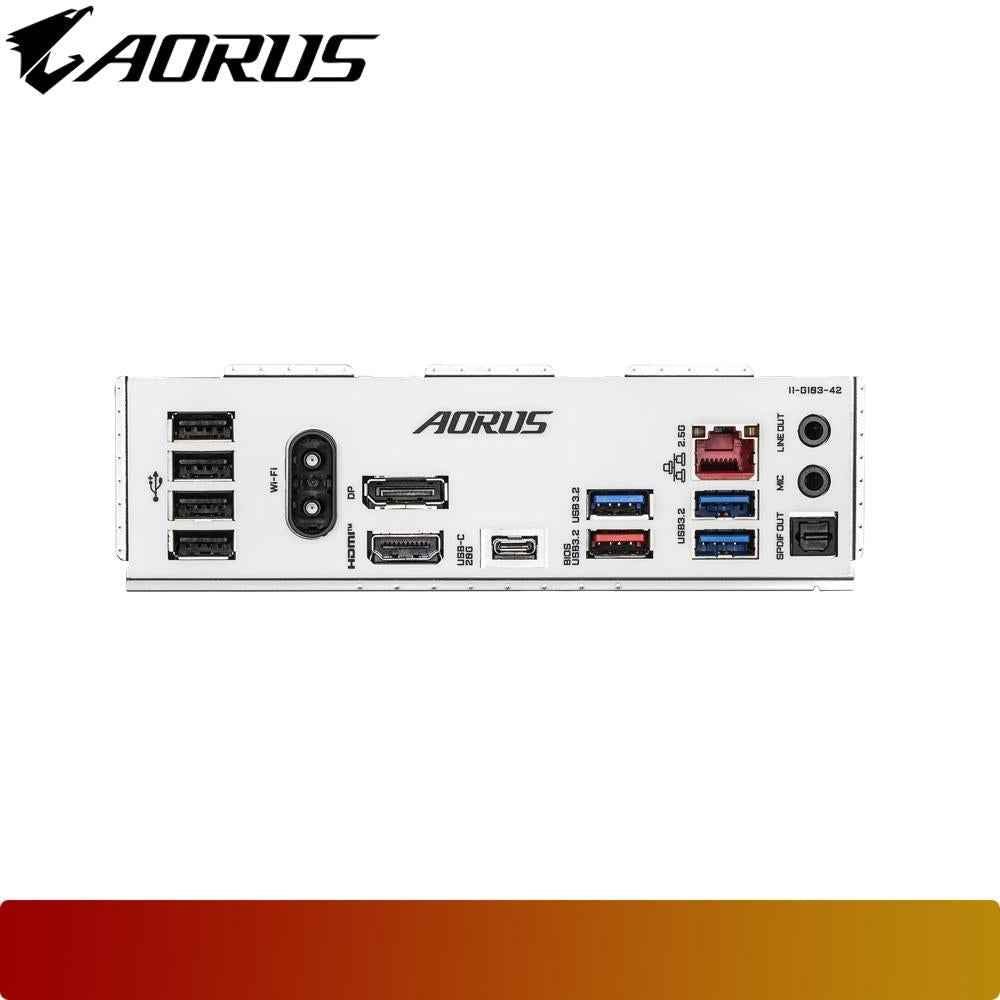

Rear Panel I/O	1x USB 3.2 Gen 2 Type-A Port (10 Gb/s) 1x USB 3.2 Gen 2 Type-C Port (10 Gb/s) 3x USB 3.2 Gen 1 Ports (5 Gb/s) 4x USB 2.0/1.1 Ports 1x HDMI, 1x DisplayPort 2x SMA Antenna Connectors (2T2R) 1x RJ-45 LAN Port, 3x Audio Jacks
Form Factor	Micro ATX Form Factor (24.4 cm x 24.4 cm)
OS	Support for Windows 11 64-bit / Windows 10 64-bit
